FS2A 4CH AFHDS 2A Compatible Receiver PWM Output for Flysky I6 I6X I6S Transmitter

• FS2A 4CH AFHDS 2A Mini Receiver.
• Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter

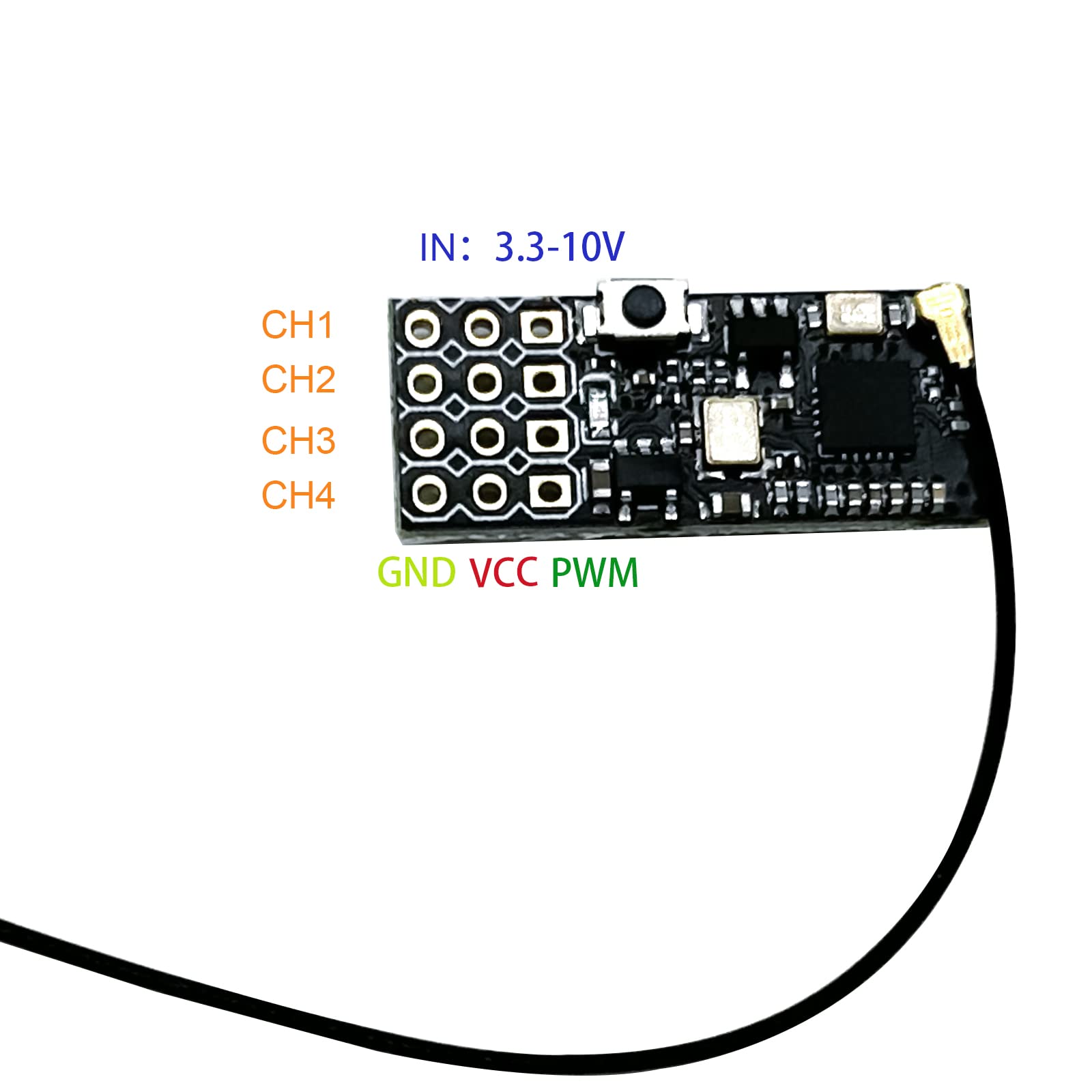

• Frequency range: 2.408-2.475GHZ ，Channels: 4CH，Output signal: PWM
• Band width: 135 Receiver sensitivity: -92DBM ，Size: 11 * 25MM,micro receiver.
• The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

FS2A 4CH Receiver: 2.4G mode: AFHDS 2A Failfe: Yes Supply voltage: 3.3-10V Distance: 400+ meters Working current: 20MA Size: 11 * 25MM Weight: 0.9 grams FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S Transmitter Remote Controller Bind: 1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode. 2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash. 3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful. Failsafe settings: The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.
