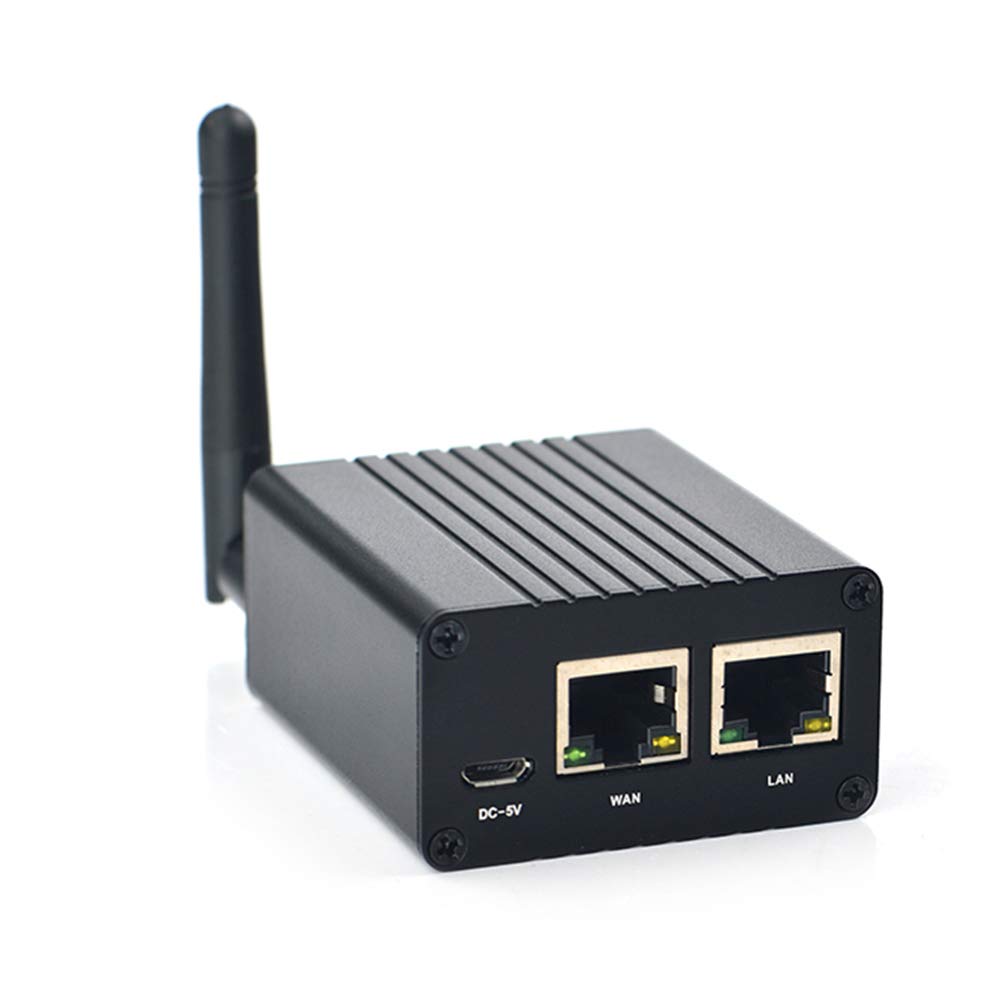

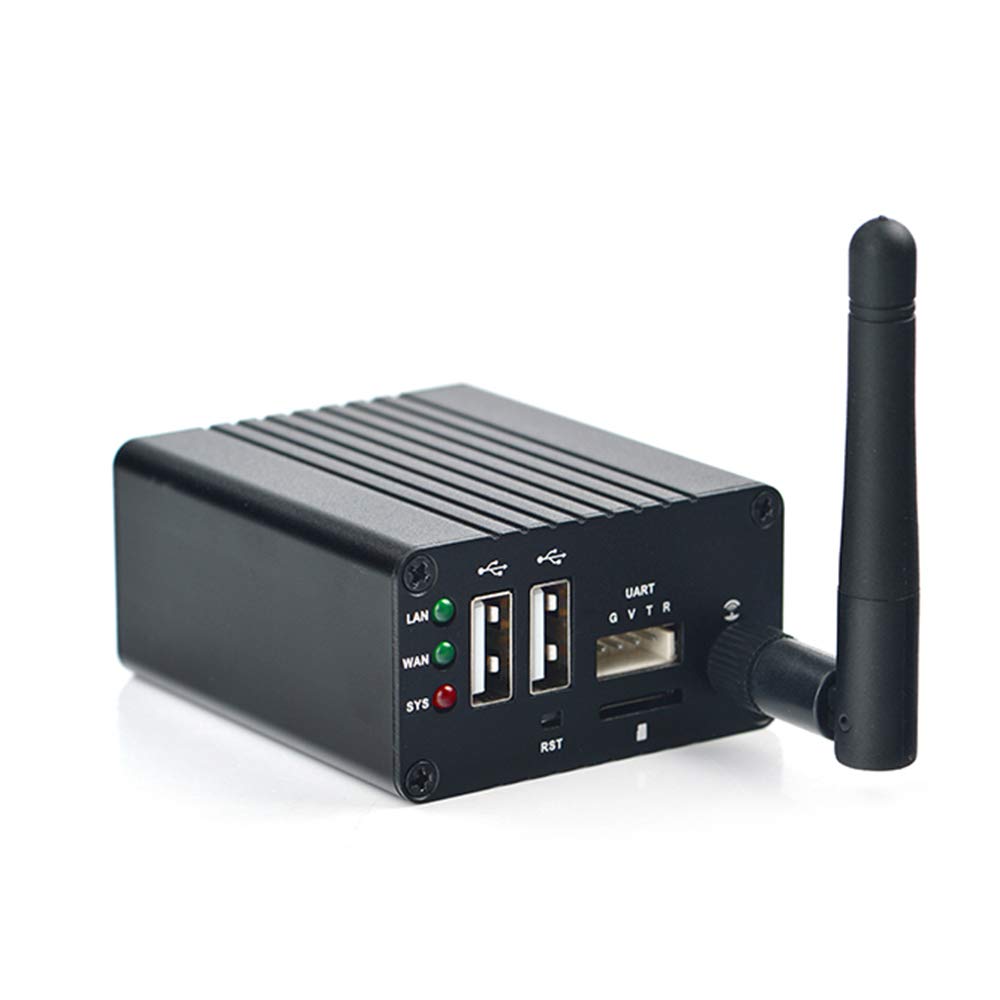

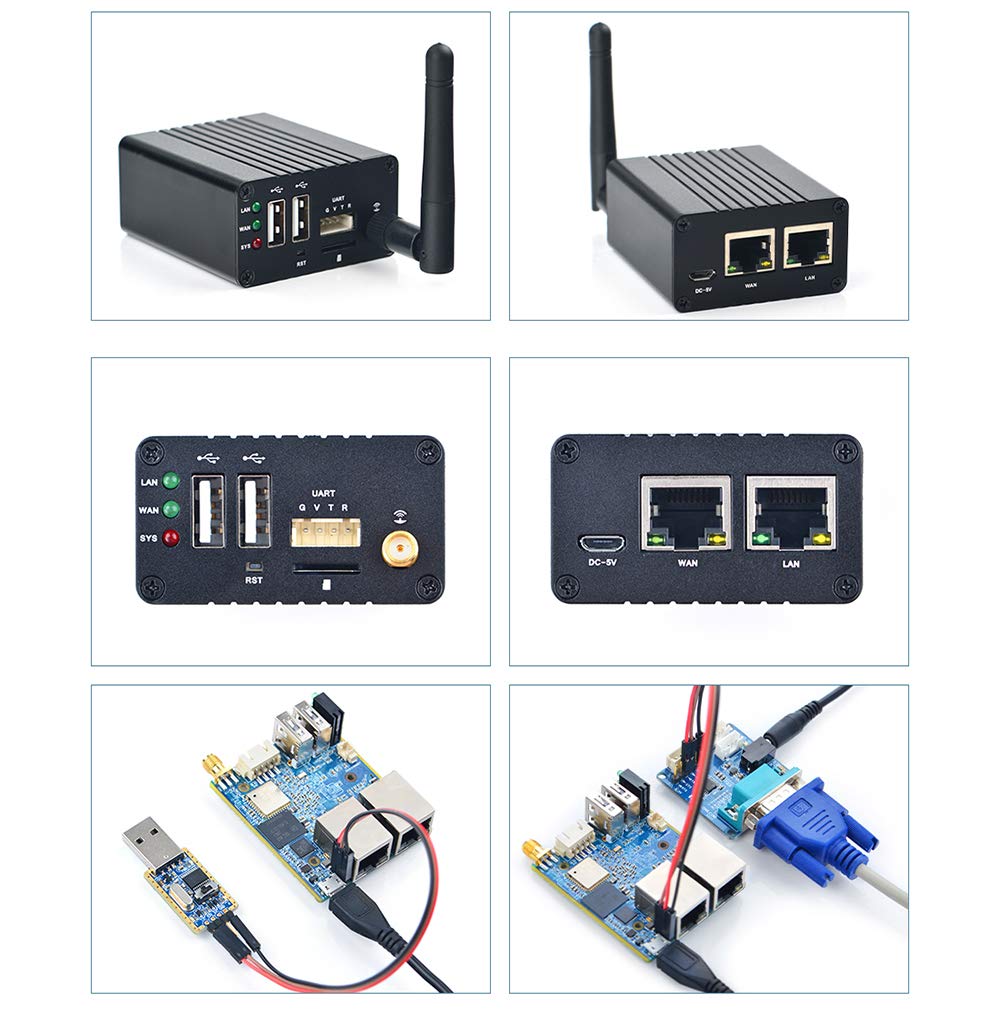

Nanopi R1 WiFi Mini Portable Travel Router OpenWRT with Dual Ethernet Ports 1GB DDR3 Based in Allwinner H3 Soc for IOT NAS Smart Home Gateway

• [WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R1 onboard WiFi & Bluetooth.Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
• [OPEN SOURCE & PROGRAMMABLE] It can support FriendlyWrt, which is a customized system based on an OpenWrt distribution. It is open source and well suitable for developing IoT applications, NAS applications, smart home gateways etc
• [DUAL ETHERNET PORTS] The NanoPi R1 has two Ethernet ports,1 WAN with 10/100/1000M Ethernet and 1 LAN 10/100M Ethernet
• [LARGER STORAGE & EXTENSIBILITY] 1 GB RAM DDR3, up to 128GB MicroSD slot, USB 2.0 port x2
• [USER MANUAL & PACKAGE CONTENTS]WIKI:https://youyeetoo.com/blog/nanopi-r1-70. NanoPi R1 Portable MINI Router with 1-year limited warranty.Package include: NanoPi R1x1;Metal Casex1; Micro USB Cable. Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click "SmartFly Tech" and ask a question

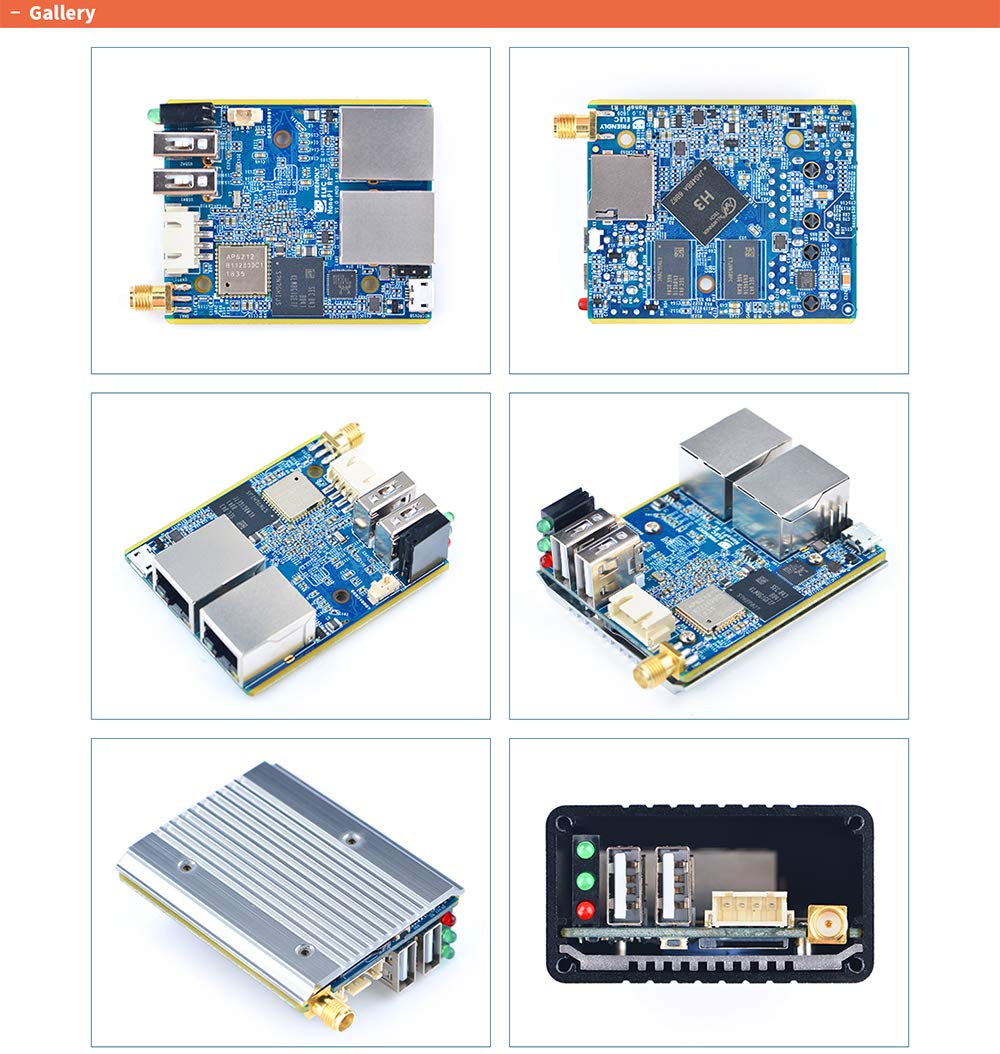

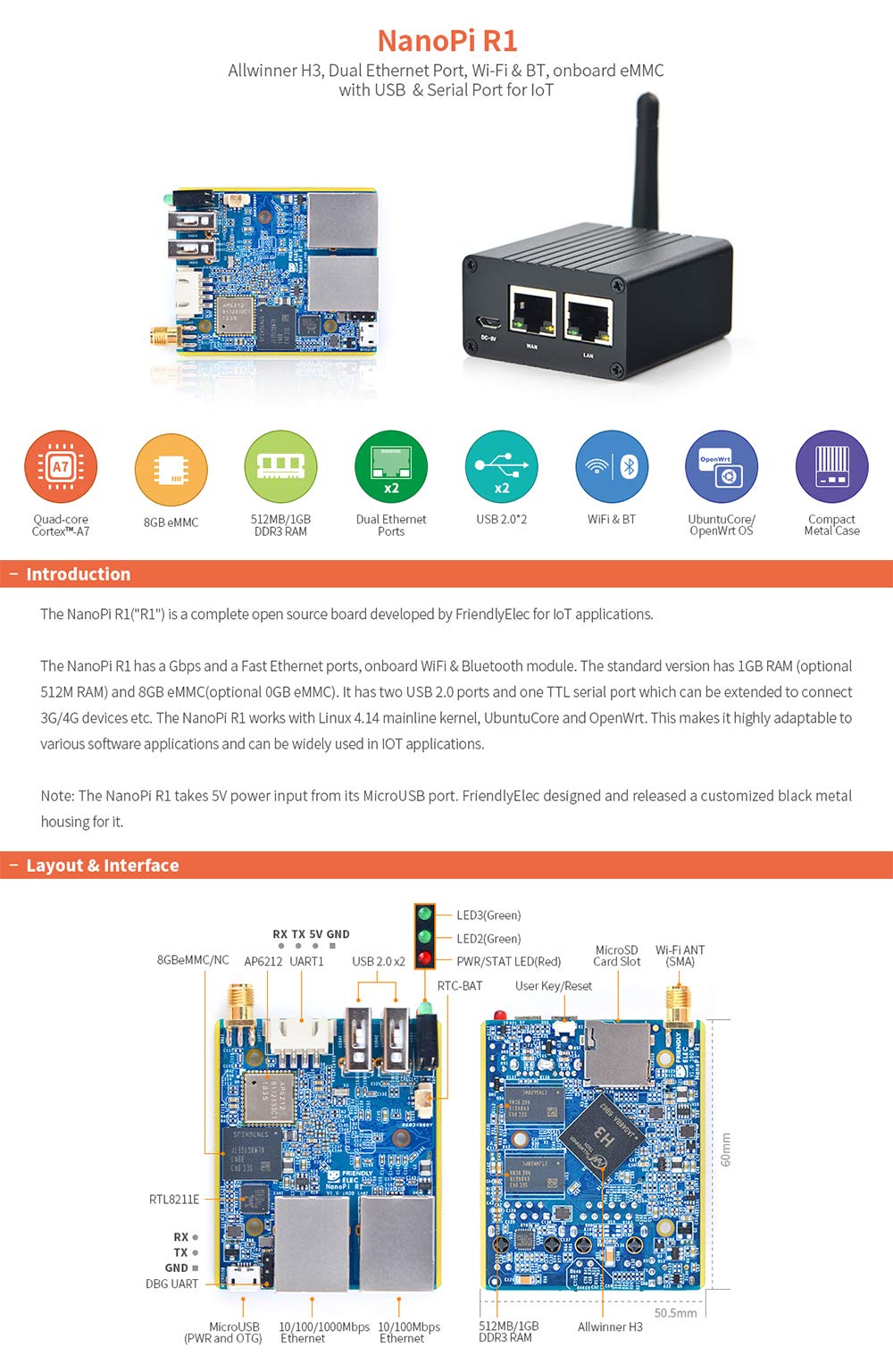

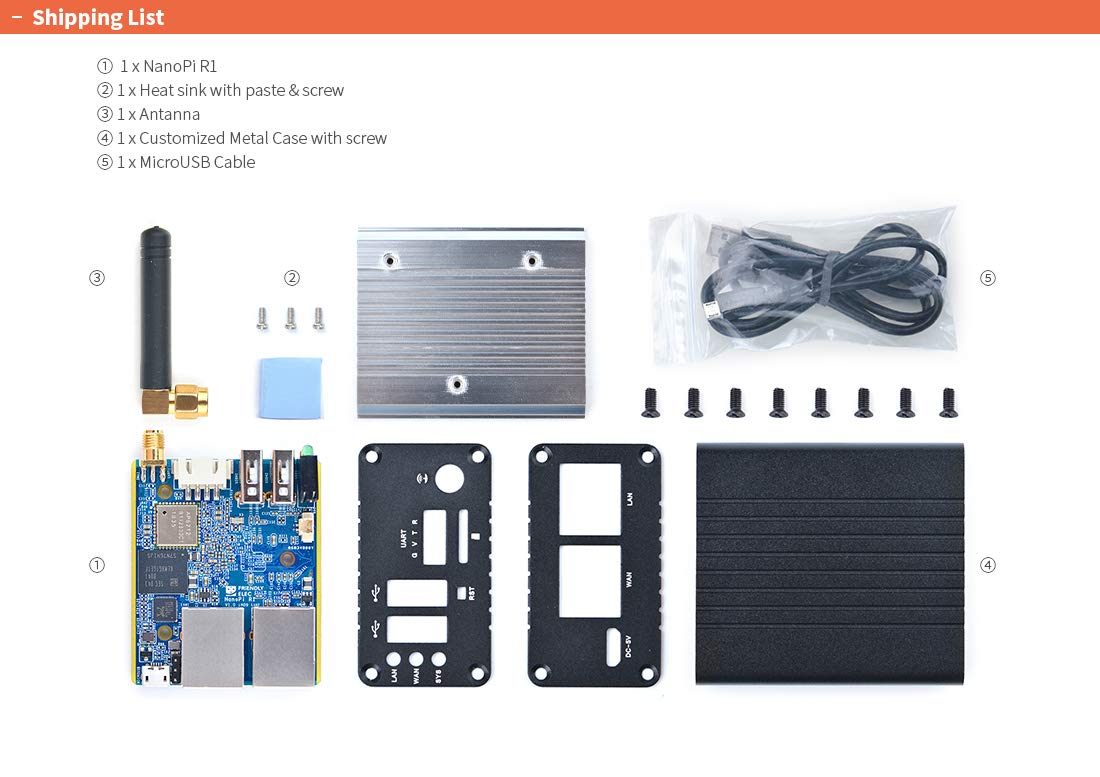

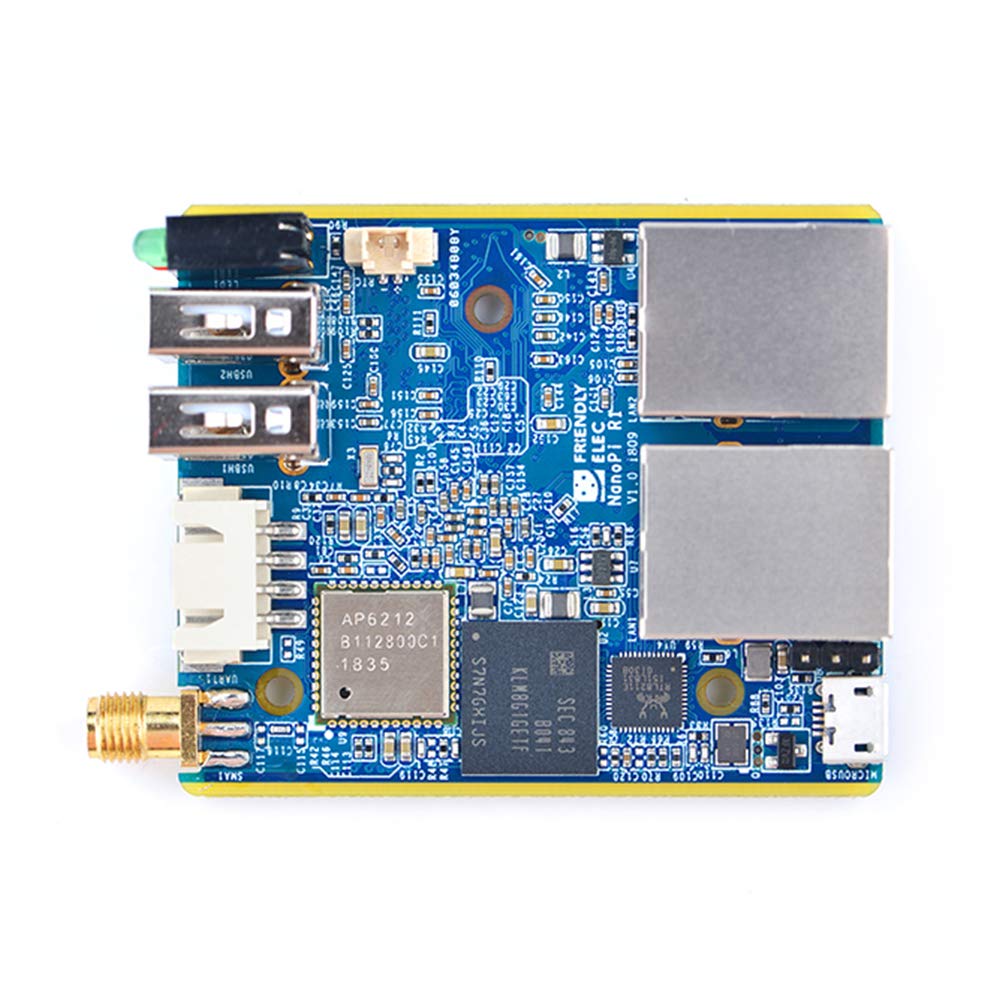

The NanoPi R1 is a complete open source router board with Gbps and fast Ethernet ports for loT appliacitons. Memory RAM: 1GB(32-bit) CPU Model: Allwinner H3 Number of Cores: Quad-core Frequency: 4*Cortex-A7 Up to 1.2GHz Storage eMMC: 8GB Connectivity Ethernet: 10/100M Ethernet x110/100/1000M Ethernetx 1 WiFi: based on AP6212 Module, 802.11b/g/n, with SMA antenna USB: Micro USB*1: Micro USB 2.0, OTG & Power In USB Host:2.0 Type A x2 OS Support: FriendlyCore(based on UbuntuCore-16.04) ; OpenWrt; eFlasher Kernel version: Linux-4.14-LTSU-boot-2017.11 Weight: 33g(only board)/125g(with metal case & heat sink) Power: MicroUSB DC 5V/2A Temperature: -20℃ to 70℃ PCB: 6 Layer Shipping list : 1x NanoPi R1 1GB 1x Heat sink with paste & screw 1x Antenna 1x Customized Metal Case with screw 1x Micro USB Cable Technical Support: monica@smartfire.cn Skype: monica_9122 Product Custmozation: monica@smartfire.cn
