Fridgestea Concrete Vibrating Motor with Adjustable Vibration Force, 60W Single Phase Electric Vibrating Motor with 3000RPM, Vibrator Motor with UK Plug for Shaker Table/Sand Screening - Orange

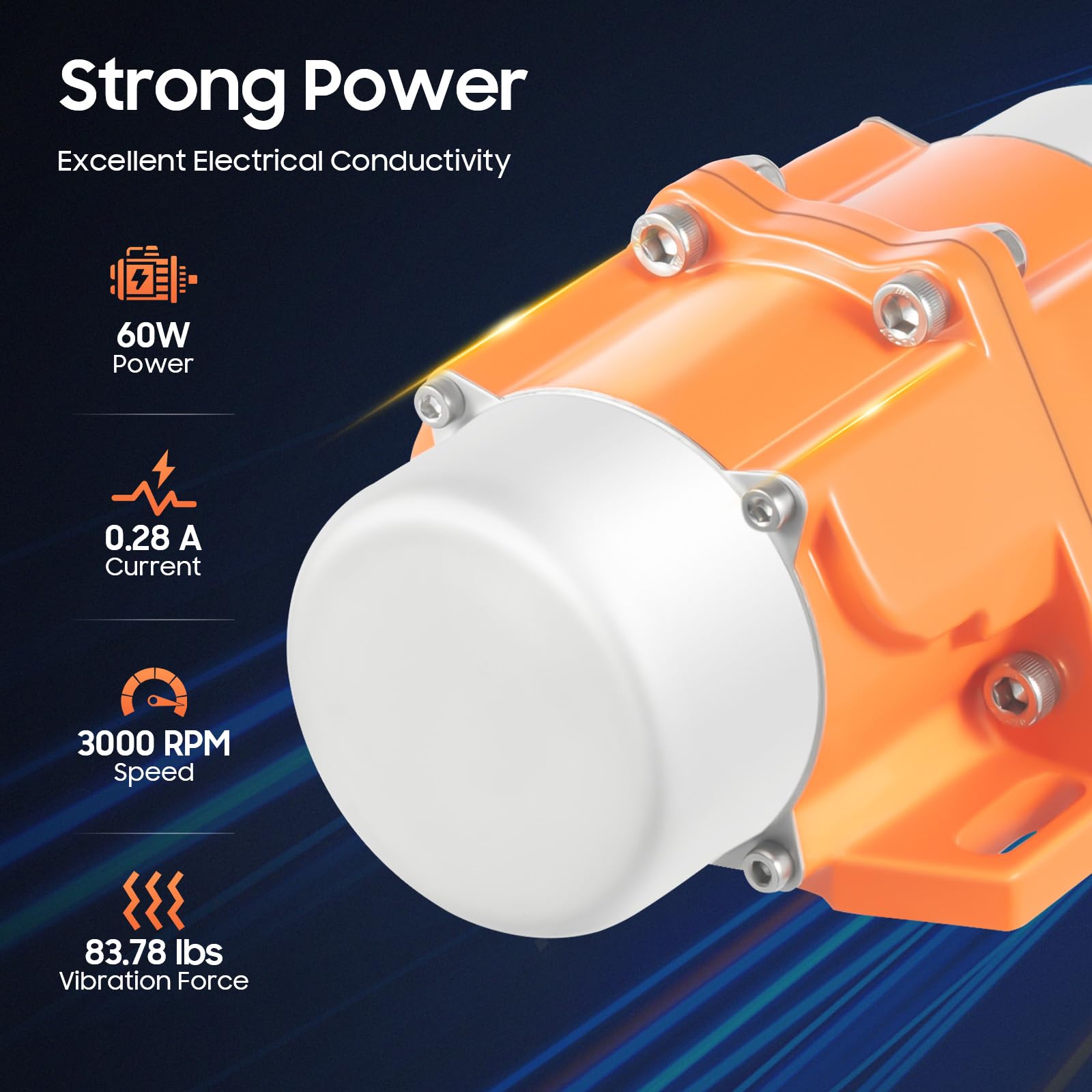

• 【High-Performance & Durable Motor】This single-phase electric vibrating motor is constructed with aluminum alloy housing and pure copper windings combined with cold-rolled silicon steel sheets, ensuring exceptional impact and scratch resistance. With 60W power and 3000 RPM speed, the vibration motor generates a powerful force of 38 kg (83.78 lbs) for various industrial applications.
• 【Energy-Efficient & Reliable Continuous Operation】The asynchronous concrete vibrating motor achieves up to 85% efficiency, featuring quick start-up and effective heat dissipation. High-precision carbon steel bearings and fully enclosed design guarantee stable, safe, and quiet operation even during prolonged use.

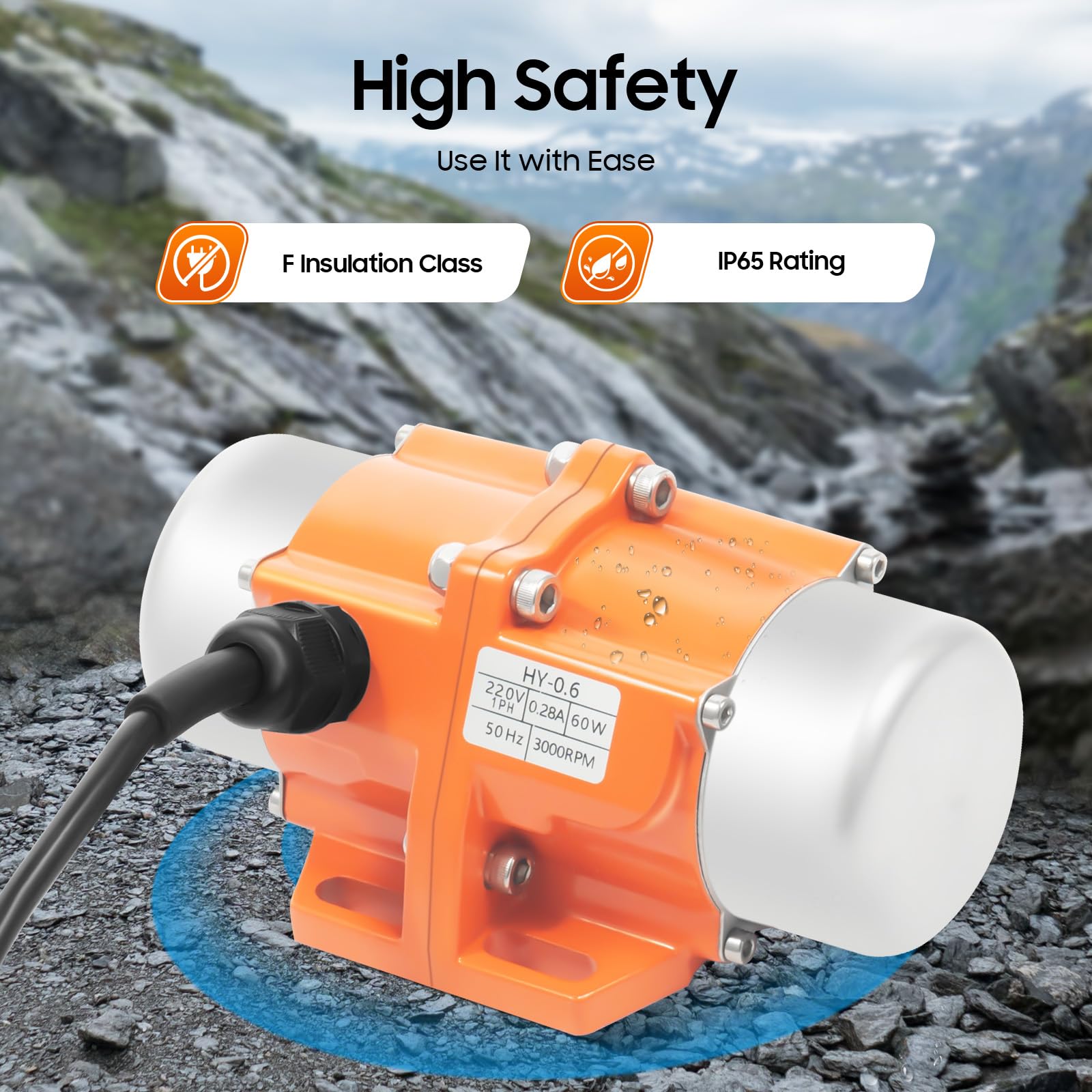

• 【Adjustable Vibration Force for Versatile Applications】Featuring customizable eccentric blocks, this vibration motor allows flexible adjustment of vibration intensity to perfectly adapt to different work requirements. With IP65 protection rating and Class F insulation, it ensures safe operation under various conditions.
• 【Wide Industrial & Commercial Applications】Ideal for vibrating screens, conveyors, mortar sprayers, and other machinery in mining, construction, and food processing industries. The 1.5m power cable with protective sleeve enhances safety and operational range.

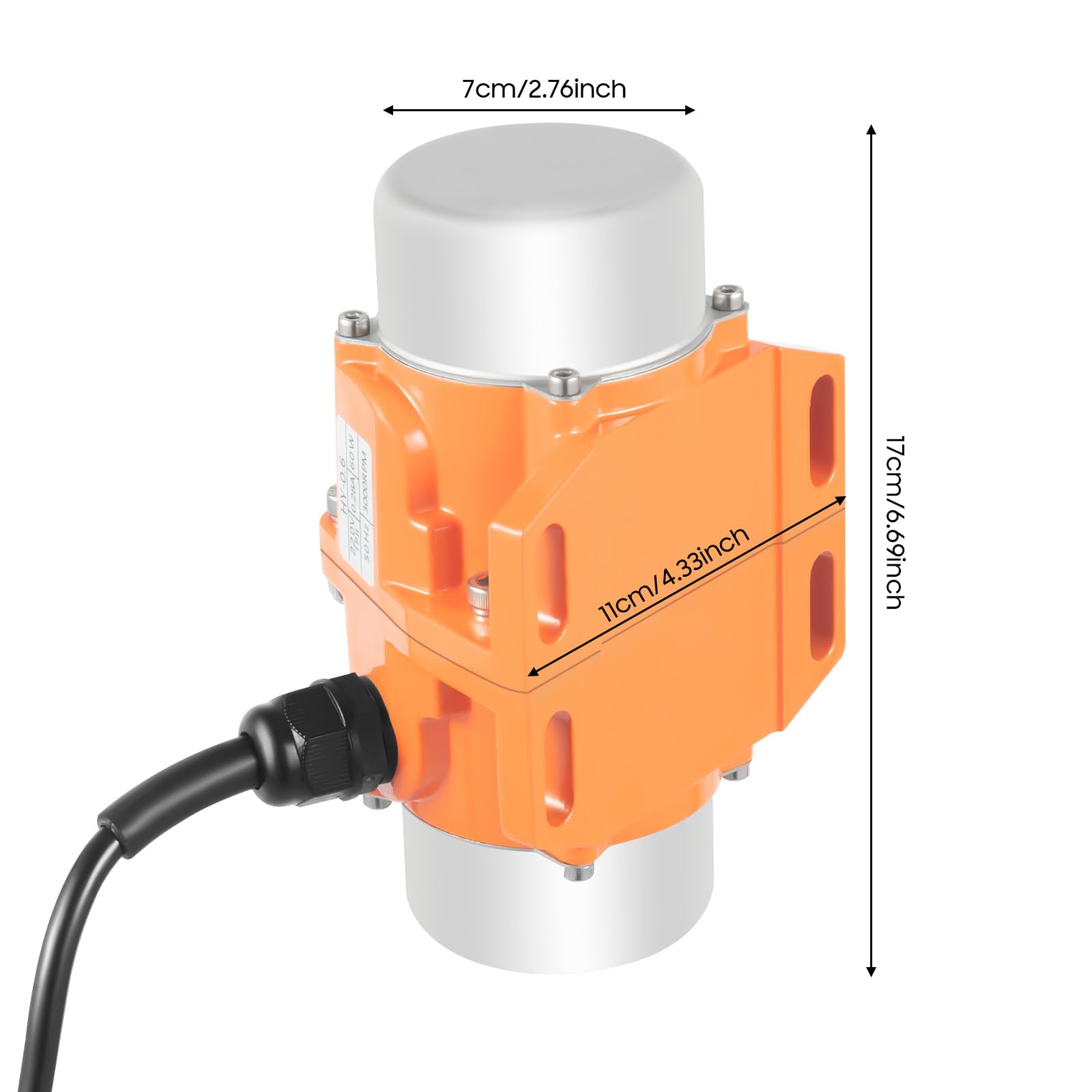

• 【Easy Installation & Low Maintenance】Standardized connections and compact dimensions (17×11×7 cm) enable quick installation. The smooth surface allows effortless cleaning, while the robust design with wide base plate ensures stable operation.

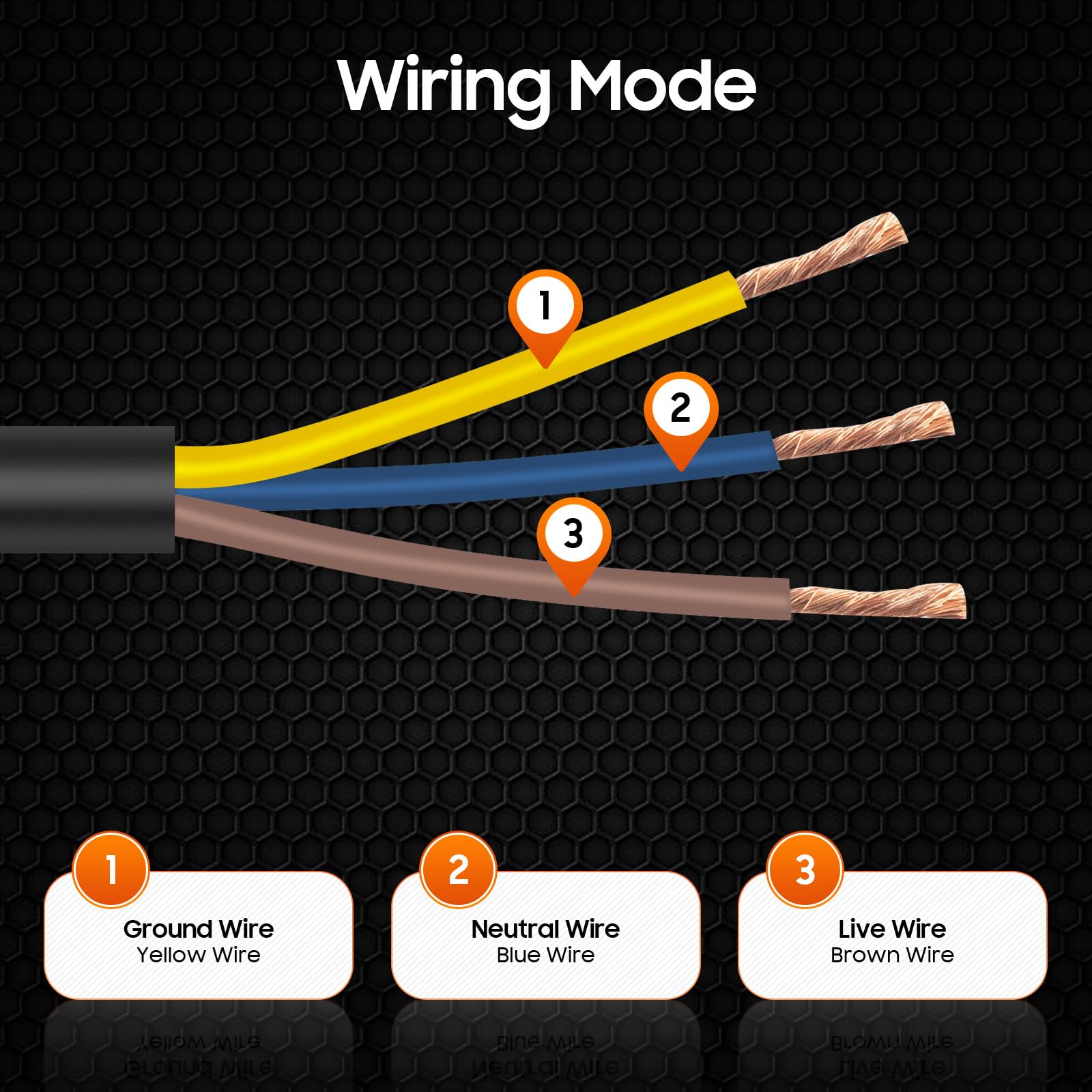

Specification Color: Orange+Silver Material: Aluminum Alloy, Copper, Cold-rolled Silicon Steel, Carbon Steel Type: Single-phase Asynchronous Motor Voltage: 220 V Power: 60W Current: 0.28 A Speed: 3000 RPM Frequency: 50Hz Waterproof Rating: IP65 Insulation Class: F Cooling Method: Self-cooling Output Efficiency: 85% Operating Temperature Range: -20 ~ 50°C/ -4-122 °F Power Cord Length: 1.5 m/ 4.92ft Product Size: About 17*11*7cm/ 6.69 *4.33*2.76 in Package Size: 20*15*10.5 cm/7.87*5.9*4.13 in Vibration Force: 38 kg/83.78 lbs Gross Weight: 2.12 kg/4.67 lbs Net Weight: 2.01 kg/4.43 lbs Package Included 1* Vibration Motor 1* English Manual Notes Please check the style and size before purchasing. Please note that it does not include plugs. The wiring mode is that the yellow wire connects to the ground wire, the blue wire connects to the neutral wire, and the brown wire connects to the live wire. Please read the instruction manual and labels completely before installation and use, and pay particular attention to the safety instructions included. The eccentric blocks on both sides of the vibration motor must be confirmed to be symmetrical. After adjustment, the screw should be fixed tightly to prevent the screw from falling off during vibration. Please remember to regularly check the tightness of the mounting screws and clean the dust on the surface of the vibrating motor. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
