FOURKAY 2x1 1080p Multiviewer Switch with Picture in Picture (PiP), Picture on Picture (PoP). IR and RS232 Control. Supports HDCP 1.2

• Versatile 2 Input to 1 Output HDMI multiviewer switch with resolution scaling feature and multiple display modes.
• Sources can be viewed in Fullscreen or in multiple Picture in Picture (PiP) or Picture on Picture (PoP) modes.
• The size and location of PiP and PoP windows can easily be selected.
• RS232 port and command list makes this switch easy to integrate into automation projects. Sample code available.
• Supports input resolutions up to 1080p@60Hz. HDCP 1.2 & HDMI 1.3a

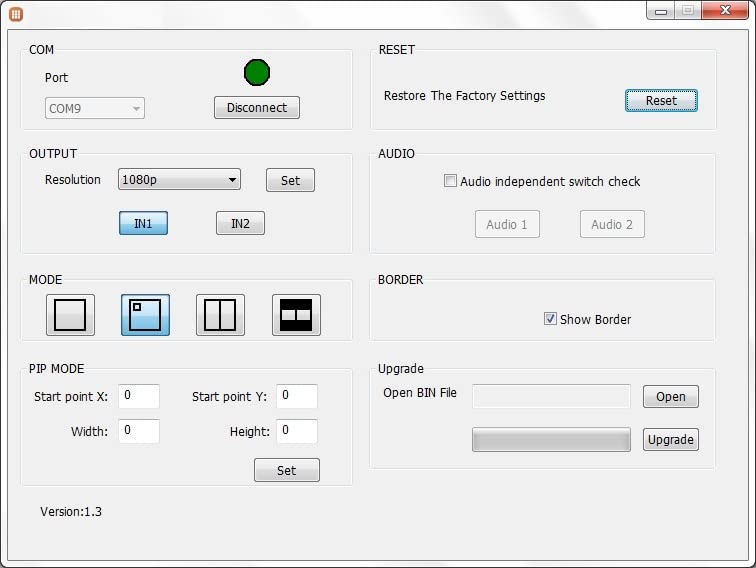

This versatile 2x1 HDMI Multiviewer is well suited to projects requiring customised screen layouts and automation. It can function as a simple 2 way HDMI switch to switch between two inputs in fullscreen mode or it can be used to show both inputs on the display at once in various layouts. The size and position of the PiP window can be selected and displayed with or without border. The switch can easily be controlled with RS232 commands (HEX) or using the control software available from FOURKAY. Sample scripts are available if needed. FEATURES Four operation modes including single display, PIP (picture in picture), POP (picture on picture) and 16:9 POP PIP window size and position can be selected Supports High Definition resolutions up to 1080P@60Hz Output resolution supports 1080p, 720p, 1080i, 1024x768, 1360x768 Supports CEC bypass function Flexible control through on-panel buttons, IR remote control or RS-232 Compliance : HDMI 1.3a HDCP 1.3 Color Space : RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth : 10-bit, 12-bit Audio Formats : PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
