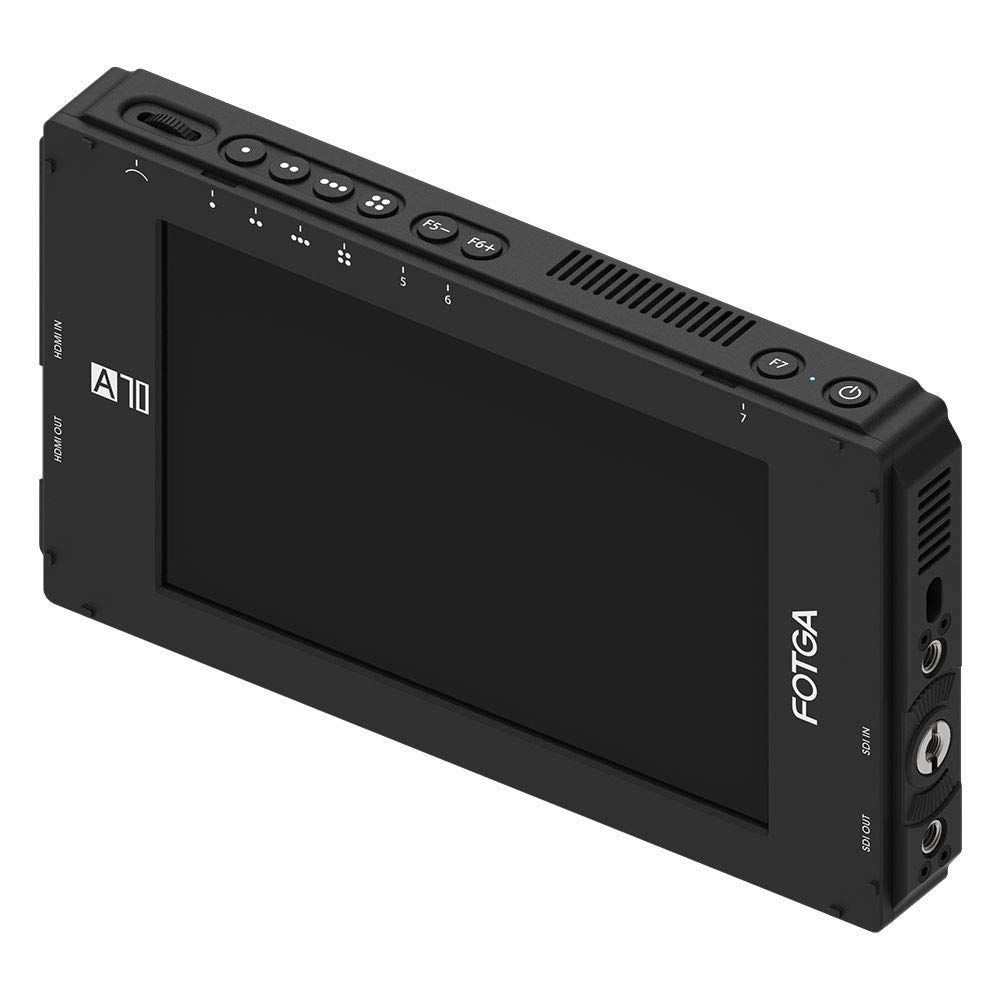

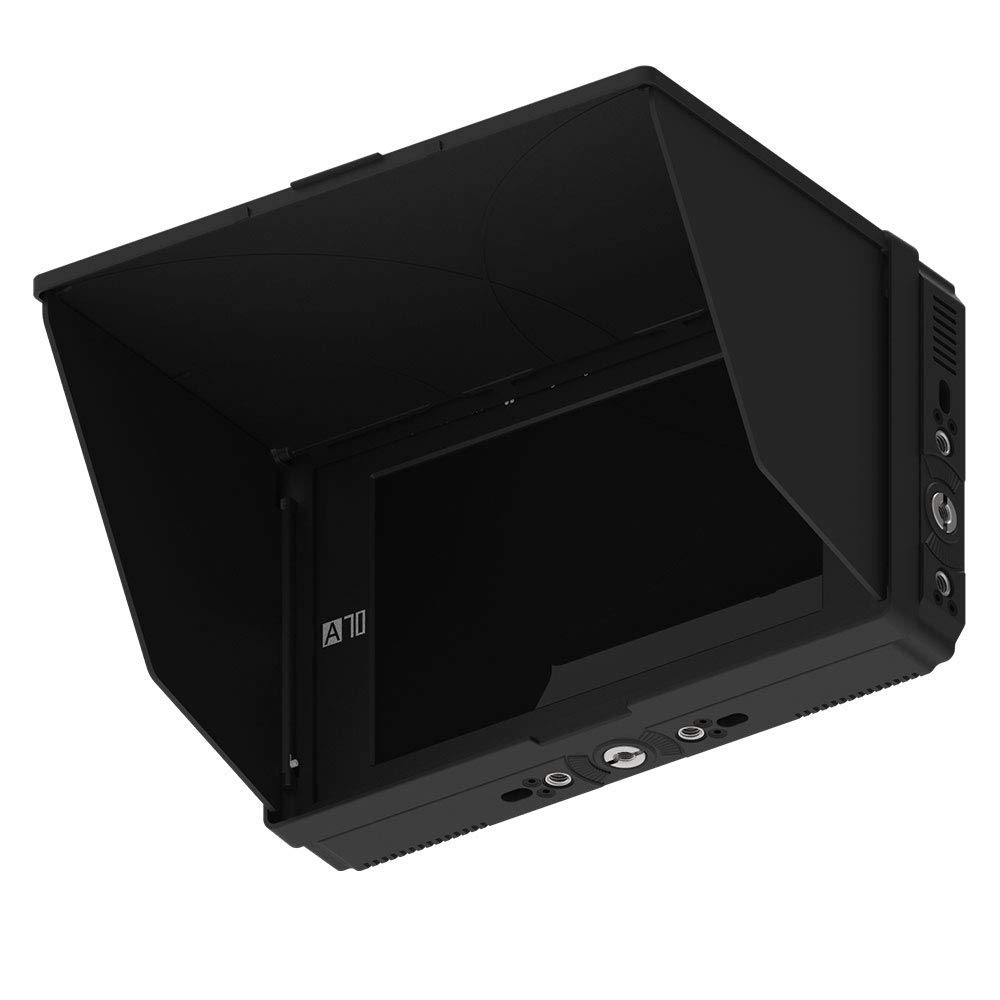

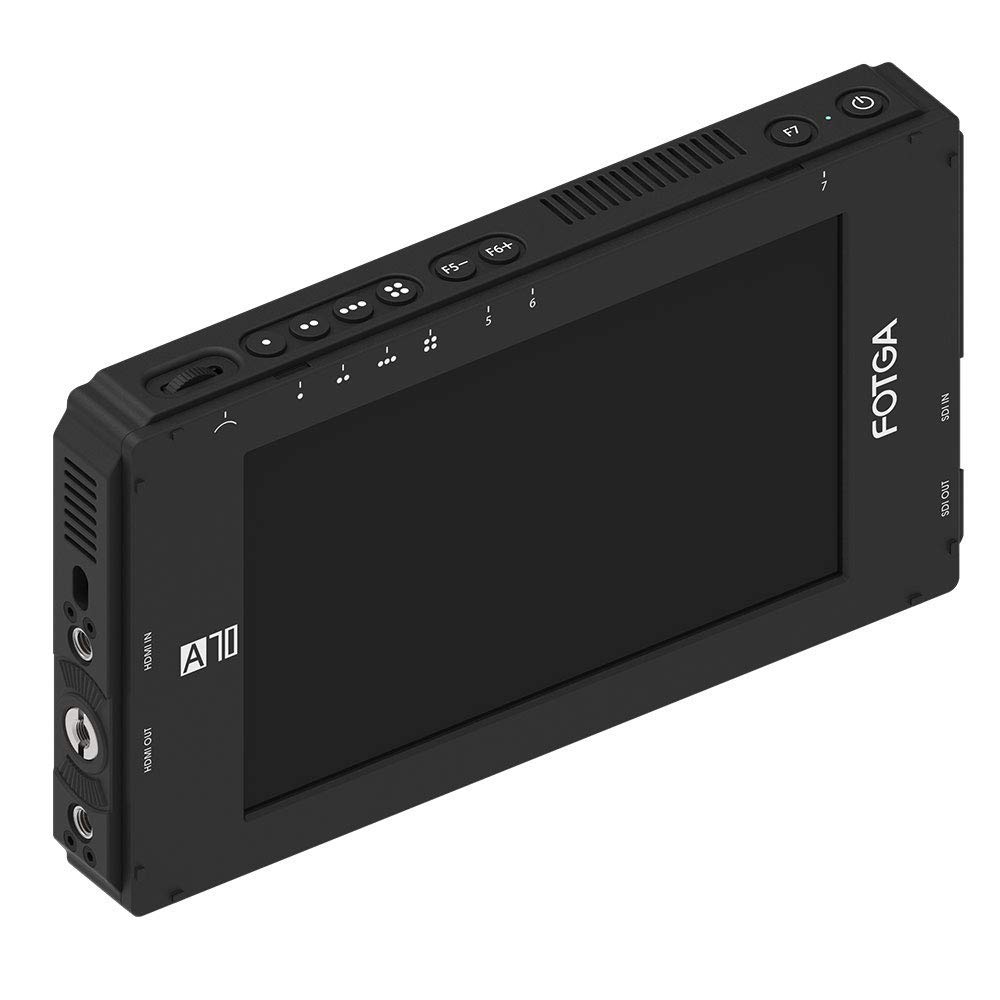

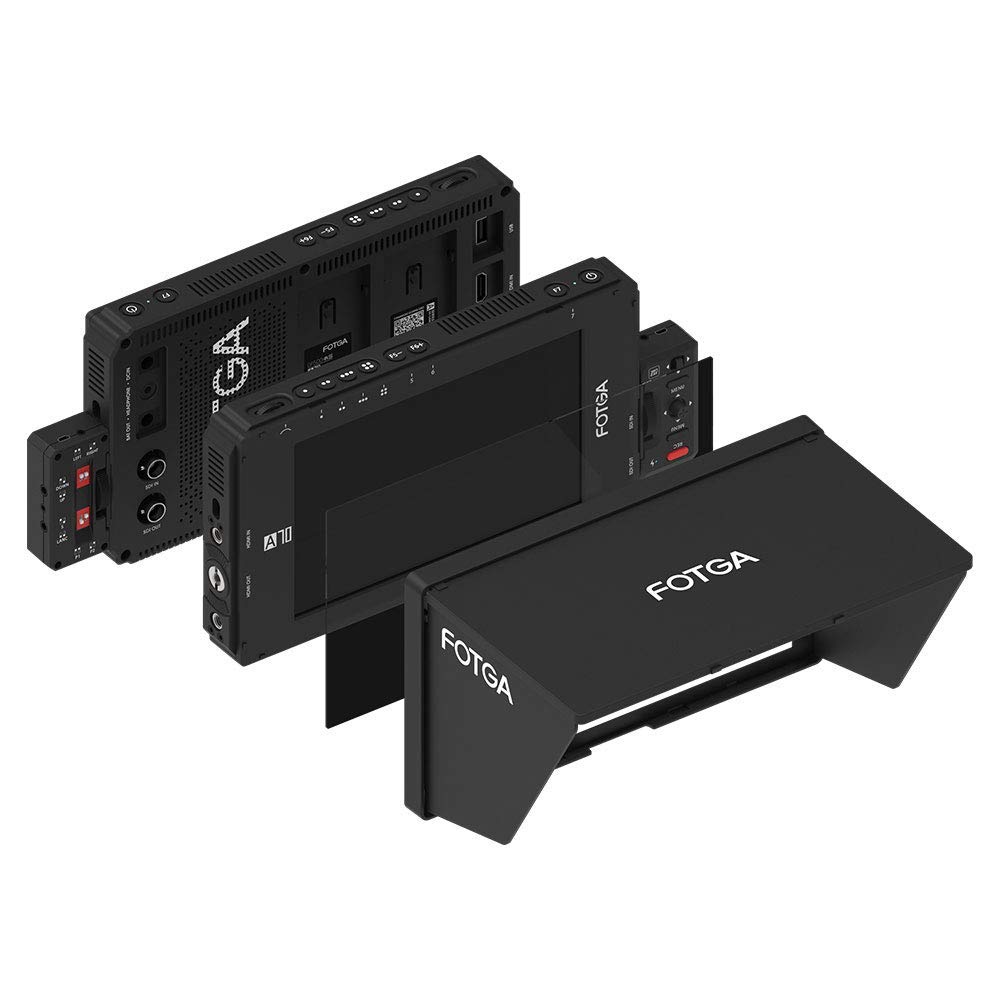

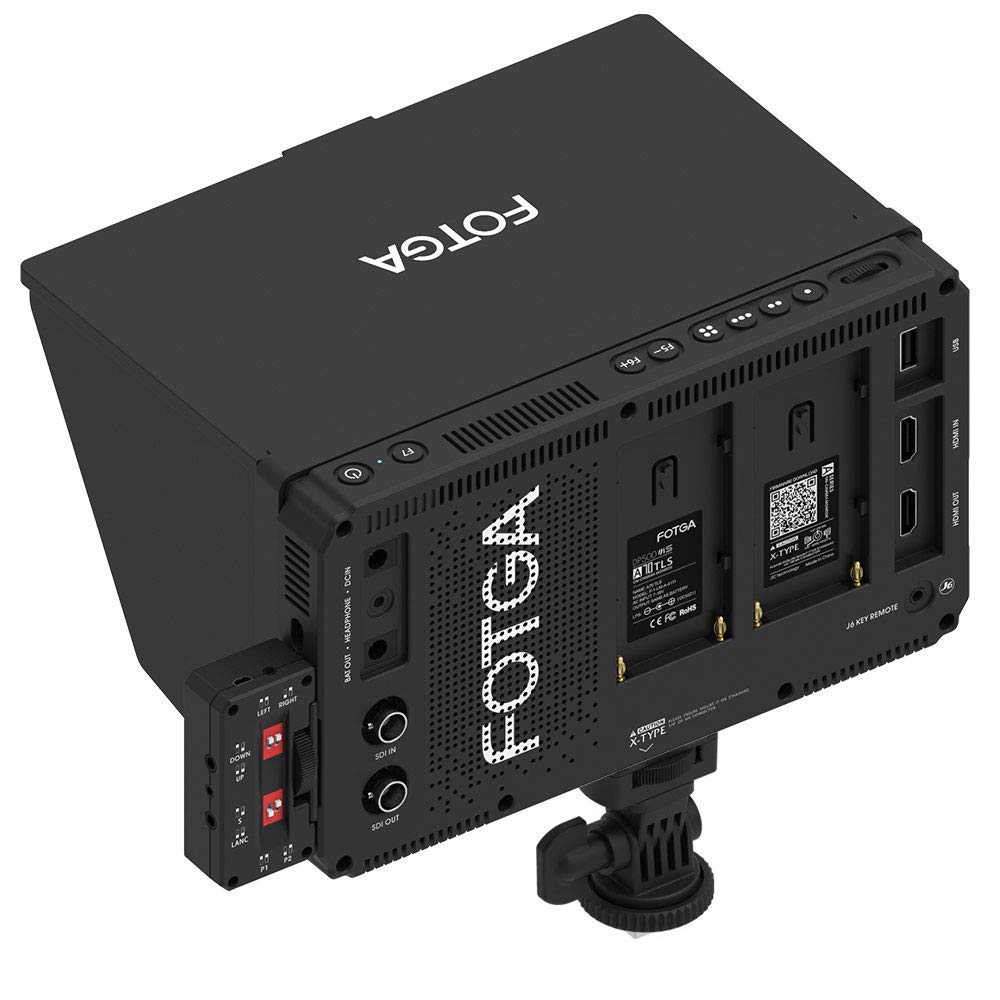

Fotga DP500IIIS A70TLS 7-Inch Touch Screen FHD IPS Video On-Camera Field Monitor,3D LUT, 3G SDI/4K HDMI Input/Output,1920x1080,Dual NP-F NP-F970 F770 Battery Plate for DSLR Mirrorless Cinema Camera

• 【Support 3G SDI and 4K HDMI input/output】Compatible with almost all cameras and camcorders. 3.5mm headphone output and a loudspeaker.USB port for firmware upgrade.Built-in audio input.Multiple connecting holes (1/4",3/8" ,M6 and cold shoe connector)
• 【3D LUT】Supports 3D LUT function.There are default undeletable 5 inter LUT files,and you can also import extra 8 LUT files.
• 【Touch Screen Control】Supports screen touch control and physical buttons control.Silent physical operation buttons.Support 【shortcut button setting.】Convenient white mark on the front frame for each button to ensure quick and effective operation.
• 【IPS Screen,High Brightness】Screen Size: 7 Inch.Screen type: Wide Color Gamut with IPS display. High resolution: 1920x1080. Brightness: 450cd/m2. Contrast Ratio: 1200:1 . Wide viewing angle: 178 degree.

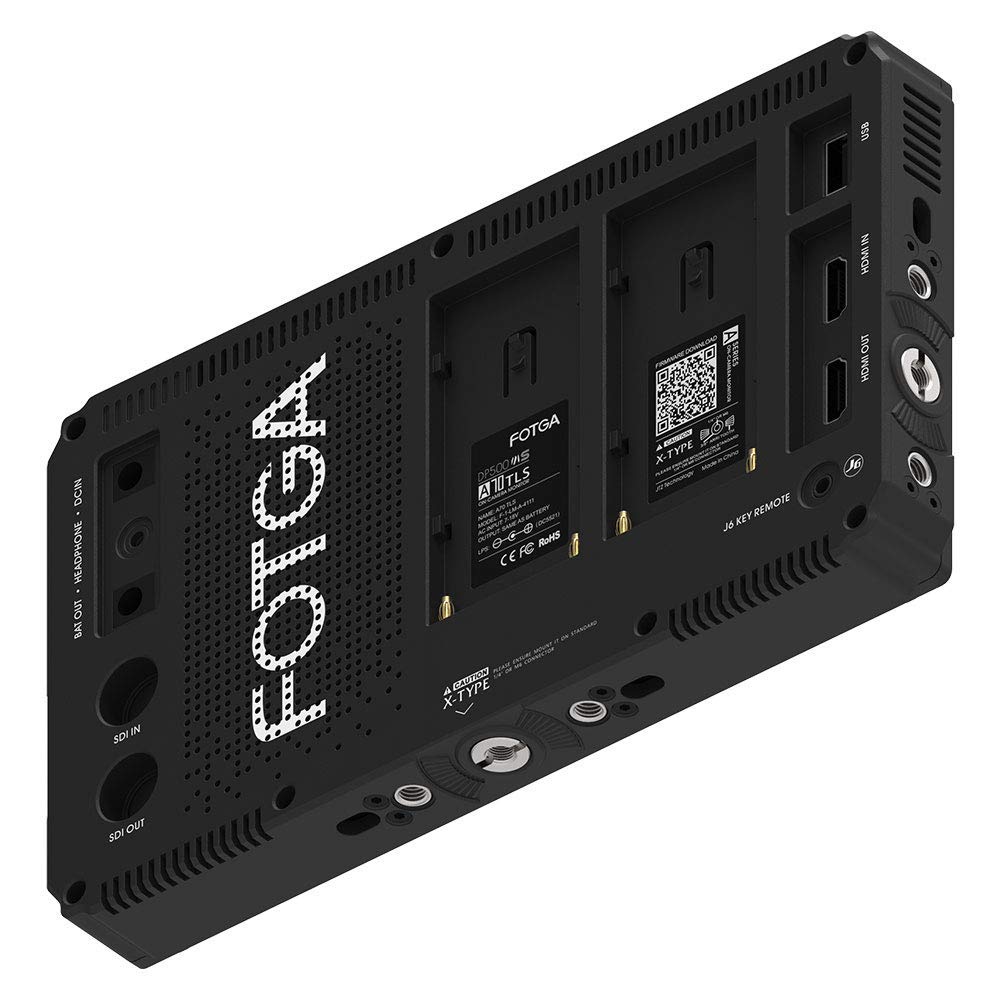

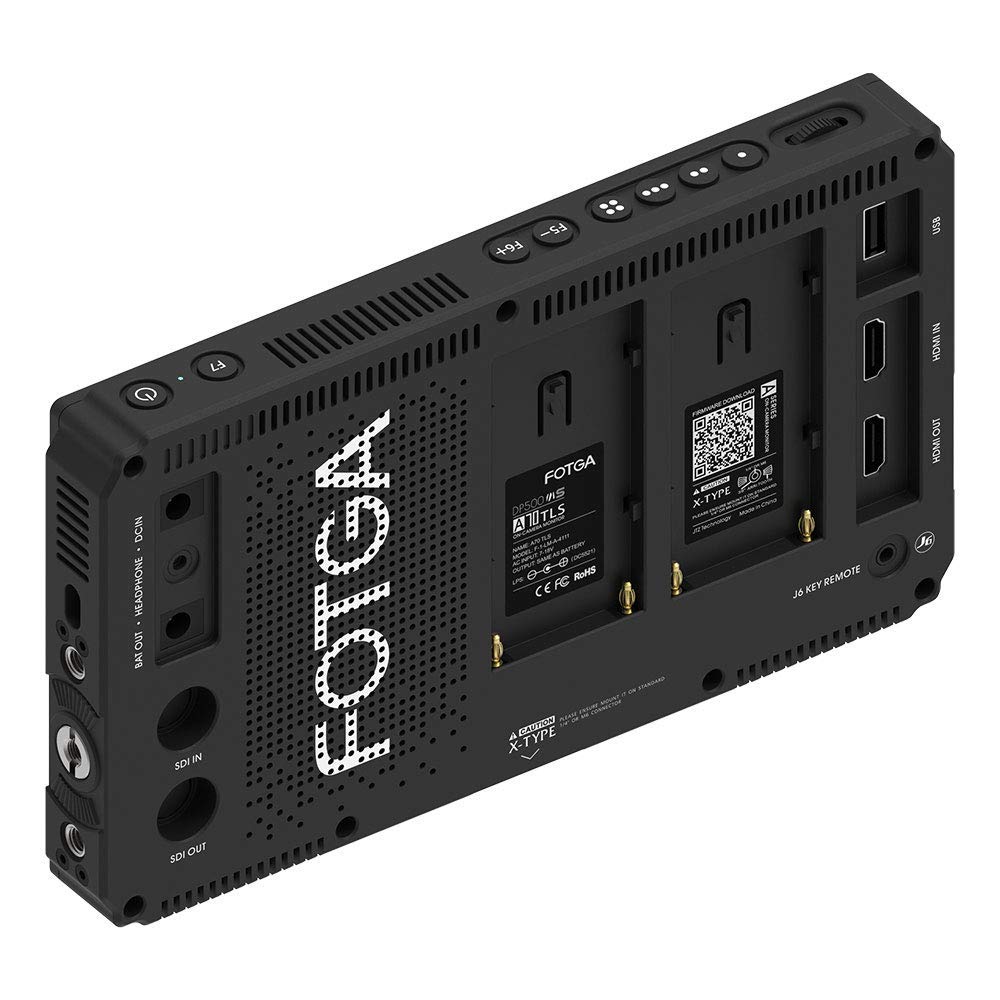

• 【2 Power Source: Dual NP-F Battery & AC Power Supply; DC output for power camera】Dual battery compartment for NP-F NP-FM/QM batteries,SONY NP-F970, F550, F570, F770, F750 ,and this would extend your working time greatly. Also can work with LP-E6 battery (Adapter plate ineed to be bought separately).When power by NP-F or LP-E6 battery or a dummy battery,there is also a battery output for power your camera directly from monitor through a dummy battery.

Description Feature: Touch Screen Control,Freely stepless Zoom-in: It supports touch sreen control and buttons control. (Note:If use AC power,please ensure using a right AC adapter for it,or it may cause the touch screen function garbled.) 3D LUT movie color calibration and real-time preview Can import extra 8 LUT files (not including the inter default LUT files).Supports USB LUT files importing,please ensure your USB is with FAT32 format.Please be sure each file should be no bigger than 7.9MB Uninterrupted Power Supply (AC power & Dual NP-F batteries): Supports dual NP-F battery ( NP-F ,NP-FM/QM batteries,such as F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70,etc. ) for powering at the same time.You can also buy an adapter plate for LP-E6 battery to use it alone or use a NP-P battery and a LP-E6 battery at the same time. A BAT output for power camera and monitor at same time when you use NP-F series or LP-E6 battery (s) or through DC coupler.Please be mind,for powering camera,you need to use a dummy battery. 3G SDI Input/Output,4K HDMI Input/Output ,FHD,High Brightness,High Contrast, Multiple connectors by side: 3 x Standard 3/8" mount ,and 4 x 1/4" screw mount.There includes 3 x 3/8"-M6 adapter,1 x 3/8"-1/4" adapter. Functions: Brightness Histogram / Embedded Audio / False Colors / Peaking Focus Assist (Red, Green, Blue and white colors optional)/Zebra Exposure (1-100% adjustable)/Check Field Anamorphic Mode /Image Flip(vertically) / Image Freeze / Safety marker / Center Marker Ratio marker / Adjustable color temperature Package includes: 1 x A70TLS monitor 1 x hot shoe mount 1 x sunshade hood 1 x cold shoe adapter 1 x HDMI cable 1 x DC power cable 1 x 3/8"-1/4” adapter 3 x 3/8”-M6 adapter
