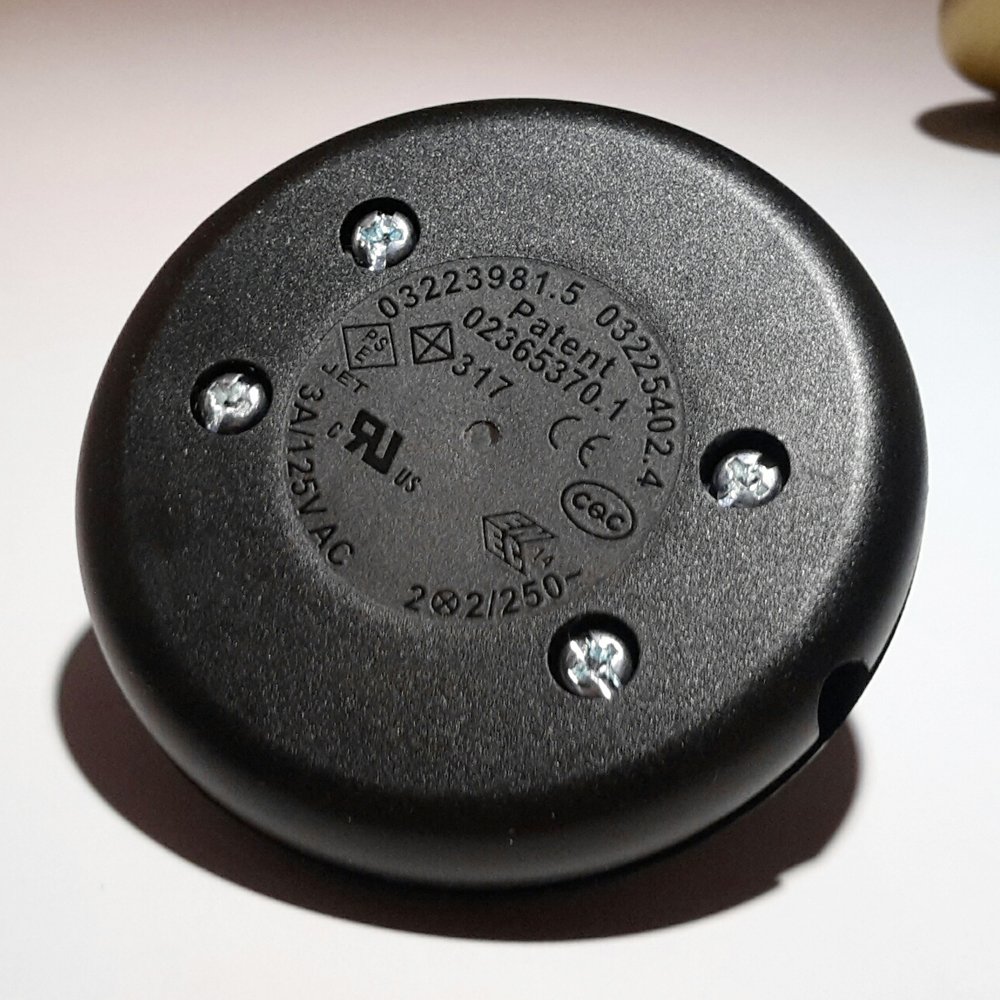

Foot pedal switch black 250V round CE Foot switch for standing and table lights Line switch

• Round classic foot pedal switch, intermediate switch, pressure switch 3 amp., 250 volts
• Material: plastic Color: black matt Button: black matt Connector pluggable
• Measurements: 67 mm H.27 mm | EN / CE approved Openings for luminaire cable ø5 mm
• Suitable for floor lamps or table lamps For 2 and 3-wire lamp cables

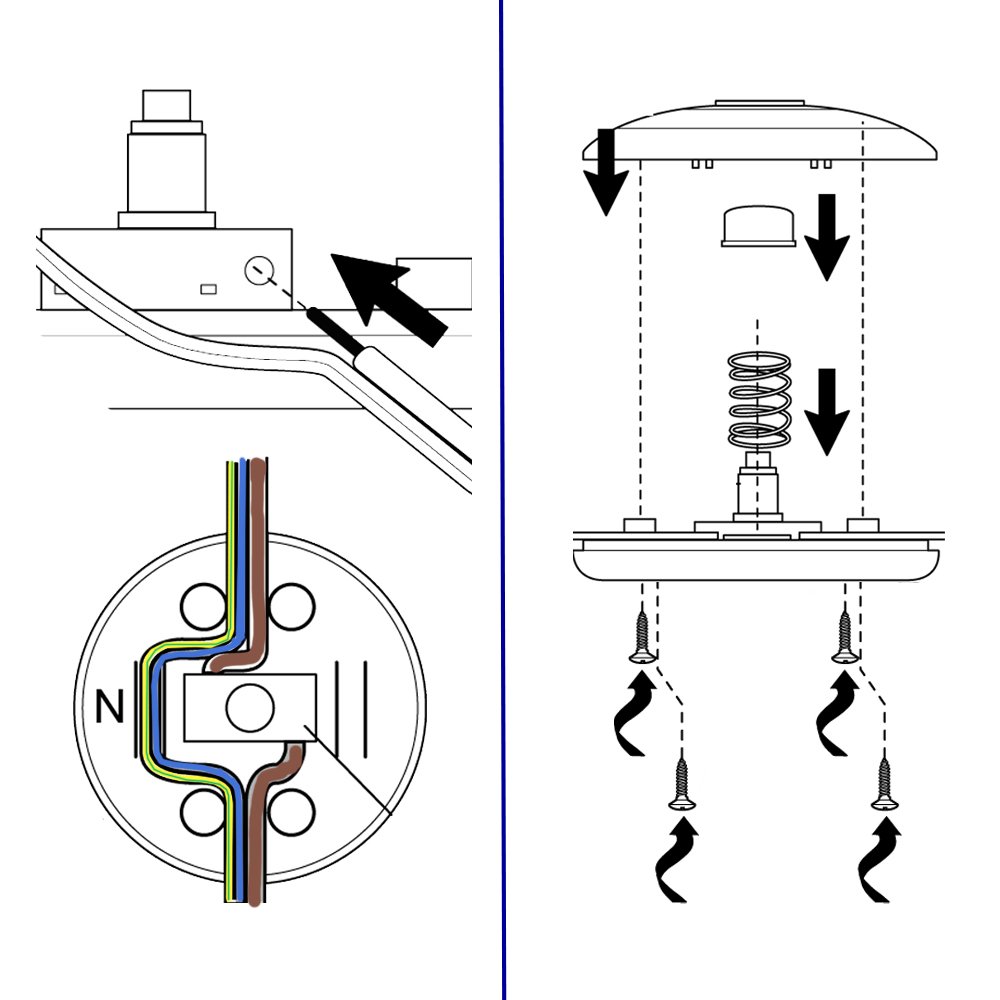

• In professional wiring, only the phase for the switch is disconnected, the MP (the other phases) remains uncut. In the case of semiprofessional wiring, one or two contact clamps are required for wiring the other phases. 1 terminal included.

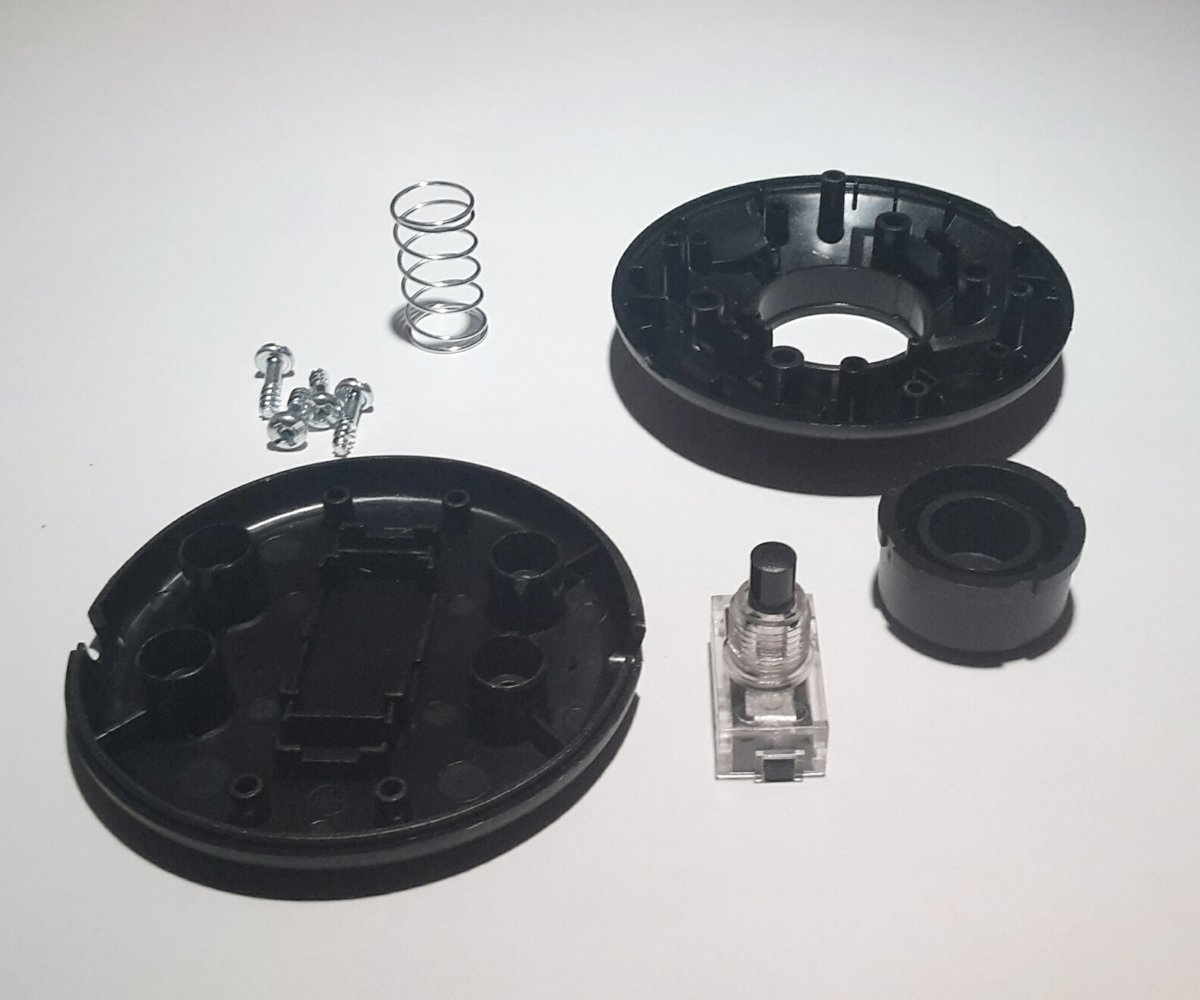

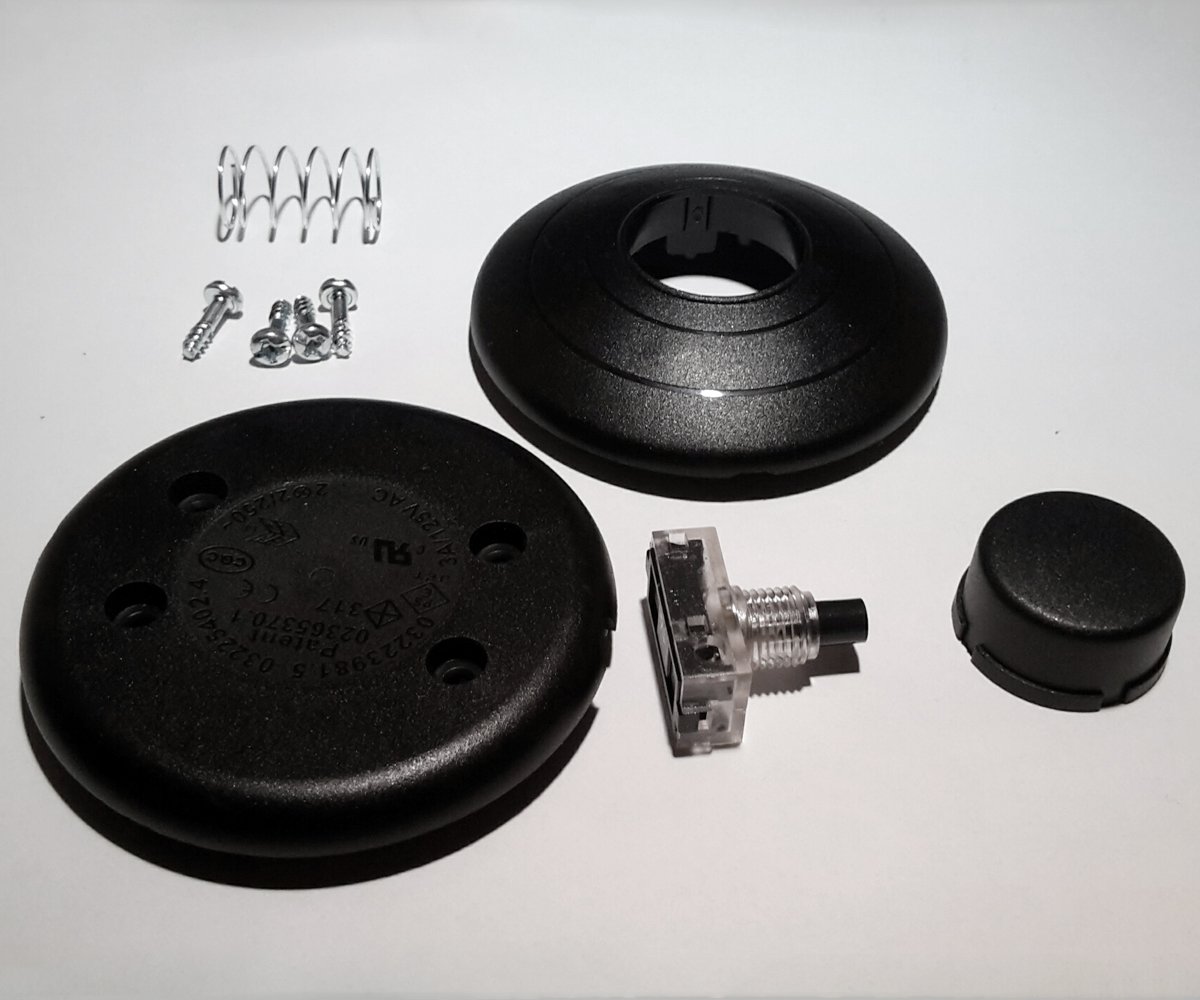

ENEC approval mark of the VDE The input and output lines may only be used by the authorized electrician! Product Information: The foot switch switches are standard for applications in protection class II used with 2 wires. You can also use the switches in protection class 1. With 3-wire cable. In both cases, please note: In a professional wiring, only the phase for the switch is disconnected, the MP (the other phases) remains uncut. For the case of a semiprofessional wiring, one or two contact sockets are used / Contact terminals for wiring the other phases. Before installing the leads, wire end ferrules to the Use or press the cable ends. Switches are disassembled for dispatch.
