Flysky FGR4S V2 Receiver 2.4GHz 4CH AFHDS 3 Bidirectional PWM PPM IBUS Output 2PCS

• The FGr4S v2 receiver supports PPM/i-bus/PWM data output, suitable for AFHDS3 system remote controller.
• FGr4S v2 receiver uses an internal single antenna with two-way transmission capabilities and is designed to be compact and easy to install.To ensure a strong signal make sure that the receiver is mounted with its antenna vertical.
• FGr4S v2 receiver adopts AFHDS 3 Flysky's third-generation automatic frequency hopping digital system. Easy to bind and very fast link-up, quick and extremely stable in performance.
• FGr4S v2 receiver 2.4GHz 4 channel receiver is compatible with FlySky Noble NB4 NB4+ NB4 Pro PL18 Transmitter, for RC car and RC boat.

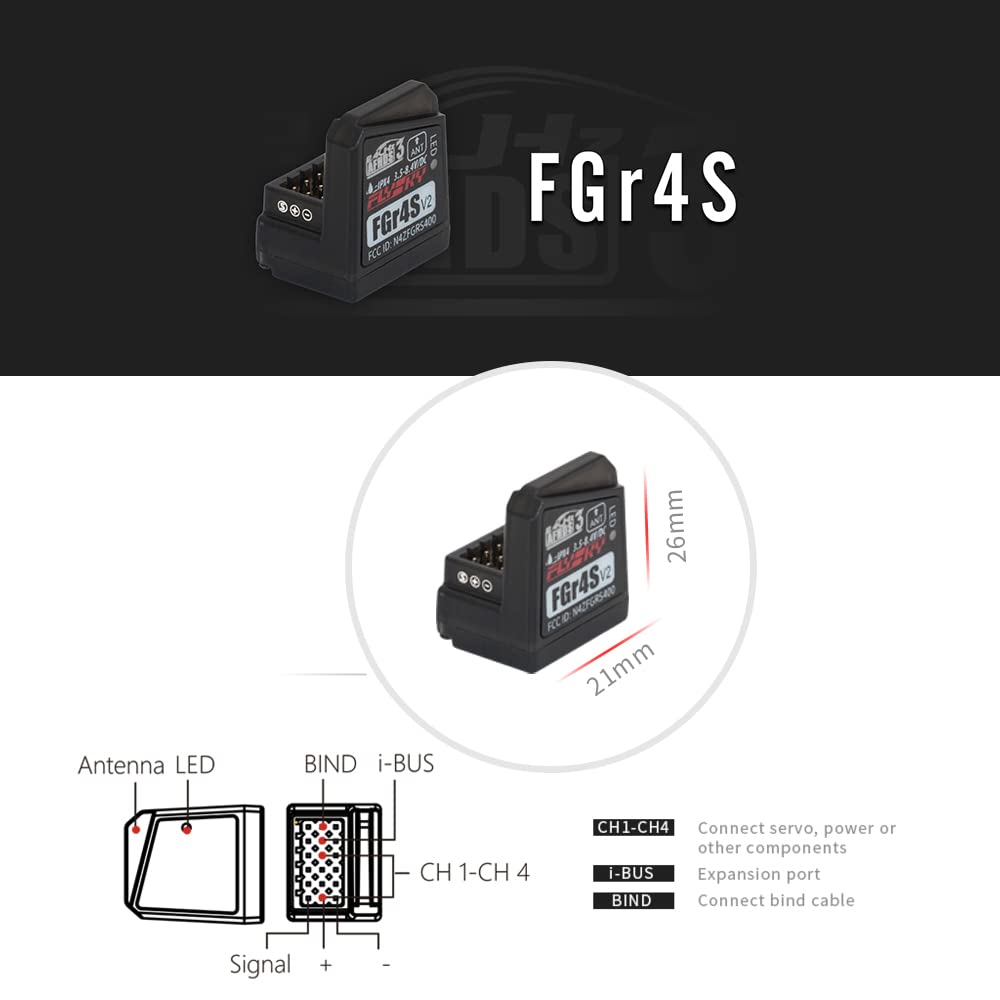

• Designed to be compact and easy to install. It can output standard PPM,PWM 、i-BUS and S.BUS.

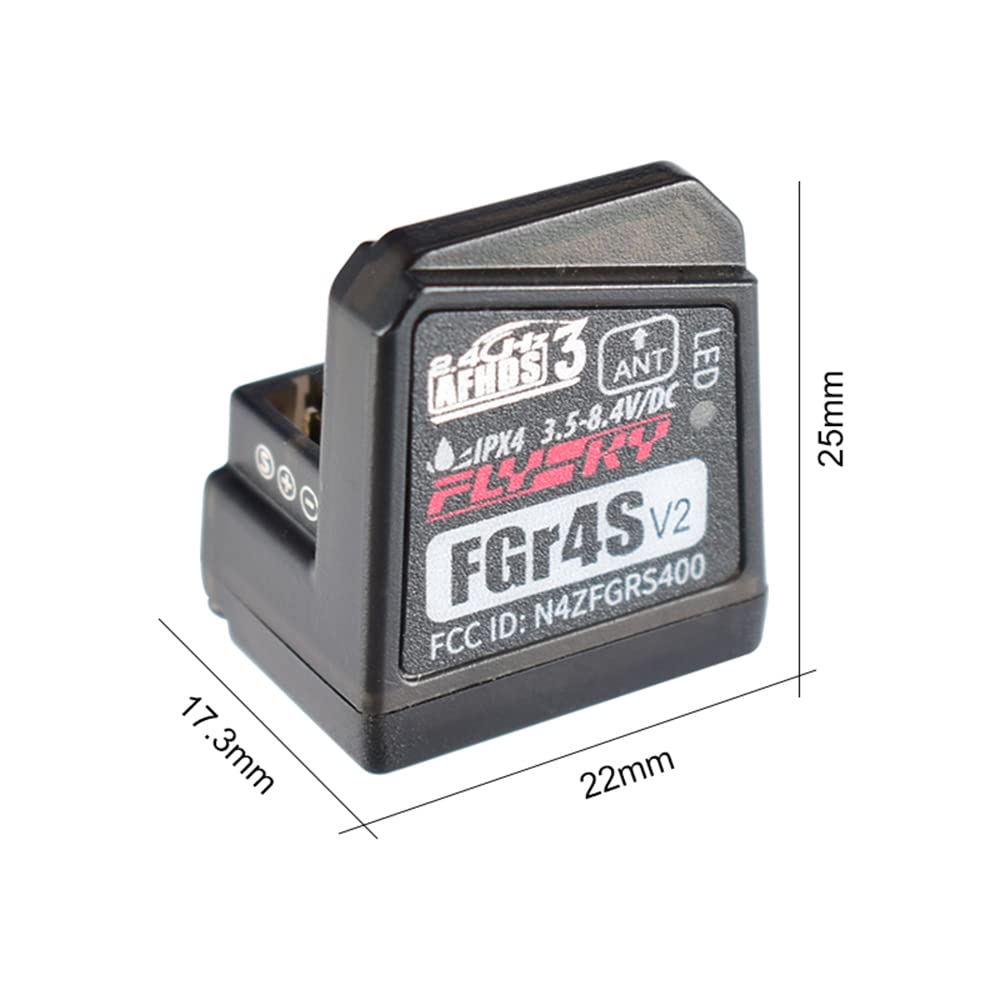

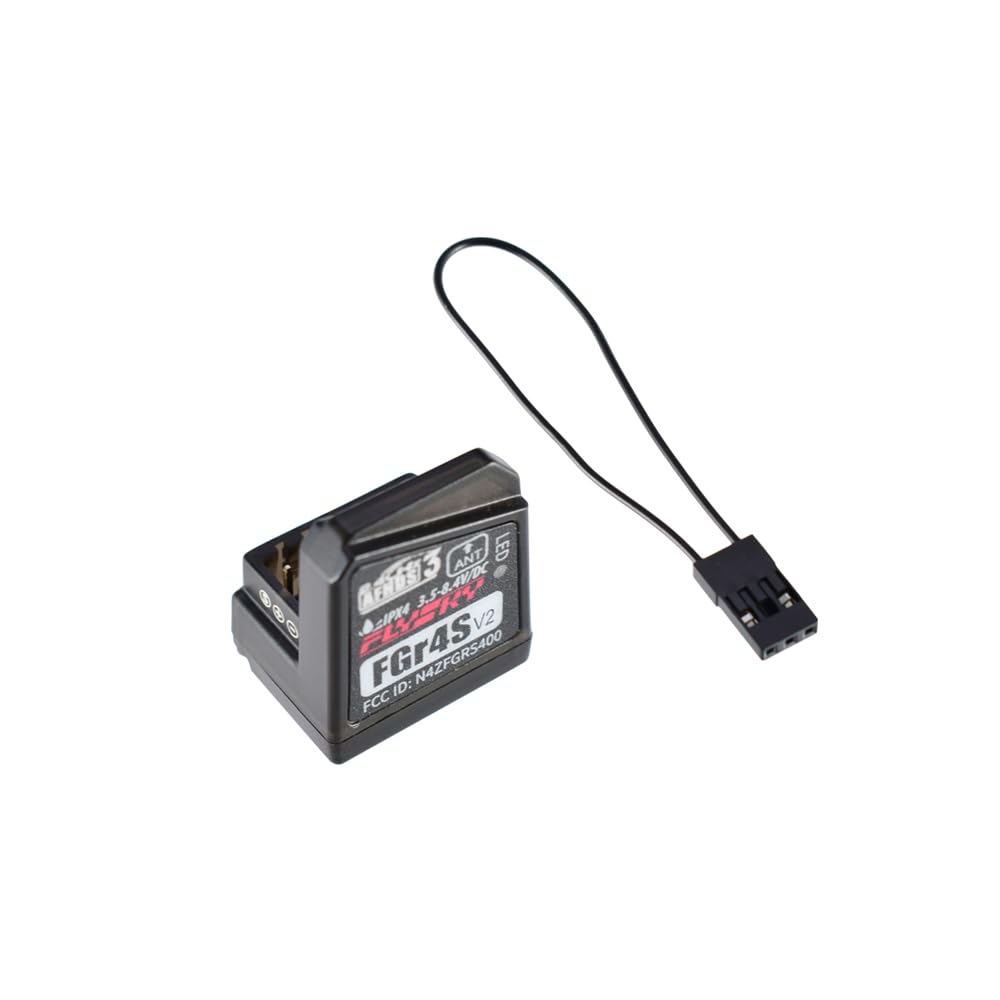

Product description The FGr4S uses AFHDS 3 (Third Generation Automatic Frequency Hopping Digital System). It uses a internal single antenna with two- way transmission capabilities and is designed to be compact and easy to install. It can output standard PPM,PWM 、i-BUS and S.BUS Product specification: Channels: 4 Model Type: Car/Boat Data Output: PPM/i-BUS/S.BUS/PWM RF: 2.4GHz Transmission Power: <20dBm(EU) RF Standard: AFHDS 3 Antenna: Built-in Antenna Input Power: 3.5V ～ 8.4V Display: LED Indicator Online Update: Yes Dimensions: 25.5*22*17.3 mm Weight: 5.1g Package included: 2* Flysky FGr4S Receiver Safety Warning Please pay attention to voltage and safety when using
