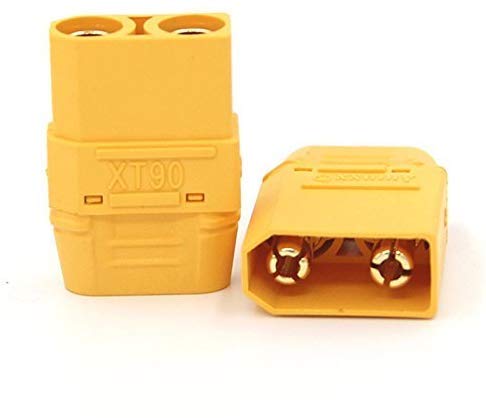

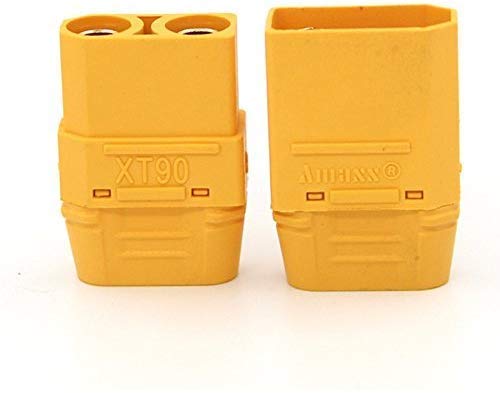

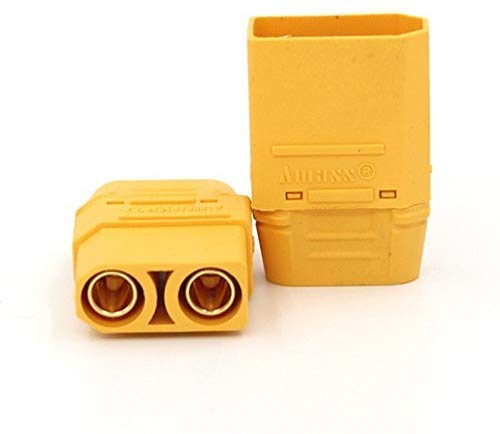

FLY RC 5Pairs Amass XT90 XT90H (XT90 with Sheath Housing) 4.5mm Banana Connector Gold Plated Max.40A Continuous/90A Peak Current for Lipo Battery ESC PDB

• High Current Connection: This connector can support Max.40A Continuous / Max.90A Peak Current.
• High Grade Material: Brass with true gold plated, high strength insulated plastic housing is made from plastic PA also called Nylon.
• Stable Connection: High stiffness spring structure on plug, very tight connection between plug and socket. Usage life time can reach 1,000 times Plug-in and Pull-out.
• Low Contact Resistance: 0.3mΩ, well designed spring structure on plug assures large contact surface and big contact force with socket.
• Safety: 500V DC rated voltage, anti-reverse polarity connection design, CE certificate.

Description: Brand Name: Amass Item Name: XT90H connector Body Material & Surface Plating: Brass and gold plated Insulation Material: Nylon/PA Temperature Resistance: -20°C - 120°C Pulling Force/500: 60N Recommend Cable Spec.: 10AWG Soldering Spec.: 480°C/4S Weight/Pair: 12.8g Recommend Use: 1000 times Features Use 4.5 mm banana plug and lightweight design,small volume and large current resistance. Hollow plastic parts design,can use the model jet stream to actively cooling the plug Newly increased sheath design,more convenient and practical Package including 5pcs XT90 Male + 5 pcs XT90 Female
