Valve Water Switch LKB-01D 250V 15A RC1 1.0MPa SPDT Contacts for Fire Control Air Conditioner

• It is used to measure the dynamic state of the liquid flowing through the pipeline, such as: water, ethylene, ethylene glycol and other liquids that have no corrosive effect on copper.

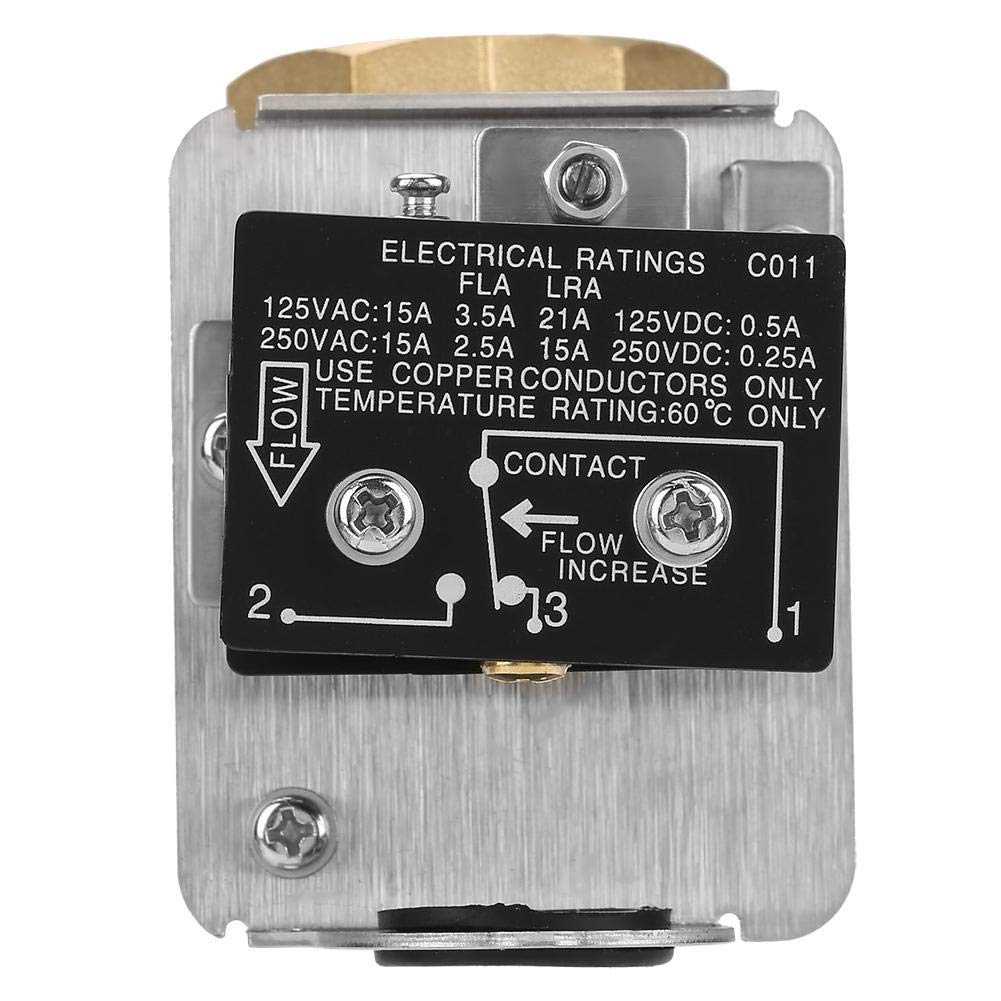

• When the rate of liquid exceeds or falls below the set rate, the SPDT contacts can turn on one circuit and cut off the other at the same time. The switch is usually used in places requiring interlocking or
• Repeatability error is about 2.5%, ensure high stability of products.
• IP54 level, more safer to use.
• Perfect for water treatment system, central air conditioning, water cooling unit.

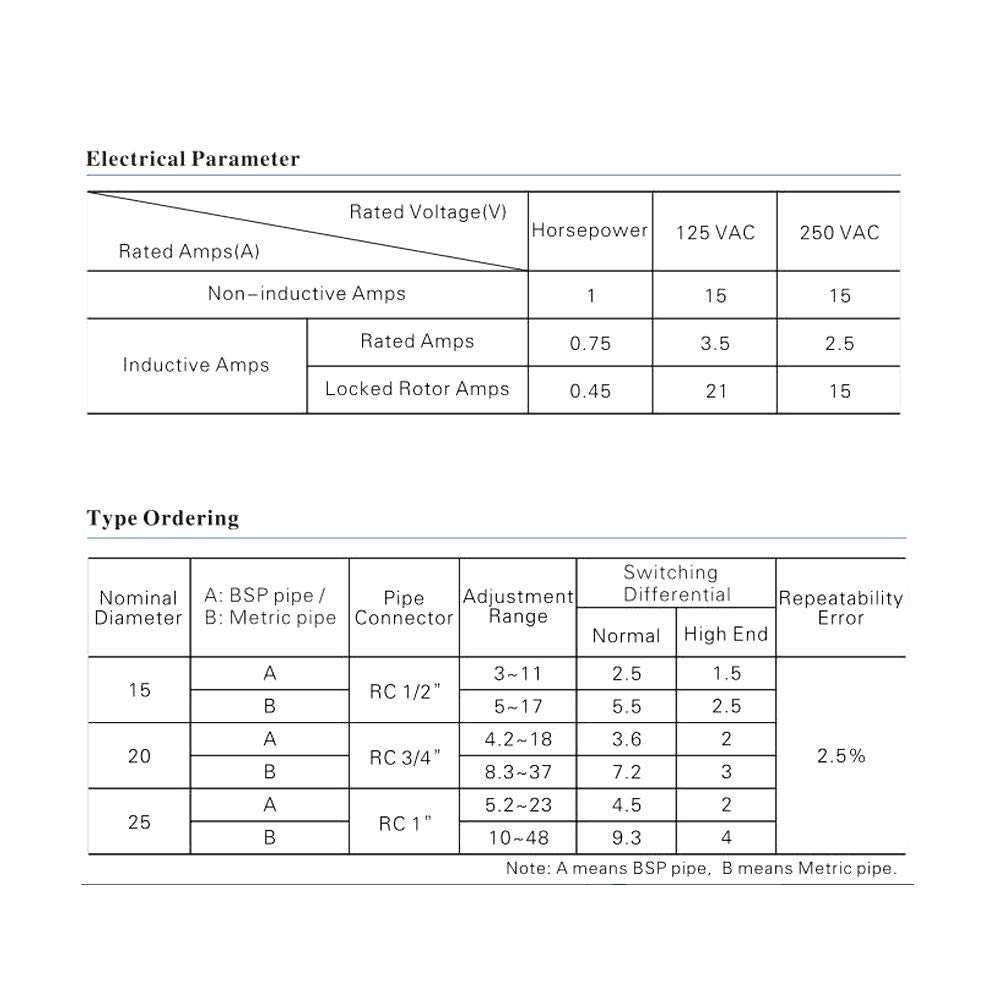

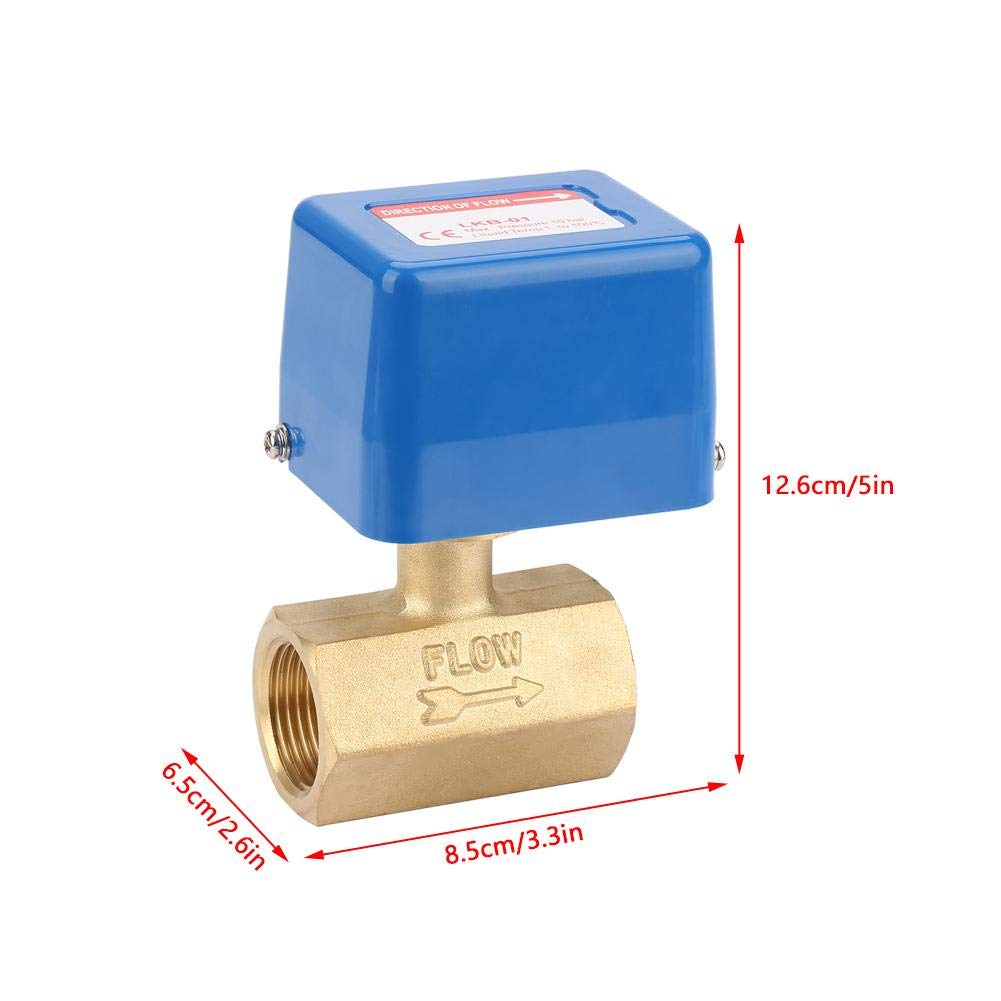

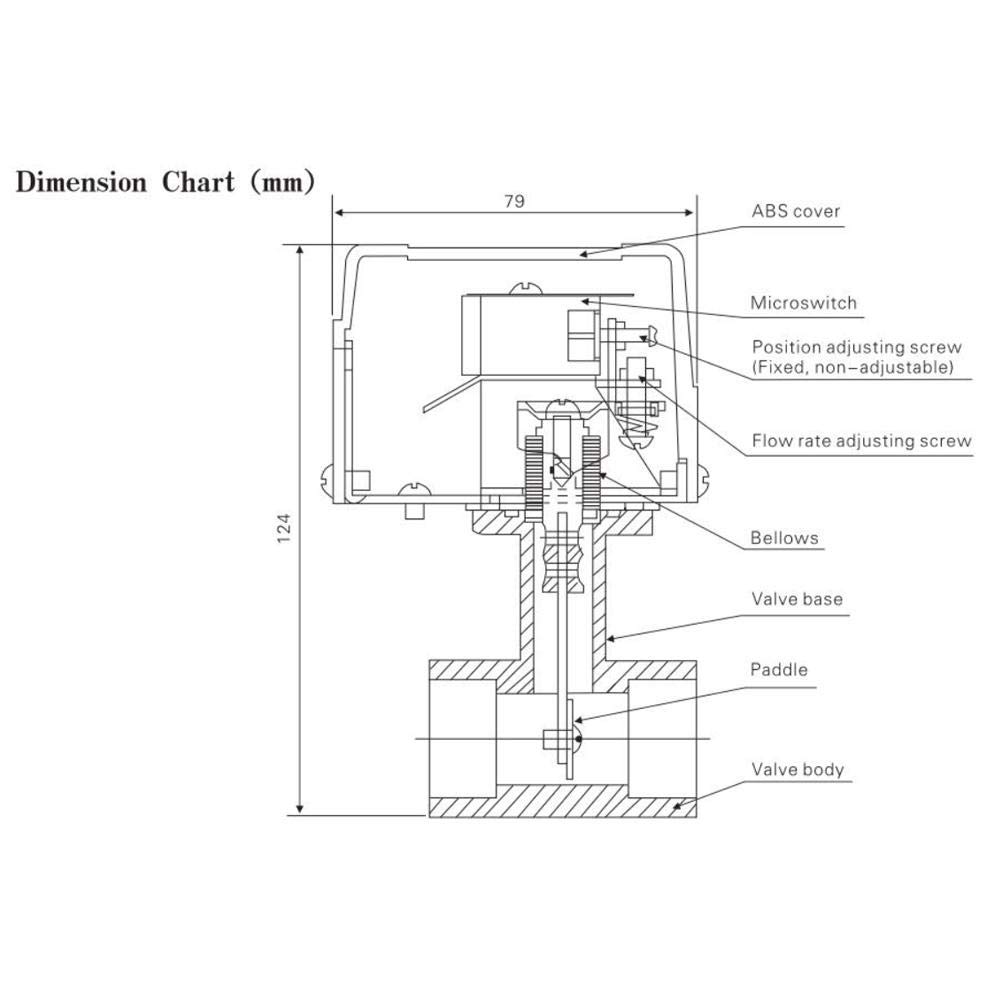

Description Specification: Model: LKB-01D Material: Stainless steel, Copper, Plastic Rated voltage: 250V Rated current: 15A Repeatability error: 2.5% Regulation range: 5.2-23 L/min Switch type: SPDT Connector: RC 1" Max.working pressure: 1.0MPa Medium temperature: 0-100℃ Product dimension: 8.5×6.5×12.6cm / 3.3×2.6×5in Weight: Approx.817g/ 28.8oz Package List: 1 × Water Switch 1 × User manual Installation method: 1. Open the switch 2. The switch has been set at minimum rate. Turn the adjusting screw counterclockwise to increase the setting value. 3. Press the target to check whether the micro switch can work normally. Excessive clockwise rotation of the adjusting screw may lead to the failure of the switch. 4. After the installation, please press the lever of the switch several times to check. If there is no "click" sound, turn the adjusting screw counterclockwise until there is "click" sound. 5. The adjustment screw of lacquer seal is only used for the first time to adjust the state of switch. Please do not change or adjust it. 6. Observe three operating cycles to ensure that the switch and the system to which it is connected are operating properly and cover the switch enclosure promptly.
