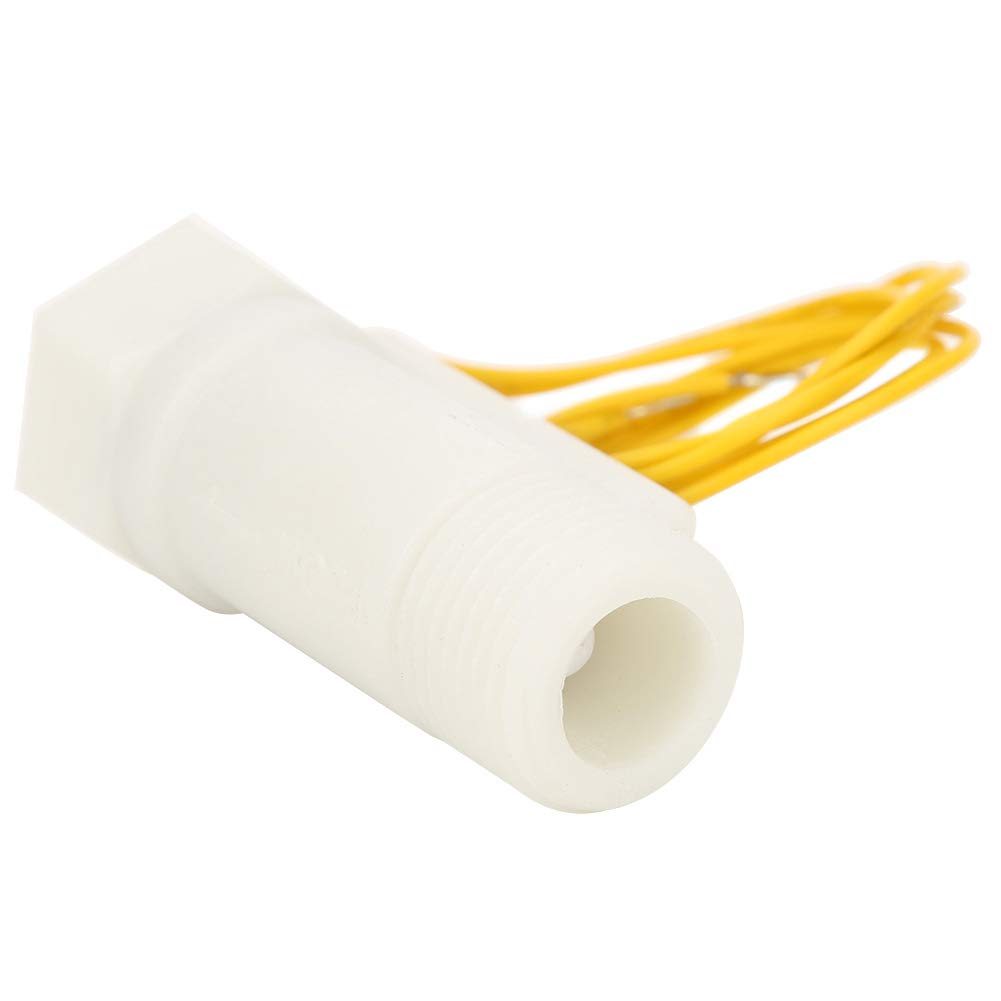

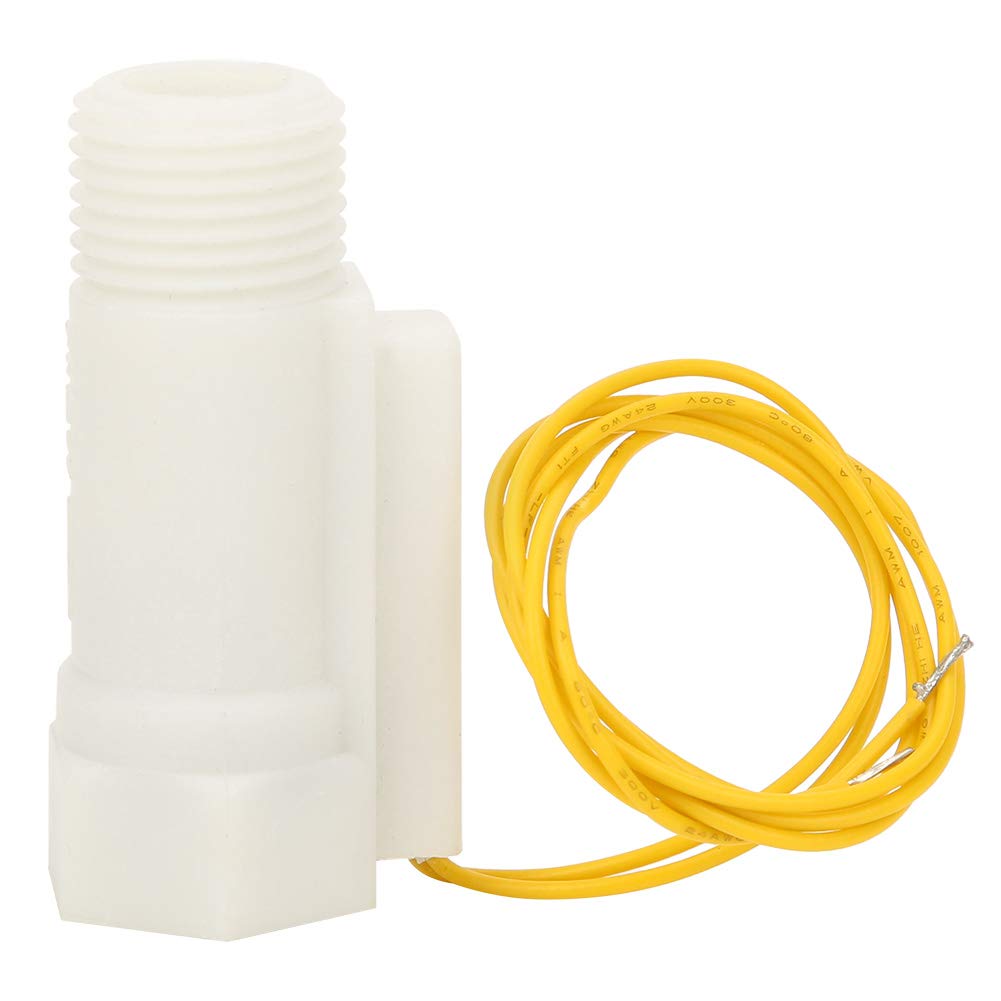

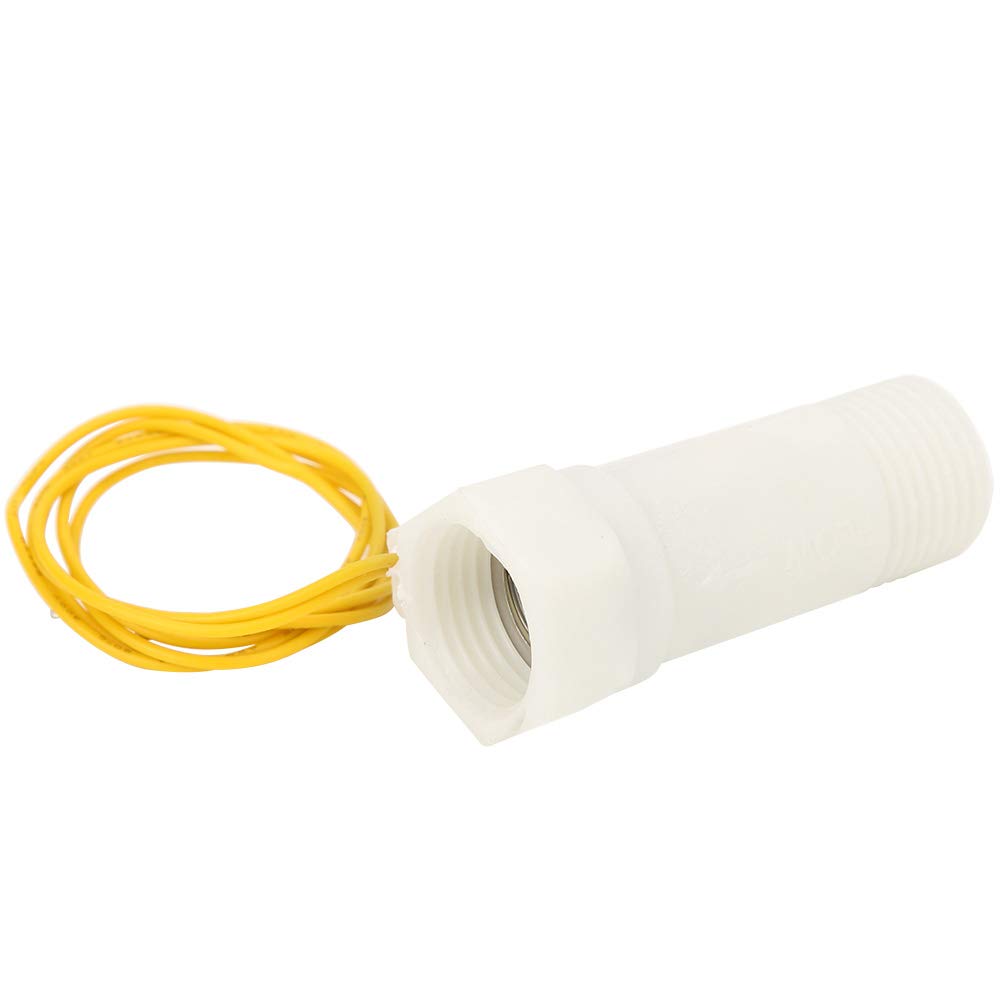

Plastic Water Sensor Switch Control Switch Piston Nylon Plastic Water Switch Plastic Water Sensor Switch DC0-110V

• High-quality materials: the flow switch housing is made of H58 forged copper or polycarbon, the magnetic is made of neodymium iron boron permanent magnet material, and the sensor magnetic control switch is an imported medium power component, which is durable.
• Sensor device: The flow switch is a sensor device that converts water flow into a switch-type electrical signal when a certain flow rate is reached.
• Complete configuration: The flow switch is composed of magnetic , return spring, forged copper or polycarbon shell and sensor, which is durable.
• Advantages: The flow switch has the advantages of high sensitivity and strong durability. The inlet and outlet ports are G1 / 2 "standard pipe threads.
• Note: The output of the flow switch signal is the switch quantity, so the connection mode of the control object must also be the switch control relationship.

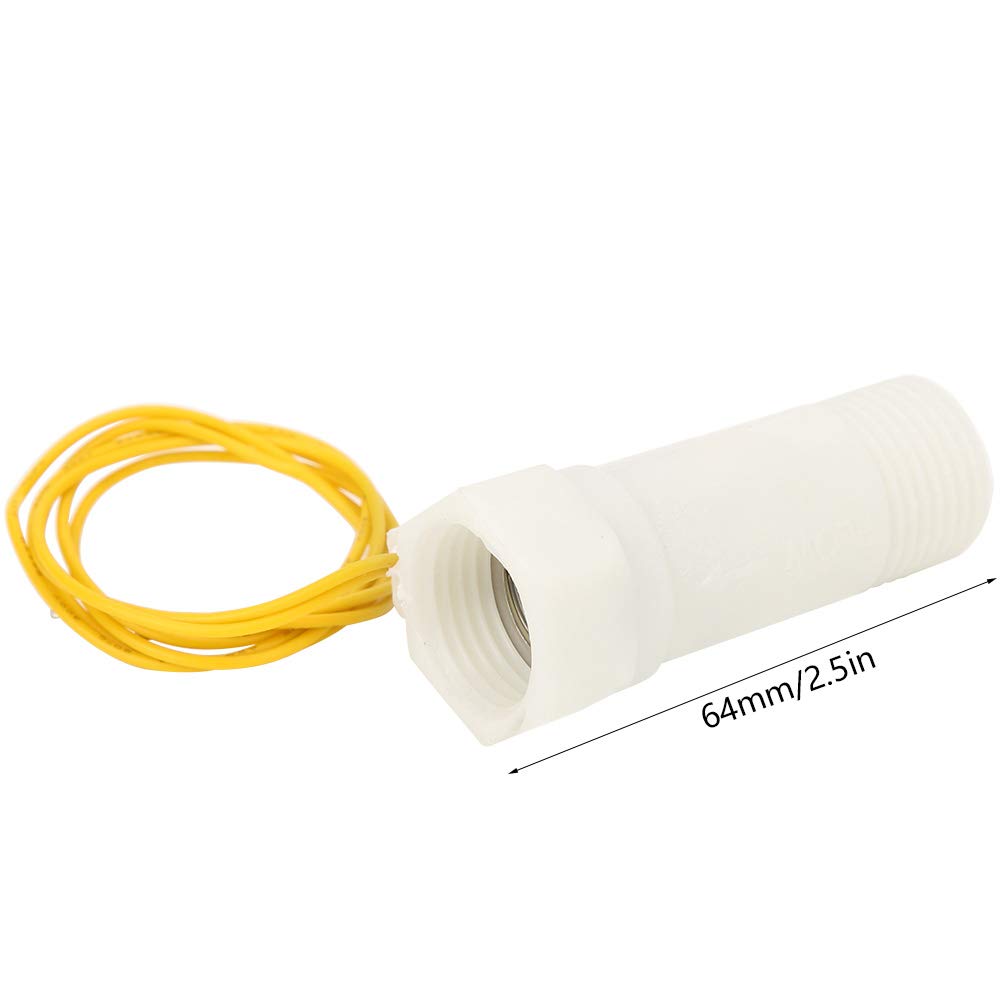

Specification: Item Type: Plastic Water Flow Sensor SwitchModel: Fs-1 / 2-nylon Interface Thread Size: Male/Female threads are G1/2in Material: Nylon Working Voltage: DC0-110V Working Current: 0.5-1A Medium Specific Gravity: 0.7 Signal Output Load: DC24V/0.5A, 36V/0.5A Suitable Ambient Temperature: ≥1℃ Suitable Working Temperature: ≤100℃ Minimum Starting Flow: ≥0.75L/min Maximum Throughput: ≤5L/min Rated Working Pressure: ≤0.65Mpa Maximum Pressure of The Shell: ≤1.5MpaLength: Approx. 64mm / 2.5in Working Principle: When the water flow in the pipeline is greater than 0.75L/min, the magnetic core is displaced under the action of the water flow and drives the magnetic source to generate a magnetron effect to cause the sensor to output a "1" switching signal, which is input to the equipment control system , After power amplification, the purpose of water flow control is achieved. When the water flow in the pipeline is less than 0.75L / min, the magnetic core will drive the magnetic source back under the force of the return spring, so that the sensor outputs a "0" switching signal to stop the system Adaptation Scope and Conditions: (1) The ambient temperature is not lower than 0℃. Do not knock on the case. Keep away from magnetic objects (2) The power of the control object must not be greater than the signal load capacity (3) This device is a water medium control device and cannot be used for other medium control. Package List: 1 x Plastic Water Flow Sensor Switch
