Floor Drain 150 x 150 cm Connection DN 110 Horizontal Stainless Steel Extra Flat Shower Drain Bath Drain

• Stainless steel floor drain

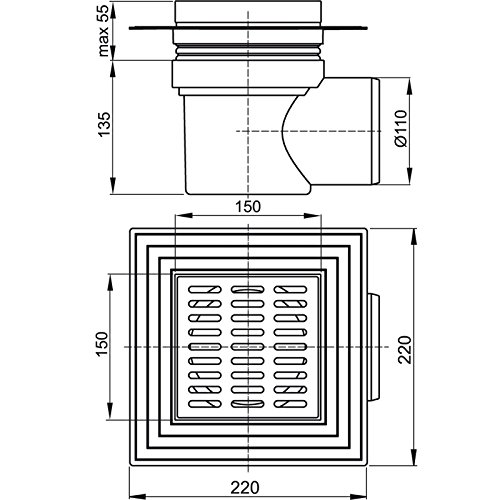

• Dimensions: see drawing
• Horizontal drain DN 110
• Grid 150 mm

The Alcaplast APV1 series floor drains dissipate the waste water safely. In addition, the nozzles are height adjustable from 37 mm to 57 mm. The connection of the bathroom drain is located at the side with a diameter of 110 mm. Odours from the sewer system are prevented by the water odour trap. Application: For interior spaces where frequent use is required associated with regular drainage of water (bathroom) For drainage in the floor level. For accessible access Features: High-capacity drain Grid - stainless steel 145 x 145 x 5 mm. Height-adjustable spigot 37 - 57 mm. Collar of the 2nd Insulation level for connecting the insulation layer under the floor covering. Side connection to drain diameter 110 mm. The water odour trap prevents odours from penetrating from the sewerage. Material: polypropylene, resistant to mechanical, chemical and thermal damage. Product details: Item type: floor drain 150 x 150 mm. Classification: bathroom. Suitable for: interior spaces connected to a regular drainage of the water. Colour: silver. Shape: square. Side connection: diameter 110 mm. Cover: 150 x 150 mm. Standard: CSN EN 1253. Manufacturer: Alcaplast Manufacturer number: APV12 EAN: 8594045937190. Box contents: Floor drain body, horizontal, diameter 110 mm. Floor drain attachment 150 x 150 mm. Grid - stainless steel. Odour trap with plunging water. Collar of the 2nd Insulation level inner diameter 150 mm. Gasket set.
