Floor Drain 150 Drain DN 50 Vertical Stainless Steel Extra Flat Shower Bath Drain

• Stainless steel floor drain.

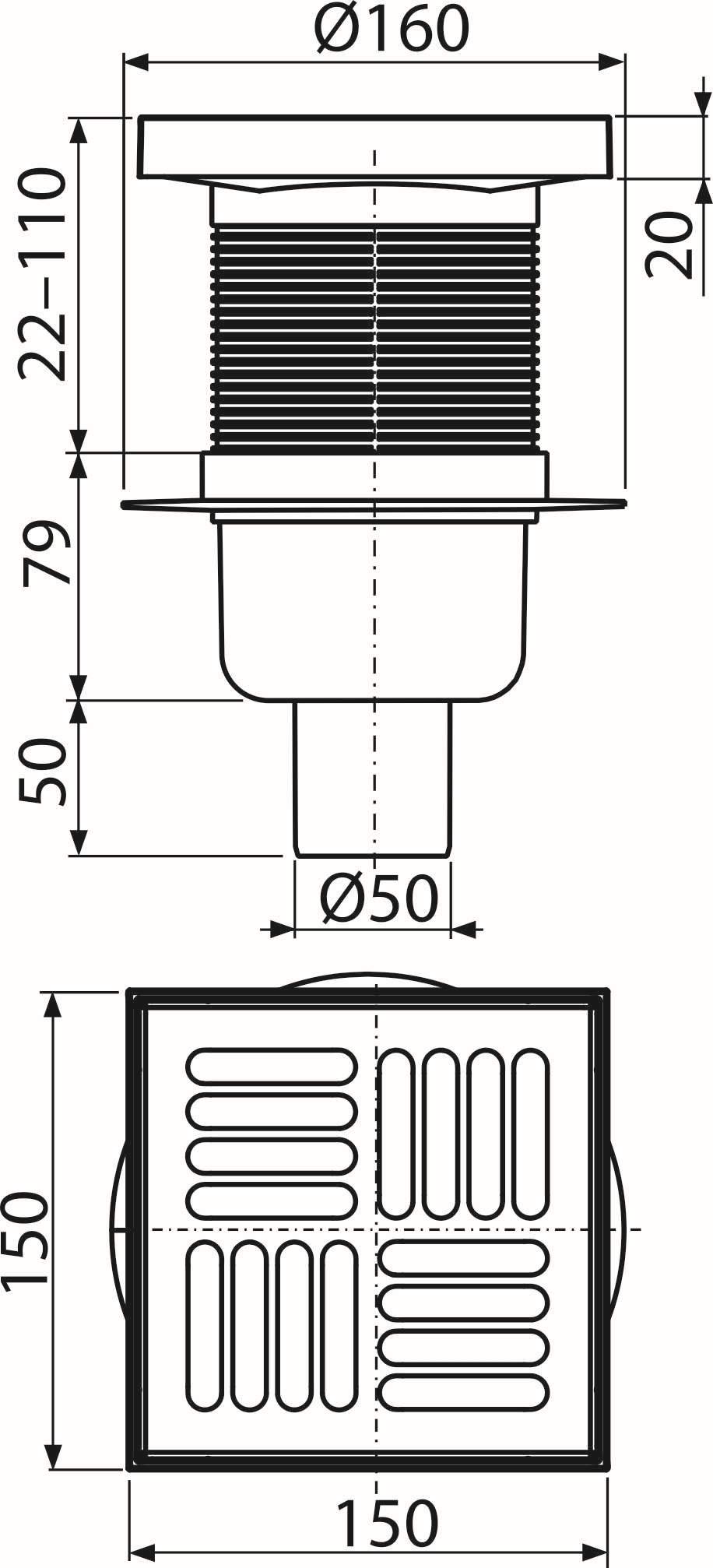

• Dimensions: see drawing.
• Vertical drain DN 50.
• Grid 150 mm.

AlcaPlast APV Floor Drain / Shower Drain with Stainless Steel Grate 150 x 150 mm e.g. for bathrooms, shower rooms, laundry rooms, saunas, etc. Choose between horizontal [APV5411] or vertical outlet [APV6411]. Connection DN50 (diameter 50 mm) for water drain quantities up to 46 l/min. Odour trap with tap water (siphon). High-quality and robust stainless steel inlet grate 143 x 143 x 5 mm. Very flexible thanks to possible height adjustment/adjustment. Sealing flange diameter 160 mm. For easy insertion of the floor sealing. Easy to clean option - from above to the drain pipe by removal. Adjustable siphon. Resistant to normal mechanical, chemical and thermal influences. Product number: APV5411 (horizontal) | APV4611 (vertical).
