Flipsky eBike Display TFT 3.2" with Mount - VESC Support

• FTESC: Flipsky Non VESC ESCs;FSESC: ESCs based on VESC;FOCBOX: FOCBOX Unity
• Gear switch: In the main interface, short press the plus key to switch gears;
• Parameter description: The gear switch function is only applicable to the PAS mode of the "FTESC" electronic adjustment type. PAS mode: 0 gear
• The speed is zero, and other different gears can control different speeds. The higher the gear, the faster the speed.
• Riding mode: In the main interface, double-click the minus key to enter the riding mode; double-click again to end the current riding record.Riding record: In the main interface, long press the plus key to enter the riding record interface; long press the plus key again to exit;.If you want to clear the riding record, long press the minus key.

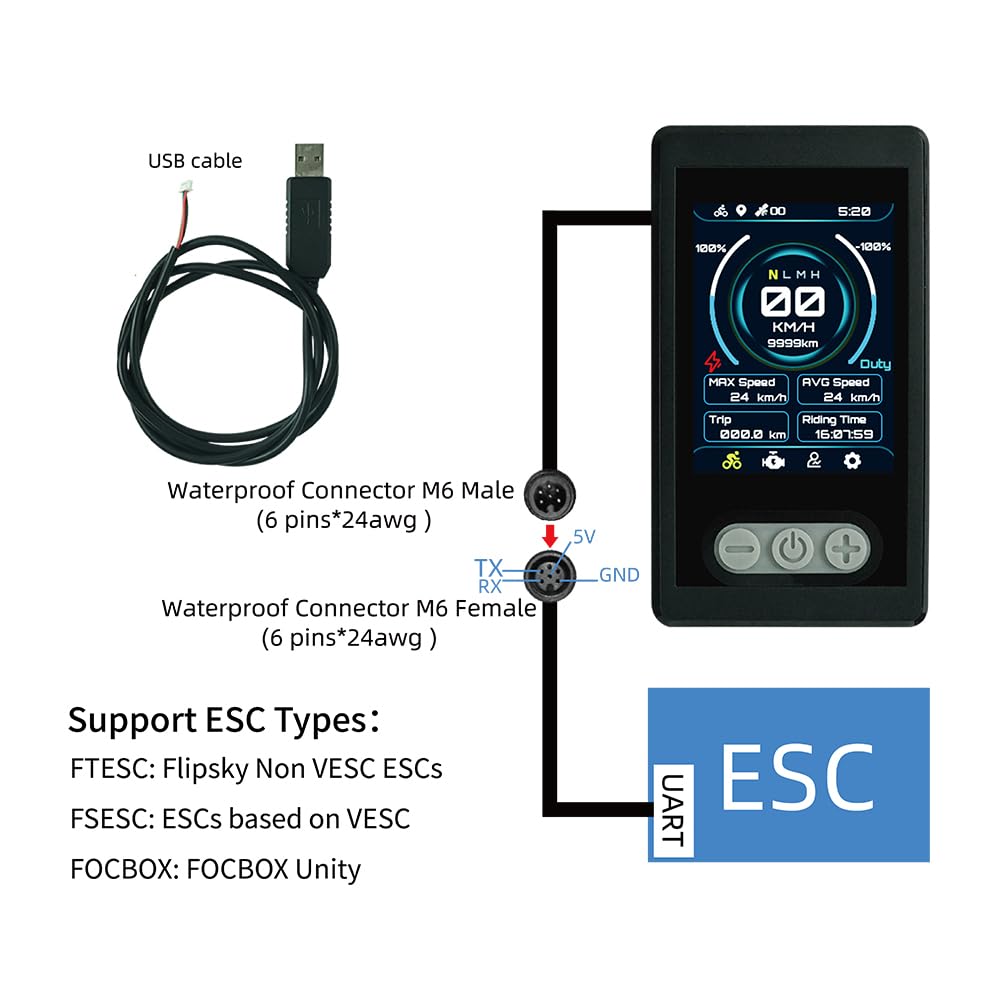

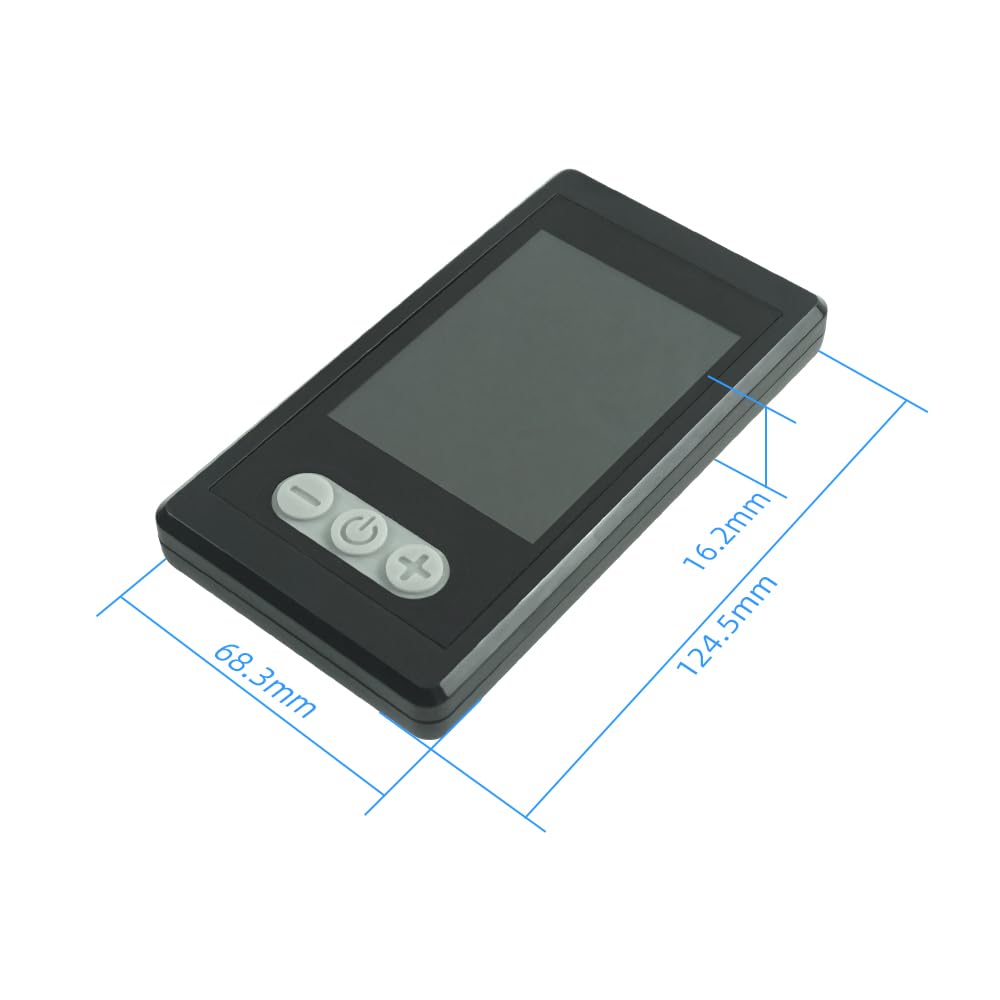

Specification: Dimension: L*W*H (mm)124.4*68.1*18.5(mm) Display Size:3.2 “ Display Type:TFT Display Color:RGB Display Image Resolution:240*320 Voltage/Current:5V/500mA Working Temperature:-20℃～+70℃ Storage Temperature:-30℃～+70℃ IP Rate:IP65 Weight:116gCommunication Mode:UART Support Esc Types: FTESC: Flipsky Non VESC ESCs FSESC: ESCs based on VESC FOCBOX: FOCBOX Unity
