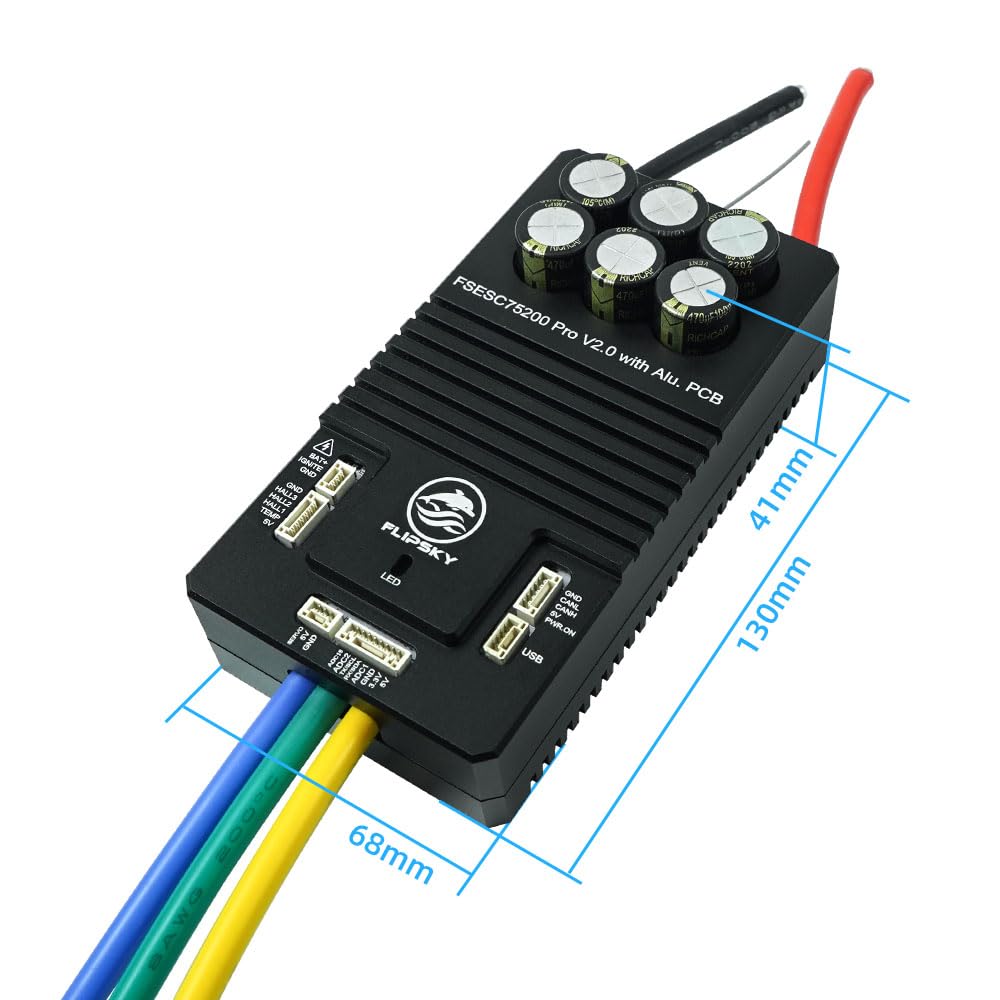

FLIPSKY 75200 Pro V2.0 84V 200A Aluminum Circuit Board with Key Switch Based on VESC for Electric Skateboard/Scooter/E-Bike Speed Controller

• 75200 pro v2.0 is an ESC controller that can be used for electric skateboards/scooters/electric bicycles/robots/DIY off-road vehicles/combat off-road vehicles, etc.
• The ESC is the Benjamin ESC series. Please use the VESC TOOL tool to adjust the parameters before use. The firmware of the factory version is 6.02. If you need other versions, please go to the VESA tool software (firmware) and select the appropriate version. The version cannot be used incorrectly. Different firmwares may cause differences in parameters, otherwise it may be easy to damage the ESC parameters.
• Note: Except Apple computers, other computer firmware can be downloaded from our official website. Apple computers can only be purchased on Apple. Please refer to the instructions and wiring diagram to ensure safe use of the product.
• If you only connect the controller, pay attention to it. If the versions are inconsistent, the page will be displayed. If they are inconsistent, you need to change them to be consistent before adjusting the parameters.
• Voltage range 14-84V (safe within 4-20S). Do not exceed the voltage range, as the ESC can burn out.
• Continuous current: 50V/200A; 75V/150A (the duration depends on external heat dissipation); the current at the motor and bus battery end cannot exceed 200A.
• BEC: 5 V @ 1 A, 5 V output current, the receiver cannot exceed 1 A. Instant current: 400 A (only one moment), with relative filtering.

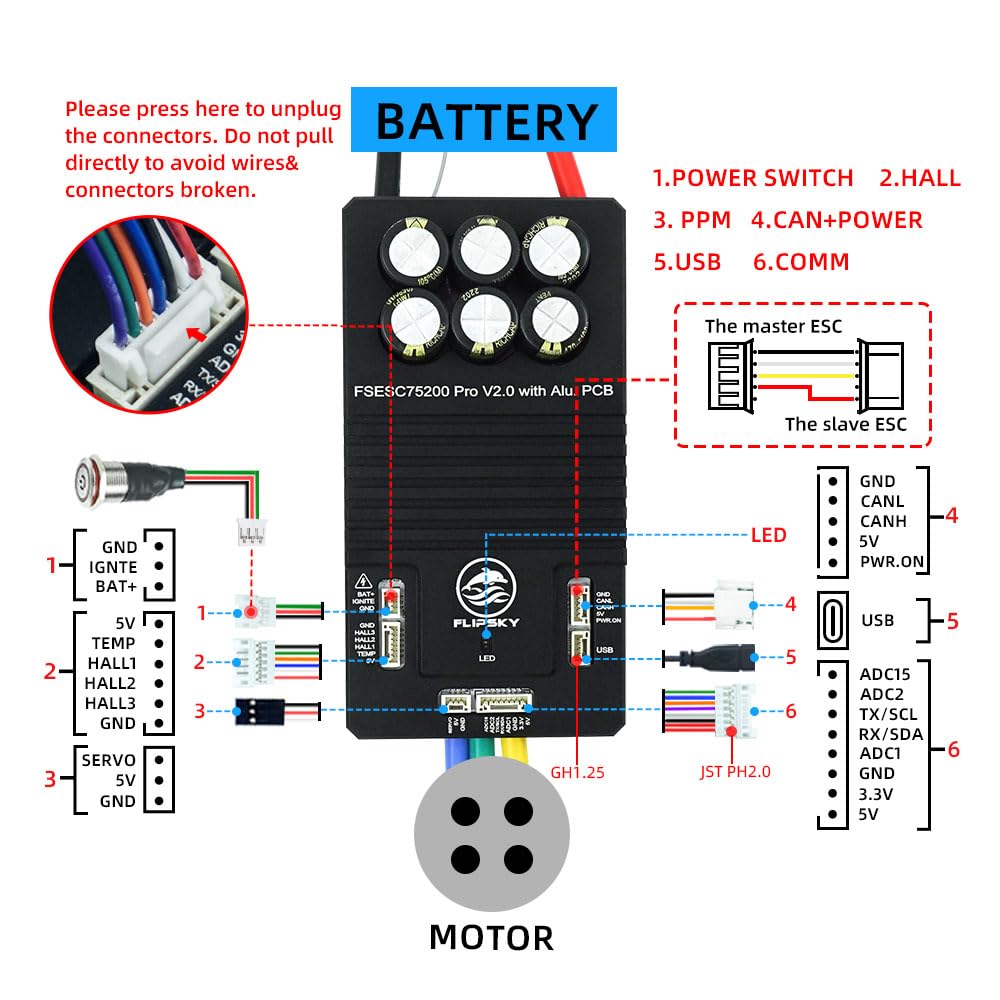

• Please connect according to the wiring diagram and pay special attention to 3.3V and 5V. Do not short circuit. Note: When using throttle under ADC control, make sure the positive pole of the power supply is connected to 3.3V, not 5V.
• Warm reminder: the ESC seat is easy to fall off, please do not be too fierce when using it. The battery and motor connections must be firmly welded
• You can refer to the video. If you still do not understand, you can contact us to send relevant videos.

1. Our product is an ESC controller, which can be used for electric skateboards/scooters/electric bicycles/robots/DIY off-road vehicles/combat off-road vehicles, etc. 2. The ESC is the Benjamin ESC series. Please use the VESC TOOL tool to adjust the parameters before use. The firmware of the factory version is 6.02. If you need other versions, please go to the VESA tool software (firmware) and select the appropriate version. The version cannot be used incorrectly. Different firmwares may cause differences in parameters, otherwise it may be easy to damage the ESC parameters. Except for Apple computers, other computer firmware can be downloaded from our official website. Apple computers can only be purchased on Apple. 3. If you only connect the controller, pay attention to it. If the versions are inconsistent, the page will be displayed. If they are inconsistent, you need to change them to be consistent before adjusting the parameters. 4. Voltage range 14-84V (safe within 4-20S). Do not exceed the voltage range, as the ESC can burn out. 5. Continuous current: 50 V/200 A; 75 V/150 A (the duration depends on the external heat dissipation); the current at the motor and bus battery end cannot exceed 200 A. 6. Instant current: 400 A (only one moment, such a high current cannot be maintained). 7. BEC: 5V@1A, 5V output current, the receiver must not exceed 1A. 8. With relative filtering 9. The product only has one switch, without spark protection function. If you need spark protection, you must purchase a spark breaker separately. Pack of 10. Warm reminder: The ESC seat is easy to fall off, please do not be too heavy when using it. 11. Please connect according to the wiring diagram and pay special attention to 3.3V and 5V. Do not short circuit. Note: When using throttle under ADC control, make sure the positive pole of the power supply is connected to 3.3V, not 5V. 12. The battery and motor connections must be firmly welded. 13 EU: Please strictly follow the instructions and wiring diagram to ensure the safe use of the product. You can refer to the video. If you still do not understand, you can contact us to send relevant videos. 14 EU: Support single serial port, Bluetooth module (no external Bluetooth module required). 15 EU: The ESC is an individual DIY product. If you need to return or exchange, please ensure the original condition of the product (no welding, no tearing of the shrink film), which does not affect the secondary sale, and you can return or exchange it; if it has been welded, turned on, and the shrink film has been torn off, etc. It cannot be returned, please note! 16 EU: double heat dissipation, metal aluminum housing plus aluminum substrate, double heat dissipation effect, the aluminum substrate effectively cope with heat distribution in the circuit, the metal aluminum housing improves heat dissipation while protecting the ESC and extending the service life.
