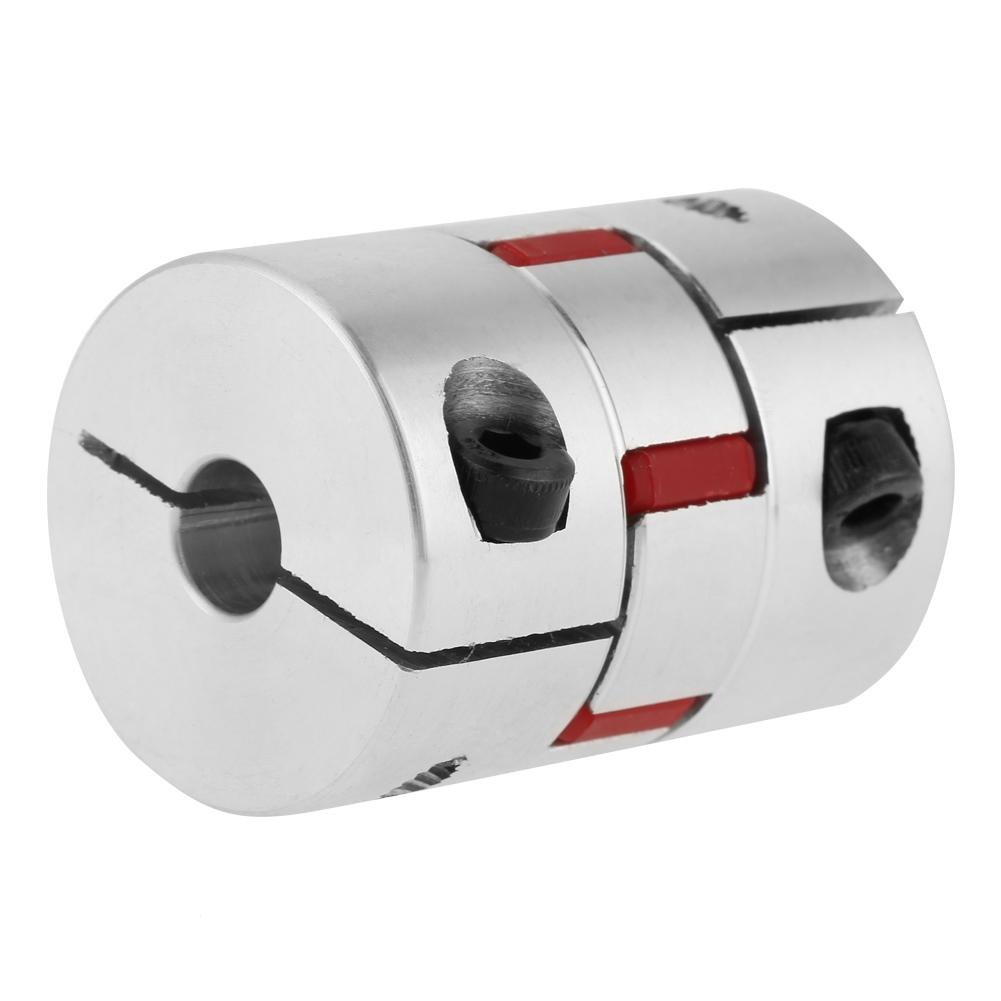

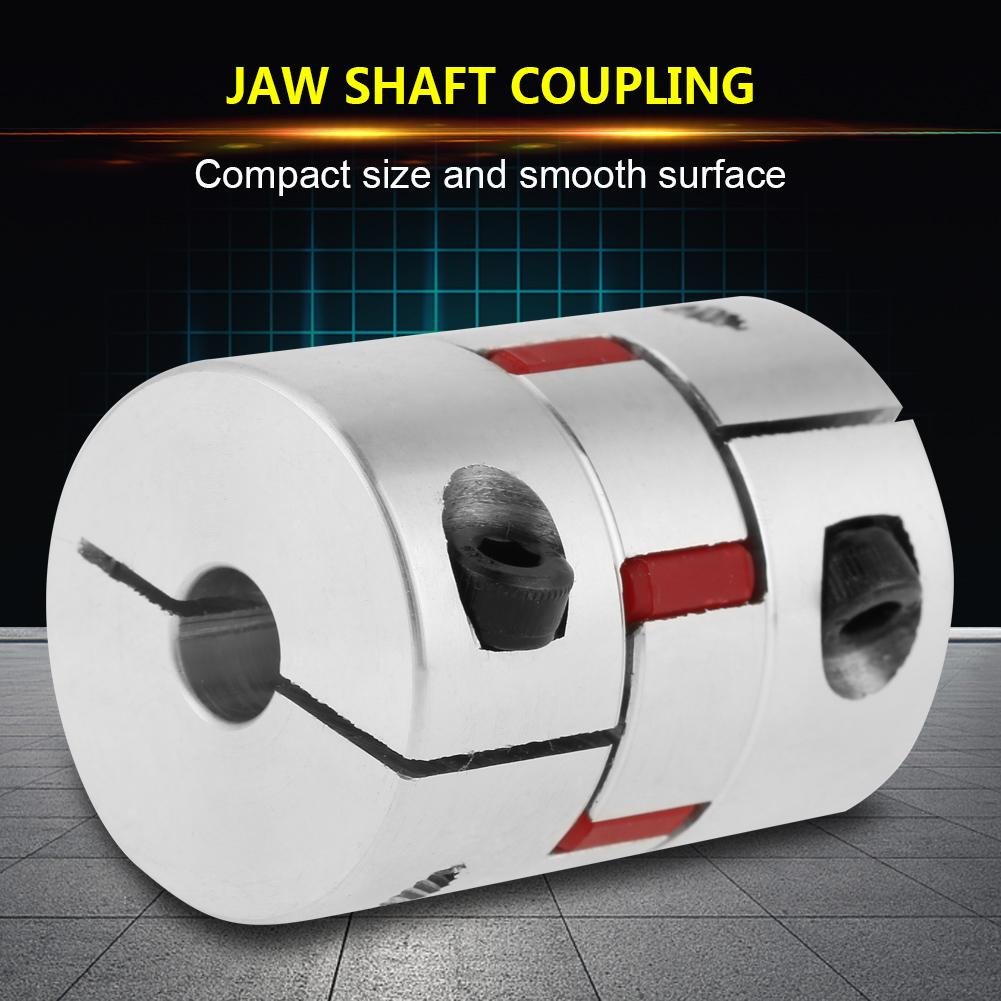

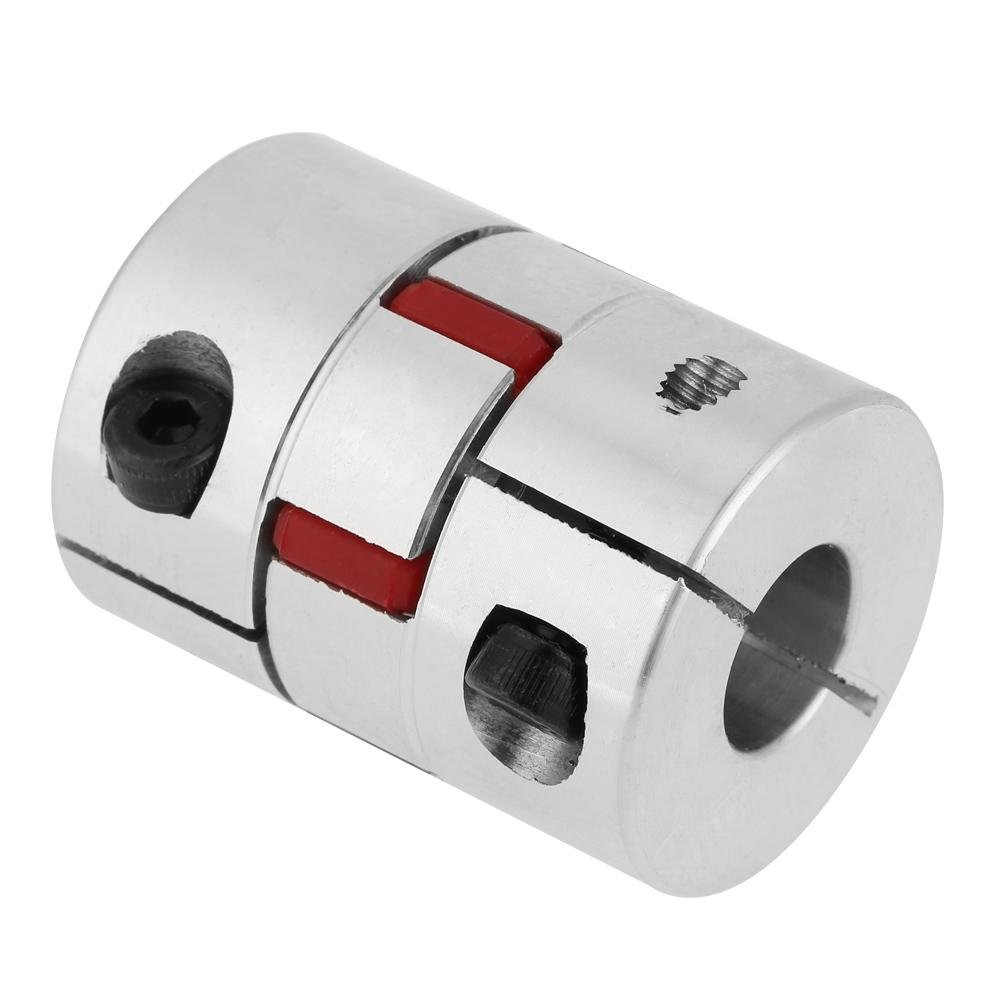

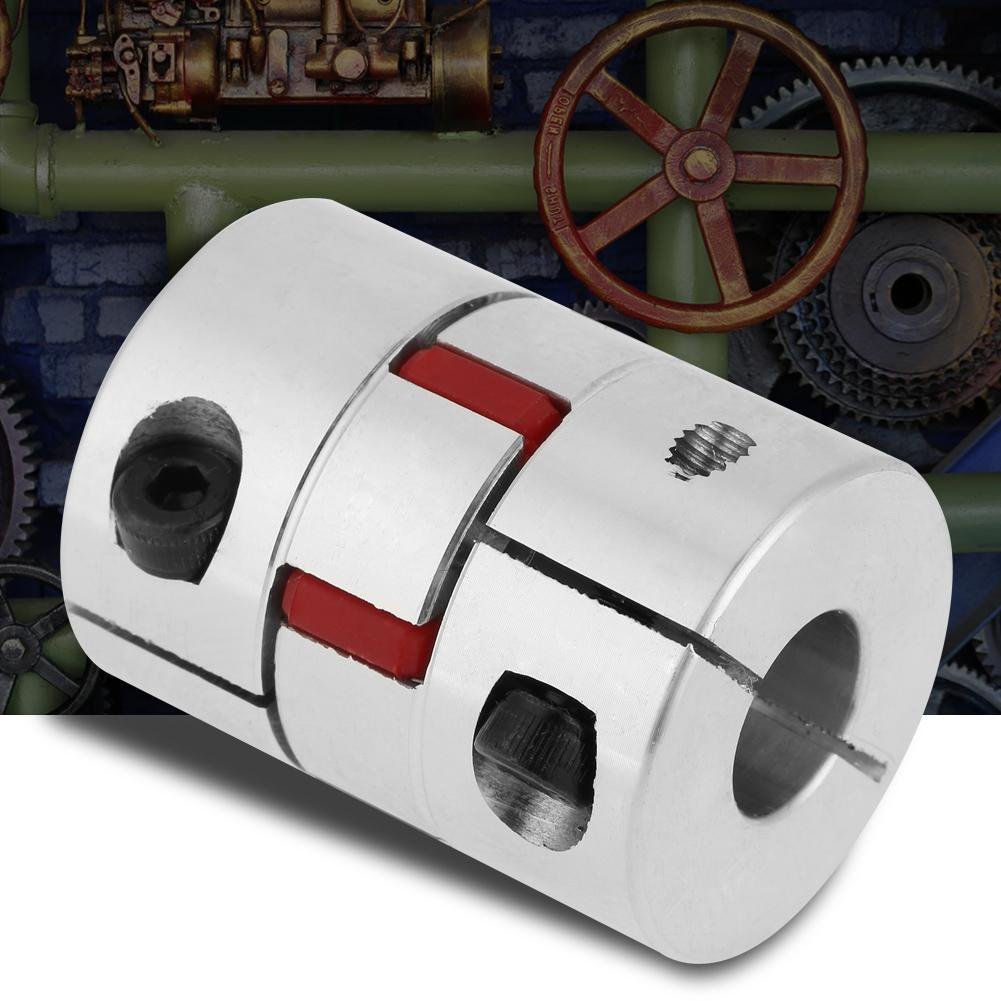

Flexible Shaft Coupling, OD30mm x L40mm Stepper Motor Coupler Shaft Coupling Connector Flexible Spider Shaft Coupling Connector(8x12mm)

• ★ 【Simple Structure】: The flexible coupler is easy to install, buffer, damping, convenient to disconnect.
• ★ 【Simple Structure】: The flexible coupler is easy to install, buffer, damping, convenient to disconnect.
• ★ 【High Quality】: Elastomer material: imported polyurethane, Sleeve material: high strength aluminum alloy, Type: Plum shaped.
• ★ 【Premium Characteristic】: The size of the coupling is compact and the is smooth, clamp the screws and fix them. Clockwise and counterclockwise rotation properties are identical.
• ★ 【Shaft Usage】: Widely used in the shafting transmission of various mechanical devices, such as pumps, fans, compressors, petroleum machinery, printing machinery.

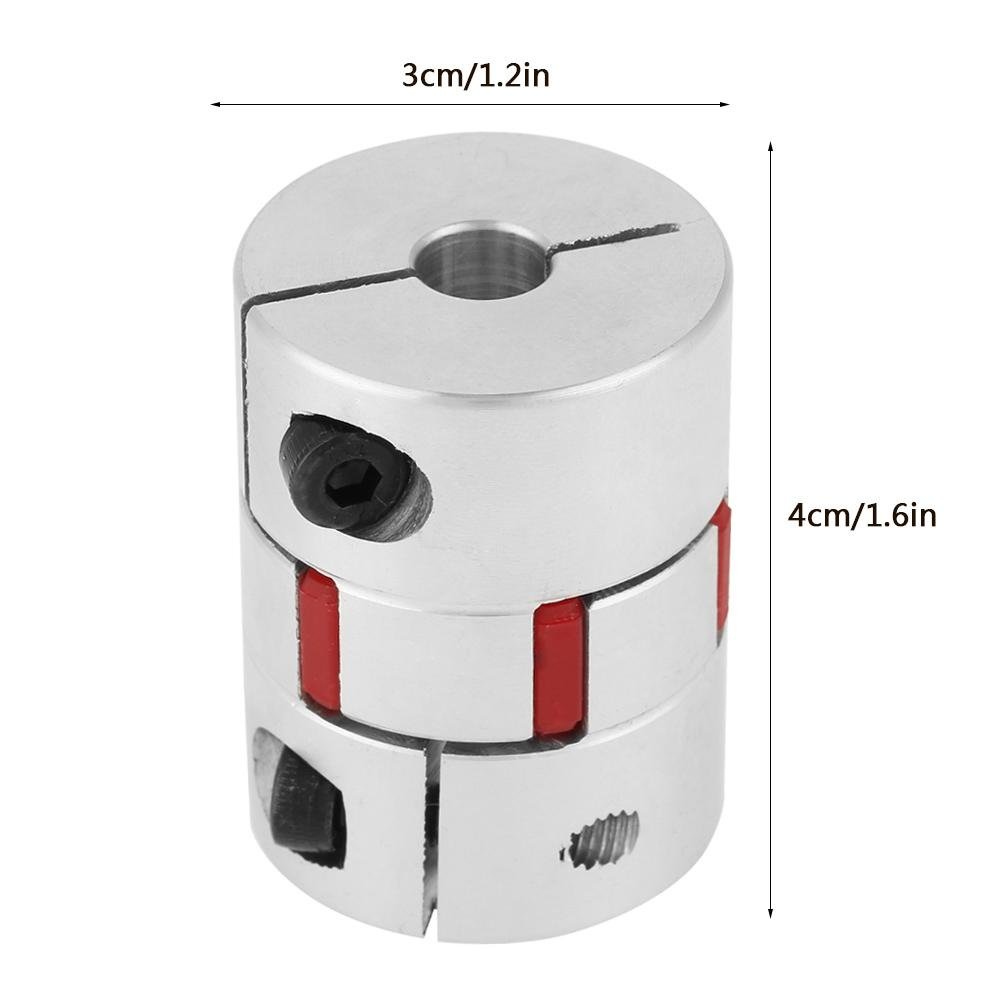

Features: The structure is simple,easy to install,buffer,damping,convenient to disconnect. Compact size and smooth surface The elastic connection, it can absorb vibration, compensate radial, angular and axial misalignment. Shaft coupling is often used to connect servo motor stepper motor,encoder, screw driving, machine platform etc. Clockwise and counterclockwise rotation properties are identical. Clamp the screws and fix them. Widely used in the shafting transmission of various mechanical devices, such as pumps, fans, compressors, petroleum machinery, printing machinery. Specifications: Elastomer material: imported polyurethane Sleeve material: high strength aluminum alloy Nominal torque: 20 (N.m) Allowable speed: 10000 (r/m) Allowable torque: 12.5 (N.M) Length: 40 mm / 1.57in Outer diameter: 30 mm / 1.18in Type: 6.35x12mm / 0.25 x 0.47in, 8x12mm /0.31 x 0.47in, 12x14mm /0.47 x 0.55in (Optional) Weight: 60g Package included: 1 x Flexible Coupler
