Fischer FIS H 2X Stocking Plugs and 2X M10 Threaded Bars for Chemical Anchor, 508301

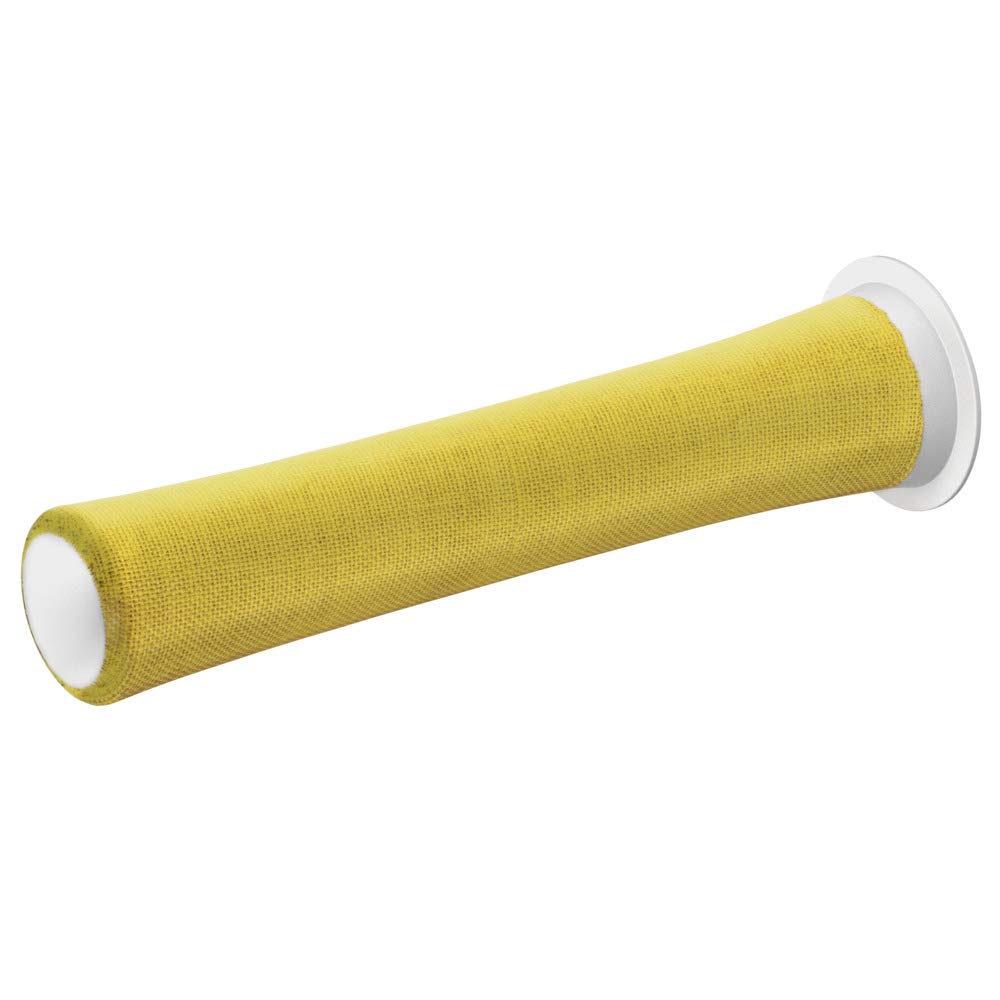

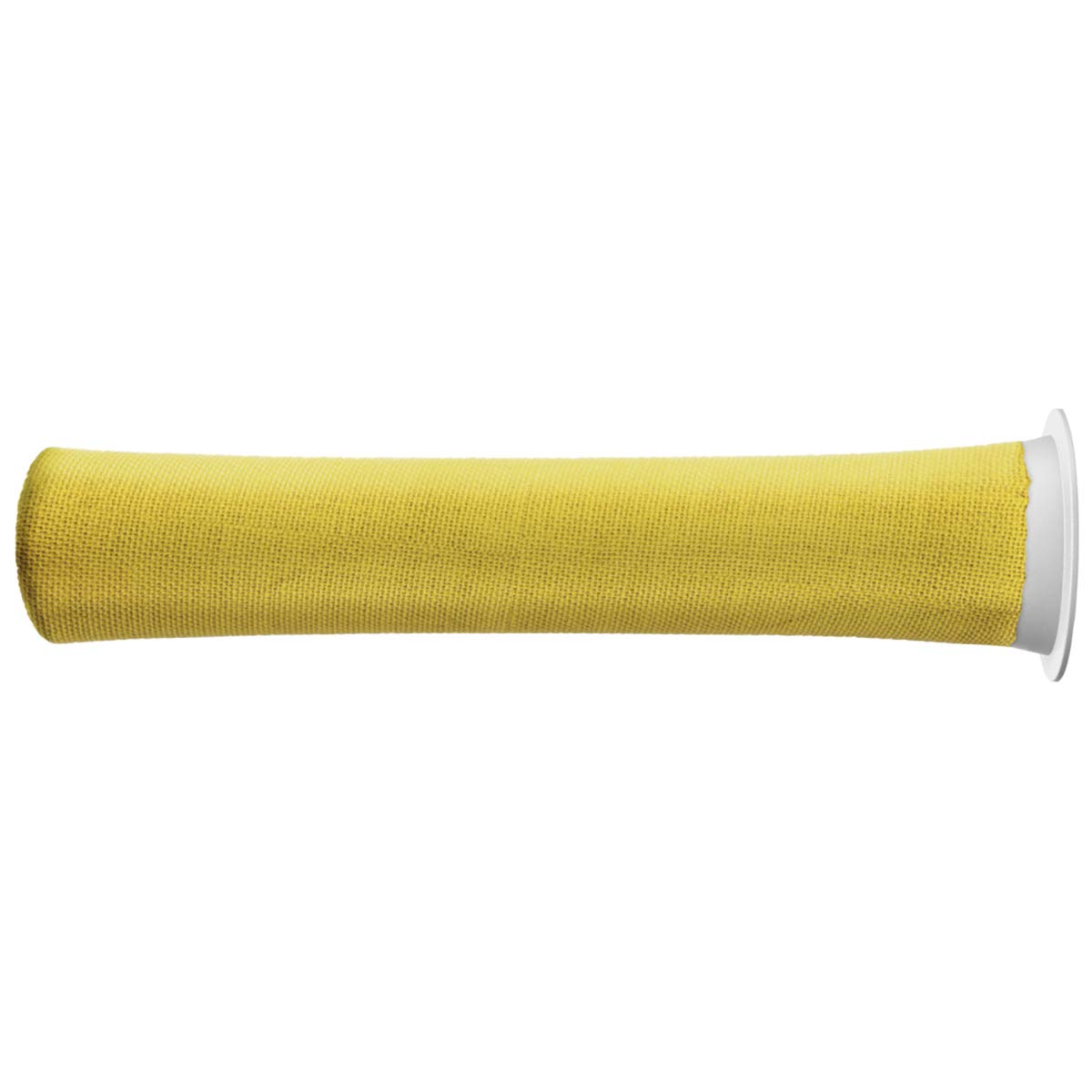

• The FIS HN yellow sock dowel is suitable for fixing on perforated supports; the mesh of the sock ensures excellent filling of the voids avoiding the leakage of resin
• The 4 holes on the head of the FIS HN sock dowel are real spy holes and give the idea of the filling state of the sock; as soon as the resin comes out of these overflow holes, no more resin needs to be introduced
• Contains 2 threaded bars M10x110 in steel class 5.8 galvanized white with nut and rosette and tip inclined at 45°
• For use with Fischer T-Bond Pro 1, Fis V Zero, Fis Green chemical anchor, etc.
• Hole diameter in wall: 18mm

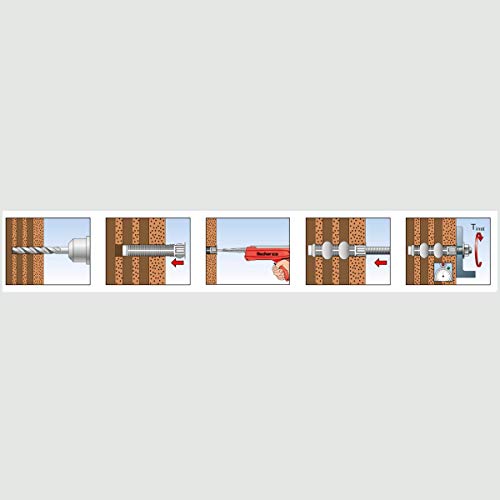

Fischer dowels with threaded rods, nuts and rosettes for chemical anchorAdvantages: threaded rod in steel class 5.8 white galvanized with nut and rosette and tip inclined at 45 °. The yellow sock dowel fis hn is ideal for fixing on perforated supports. The mesh of the sock ensures a perfect filling of the voids avoiding the leakage of resin. The injection of the resin from the mixer spout of the two-component cartridges is facilitated by the presence of the adapter (nozzle centrator to be interposed between the mixer fis mr plus and the sock dowel fis hn). The 4 holes present on the head of the sock dowel are real warning holes and give the idea of the filling condition. As soon as the resin comes out of these holes "overfull" it is no longer necessary to introduce resin. Specifications: dimensions - b x l - [mm]: 75 x 197; blister with: 2 dowels, 18 x 85 n + 2 bars m10 x 110 + 2 nuts + 2 rosettes; references:ean: 8001110 32083 017fischer code: 508301
