Fischer FRS Plus Pipe Clamp 89 – 92 79453

• The rapid-locking mechanism allows for fast and time-saving installation.
• The safety latch fastening guarantees pipe installation without the clamp springing open.
• The tight fit of the sound insulation insert prevents it from falling out when aligning the pipe.
• The combination connecting nut with M8/M10 thread enables optimised mounting choices.
• The two screws allow an easy adjustment to suit the outer pipe diameter.
• The screw's safety feature ensures trouble-free installation.
• Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130
• Zinc plating: electro zinc-plated, 5–9 µm
• Connecting nut: resistance welded, M8/M10, SW 13
• Locking screw: flat head screw with combination recessed head
• Material sound insulation insert: EPDM; chlorine-free; silicone-free
• Sound insulation: for DIN 4109
• Temperature range: -40 °C to +100 °C
• Hardness: 55 ± 5° Shore A
• Fire behaviour: DIN 4102: Class B2

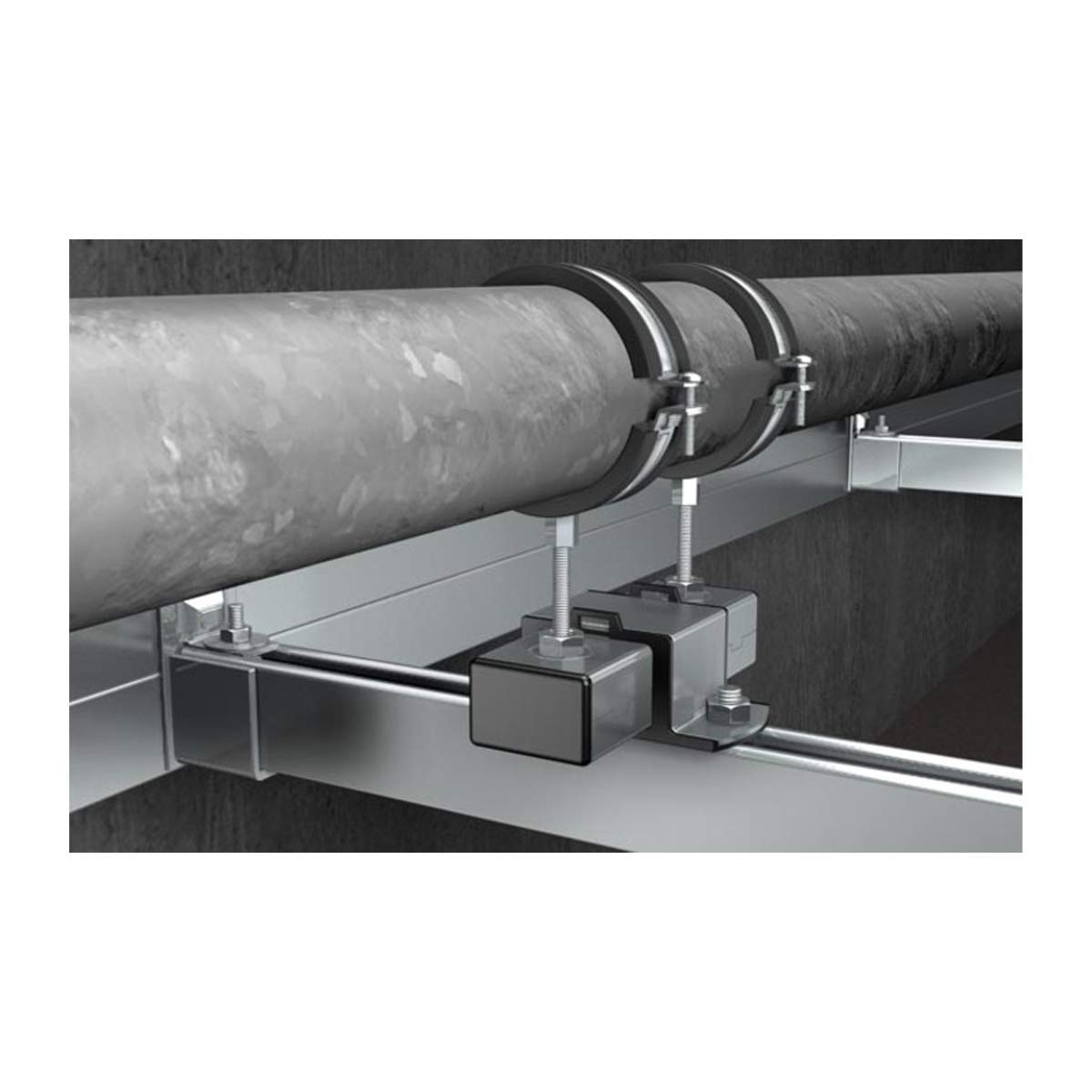

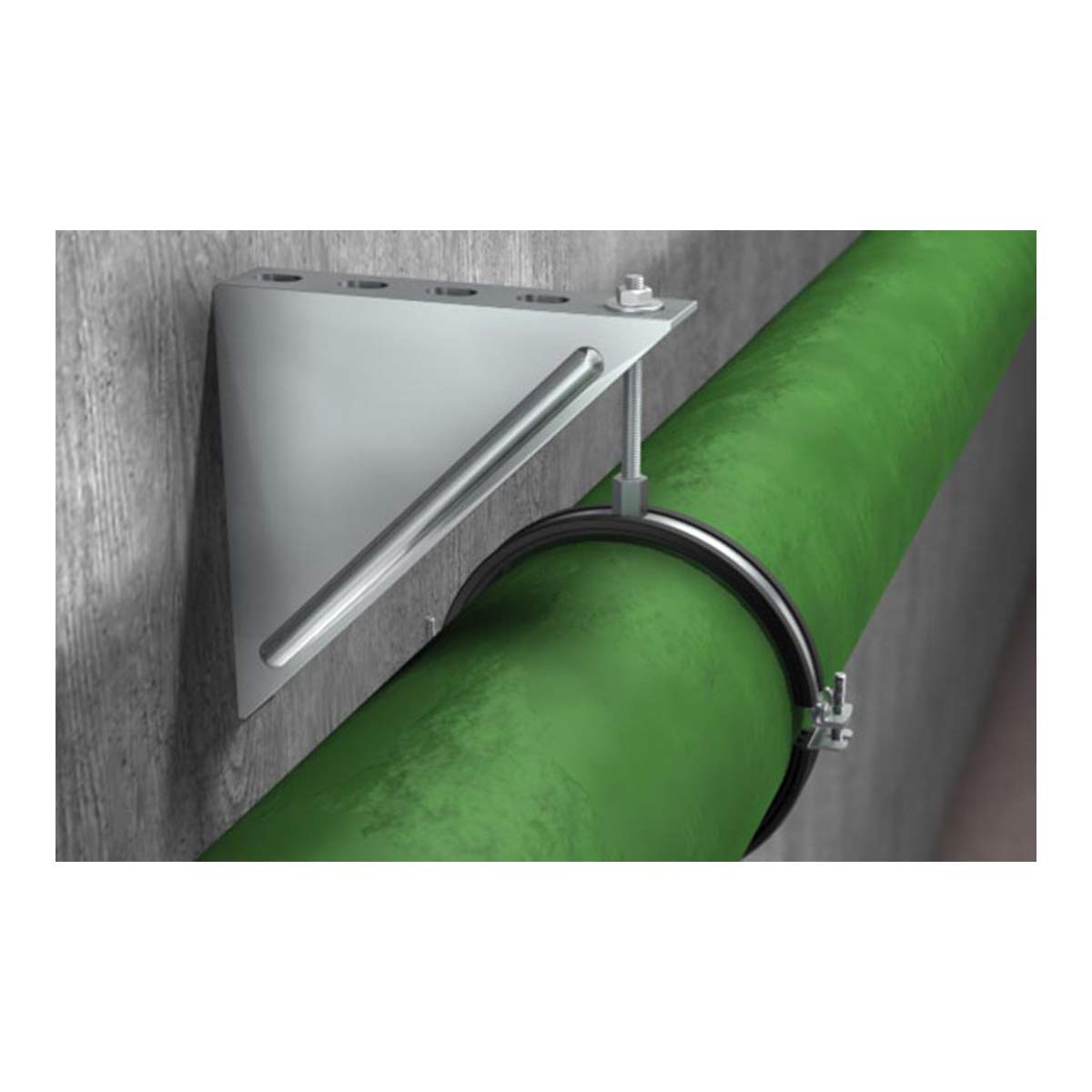

• For simple and easy fixing of pipes using threaded rods or stud screws
• FEB/FS-75/13 - 3

'The Fischer pipe clamp FRS plus 89-92 For Nominal size 3rd Quick Release Button allows for easy and time-saving installation by ducting. The Zweisc Hraubigkeit allows the optimised fit on the tube outside diameter. Safety closure and fixed Schalldämmeinlage, ensure safe Fine adjustment. Union Nut with combination M8/M10 for use with threaded rods or bolts. Pipe Clamp Screws with security.
