Fischer FIS A Anchor Rod M8 x 110 90275

• The universal solution for different Fischer Injection mortar, to cover a small range and a simplified Lager posture
• Optimum load adjustment due to variable anchor depth, this reduces mounting and material costs
• In combination with various Fischer Injection mortar approved for anchored in cracked and Ungerissenem concrete, solid brick, masonry, perforated brick Masonry And aerated concrete

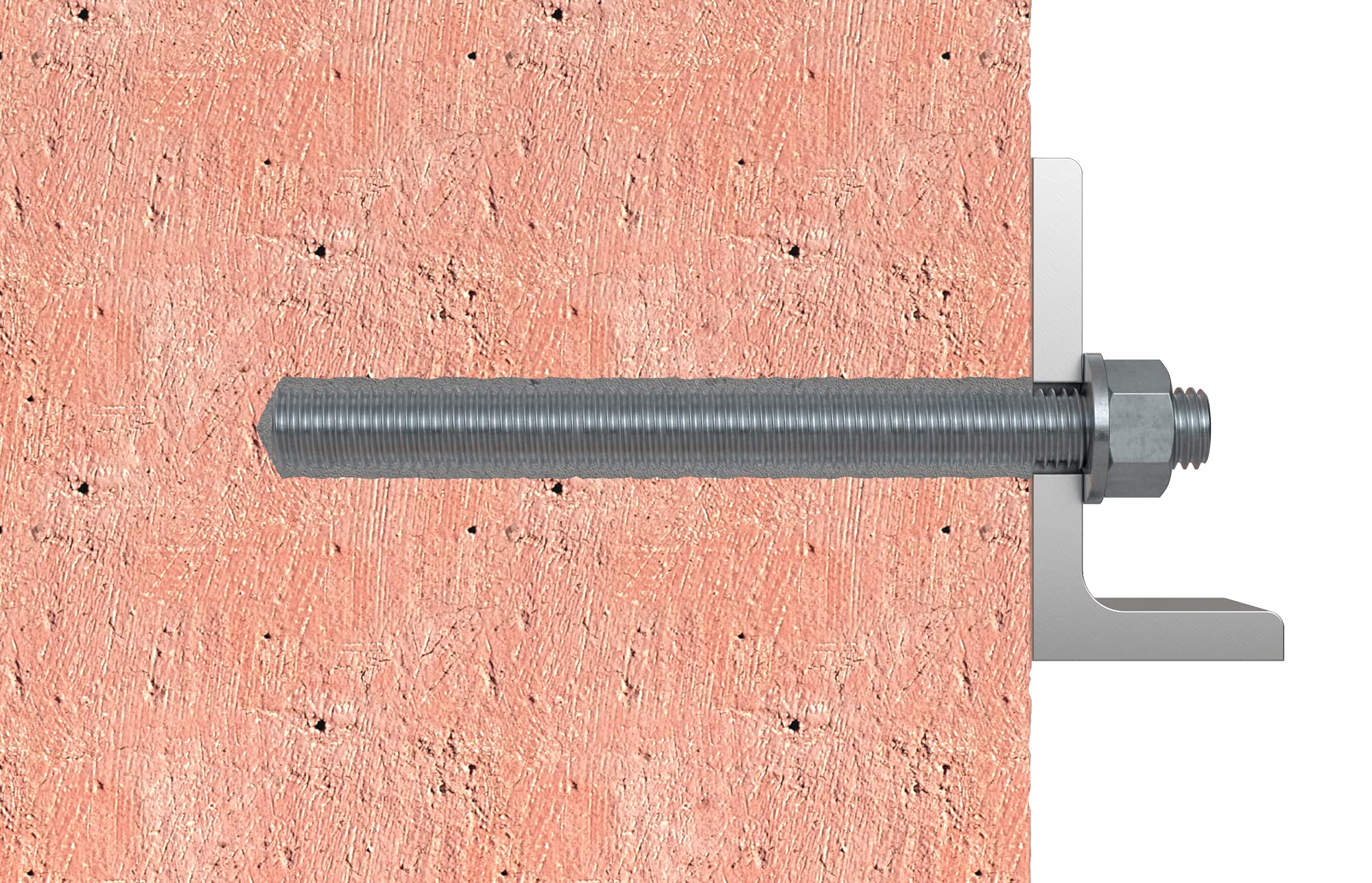

The Fischer FIS a anchor rod is made from steel with zinc plating of steel grade 5 8. The Anchor rod's a system part for different Fischer grouting. In combination with the injection mortar is the Fischer anchor rod for all surfaces and approved. The maximum load of the system are a thorough hole cleaning is recommended. The system is suitable for the fastening of steel structural design, stairs and machines in the interior. Technical Data: Nominal Diameter: 10 (mm): Thread: M 8 (mm): 110 (mm) Max. Usable length in porous concrete: 25 (mm): Max. Thickness of the mounting part: 35 x 20 x 5 (mm) Maximum Usable length: 49 Solid brick [mm] Min) and A4-80 Stainless Steel Screw Material. /Max. Anchor Depth: 60/98 [mm] Min) and A4-80 Stainless Steel Screw Material. Hole Depth: 80 (mm) Min) and A4-80 Stainless Steel Screw Material. Anchor Depth: 64 (mm) Min) and A4-80 Stainless Steel Screw Material. Anchor Depth in solid brick: 50 [mm] Min) and A4-80 Stainless Steel Screw Material. Anchor Depth in porous concrete: 75 (mm) a mortar: FIS V (Pack of 10)
