Fischer FIS A Anchor Rod M12 x 260 A4 90454

• The universal solution for different Fischer Injection mortar, to cover a small range and a simplified Lager posture
• In combination with various Fischer Injection mortar approved for anchored in cracked and Ungerissenem concrete, solid brick, masonry, perforated brick Masonry And aerated concrete
• Stainless steel for outdoor use
• Optimum load adjustment due to variable anchor depth, this reduces mounting and material costs

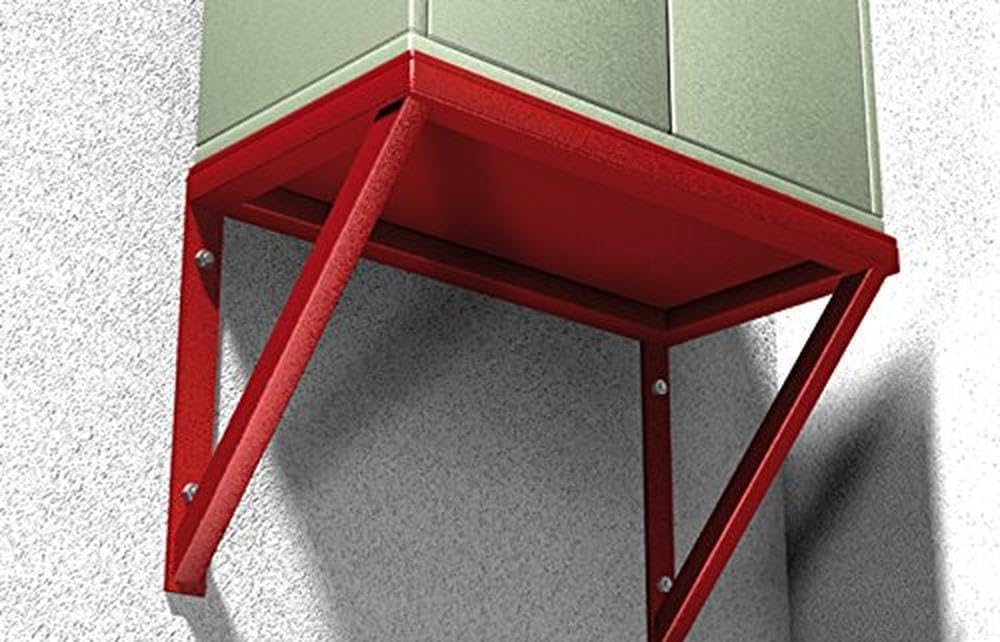

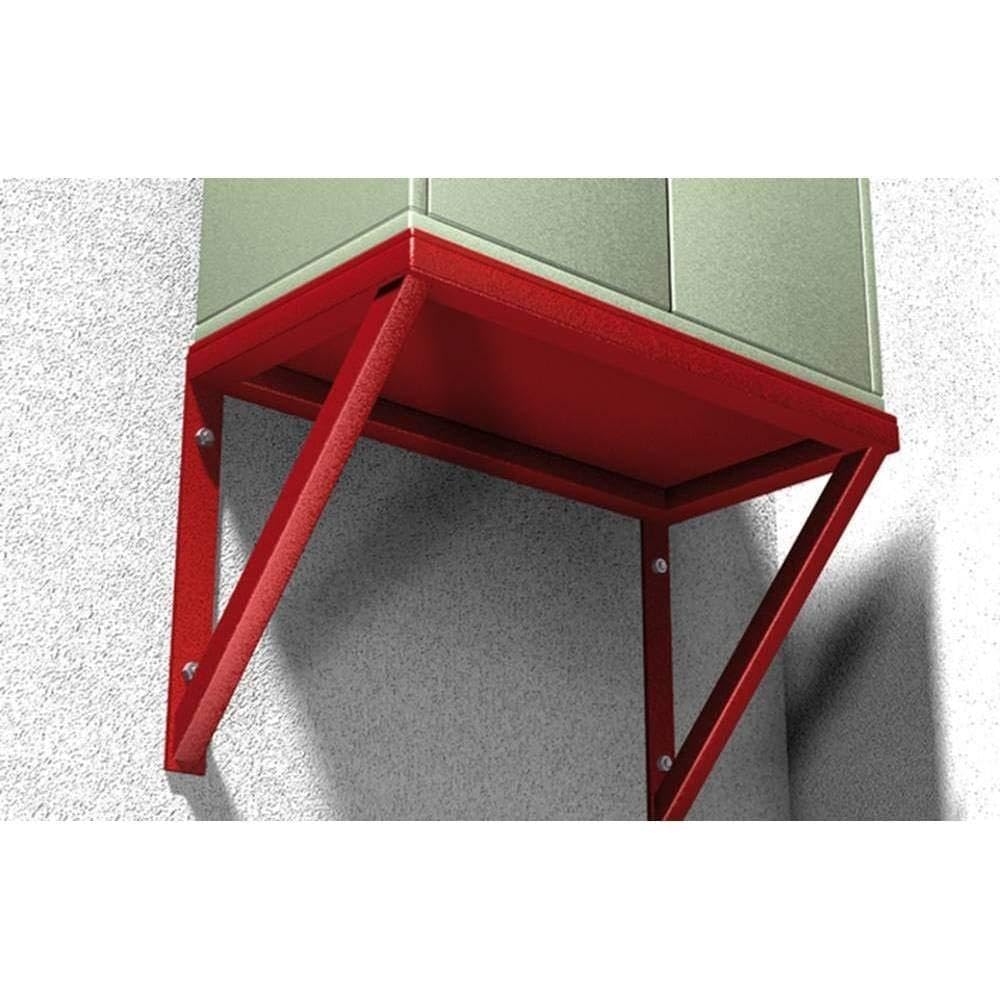

The Fischer FIS a anchor rod is made from rust-free steel. The Anchor rod's a system part for different Fischer grouting. In combination with the injection mortar is the Fischer anchor rod for all surfaces and approved. The maximum load of the system are a thorough hole cleaning is recommended. The system is suitable for the attachment of steel construction and wood building construction, landings and facades when used outdoors. Technical Data: Nominal Diameter: 14 (mm) thread: M 12 (mm): Length: 260 (mm): Max. Usable length in porous concrete: 170 (mm): Max. Thickness of the mounting part: 150/135/125 (mm): Max. Usable length in solid brick: 194 [mm] Min) and A4-80 Stainless Steel Screw Material. /Max. Anchor Depth: 70/240 (mm) Min. Hole Depth: 80 (mm) Min) and A4-80 Stainless Steel Screw Material. Anchor Depth: 96 [mm] Min) and A4-80 Stainless Steel Screw Material. Anchor Depth in solid brick: 50 [mm] Min) and A4-80 Stainless Steel Screw Material. Anchor Depth in porous concrete: 75 (mm) a mortar: FIS V
