Fischer FGRS Plus 12-14 79400 Pipe Clamp, Metal Tube Clamp

• The rapid-locking mechanism allows a fast and time-saving installation.
• The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe.
• The safety latch fastening guarantees pipe installation without the clamp springing open.
• The combination connecting nut with M8/M10 thread on the FGRS Plus M8/M10 allows optimised mounting choices.
• The screw's combination cross-drive thread allows flexibility during the installation process.
• The compact construction of the pipe clamp enables a simple post-installation insulation.
• Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130
• Zinc plating: electro zinc-plated
• Connecting nut: resistance welded, SW 13
• Locking screw: flat head screw with combination recessed head
• Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
• Sound insulation: for DIN 4109
• Temperature range: -40 °C to +100 °C
• Hardness: 55 ± 5° ShoreA
• Fire behaviour: DIN 4102: Class B2

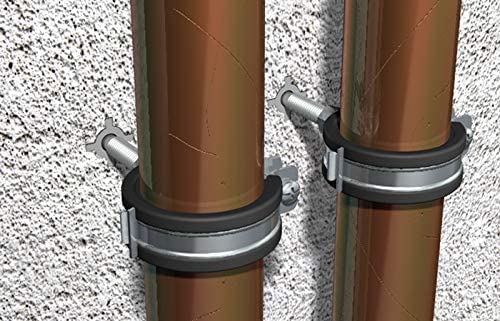

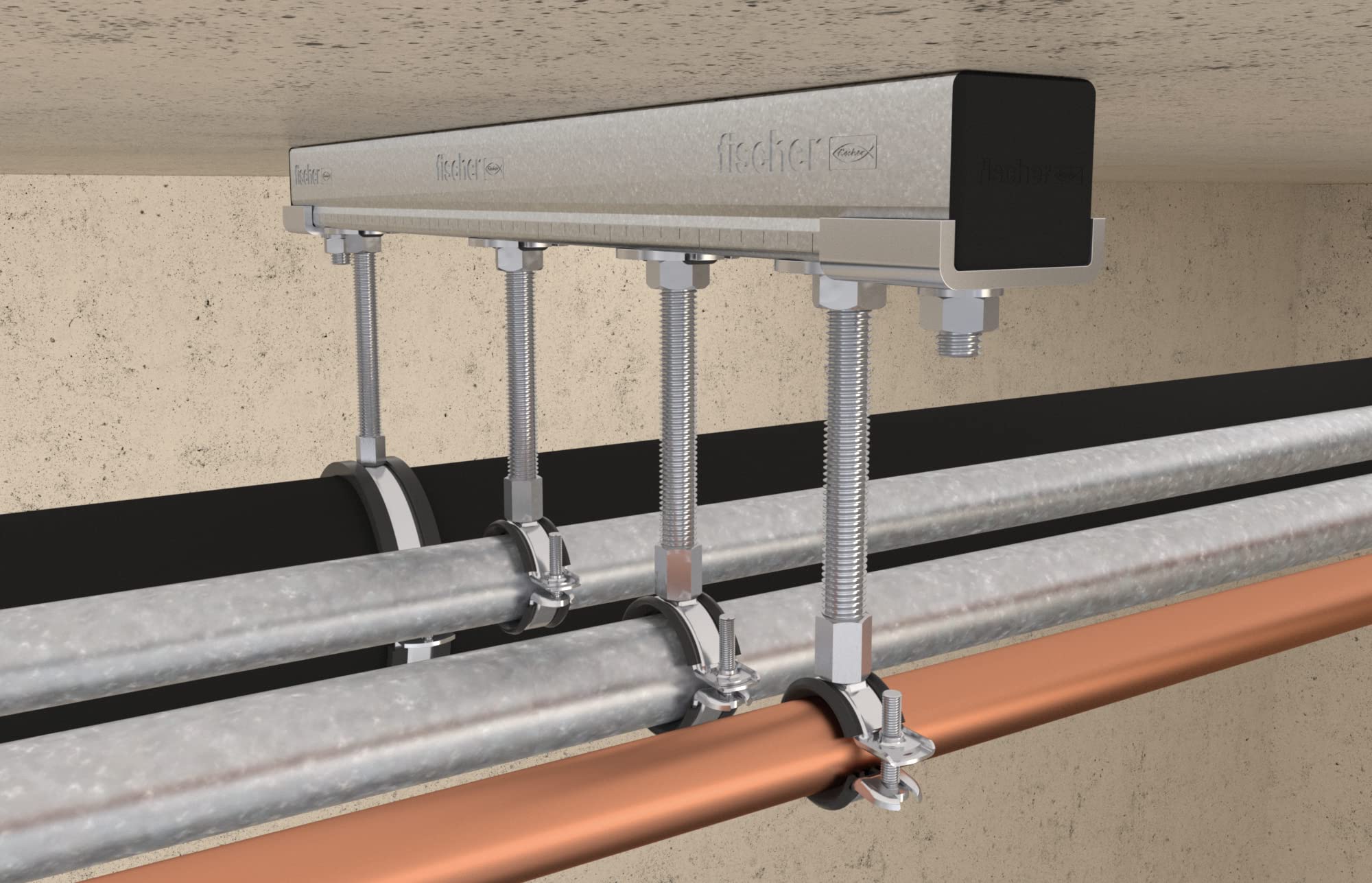

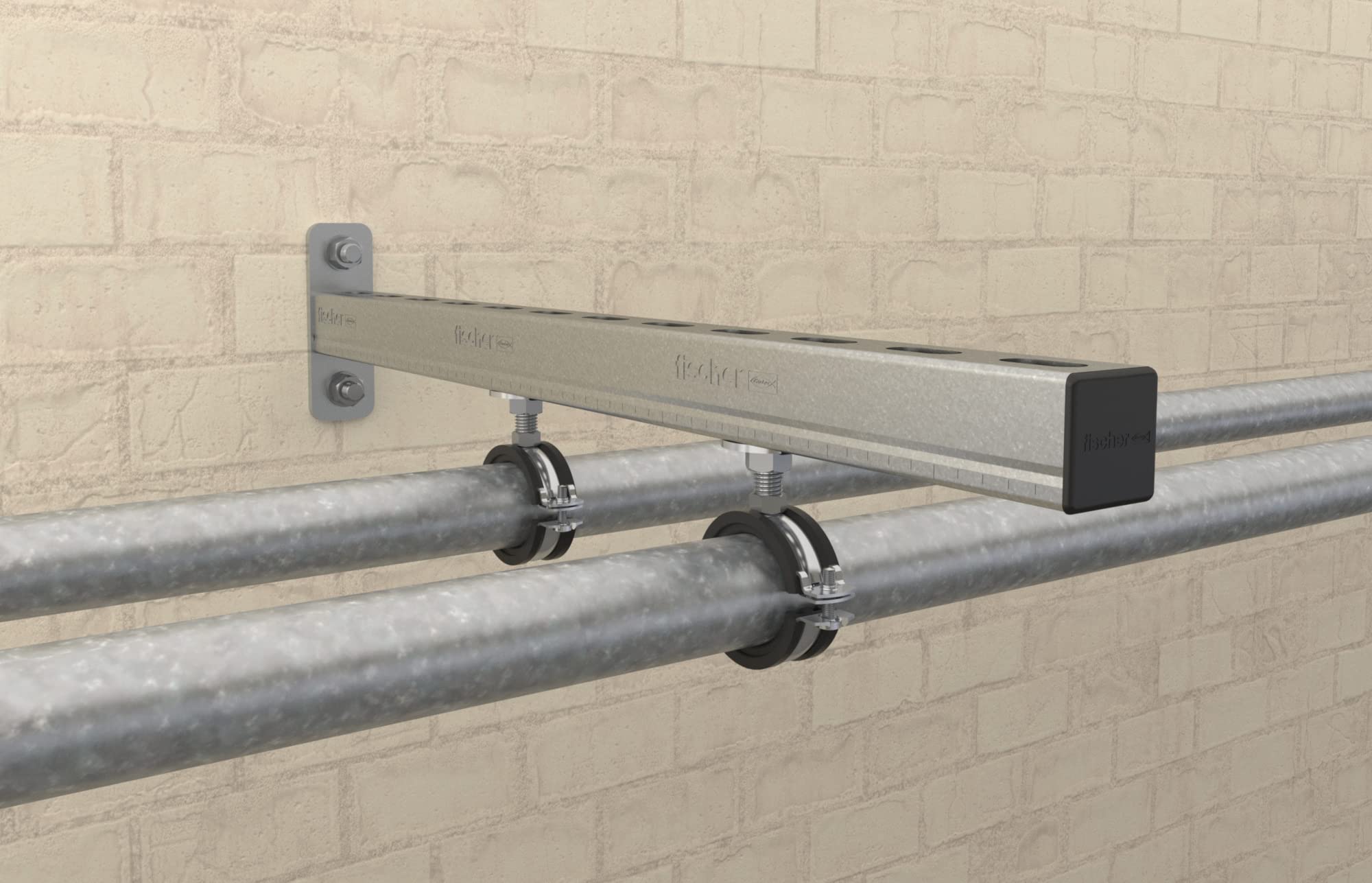

• Time-saving fixing for pipes up to Ø2“ using threaded rods or stud screws

The advantages / Product description The one-piece hinged pipe clamp with rapid-locking mechanism Advantages The rapid-locking mechanism allows a fast and time-saving installation. The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe. The safety latch fastening guarantees pipe installation without the clamp springing open. The combination connecting nut with M8/M10 thread on the FGRS Plus M8/M10 allows optimised mounting choices. The screw's combination cross-drive thread allows flexibility during the installation process. The compact construction of the pipe clamp enables a simple post-installation insulation. The fischer hinged pipe clamp FGRS Plus with sound insulation insert for fixing pipelines. The rapid-locking mechanism allows for fast, time-saving installation. Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts. Properties Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130 Zinc plating: electro zinc-plated Connecting nut: resistance welded, SW 13 Locking screw: flat head screw with combination recessed head Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free Sound insulation: for DIN 4109 Temperature range: -40 °C to +100 °C Hardness: 55 ± 5° ShoreA Fire behaviour: DIN 4102: Class B2 The one-piece hinged pipe clamp with rapid-locking mechanism Advantages The rapid-locking mechanism allows a fast and time-saving installation. The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe. The safety latch fastening guarantees pipe installation without the clamp springing open. The combination connecting nut with M8/M10 thread on the FGRS Plus M8/M10 allows optimised mounting choices. The screw's combination cross-drive thread allows flexibility during the installation process. The compact construction of the pipe clamp enables a simple post-installation insulation. The fischer hinged pipe clamp FGRS Plus with sound insulation insert for fixing pipelines. The rapid-locking mechanism allows for fast, time-saving installation. Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts. Properties Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130 Zinc plating: electro zinc-plated Connecting nut: resistance welded, SW 13 Locking screw: flat head screw with combination recessed head Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free Sound insulation: for DIN 4109 Temperature range: -40 °C to +100 °C Hardness: 55 ± 5° ShoreA Fire behaviour: DIN 4102: Class B2 Application and approval Applications Time-saving fixing for pipes up to Ø2“ using threaded rods or stud screws Applications Time-saving fixing for pipes up to Ø2“ using threaded rods or stud screws Assembly instruction Functionality Functionality
