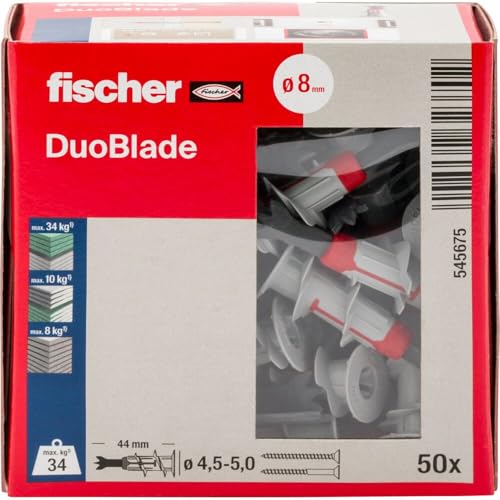

Duoblade, 545675

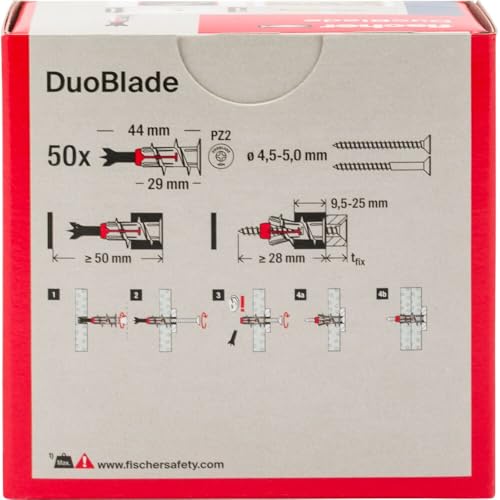

• Dowel length with drill bit: 44 mm, dowel length without drill bit: 29 mm
• Min. Bore hole depth for pre-installed installation: 50 mm - min. Thickness up to the first layer 50mm
• Min. Screw depth: 28 mm, anchor depth: 9.5 - 25 mm
• For screw diameter: 4-5 mm - box contents: 50 pieces
• Building materials: plasterboard single and double planked, gypsum fibreboard, lightweight cement building boards

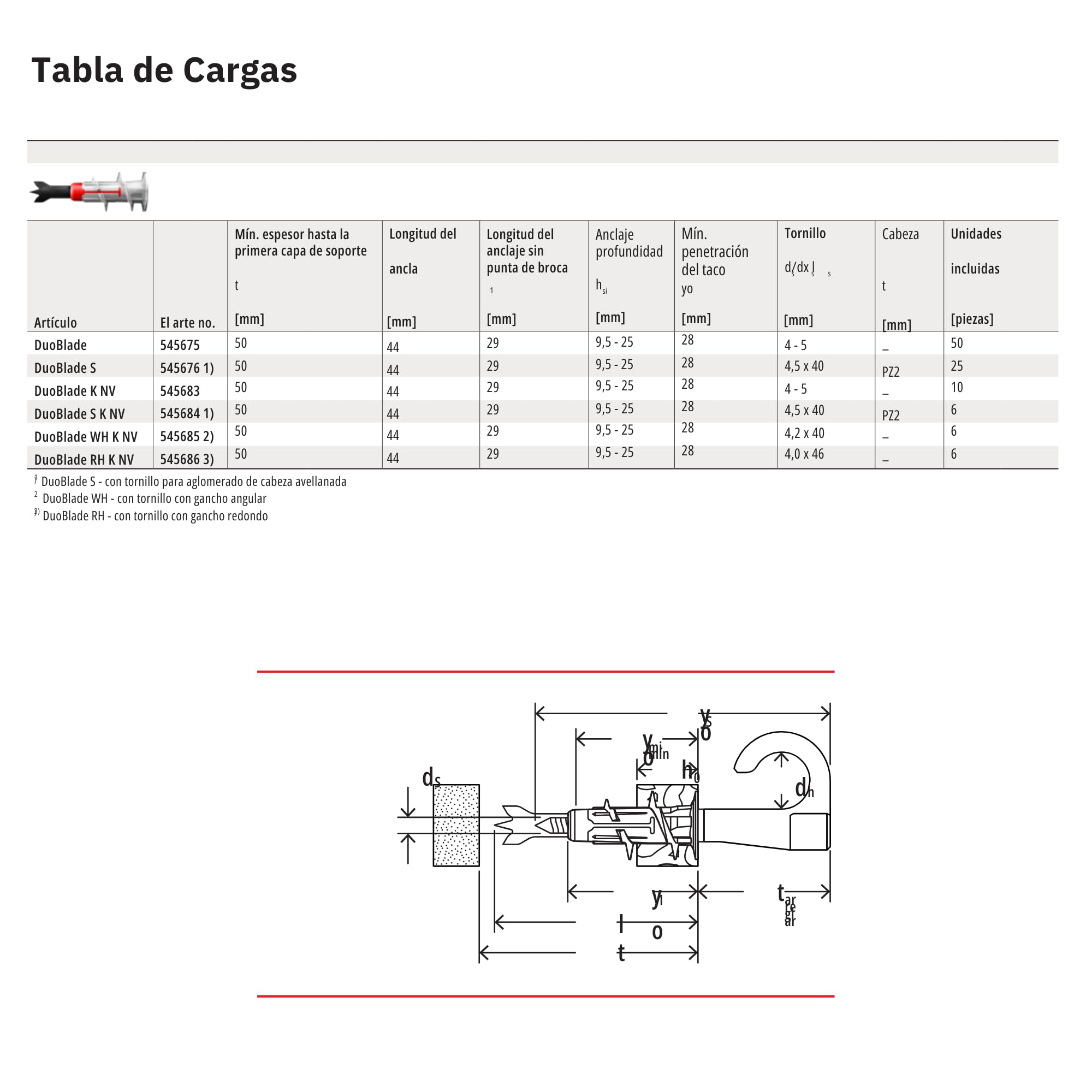

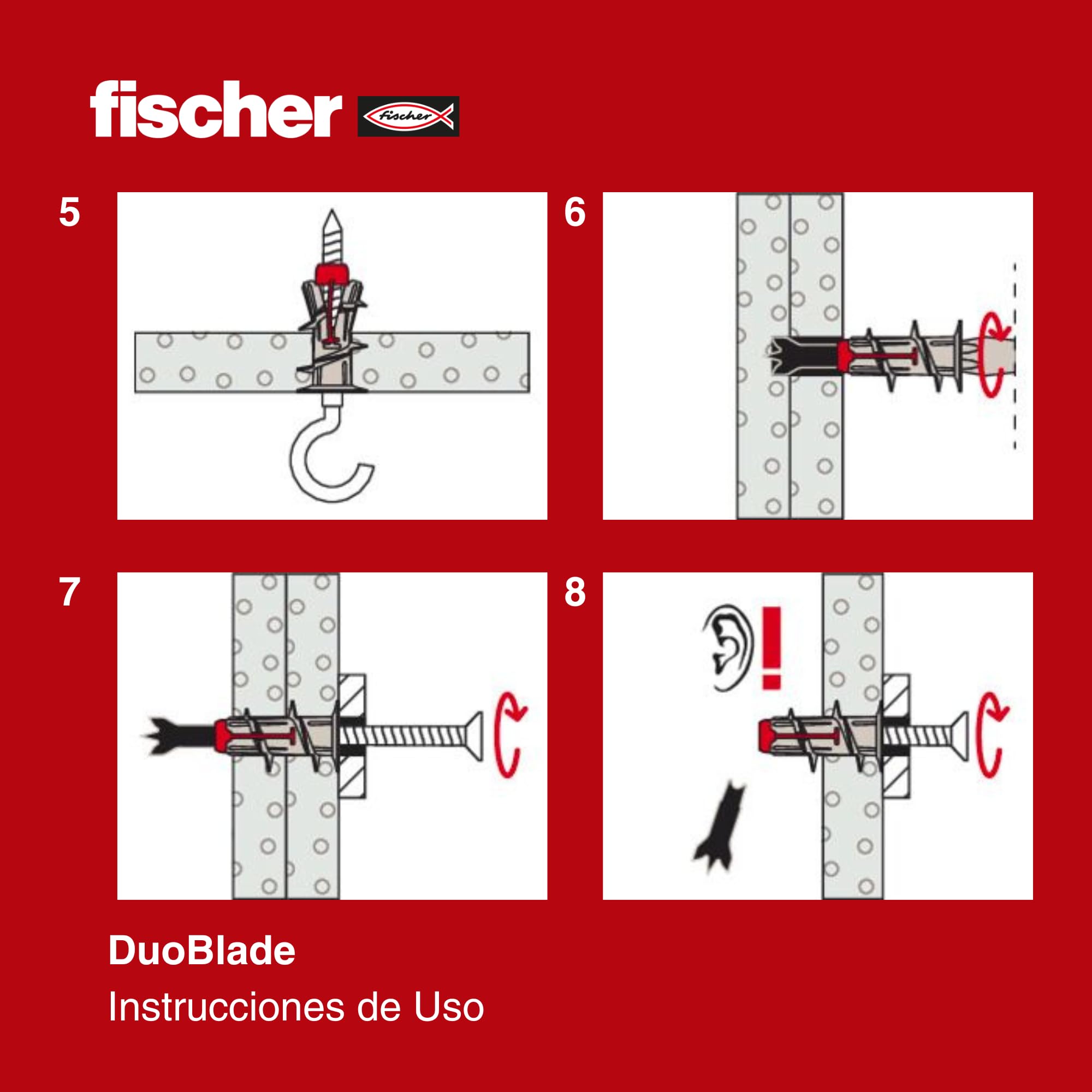

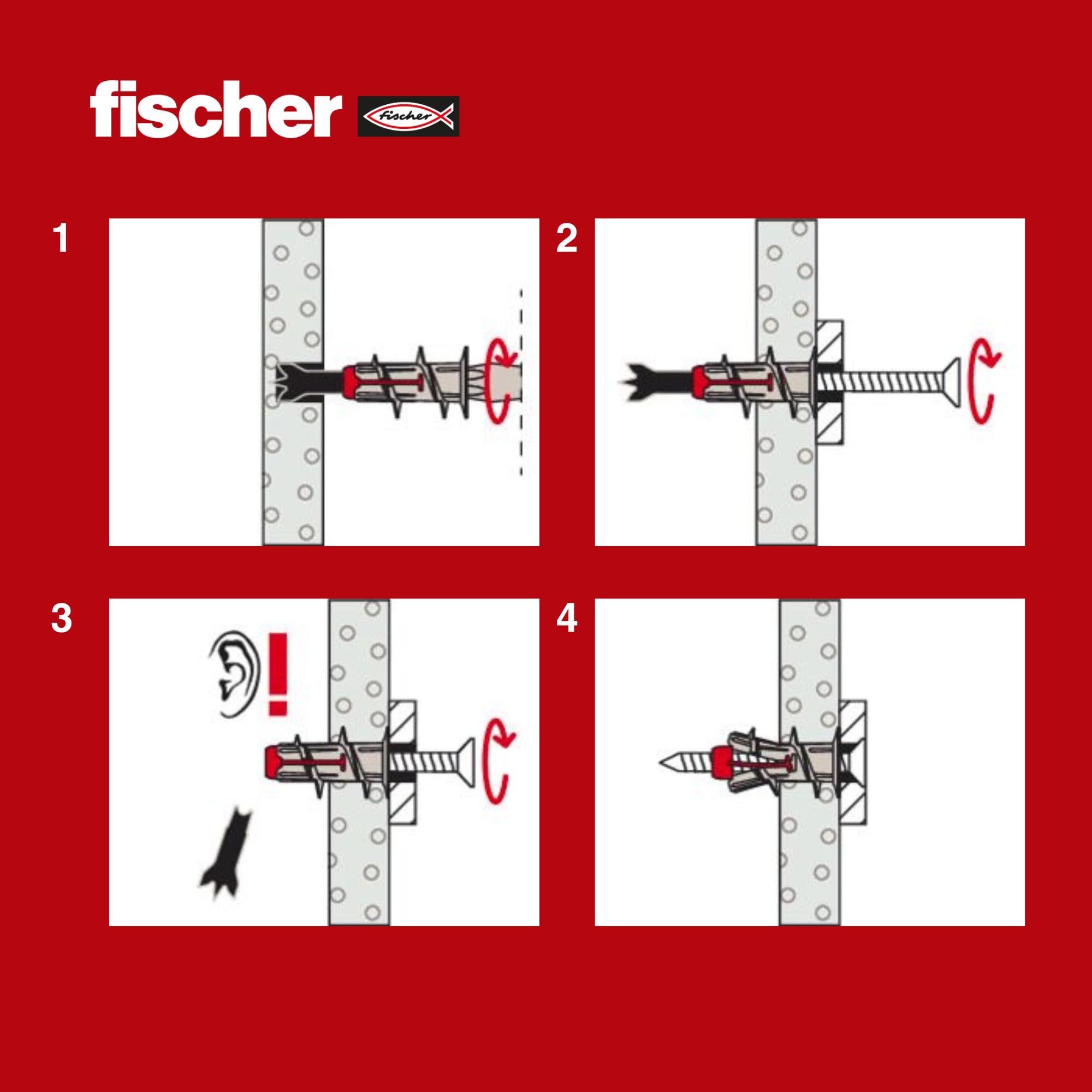

fischer DuoBlade 50 Pack Plasterboard Anchors - Award Winning with the Red Dot Award 2019: The DuoBlade is an innovation of the fischer DuoLine. The self-drilling dowel is especially suitable for mounting light loads in plasterboard and gypsum fibreboard. Quick, easy and no additional drilling. The dowel is screwed into the plasterboard panels with a cordless screwdriver or screwdriver. Its black centre point ensures a clean drilling process and safe installation. During the screwing process, the screw presses on the drill bit so that it falls off and makes room for the screw. The self-tapping thread provides an optimal form fit. The innovative geometry creates less tension in the threaded body and thus protects the building material. The high torque guarantees an optimal setting feeling. The DuoBlade is matched to wood, sheet metal and chipboard screws from 4 to 5 mm thick as well as different hooks and eyelets. So it is universally applicable. Product features: Dowel length: 44 mm (without drill tip 29 mm). Min. Drill hole depth for pre-mounting: 50 mm. Min. Thickness to the first layer: 50 mm. Min. Screw-in depth: 28 mm. Screw dimensions: diameter 4 - 5 mm. Anchor depth: 9.5 - 25 mm. fischer – innovative solutions. fischer fastening systems is the largest division of the Fischer group of companies. The specialist for secure and economical fixings and connections in construction has become one of the market leaders over the past 70 years. The product range ranges from chemical systems to steel anchors to plastic dowels. Whether heavy duty fixings in tunnel, bridge or power plant construction for the professional or wall and cavity dowels for the DIY enthusiast: fischer offers the right solution for every mounting problem.
