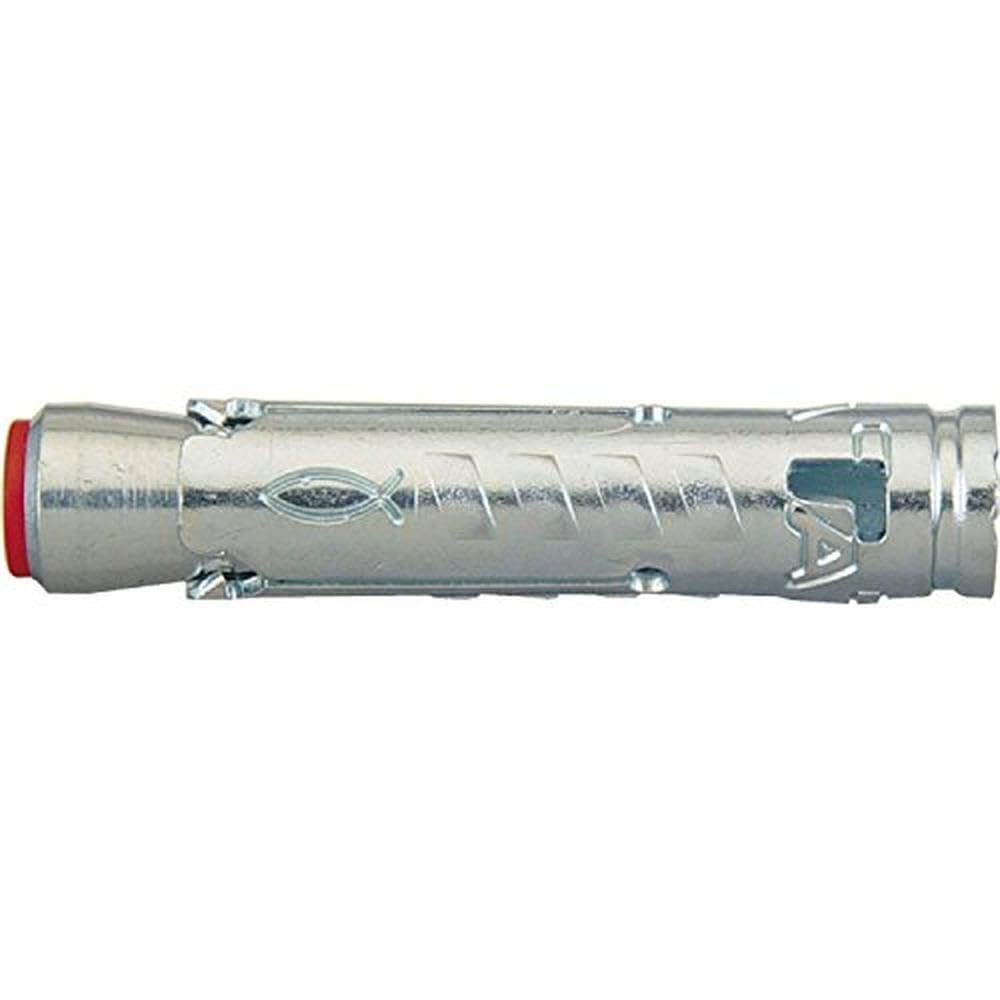

fischer 90248 TA M12 Heavy Duty Anchor Galvanised with Approval Pack of 25

• Fixing: steel structures, handrails, consoles, ladders, cable trays, machines, stairs, gates, facades, etc.
• European technical approval (for non-cracked concrete B25 to B55; ETA-04/0003).

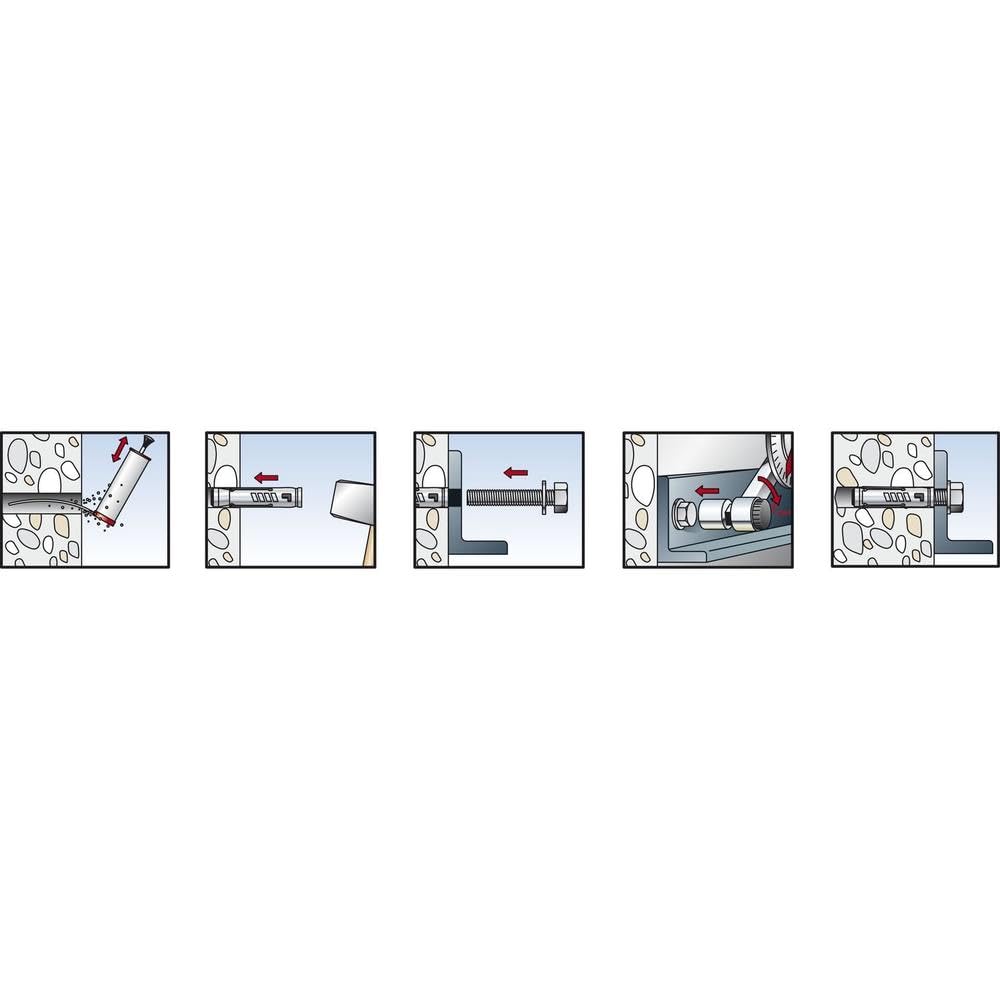

• Installation note: for correct installation, the dowel sleeve of the TA M must be able to support the attachment part or the threaded rod must be countered.

Fischer TA M12 heavy duty anchor galvanised with approval. European technical approval (for non-cracked concrete B25 to B55; ETA-04/0003), for attaching: steel structures, handrails, brackets, ladders, cable trays, machines, stairs, gates, facades, etc. Installation note: For correct installation, the dowel sleeve of the TA M must be able to support itself on the attachment part or the threaded rod must be locked. When determining the screw length, the required screwing depth in the dowel must be observed: length of the anchor + thickness of the mounting item + U-disc = screw length. Drill diameter: 18 mm. L: 86 mm. td min. Hole depth: 105 mm. Thread: M12.
