Fischer DUOTEC 10 S Plasterboard Dowels with Open Eye Hook, Anchor Fixing for High Loads on Panels and Plates, Hole 10 mm, 541076

• Panel Thickness Max: 30mm; Min Cavity Depth: 40mm; Min Panel Thickness: 9.5mm; Screw Diameter: 4.5mm; Screw Length: 75mm; Hole Diameter: 10mm; Hook Opening: 8mm
• Two-component tilting element reinforced with fiberglass and collar for high tensile and cutting loads; also thanks to internal metal parts
• No notches in the support area and therefore no weakening of the plasterboard.
• Flexible locking device for chipboard screws. You can screw and unscrew the screw several times.

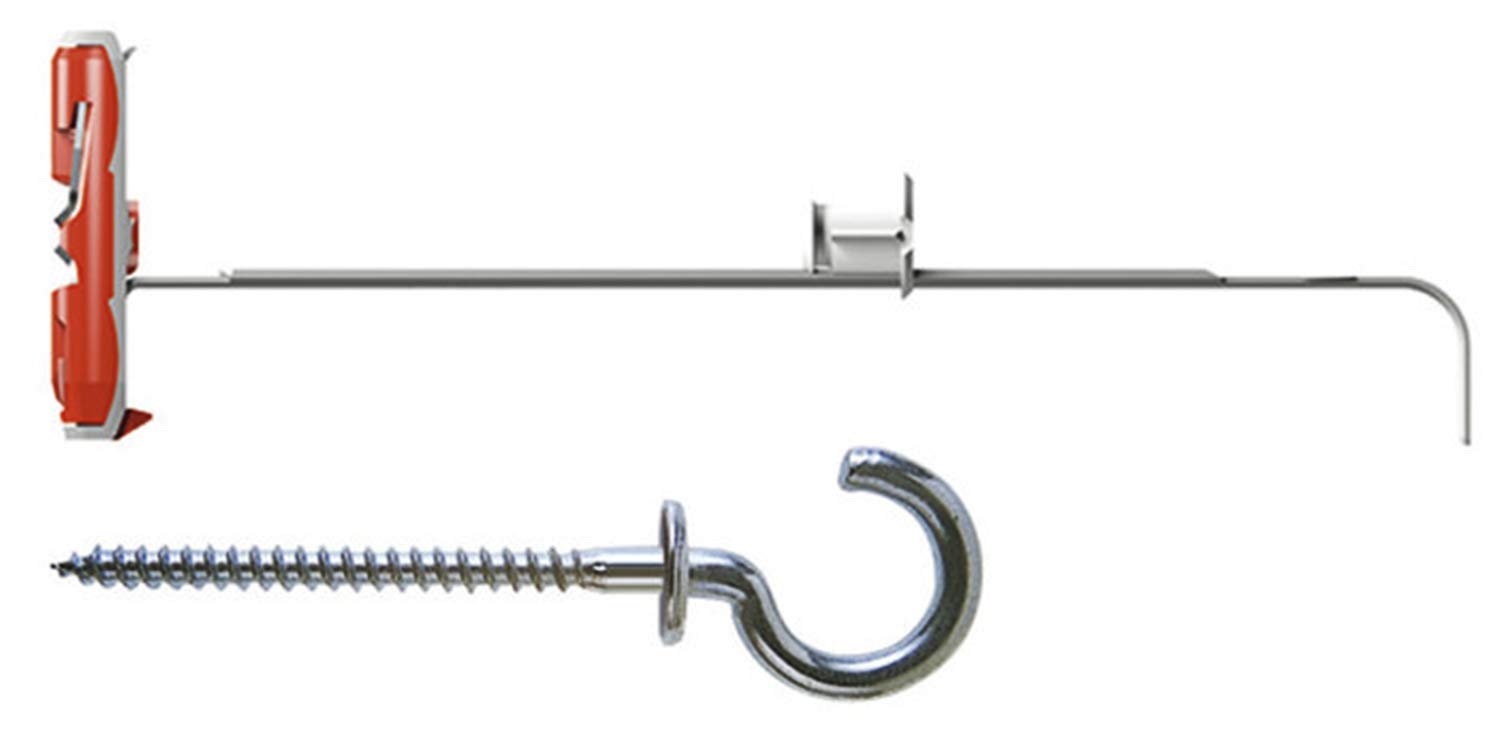

• Contents: 2 dowels, 2 hooks with open eyelet

Fischer DUOTEC nylon swing attachment Nylon swing fastening with open eye hook Support materials: Plasterboard Gypsum Fibre Board Wood panels, such as OSB boards, chipboard, MDF plywood sheets. Steel Sheets Plastic panels Also works in: Solid materials, such as concrete and wood Advantages: Small hole diameter (10 mm) and short swing element (39 mm) for easy installation in narrow and insulated cavities. Two-component fiberglass reinforced tilting element and collar for high tensile and cutting loads. Thanks to internal metal parts. No notches in the support area and therefore no weakening of the plasterboard. Flexible locking device for chipboard screws. You can screw and unscrew the screw several times. EASY PRE-ASSEMBLY - The bushing pre-positions the dowel without screw. Installation speed Reduced aesthetic impact thanks to the small bushing. Millimeter lower band can be used as a hole probe. Several parallel fixing points with reduced distance possible. Can also be used as an expansion attachment for holes in solid materials such as concrete or wood. Applications: Cabinets Living Room Cabinets Shelves Cabinets Handrail Paintings Mirrors Chandeliers Lamps and Ceiling Lights Emergency Lights Electric Ducts Tube Collars Smoke Probes Operation: Fischer DUOTEC fixings are suitable for non-through-through installations. Easy installation using a standard tip: only Ø10mm for Fischer DUOTEC 10. The tilting element of the fastening automatically rotates behind the panel ensuring its correct positioning. The attachment is also suitable for walls insulated with mineral wool. The mounting is also suitable for non-insulated gaps with a thickness greater than 40 mm for the Fischer DUOTEC 10. The flexible stainless steel locking device allows you to use wood screws, screws and chipboard hooks for the Fischer DUOTEC 10 versions. In the holes in solid support materials such as concrete and wood, the fastening works with expansion. Specifications: Panel thickness max - d p - [mm]: 30 - tfix; Cavity depth min - a - [mm]: 40; Panel thickness min - d p - [mm]: 9.5; Screw diameter - d s - [mm]: 4.5; Screw Length - L S - [mm]: 75; Hole diameter - d 0 - [mm]: 10; Hook opening - o h - [mm]: 8 Contents: 2 dowels, 2 open eye hooks
