Fischer 538880 Solar Fix Terminal Blocks

• Made with the latest technology

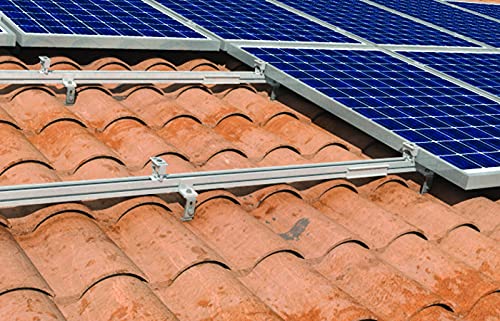

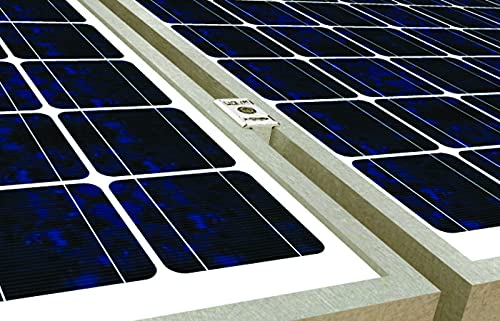

Pre-assembled PMC U central clamp; universal central clamp for all photovoltaic modules with a thickness of 30 to 52 mm; advantages: Full range: the PMC U pre-assembled universal central clamp can fix all photovoltaic modules with a thickness of 30 mm to 52 mm; compact: the screw recessed into the element avoids problems of obstruction on adjacent modules; quick: thanks to the smart nut, the pre-assembled universal clamp. Can be quickly hooked and locked at any point of the support profile; Convenient: the PMC U pre-assembled universal central clamp thanks to the spring remains lifted during the clamping phases and thanks to the plastic element remains in place and does not flow into the profile; complete: the universal pre-assembled PMC U central clamp does not require additional elements (e.g. screws, washers, bolts); versions; aluminium alloy clamp EN AB 46100 according to EN 755-EN 755- 2:2013; screw with cylindrical head with recessed hexagonal insert TCEI in stainless steel A2-70 according to EN ISO 3506-1/2:2009; applications: Suitable for: Groove cover system with hooks; Flat cover system with triangles; Cover system made of corrugated plates; System Special structures; for fixing photovoltaic modules on profiles: Solar-light; Solar-light; Fish; Solar-mid; Solar-flat; Solar 40/30; Operation: Insert the bottom of the PMC U pre-assembled universal clamp into the upper hollow of the profile; Turn the PMC U pre-assembled universal clamp clockwise to use it as a central clamp; lock the photovoltaic module by applying a tightening torque to the screw with cylindrical head with hexagonal socket (TCEI) of 10 Nm. (Optional) To protect the installation, insert the DAE anti-burglary ball into the hexagonal recess; Technical specifications: Weight - W - [g]: 110; thread - M - : M 8; panel thickness - d; p. [mm]: 30 ÷ 52; clamping torque - T; inst. [Nm]: 10; tightening wrench - SW - [mm]: 6; screw length - l; s. [mm]: 40; References: EAN: 8001132059913; Fischer code: 538880
