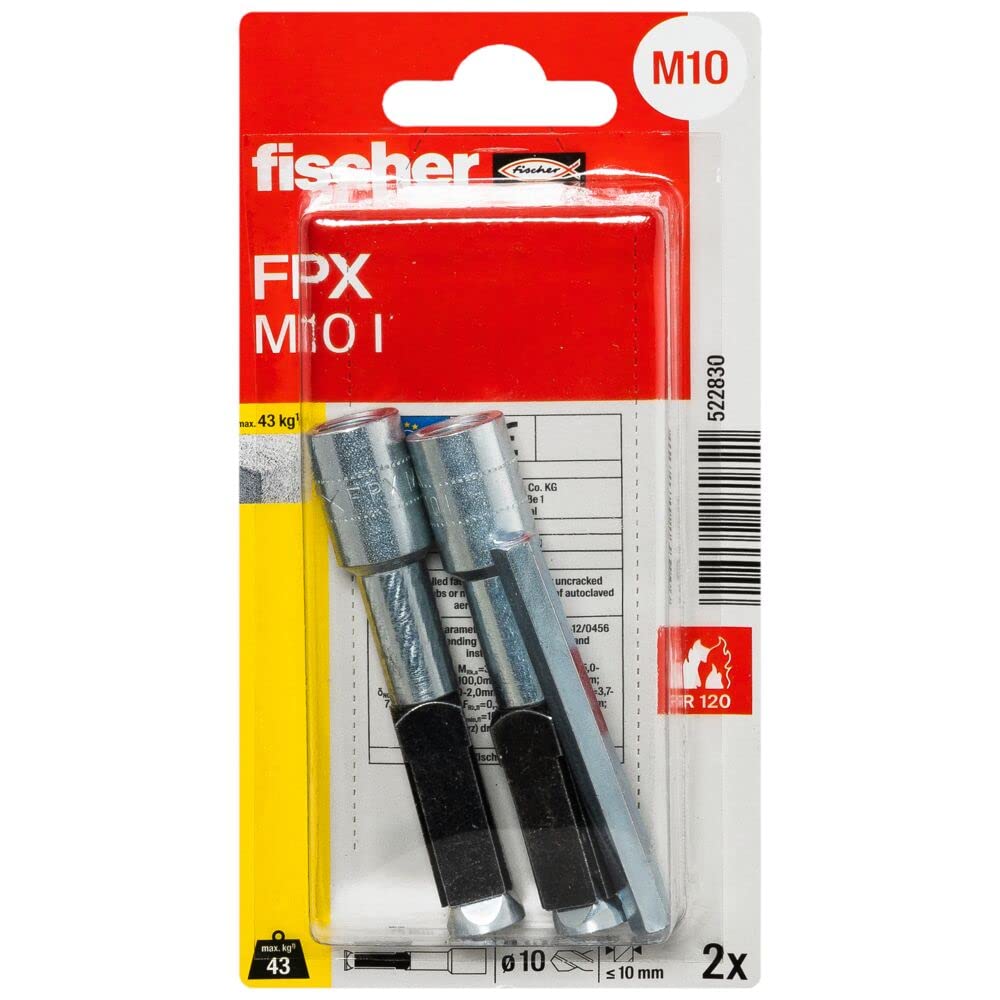

Fischer 522830 FPX-I M10 Cellular Concrete Anchor - Multi-Colour (2-Piece)

• Approved from 100 mm building member thickness
• Fire resistant according to DIN 4102 (Class A1)
• Able to support loads immediately after installation
• Automatic Setzkontrolle guarantees maximum safety
• kräfteschonende and easy to assemble without needing additional tools
• The first licensed Metallanker for aerated concrete
• No Mitdrehen the anchors
• High load capacity: Spreizflügel Hinterschnitt drawn up, so saves attachment points

The FPX-I is suitable for pre-positioned installation. Pre-drilling enables the anchor to be hammered in easily, even in high strength aerated concrete. It is not necessary to clean the drill hole. Following optimum expansion, the hexagon wrench is automatically released from the anchor. When the anchor is installed, the internal thread bolt is turned and this pulls the cone into the square expansion sleeve. In the process, the aerated concrete is compressed at the four ribs and an undercut is made in the aerated concrete.
