Fischer 519023 Aircrete Anchor FPX M 10 l

• Automatic Set control guarantees maximum safety
• The first approved metal anchor for aerated concrete
• Easy and Effortless installation without the need for additional tools
• High load capacity: expansion sleeve ensures high tension and shear loads, which means fewer fixing points
• Prevents the rotation of the anchor in the drill hole

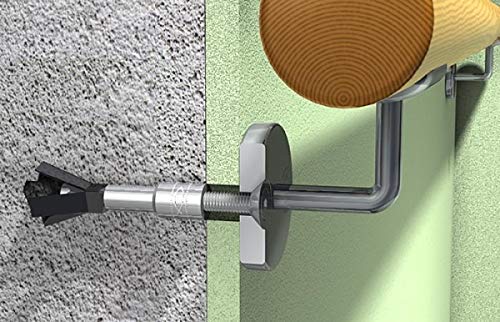

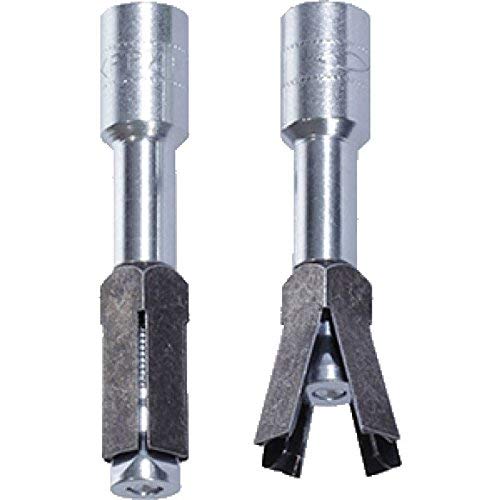

Benefits: the FPX-I allows for easy mounting using a hex key by means of a cordless screwdriver or ratchet, and thus offers ideal fitting comfort. The deformation-controlled expansion of the anchor with the hexagon socket ensures strong, smooth and effortless mounting. The unique quadruple leg of the FPX-I via a four-point expansion sleeve prevents the turning of the anchor in the drill hole ensures high tensile and cross loads and means fewer attachment points. The release of the powerful hex key guarantees an automatic setting control in every setting procedure. The first steel anchor with ETA approval and fire protection for attaching in porous concrete also allows for use even for safety-relevant attachments. Applications: suspended ceilings; cable runs, pipes, ventilation ducts, rail/hand rail; TV consoles; kitchen cupboards, distance rigs; how it works: the FPX-I with internal thread is suitable for fixture mounting. Through pre-drilling, simple covering is made possible even in high-strength aerated concrete. Programming is not required. As you pull on the anchor with the Allen key, there starts a turning in the internally threaded sleeve, whereby the cone is drawn into the square sleeve in deformation-controlled fashion. This means that the compacted aerated concrete is condensed in the four wings and creates a rear cut in the drill hole. In accordance with an optimal bracing, the hexagon wrench is automatically released from the anchor. - Technical data: dowel nominal diameter: 10 mm; bit length: 75 mm; thread: M 10; inner thread: M 10; maximum screw depth: 15 mm; maximum torque when anchoring: 3 Nm minimum; screw depth: 10 mm minimum (0.43 inch); anchor depth: 70 mm. Pack of one.
