Fischer 508083 Scaffolding fixings

• Made with the latest technology

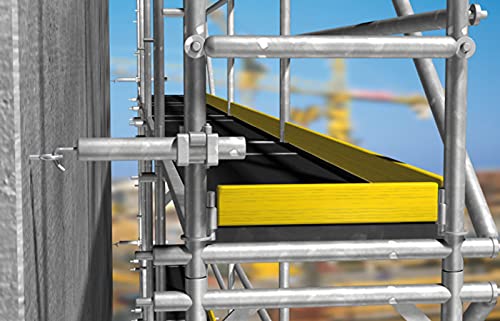

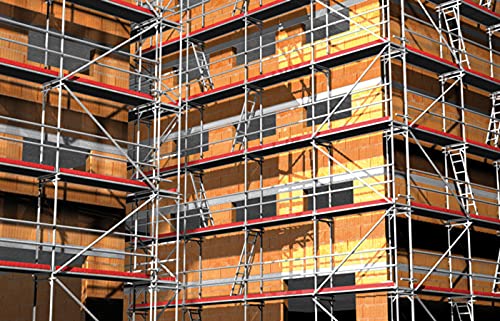

Anchor for scaffolding GP Ø 50; Forged steel gulf Ø 50mm, in combination with mechanical or chemical anchor; support material: GP-TAM suitable for: Concrete; Natural stone with compact structure; gP-FIP suitable for: solid brick; semi-filled brick (vertically perforated) brick; lightened concrete hole; AGE: The high bearing capacity of the gulf ⌀50 mm hot forged steel increases the safety of fixing the scaffolding; the hexagonal stem of the gulf is easily lockable with SW 22 wrench. The GP-TAM anchor consists of the gulf ⌀50 mm, TA M expander, threaded bar, washer and spacer; the gulf can be repeatedly installed and disassembled using a new fixing point; the GPaggio -FIP is composed of the gulf ⌀50 mm, threaded bar, washer, internal threaded compass FIS" / 15" x " / 85" / M / 12 and FIS net dowel " / 20 " / 20 " x " / 85 " / K; the gulf can be repeatedly installed and disassembled using the same fixing point; Applications: Facade scaffolds; Chains; Operation: Prong imo Usage: Insert the GP-TAM scaffold anchor into the hole and screw the hexagonal stem of the golfing until the anchor is fully expanded; for GP-FIP insert the net dowel into the hole and inject the resin from the bottom; the rotation insertion of the anchor causes the resin to escape through the half-timbered structure of the net dowel; Next use: for GP-TAM unscrew the gear. Make and apply a new TA M expanding body (available separately), GP-TAM scaffolding anchor is again ready for use; for GP-FIP unscrew the golf with threaded bar and reuse them with a new threaded compass entirely and a new net anchor; not suitable for swings, hammocks, etc; Specifications: Contents: threaded bar M 12 x 100 References: EAN: 8001132080808080; 832; Fischer code: 508083
