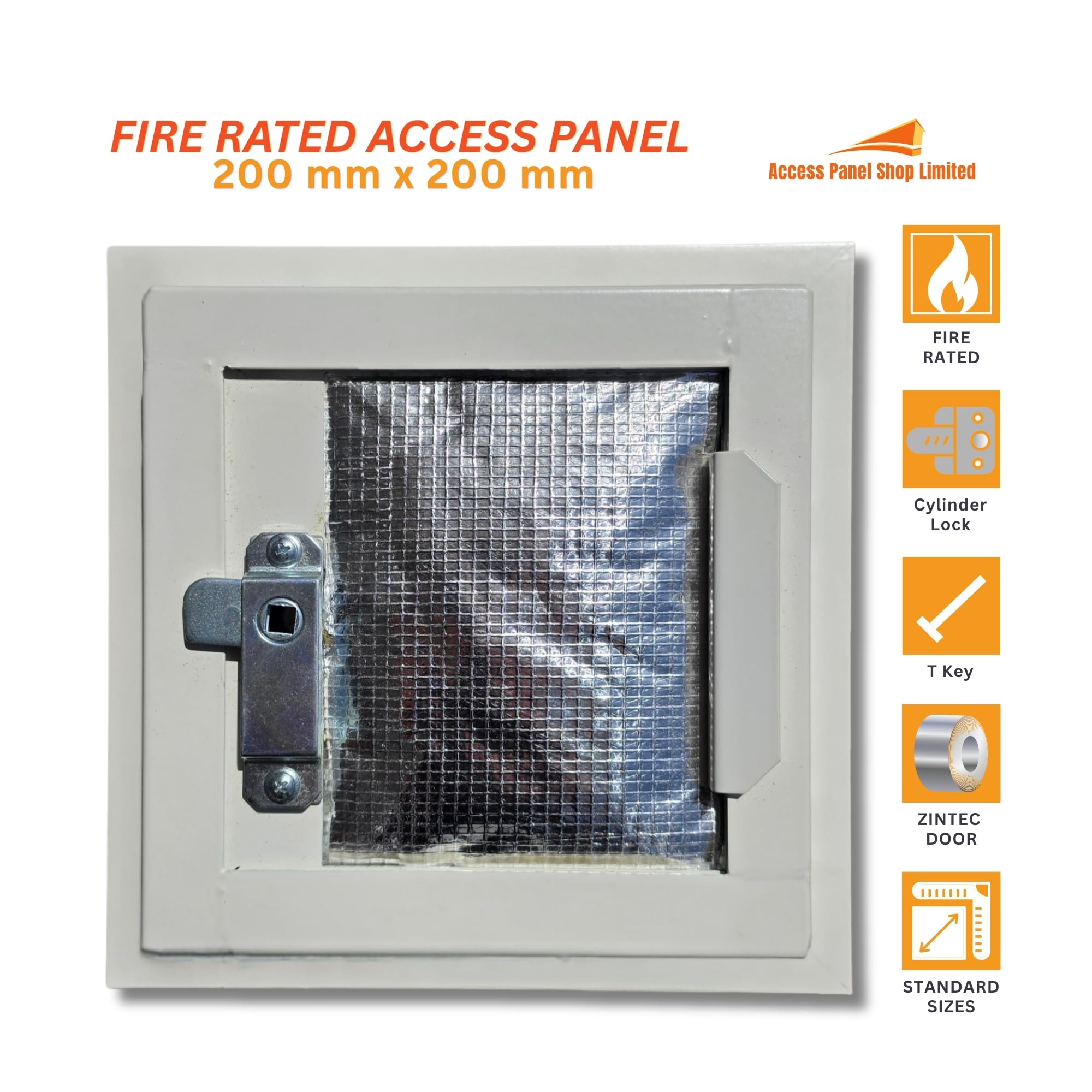

Fire Rated Access Panel 200mm x 200mm with Lock & Key, White Powder Coated Zintec Steel Inspection Hatch for Walls & Ceilings

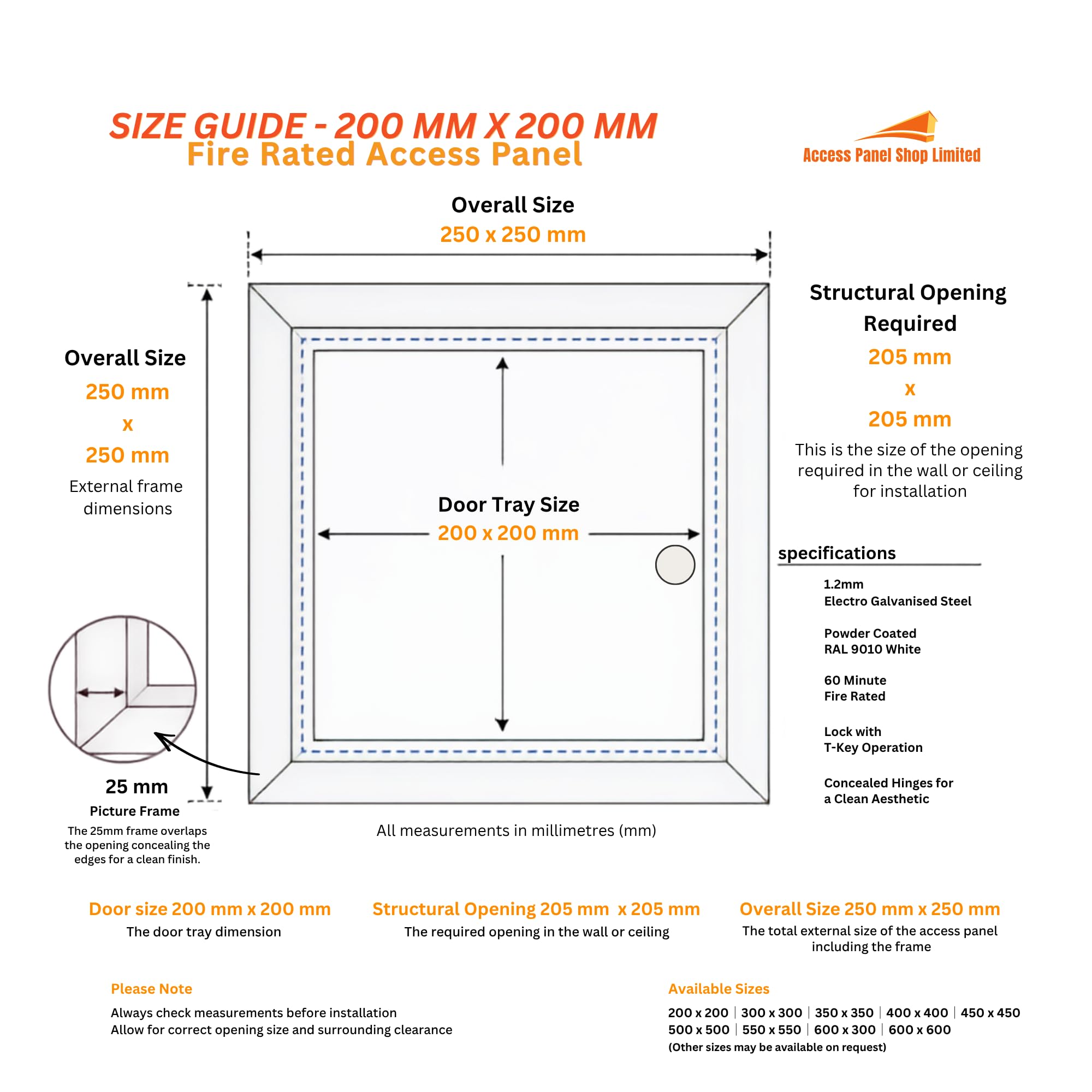

• Door size 200mm x 200mm structural opening 205mm x 205mm overall size including picture frame 250mm x 250mm
• Fire rated access panel providing up to 60 minutes protection tested to BS EN 1634 and BS EN 1363 standards
• Manufactured from 1.2mm electro galvanised mild steel with powder coated RAL 9010 pure white matt finish

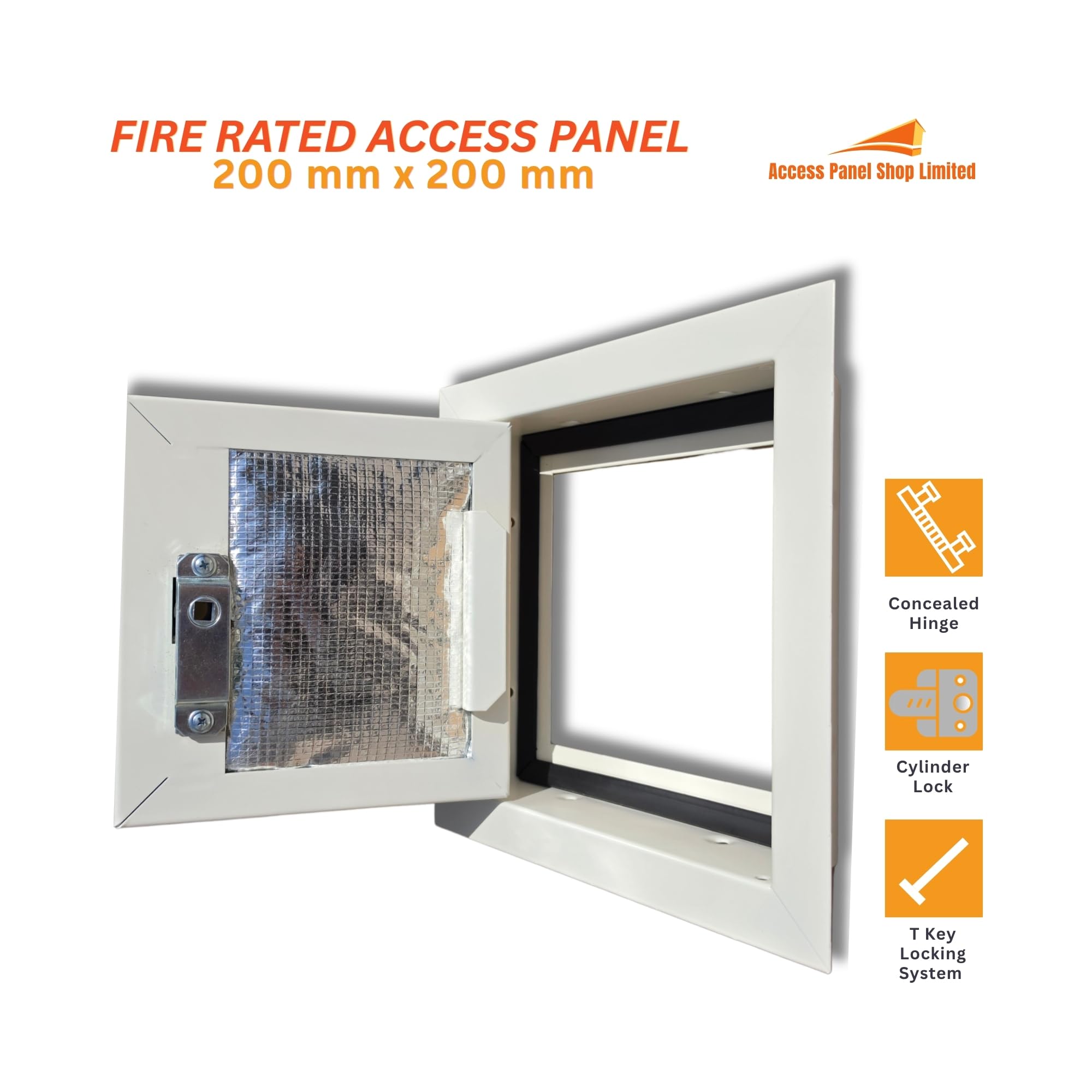

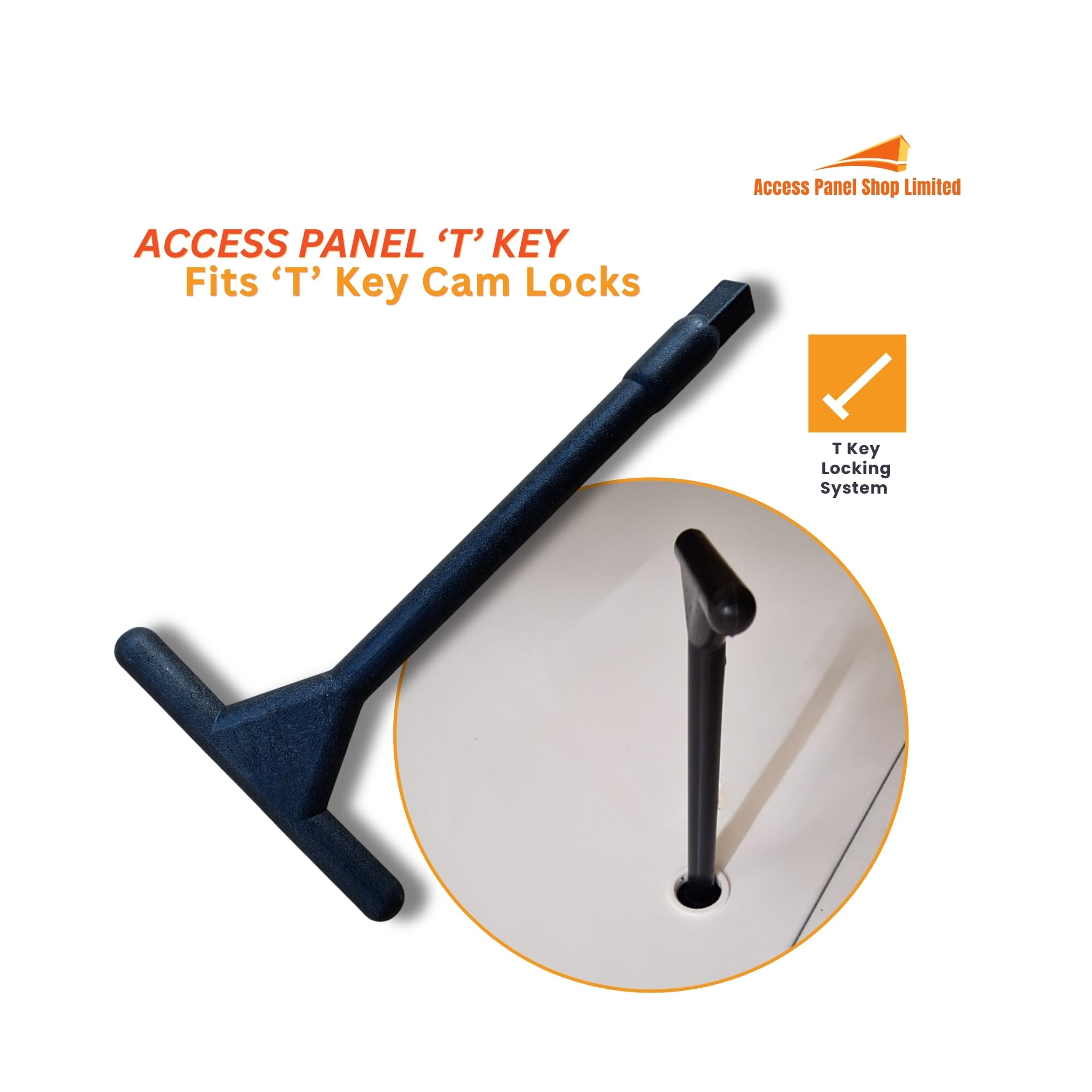

• 25mm picture frame design with concealed hinge lock collar bung cover and quarter turn T key access
• Intumescent gasket and estimated 35dB acoustic performance suitable for walls ceilings residential and commercial buildings

Fire Rated Metal Access Panel with Picture Frame – 200mm x 200mm (60 Minute Fire Rated) This fire rated metal access panel provides secure and discreet access to concealed building services including pipework, electrical systems, valves and HVAC components. Suitable for wall and ceiling installation, this inspection hatch combines certified fire protection, durable steel construction and a clean architectural finish. Manufactured from 1.2mm electro-galvanised mild steel and finished in RAL 9010 Pure White Matt, the panel features a 25mm picture frame surround, concealed hinge and quarter-turn lock with T-key for secure and reliable access. Fire Performance Tested in accordance with BS EN 1634-1:2014+A1:2018, BS EN 1363-1:2012 and BS EN 1363-2:1999, this access panel provides up to 60 minutes fire resistance when installed in accordance with the relevant test evidence and installation guidance. An integrated intumescent gasket expands under heat to help maintain compartmentation. Acoustic Performance Designed to help reduce sound transfer between rooms, this access panel offers an estimated acoustic performance of 35dB (test pending), making it suitable for residential, commercial and public buildings. Key Features Precise Sizing Door size: 200mm x 200mm Structural opening required: 205mm x 205mm Overall size including picture frame: 250mm x 250mm Important: The stated 200mm x 200mm size refers to the rear door tray measurement. Allow an additional 5mm for the structural opening, resulting in a required opening of 205mm x 205mm. Premium Steel Construction Manufactured from 1.2mm electro-galvanised mild steel for strength, durability and corrosion resistance. Clean Architectural Finish Finished in RAL 9010 Pure White Matt with a 25mm picture frame surround for a neat, professional appearance. Secure Access Supplied with a quarter-turn lock and T-key, concealed hinge, lock collar and bung cover for secure access to concealed services. Wall & Ceiling Installation Suitable for residential, commercial and public buildings where safe and convenient access is required. Applications Ideal for use as a fire rated access panel, inspection hatch or access door for maintenance access to electrical systems, pipework, valves, HVAC components and other concealed building services.
