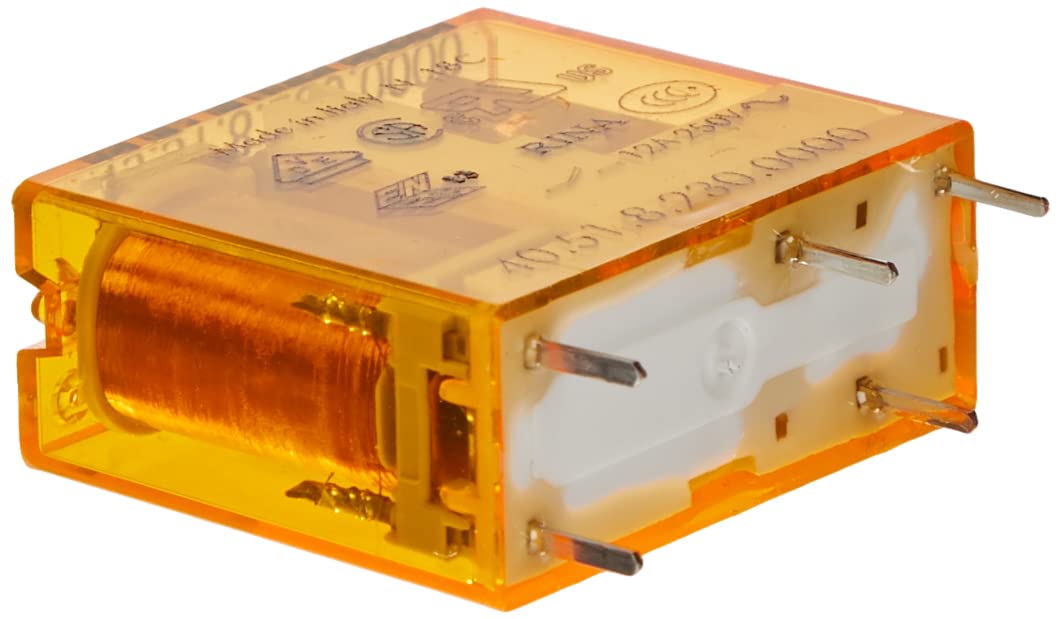

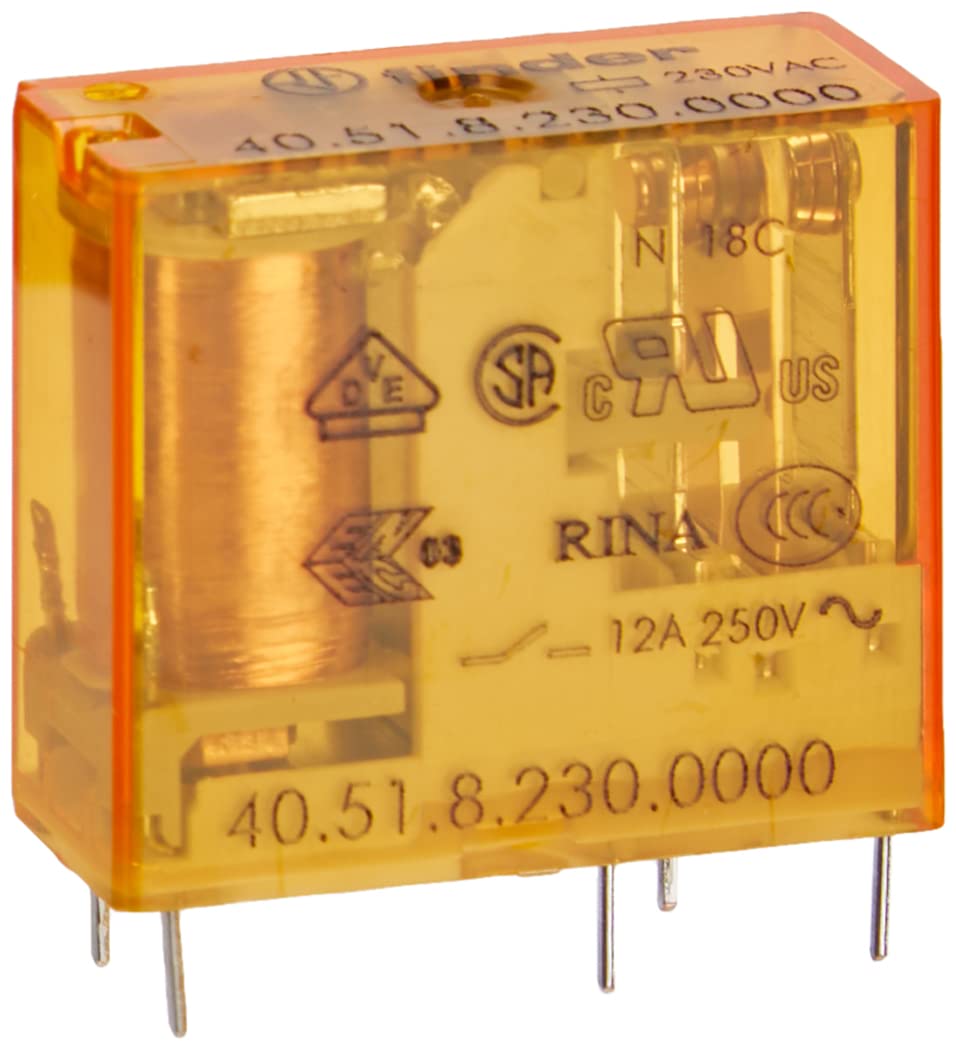

finder Plug/Printrelay 230 V AC, 1 W, 10 A, 1 piece, 40.51.8.230.000

• Design of the electrical connection = PCB connection
• With removable clamps: no
• Rated control supply voltage Us at AC 50 Hz = 230. . 230 V
• Rated control supply voltage Us at AC 60 Hz = 230. . 230 V
• Voltage type for actuation: AC

Relay, 10 A, with printed connections, contact material AgNi, contact pin grid 5.0 mm. When mounted on sockets for row installation, the contact logic is different: 11 - 21 - 14. Coil data: 230V AC, 1.2VA, 28000ohm, temperature range -40 to +85°C. Dielectric strength between coil and contacts (1, 2/50 µs) 6 kV, air and creepage distance 8 mm. Design of the electrical connection is PCB connection. With removable clamps: no. Rated current is 10 A. Rated control supply voltage Us at AC 50 Hz is 230 V. Rated control supply voltage Us at AC 60 Hz is 230 V. Voltage type for actuation is AC. Drive, polarity is non-polished. Switching behaviour of the drive is monostable. Number of contacts as changer: 1. With forced contacts: no. Type of switching contact is single contact. Complete device with base: no. Protection class (IP) is IP20. Width: 12.4 mm. Height: 25 mm. Depth is 29 mm grid 5 mm finder plug/printrel. 230VAC1W10A grid 5mm 40. 51. 8. 230
