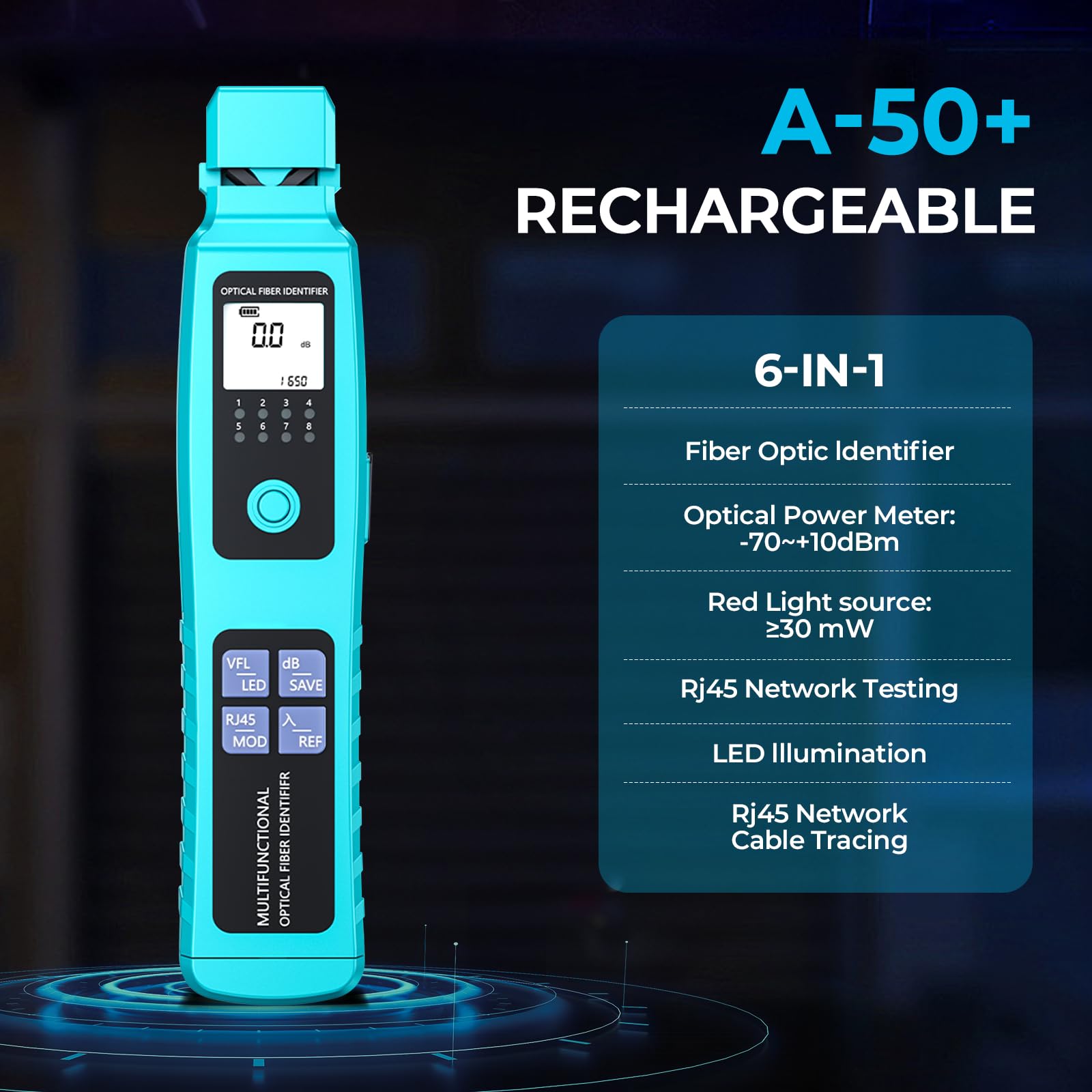

Fiber Optic Identifier, 30mW Fiber Optic Cable Tester with Wire Tracker, 850nm-1650nm VFL and Optical Power Meter OPM Functions, RJ45 Cable Tester, for Network Installation Maintenance

• Multiple Frequency Recognition: To meet your diverse needs, this fiber optic tester offers versatile functionality, recognizing multiple frequencies such as 270 Hz, 1000 Hz, and 2000 Hz, effectively improving your work efficiency.
• Micro-bending Test Technology: This fiber optic identifier accurately identifies the fiber direction. When the fiber has a signal, the left and right direction indicators will show the signal direction. When the left direction indicator lights up, it indicates that the light source direction is from right to left.

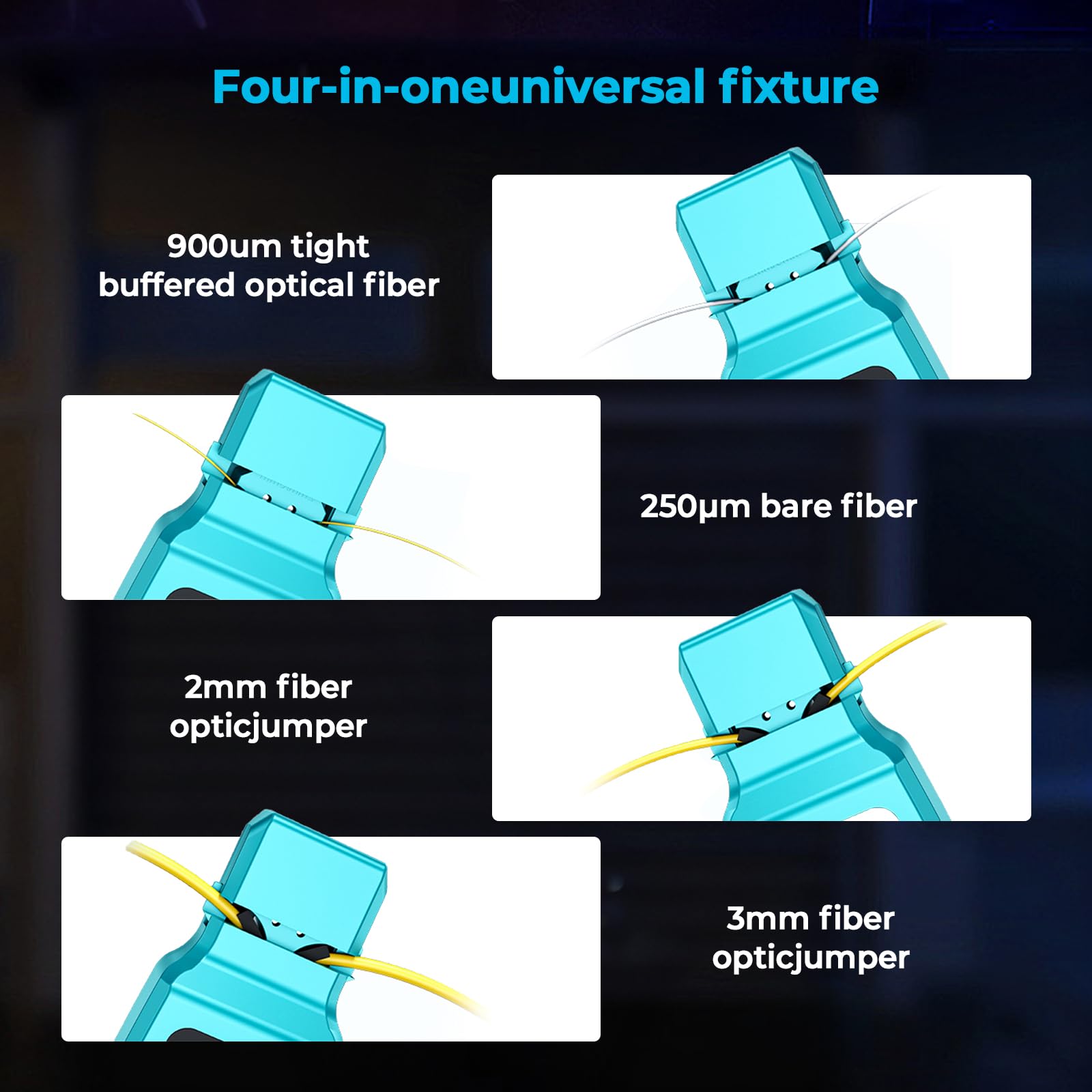

• Applicable Fibers: The fiber optic identifier is universal and suitable for bare fibers with a diameter of 0.25mm and fiber optic patch cords with diameters of 0.9mm, 2.0mm, and 3.0mm. Linear display resolution: 0.1%, logarithmic display resolution: 0.01dBm. This fiber optic identifier can perform online testing without changing fixtures and is suitable for single-mode and multi-mode fibers.

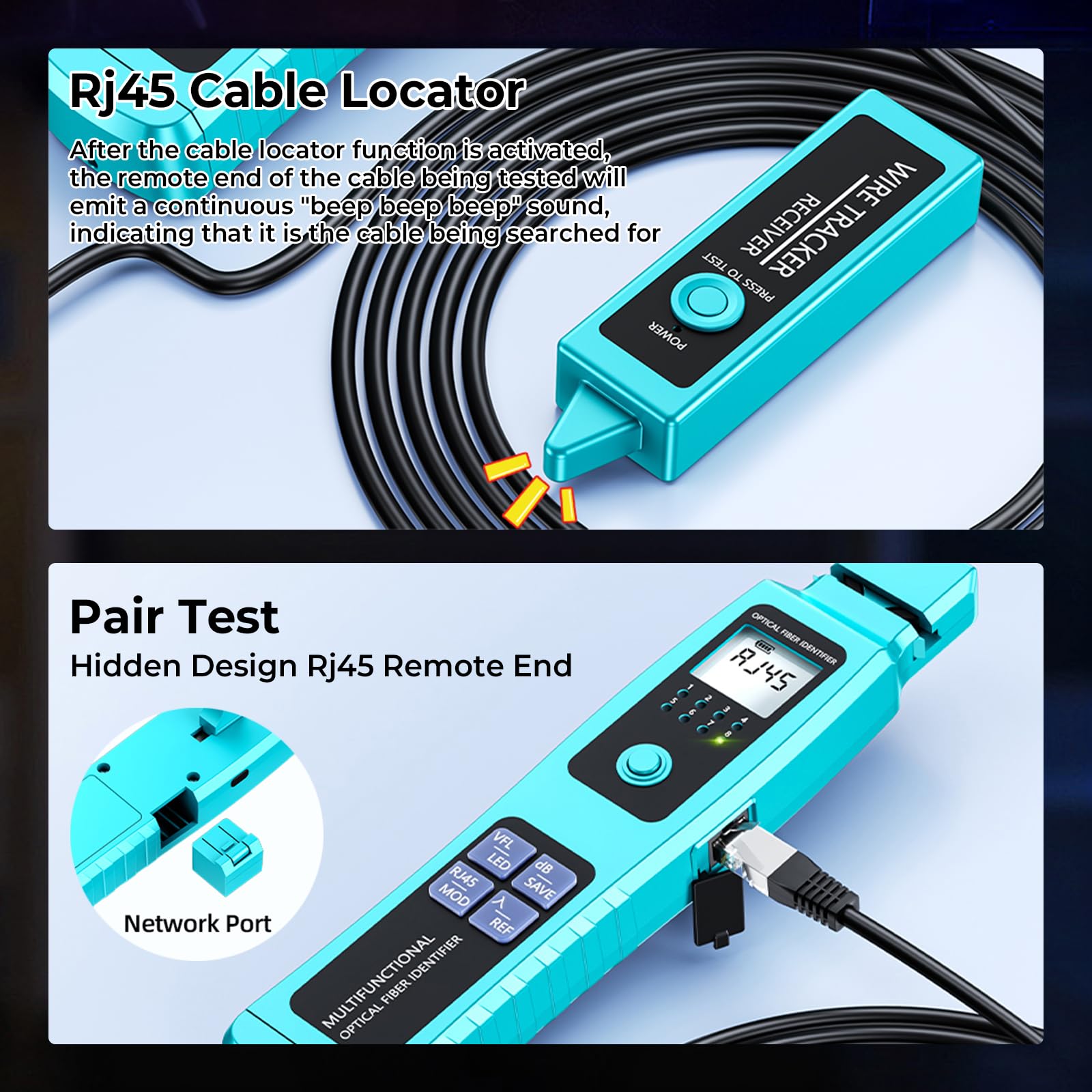

• Smart RJ45 Network Cable Testing: Newly added RJ45 cable tracing function for copper cable/network cable verification – ideal for fiber-copper hybrid installations or FTTH/FTTX network troubleshooting.

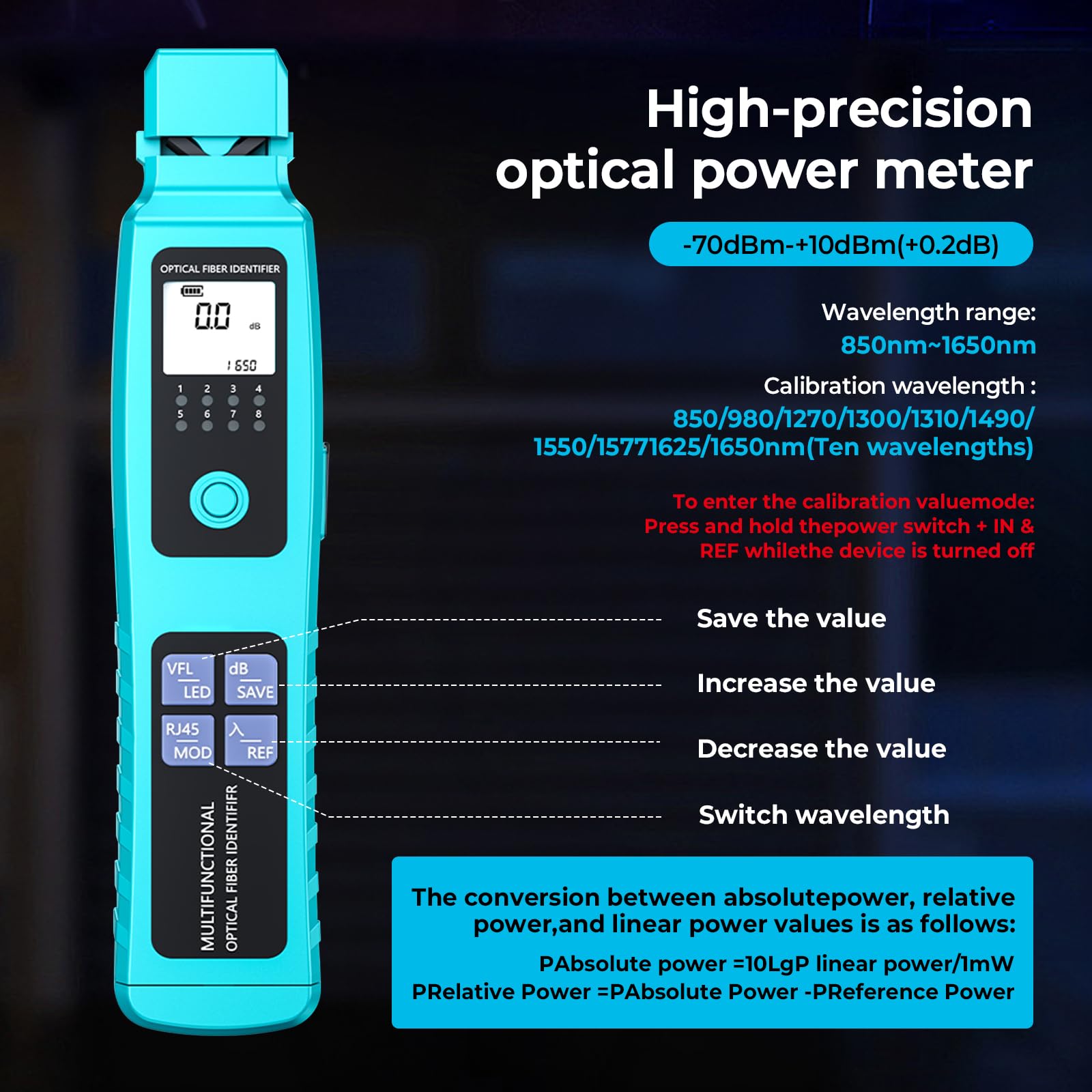

• Package Includes: Includes 1 power meter, 1 cable tracer, 1 protective hard case, 1 USB data cable, and 1 instruction manual. The measurement range is -70 to +10dBm, and it includes a 30mW red light source that can detect fiber optic lines up to 30 kilometers, making it ideal for long-term maintenance and troubleshooting.

Specifications: Wavelength Range: 800-1700nm Modulation Type: CW, 270Hz±5%, 1000Hz±5%, 2000Hz±5% Detector Type: φ1mm, InGaAs 2 PCS Compatible Fiber Types: Universal φ0.25 (bare fiber), φ0.9, φ2.0, φ3.0 fiber patch cords Signal Direction: Indicated by left/right arrows on the display screen Optical Power Reading Range: -40dBm to +10dBm Optical Power Measurement Range: -70dBm to +10dBm (+0.2dB) Optical Power Measurement Wavelength: 850nm-1650nm Signal Frequency Range: 270Hz, 1000Hz, 2000Hz Red Light Test Wavelength: 650nm Red Light Output Power: ≥30mW Data Storage: Internal: > 99 entries Battery Type: Rechargeable: Polymer battery 800mAh (3.7V) Operating Temperature (°C): -10 to +60°C Package Contents: Fiber Identifier, Optical Power Meter, and Red Light Source Integrated Device x 1pc Cable Tracer x 1pc Protective Hard Case x 1pc Packaging Box x 1pc Certificate of Conformity x 1pc Instruction Manual x 1pc USB Data Cable x 1pc
