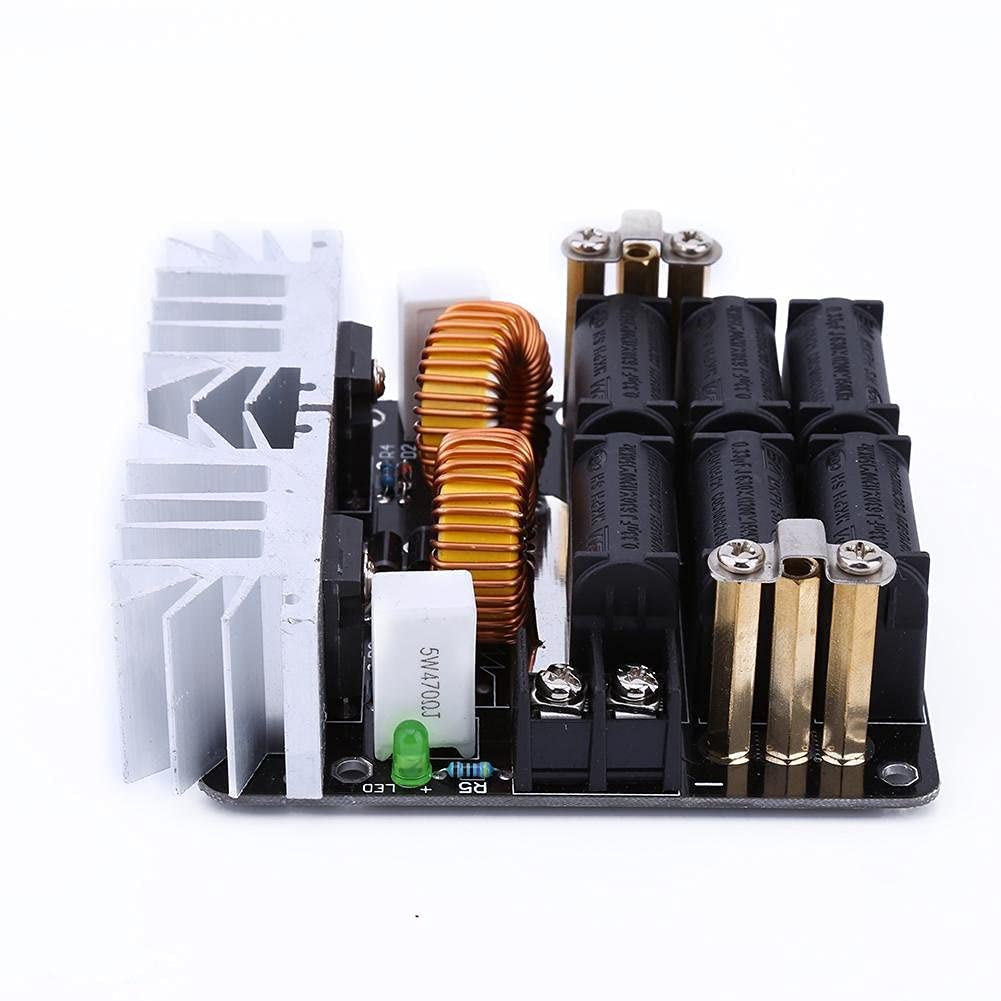

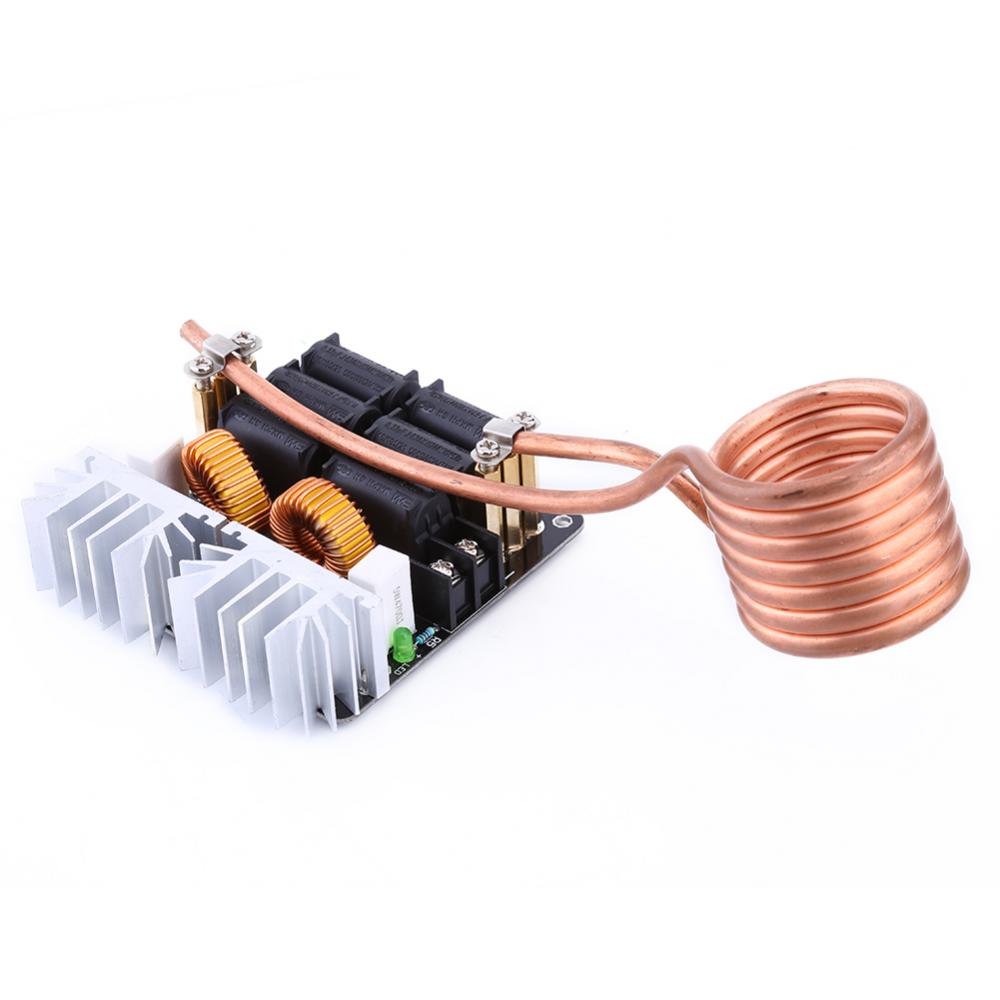

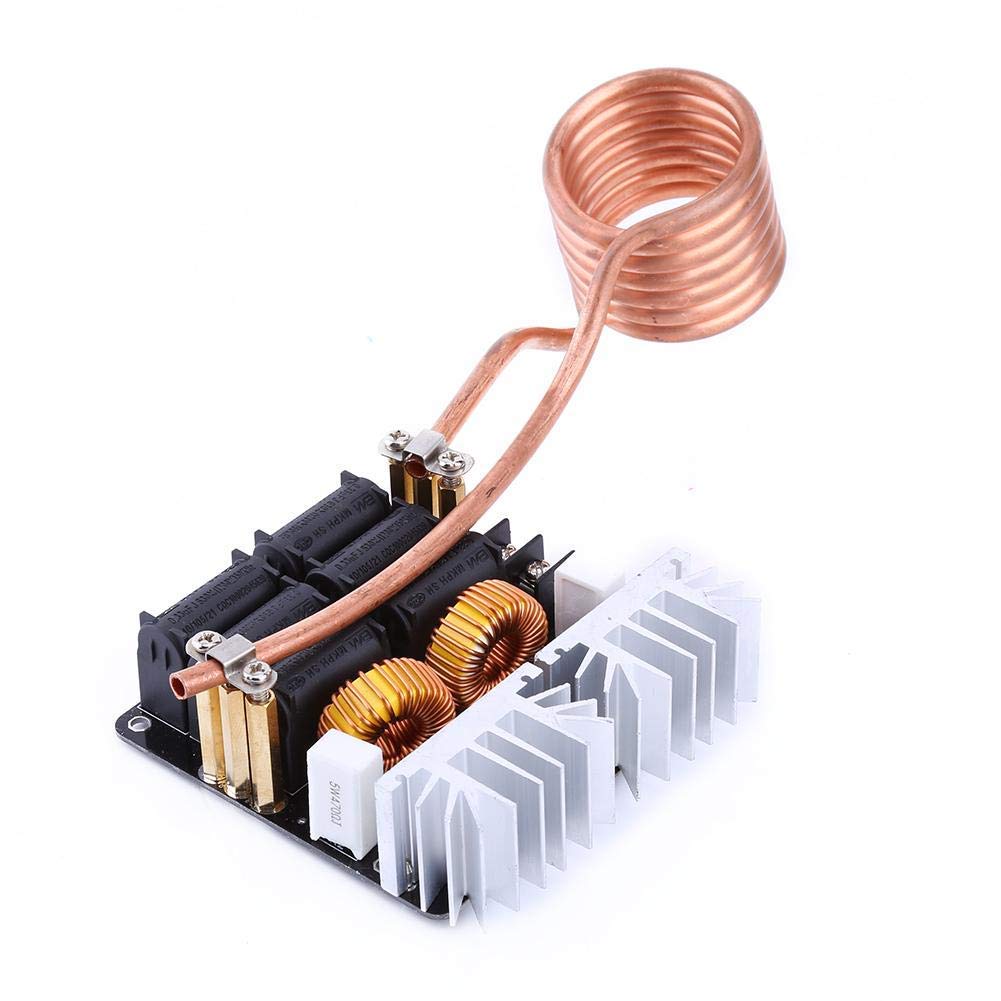

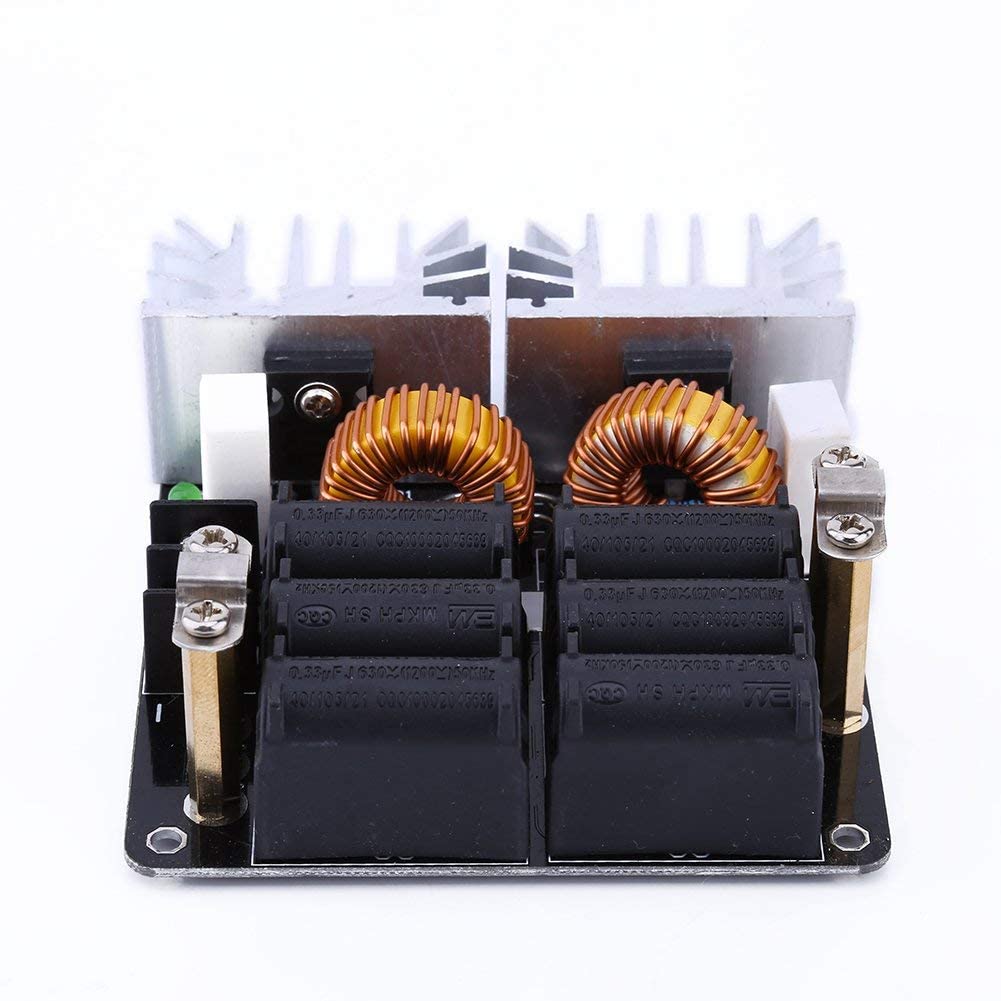

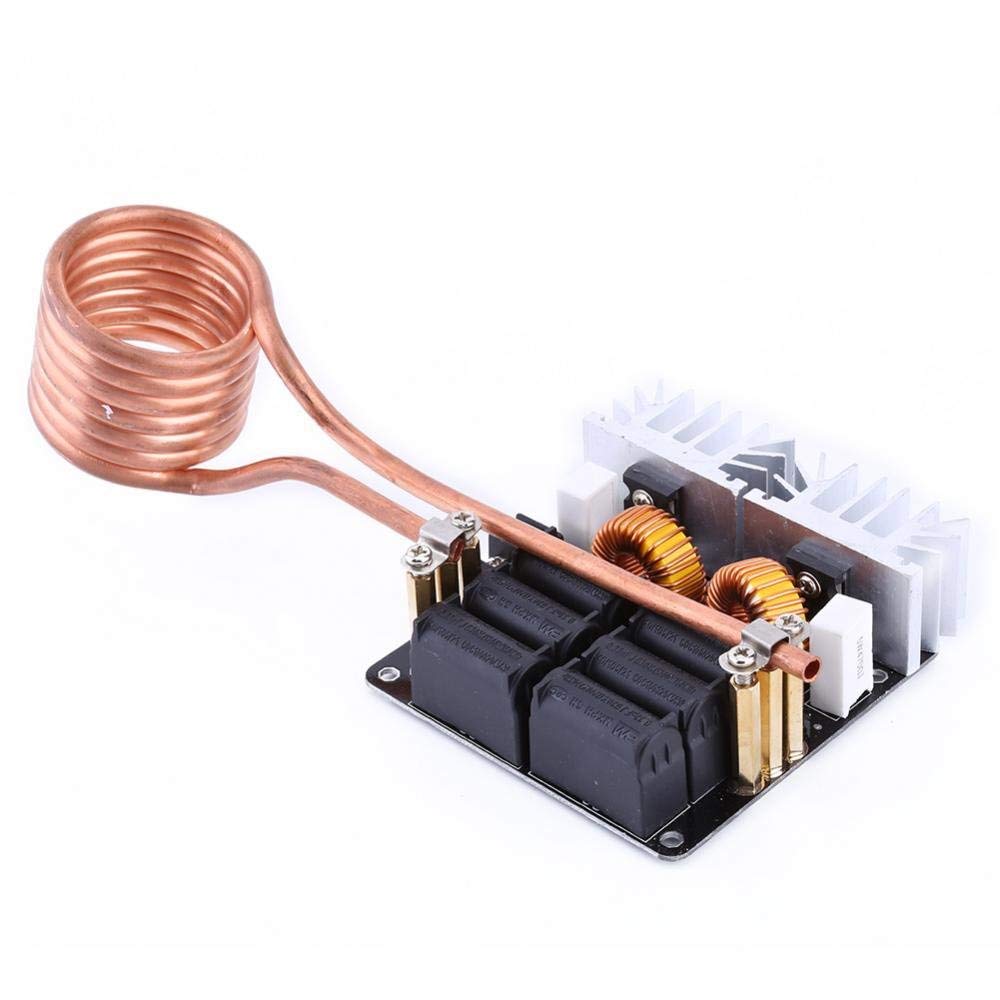

Fdit Low Voltage Induction Heating Board Module 1000W ZVS 12V-48V Back to Rear Conductor Heater DIY Brass Coil

• Good choice: Increase the heat sink with a custom substrate up to 8.5 mm thickness! The cooling capacity is very powerful. Using M4 pillars, fever is smaller, more effective.
• Better effect: The higher the voltage, the higher the heating current, but the effect is better. But at the same time, heat is also important, so that to eliminate the current situation and select the input voltage, the general use of the words 24V or 36V power supply is enough.
• Moderate power: Due to its moderate power, it can be used for small rooms. DIY players do hardening, annealing and any other heat treatment. Can also be used with a practical graphite crucible

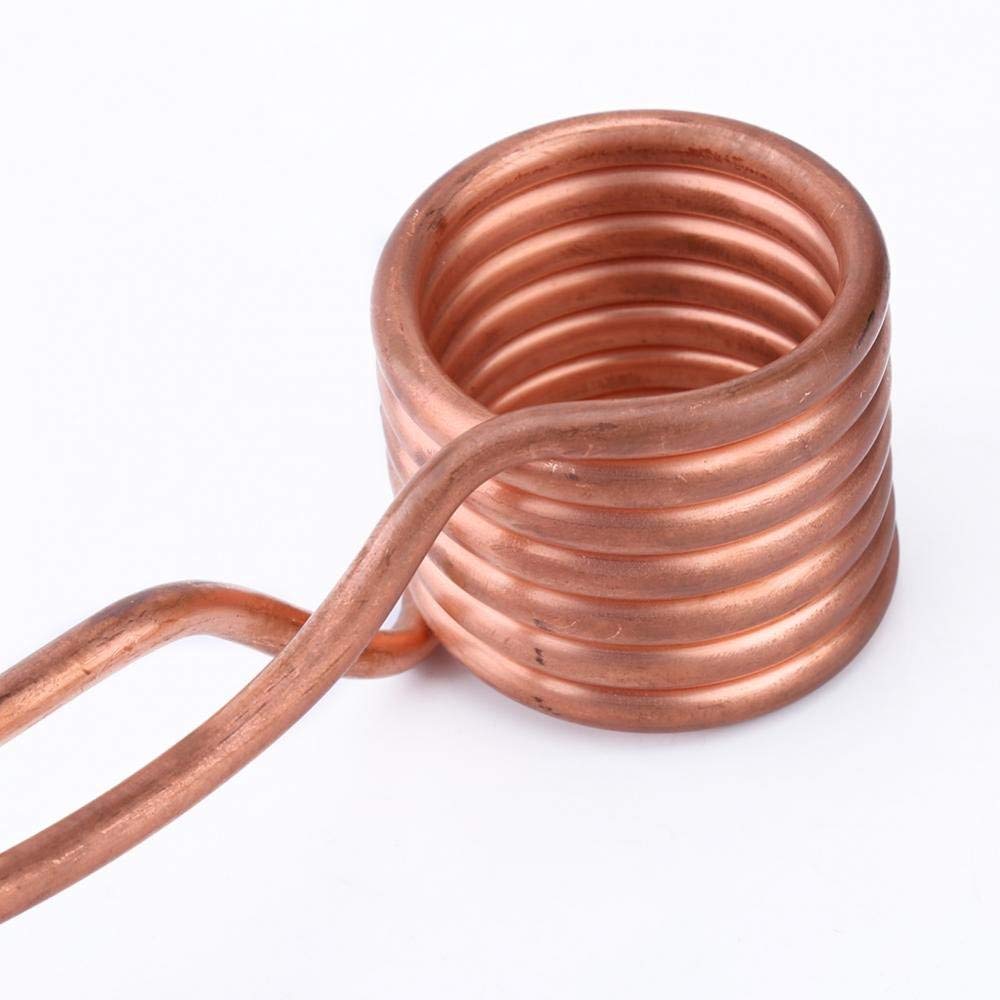

• Specifications: The inner diameter of the spool is 40 mm and the height of the spool is 50 mm. The reel accepts a 40mm crucible
• DC 12-48V Power: This section of induction heating uses a 12-48V low voltage DC power supply. 24V input without 3A charging current. 48V input without 6A charging current Maximum current 20A, maximum power 1000W. Tested the 53V power when it works properly.

Please note: 1, The kit contains a complete set of attack circuit components and brass. 2, Buyers need to bring their own power and cooling unit. 3, The printed circuit board using a double-sided fibreglass board, mainly copper traces are used to expand the use of the entire rear surface of the common resonant circuit, continuous work, please add a fan to blow from the top, to resonance capacitors and other cool components. 4. The use of the switching power supply. Please note that due to the high power is generally slow start function, which just opens the output voltage of the machine slowly increases, while it is switched on before the induction heating circuit if the voltage rises to 12 V, because the starting voltage is insufficient voltage cannot afford to vibrate, resulting in two simultaneous conduction Ms tube therefore burned components. So the first will start switching the supply voltage reaches 12 V above and then access the induction heating circuit. 5, the volume of the heated object inside the heating streamer can not exceed 1/5 of the volume (if the heating cylinder, the diameter of the heating streamer is less than 1/3 diameter), or may be due to overload or burning the power of the circuit. Package includes: 1 x ZVS Low Voltage Induction Heating Plate 1 x Brass.
