CRUISER FC to LC Male to Female Hybrid Fiber Adapter Connector for Optical Fiber Cable

• This is a FC-LC 2.5mm to 1.25 adapter for visual fault locator.
• It fits all 2.5mm size hole, it means all manufacturers out there.
• It simply plug to the 2.5mm hole to convert it to a 1.25 hole.
• Insertion Loss: 0.20dB , Mating Durability: 500
• Receptacle Retention force : 1N - 2.5N

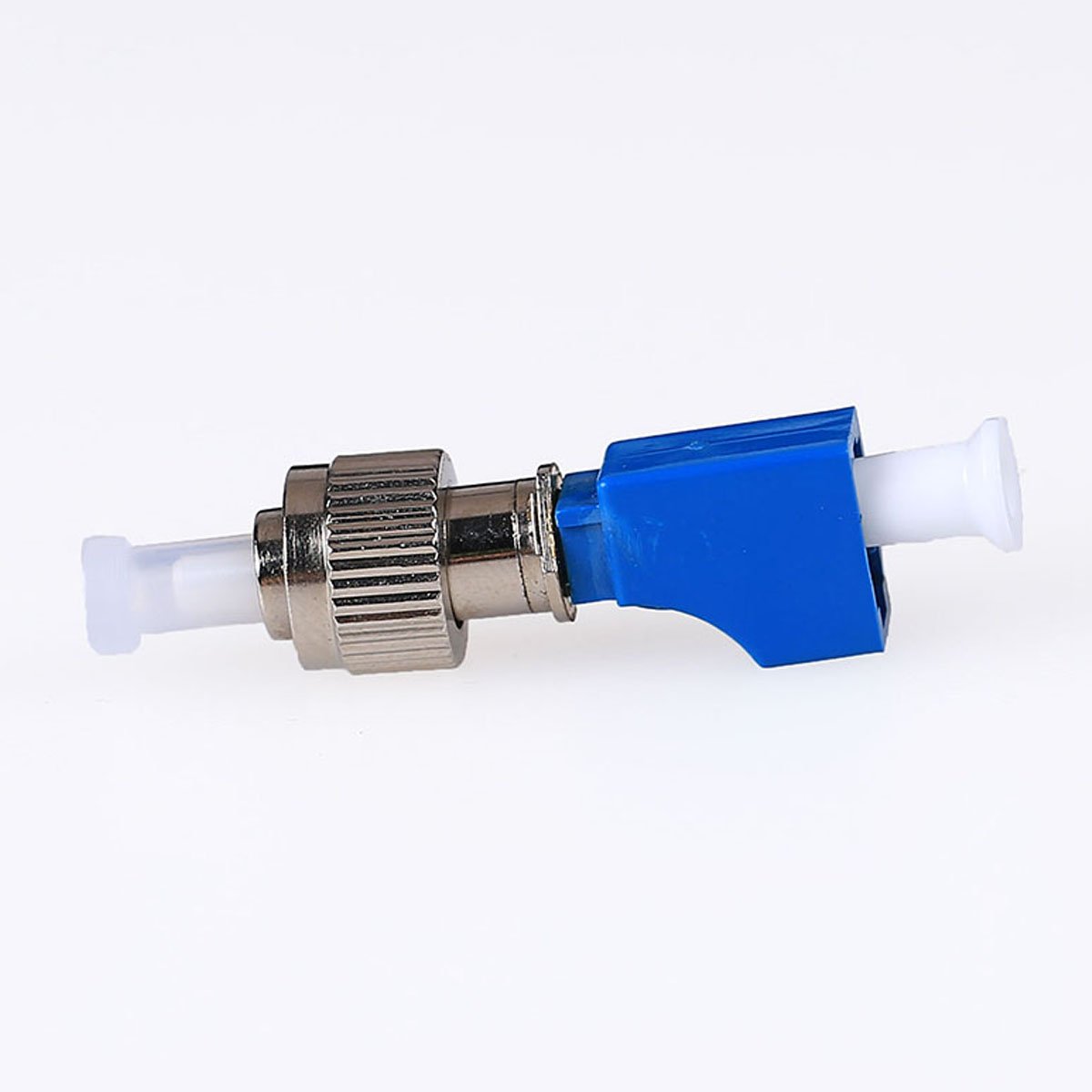

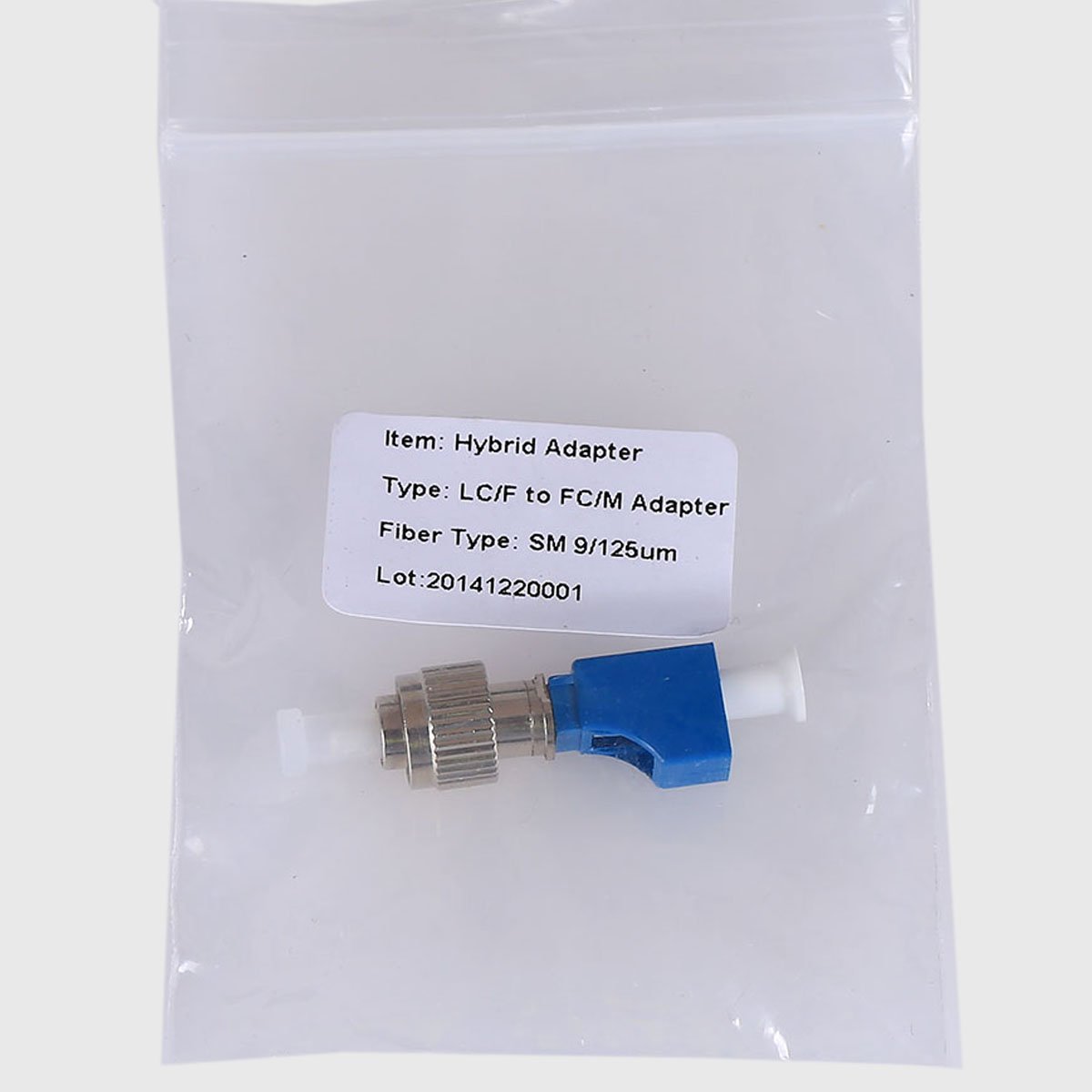

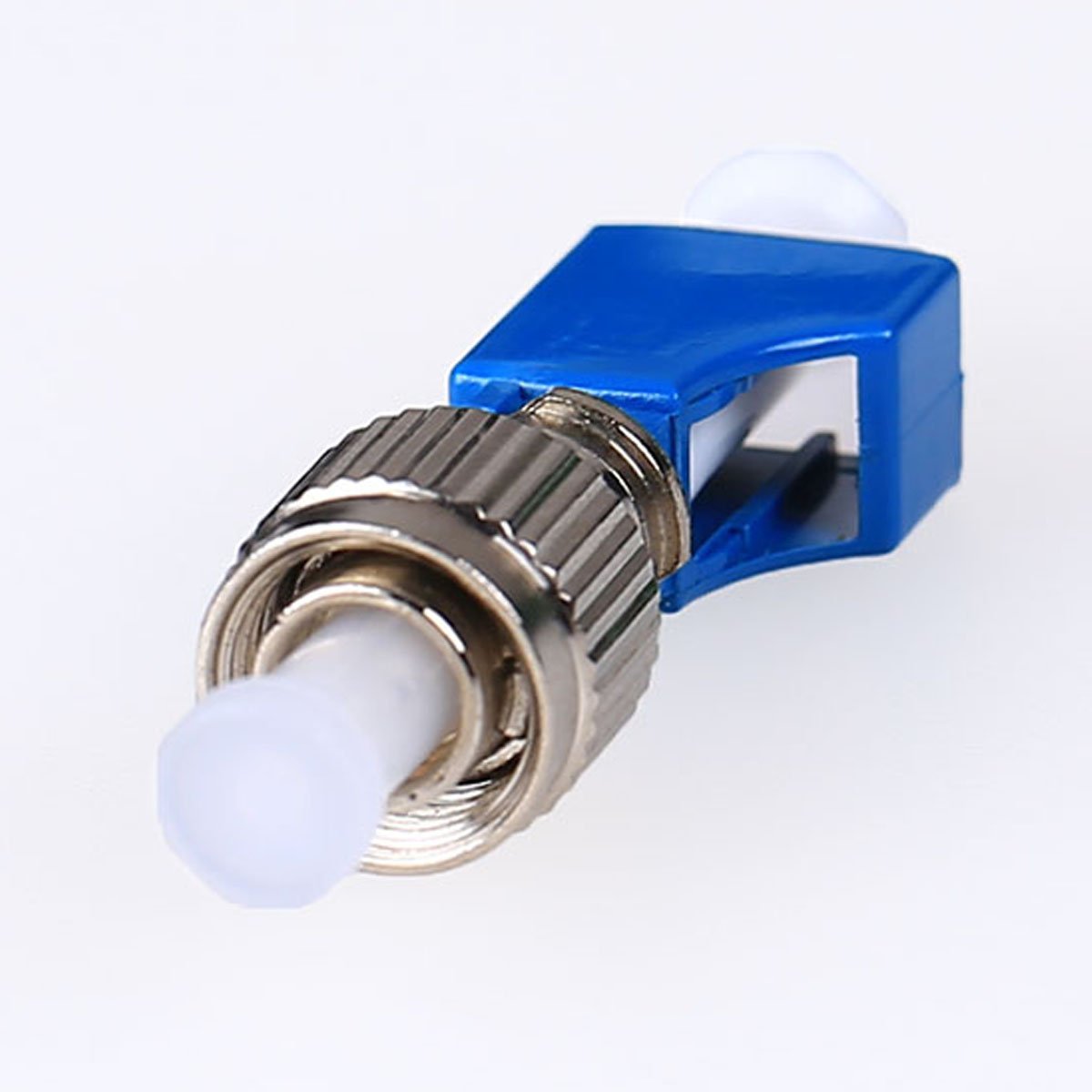

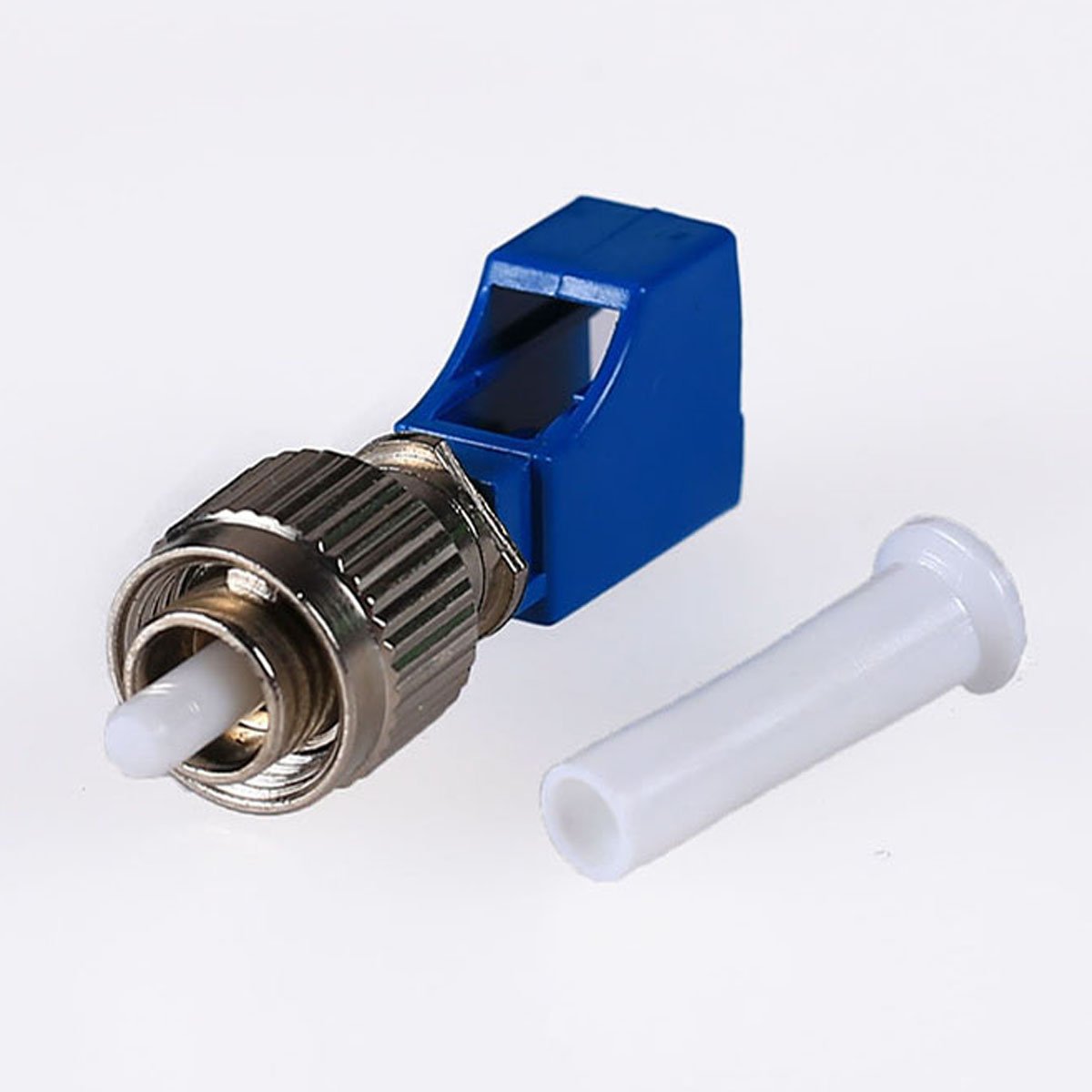

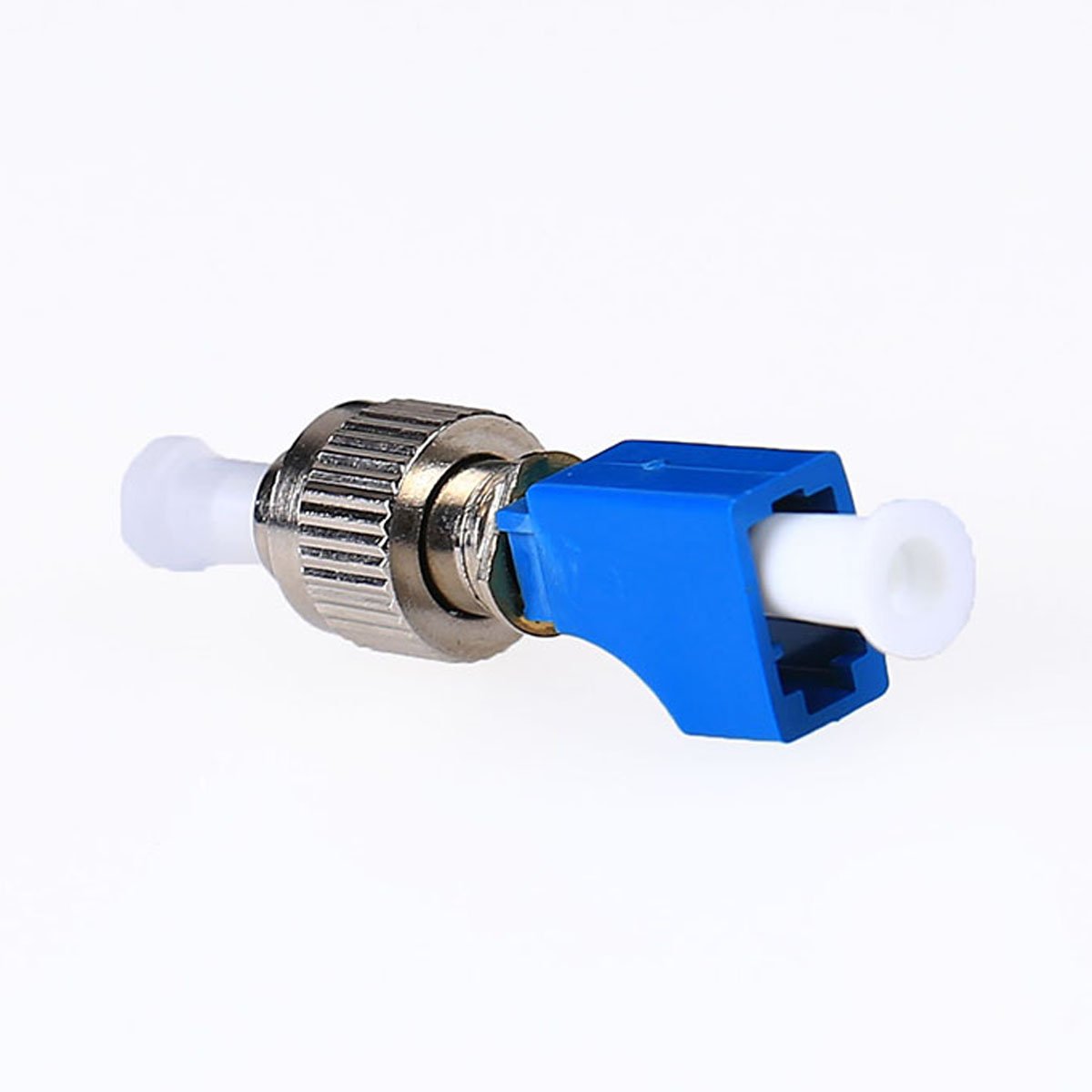

This model has an FC male fiber connector on one end and LC female fiber connector on another end. Used to convert FC female fiber adapter to LC female fiber adapter with low loss. This hybrid Fiber Adapters (Converting fiber adapter) provide interconnection between two different fiber Optical types. There are two type of Hybrid fiber adapter, including Male-Female hybrid fiber adapter and Female-Female hybrid fiber adapter. Male-Female hybrid fiber adapter(Build-out Type hybrid fiber adapter) is a fiber adapter with a connector plug(male) end and an adapter socket(female) end. We call it Male-Female Hybrid fiber adapter, Such as ST male at one side,FC female the order side. Female-Female hybrid fiber adapter (Bulk Type hybrid fiber adapter) is a fiber adapter with two different ends. We call it Female-Female Hybrid fiber adapter. Such as ST female at one side, FC female at the other side. This hybrid Fiber Adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
