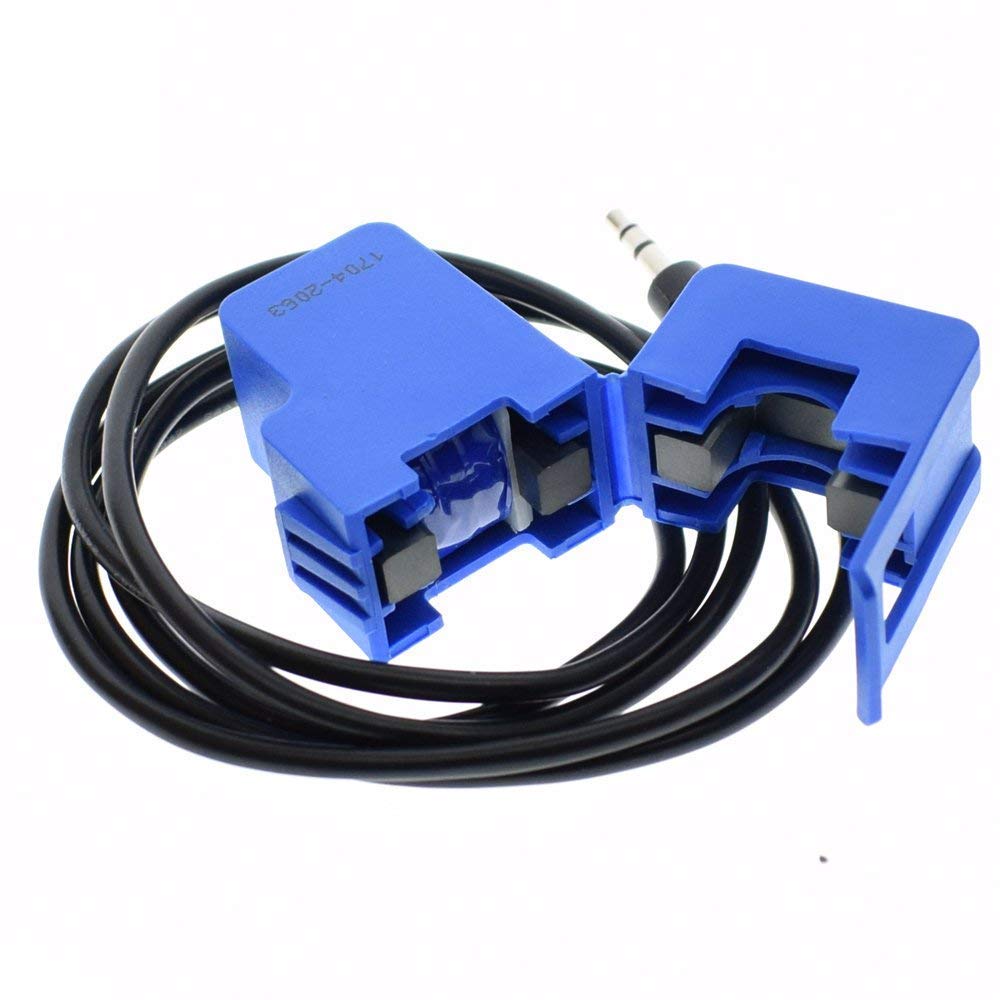

Fasizi SCT-013-000 100A Non-invasive AC Current Sensor Split Core Transformer, Corded Electric, 1.5m Lead, 150KHz Max Frequency, 50Hz Min Frequency, 3% Non-linearity, -25°C to +70°C

• Opening size:13mmx13mm
• Non-linearity 3%(10%-120% rated input current)
• 1.5m leading wire,Φ3.5 3 core plug standard output.
• Two form of output current, voltage (voltage output built-in the sampling resistor).
• Operating Temperature: -25 C ~ +70 C.

Description: SCT-013-000 Non-invasive AC Current Sensor Split Core Transformer 100A,Used for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc. Core material: Ferrite Mechanical strength: the number of opening and closing is not less than 1000 times (tested at 20 °C) Specifications Model: SCT013 Frequency: 50HZ-150KHZ Opening and closing transformer SCT-013 Rated input current: 100A Model: SCT-013 Rated input current: 60A/100A 13mm × 13mm, fully compatible with similar foreign products; non-linearity ± 3% (10% ~ 120% rated input current) The lead length is 1.5 meters, the standard Φ3.5 three-pin plug output; the current and voltage output forms (voltage output type built-in sampling resistor). Safety index: anti-electricity (between shell and output) 6000V AC/1min Flame retardant characteristics in line with UL94-V0 Working temperature: -25 ° C ~ +70 ° C Package Included: 1 x SCT-013-000 Non-invasive AC Current Sensor Split Core Transformer 100A
