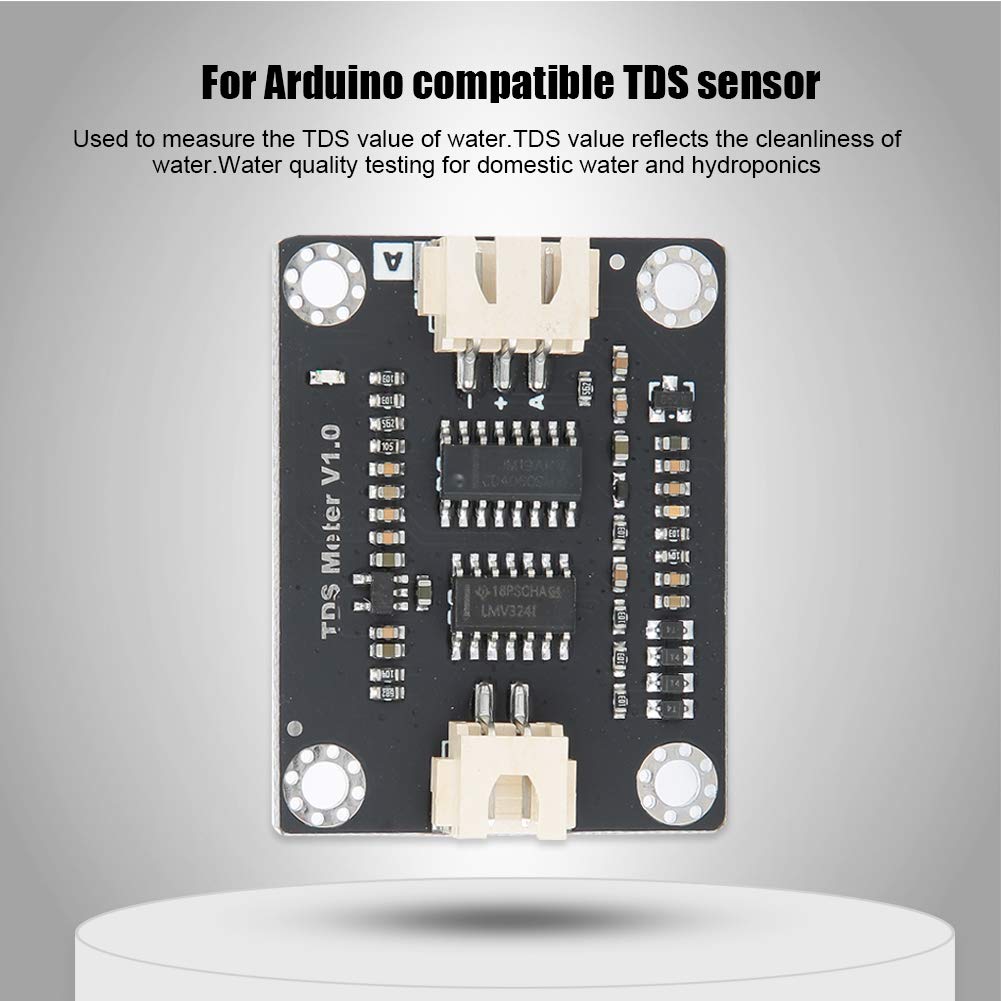

Analog TDS Sensor Compatible with Board Water Quality Test Kit Meter Sensor TDS (Total Dissolved Solids) for Domestic/Lab/Research Water

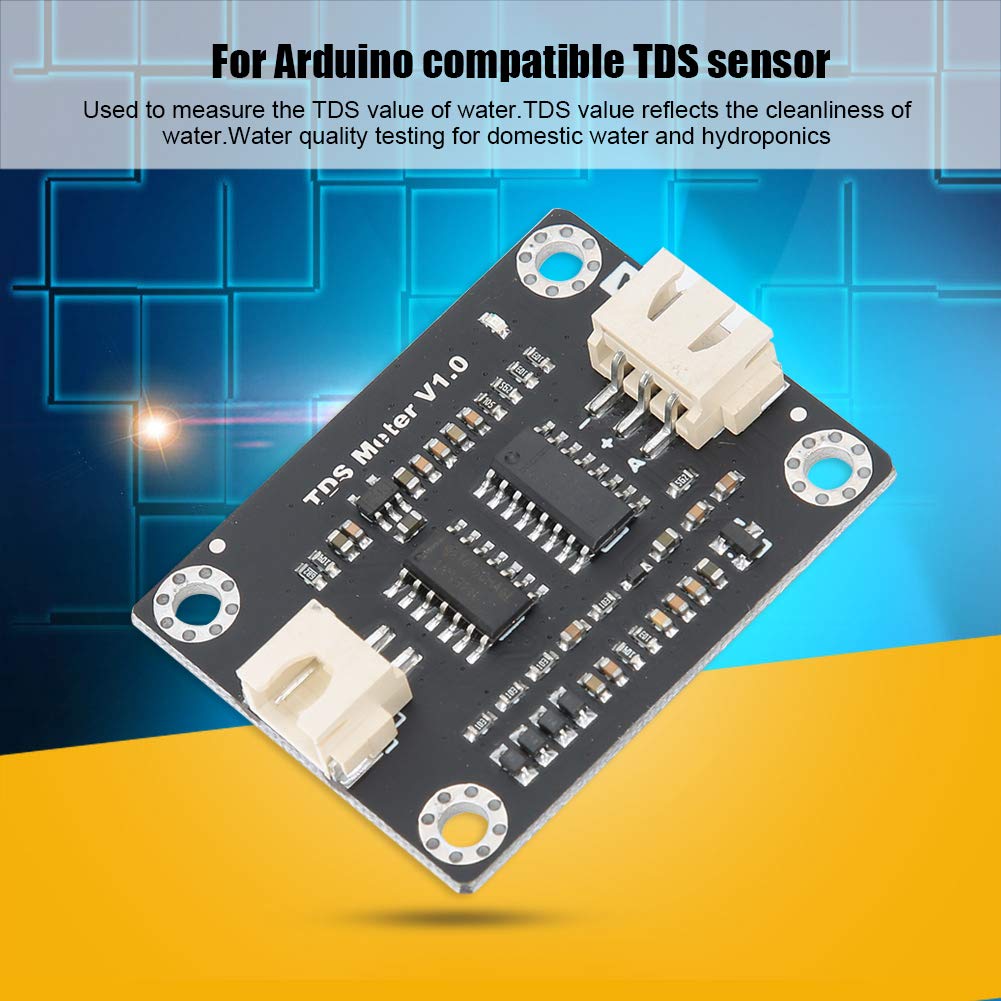

• The compatible TDS sensor is used to measure the TDS value of water. And the TDS value reflects the cleanliness of the water.
• In addition, it can be used for water quality testing in the field of domestic water and hydroponics.
• TDS Indicates how many milligrams of dissolved solids are dissolved in 1 liter of water. Generally, a higher TDS value means that the more lysate is contained in the water and the less cleanliness of the water.

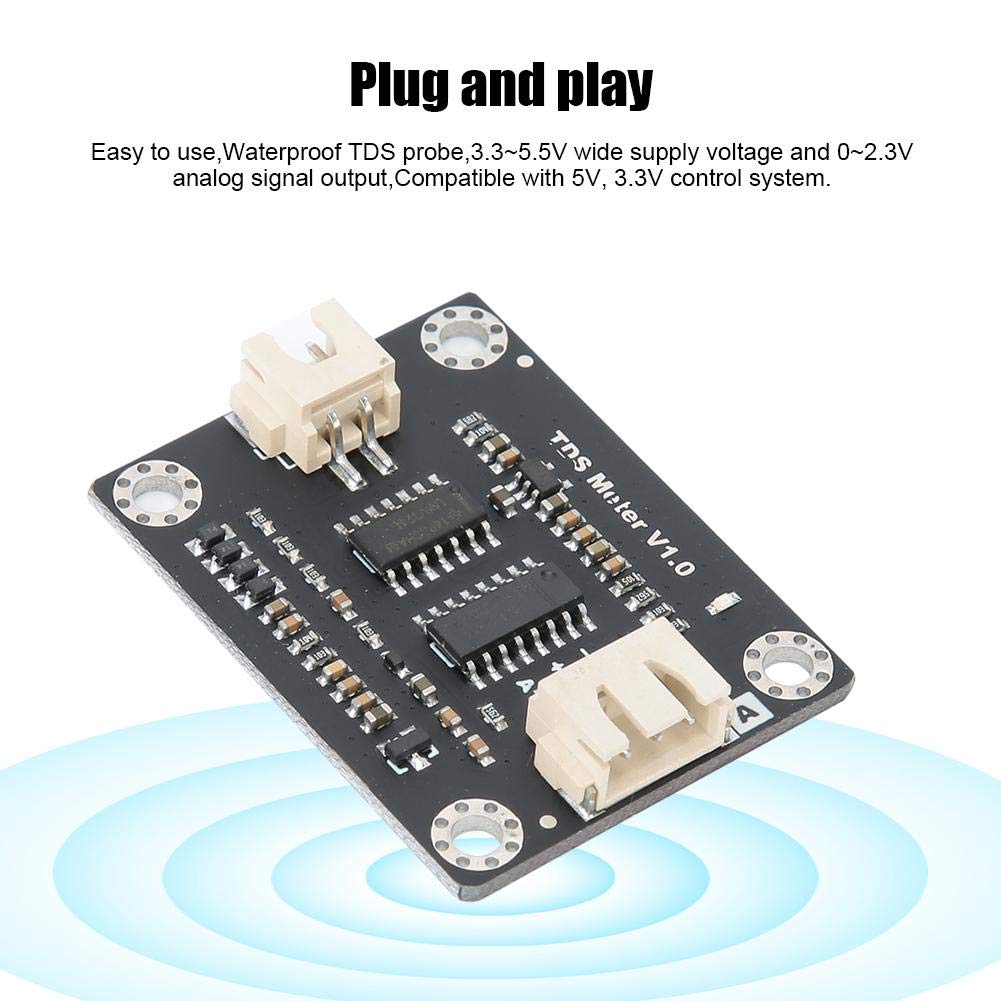

• Therefore, the size of the TDS can be used as one of the bases to reflect the cleanliness of the water. And the product is plug and play and easy to use. In addition, the wide supply voltage of 3.3~5.5V and the analog output of 0~2.3V make this product
• Commonly used TDS tester is TDS pen. Although inexpensive and easy to use, it does not transfer data to the control system, allowing for long-term online monitoring and analysis of water quality. Using dedicated instrument, although it can transmit data

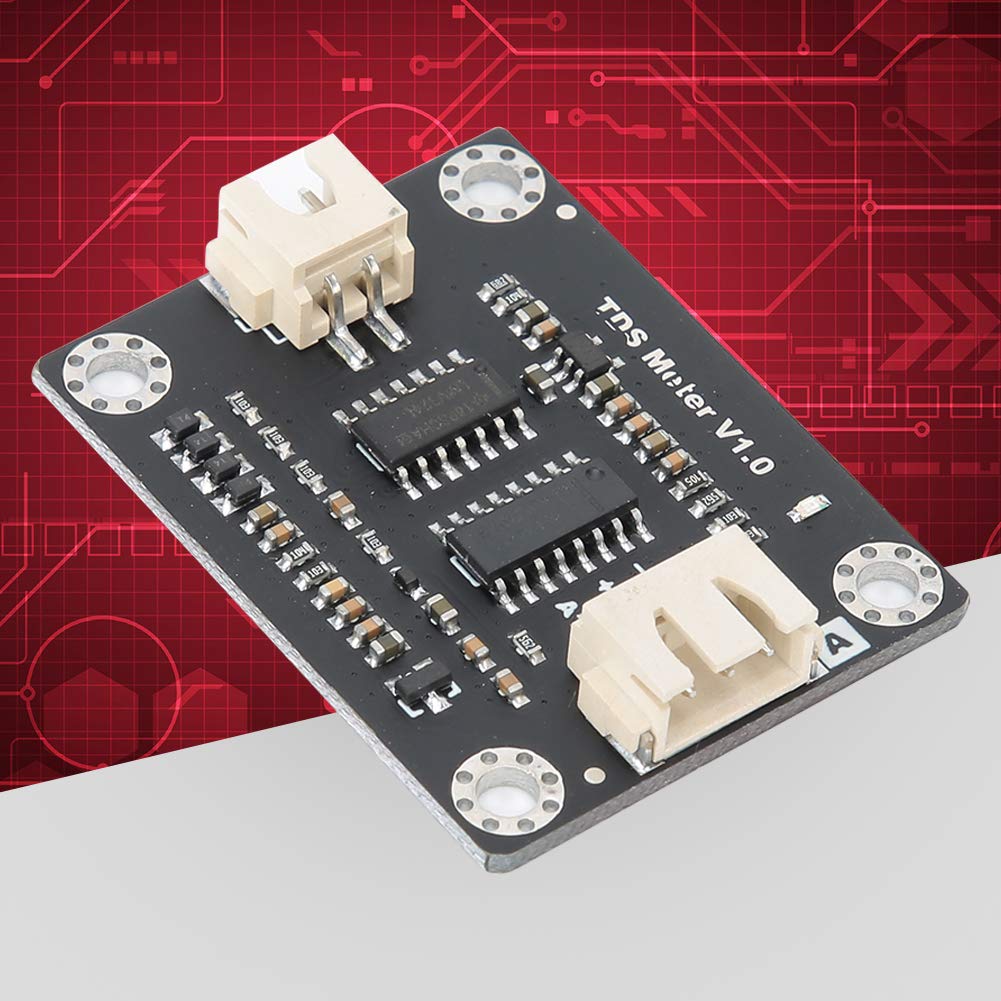

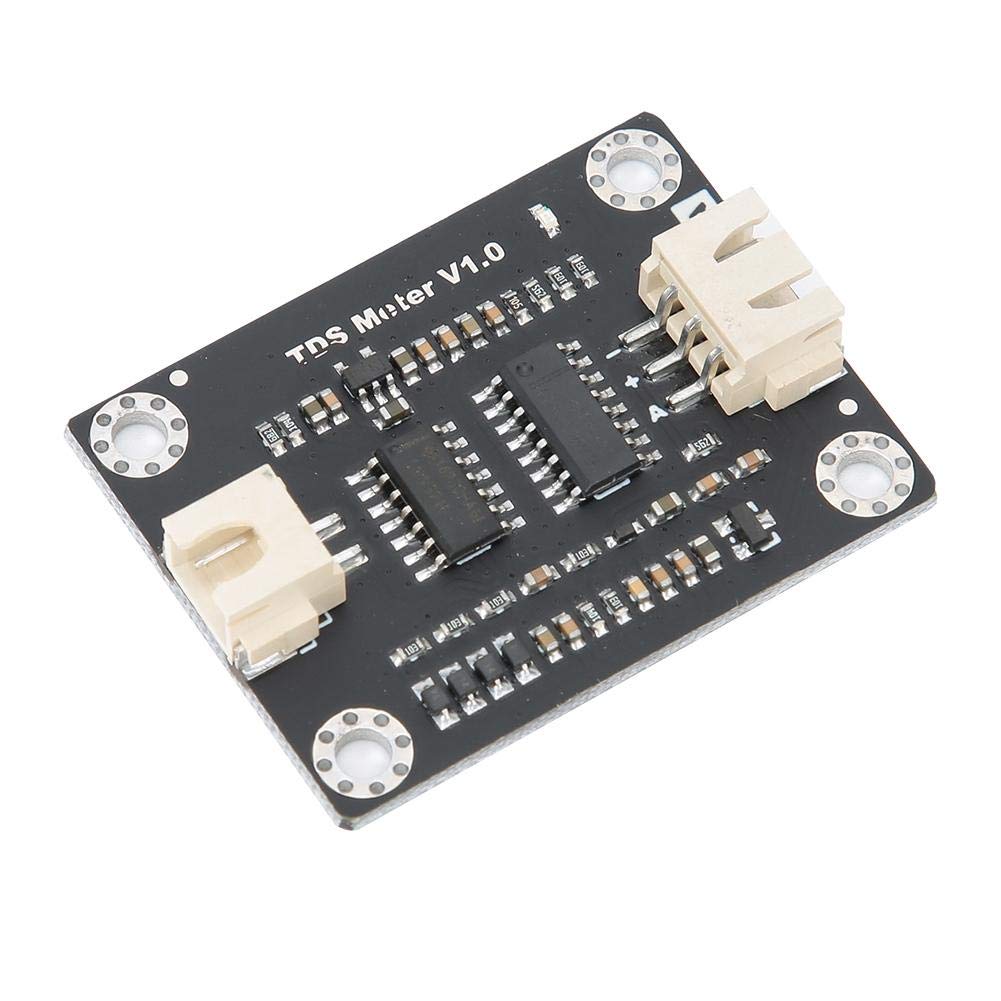

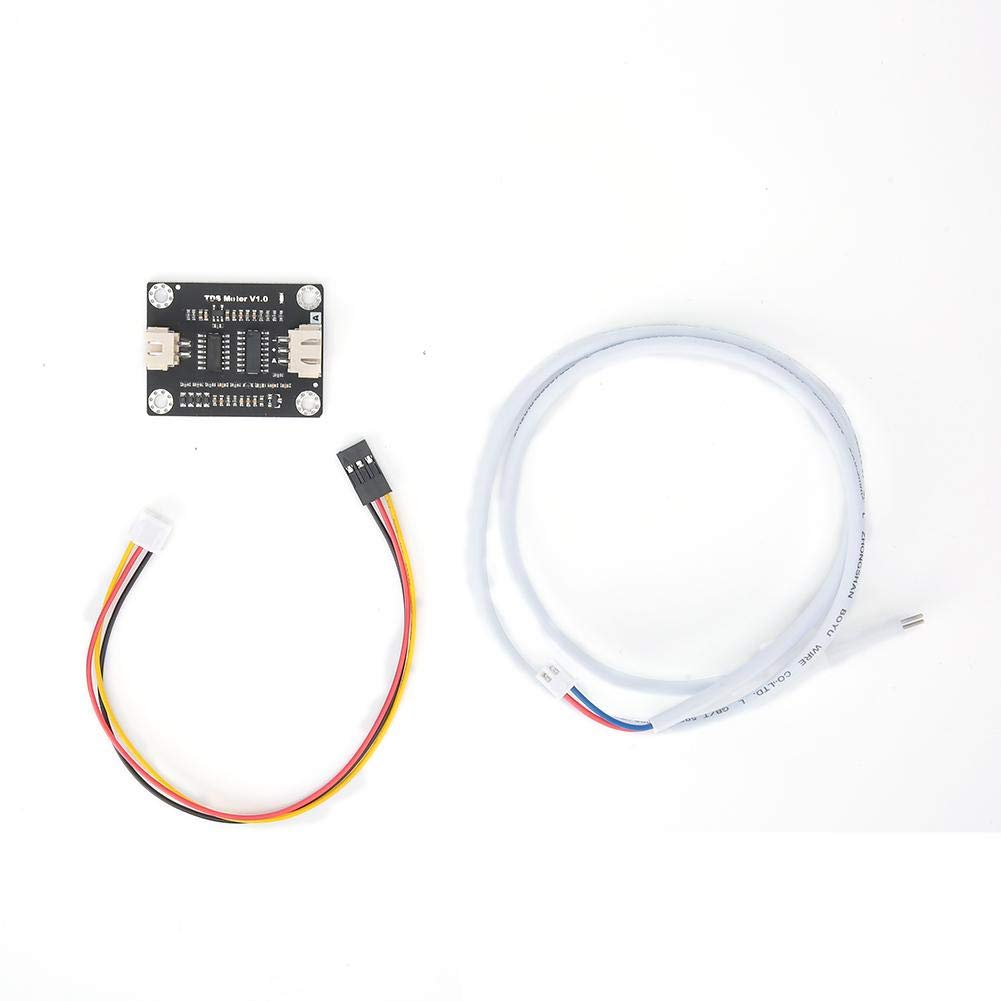

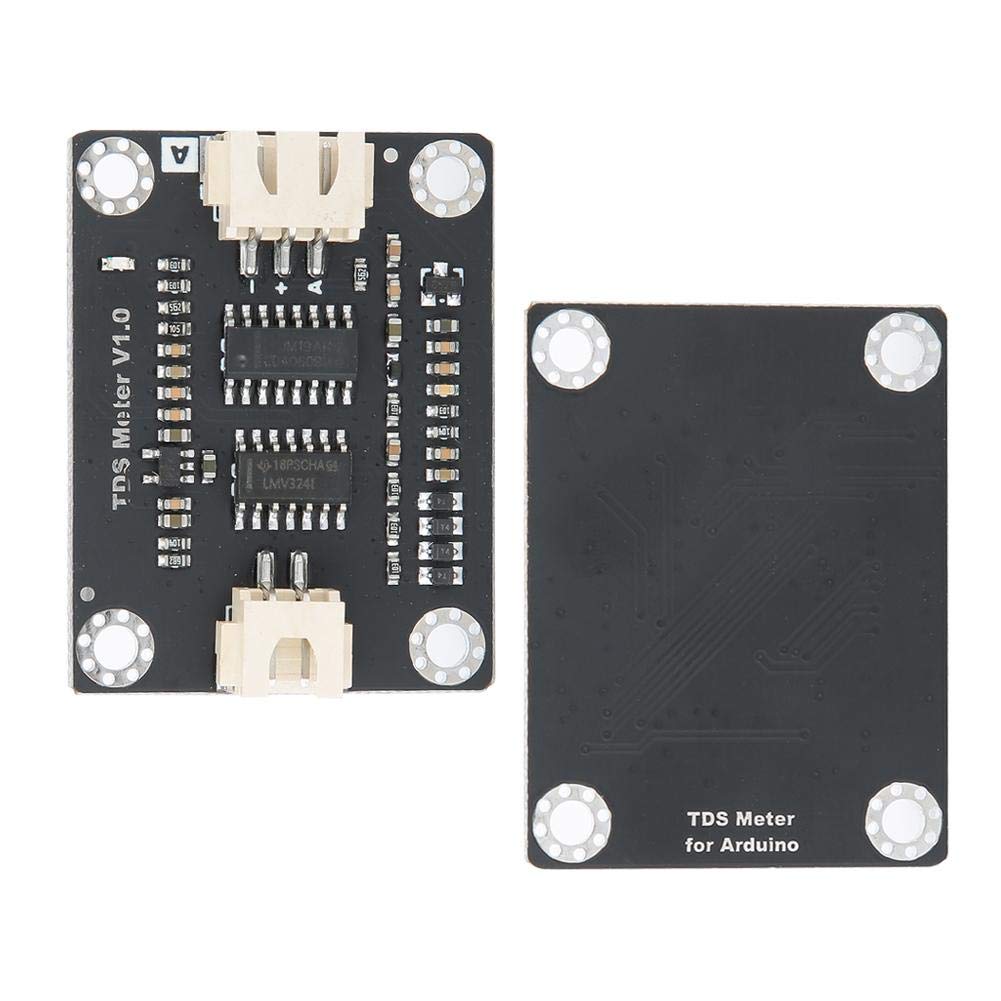

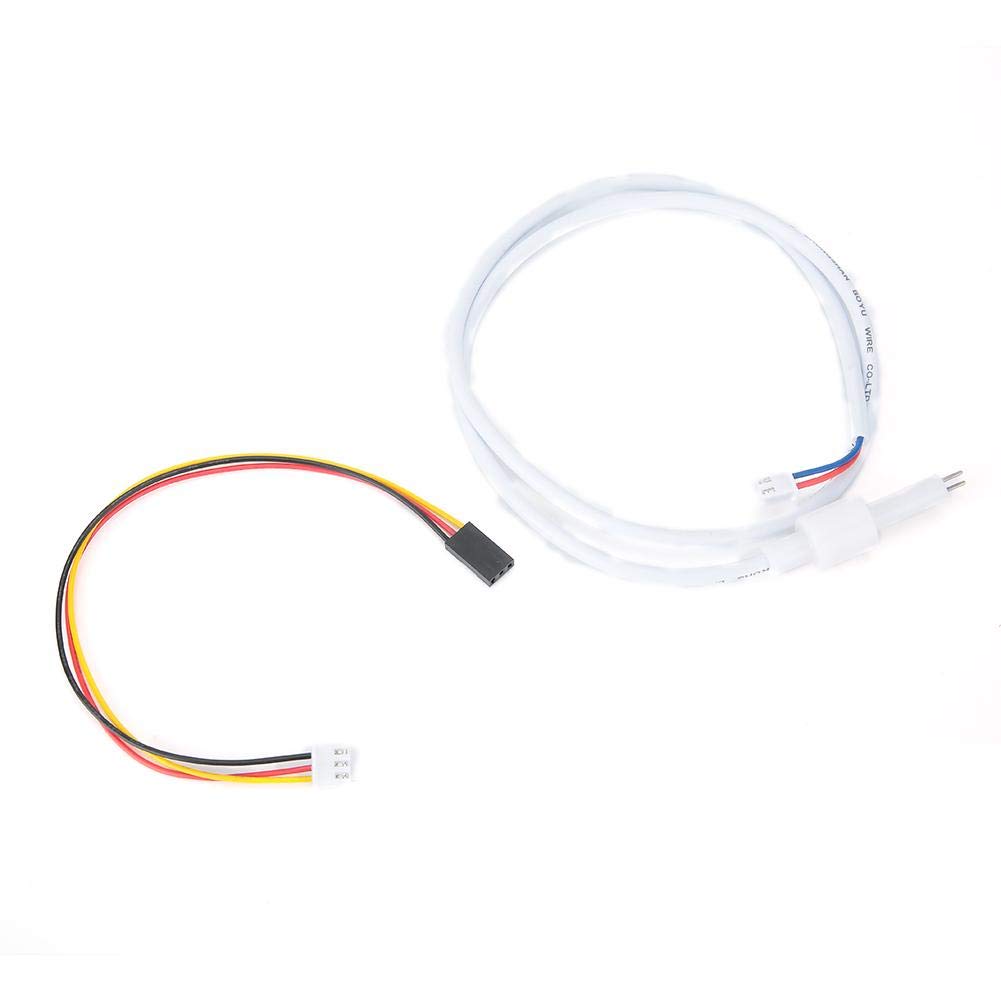

Specifications: Item Type: Water Sensor Adapter Card from: Input voltage: 3.3~5.5V Output: 0~2.3V Working current: 3~6mA TDS measurement range: 0~1000ppm TDS measurement accuracy: ± 10% F.S. (25°C) Size: approx. 42 x 32 mm/1.7 x 1.3 inches. Module interface: XH2.54-3P Electrode interface: XH2.54-2P TDS probe: Number of probes: 2 Connection interface: XH2.54-2P Uses: measuring the TDS value of water Waterproof TDS probe length: 60 cm/23. 62 inches Analog sensor line length: 20cm/7.87 inches Package list: 1 x TDS Adapter Card 1 x Waterproof TDS Probe 1 x Analog Sensor Line
