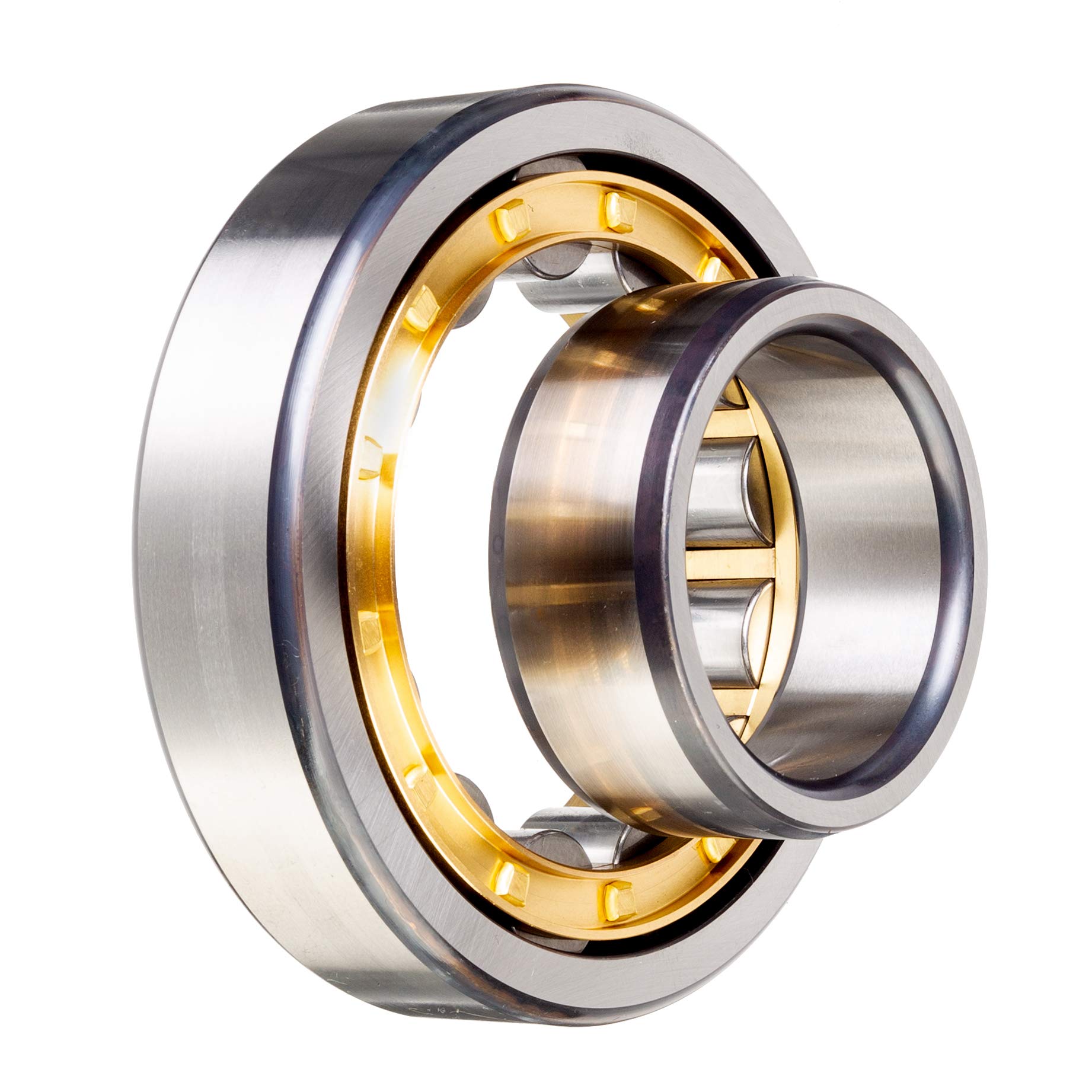

FAG NU1024-M1 Cylindrical Roller Bearing

• Cylindrical roller bearings NU and N are non-locating bearings and can support radial forces only
• The outer and inner ring can be axially displaced relative to each other from the central position by the value "s"
• In series NU, the outer ring has two ribs, while the inner ring has no ribs
• The bearings are supplied without seals
• Single row cylindrical roller bearings with cage can be used at operating temperatures from –30 °C to +150 °C

Cylindrical roller bearings NU10 main dimensions to DIN 5412-1 non-locating bearing separable with cage. Cylindrical roller bearings NU and N are non-locating bearings and can support radial forces only. In series NU the outer ring has two ribs while the inner ring has no ribs. Bearings N have two ribs on the inner ring and an outer ring without ribs. The suffix M1 indicates bearings with brass cages guided by rollers. Cylindrical roller bearings with the suffix TVP2 have a cage made from glass fibre reinforced polyamide PA66.
