FAG H2326 Adapter Sleeve

• Fitting and dismantling of large bearings requires high mounting forces and is made easier by using the hydraulic method
• Withdrawal Sleeve are suitable where bearings with a tapered bore are to be located on cylindrical shafts
• Locknuts can be used to locate bearings on shafts or adapter Sleeve
• Shaft nuts HMZ allow precise and secure axial location of bearings on cylindrical and tapered shafts or on adapter Sleeve

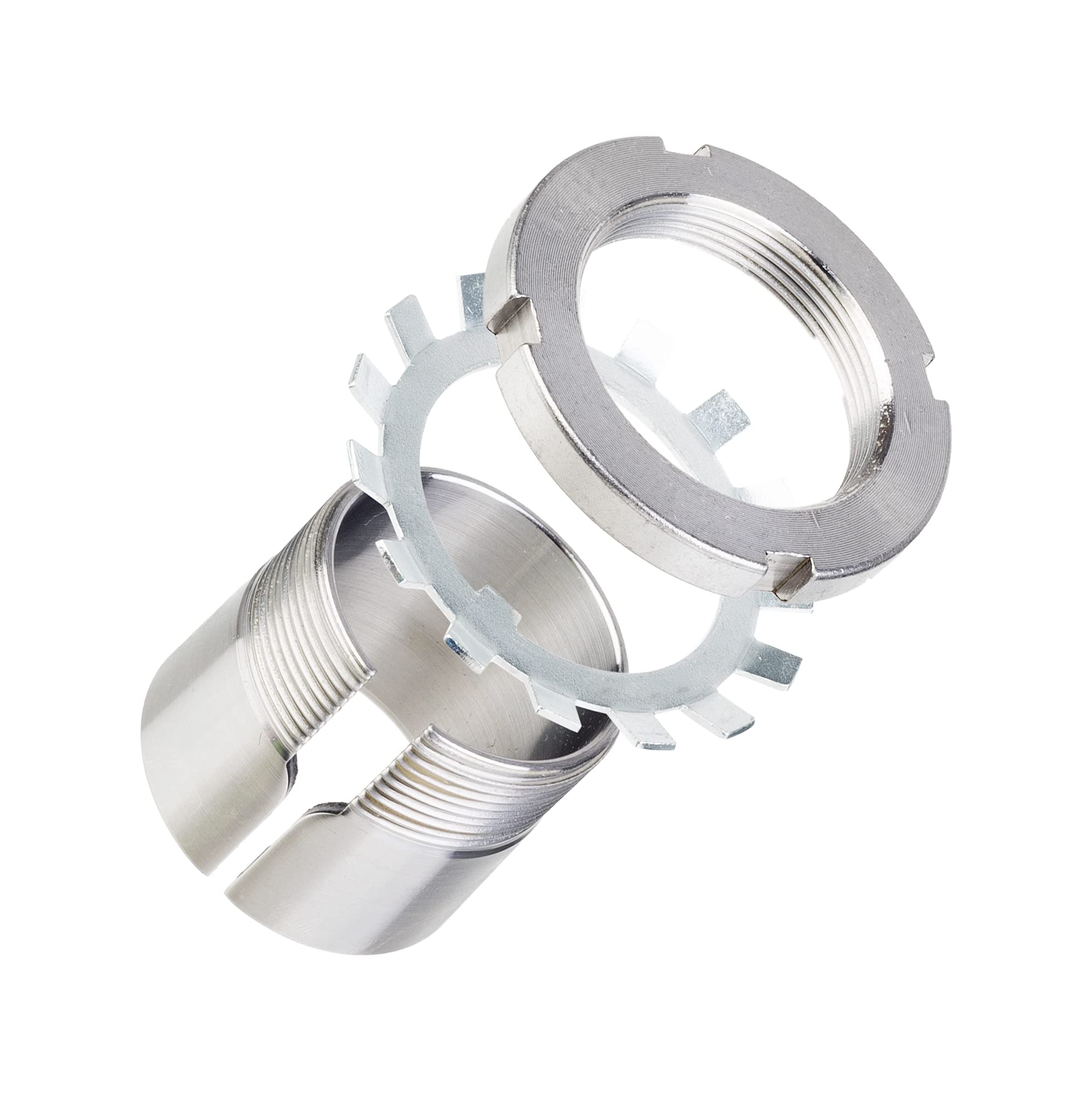

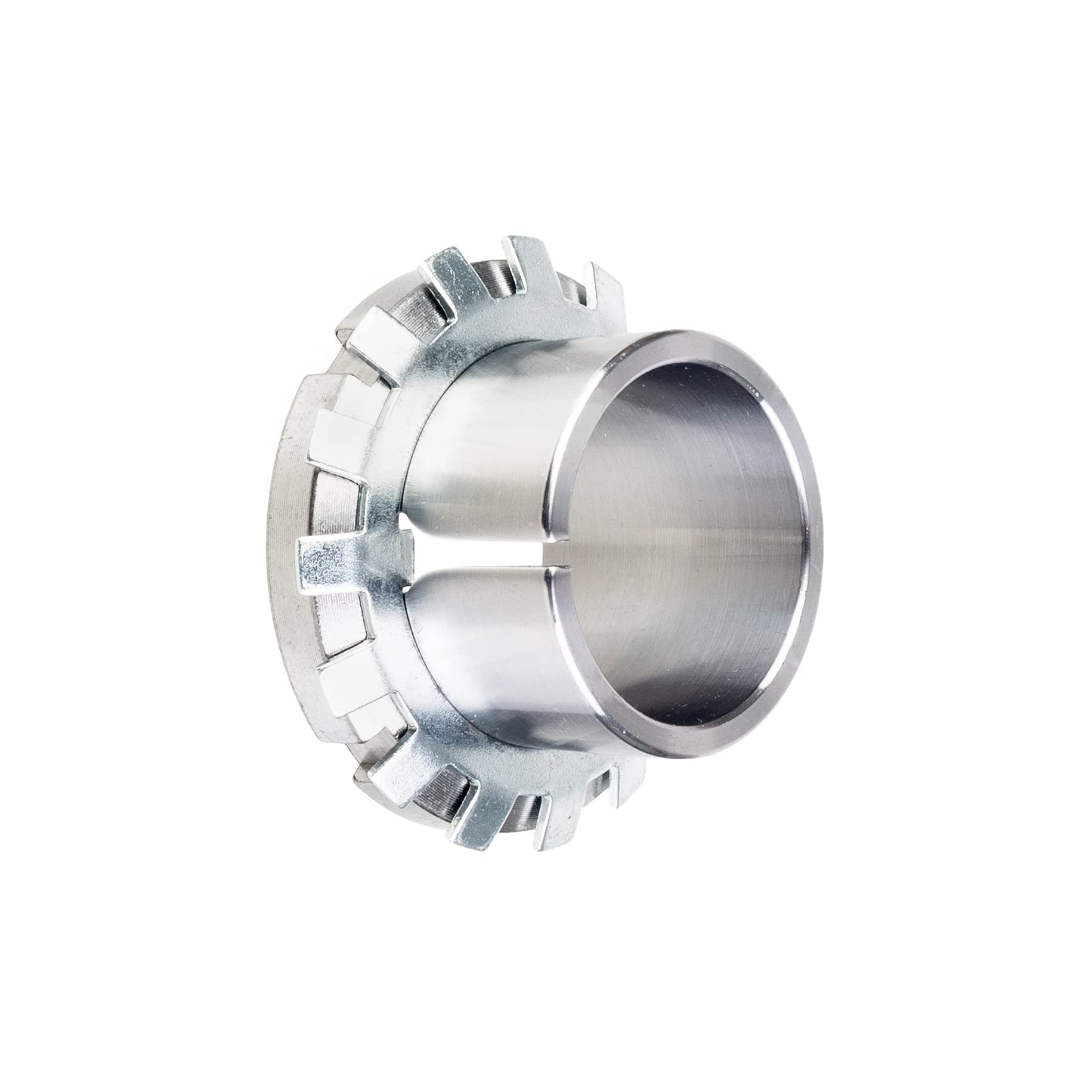

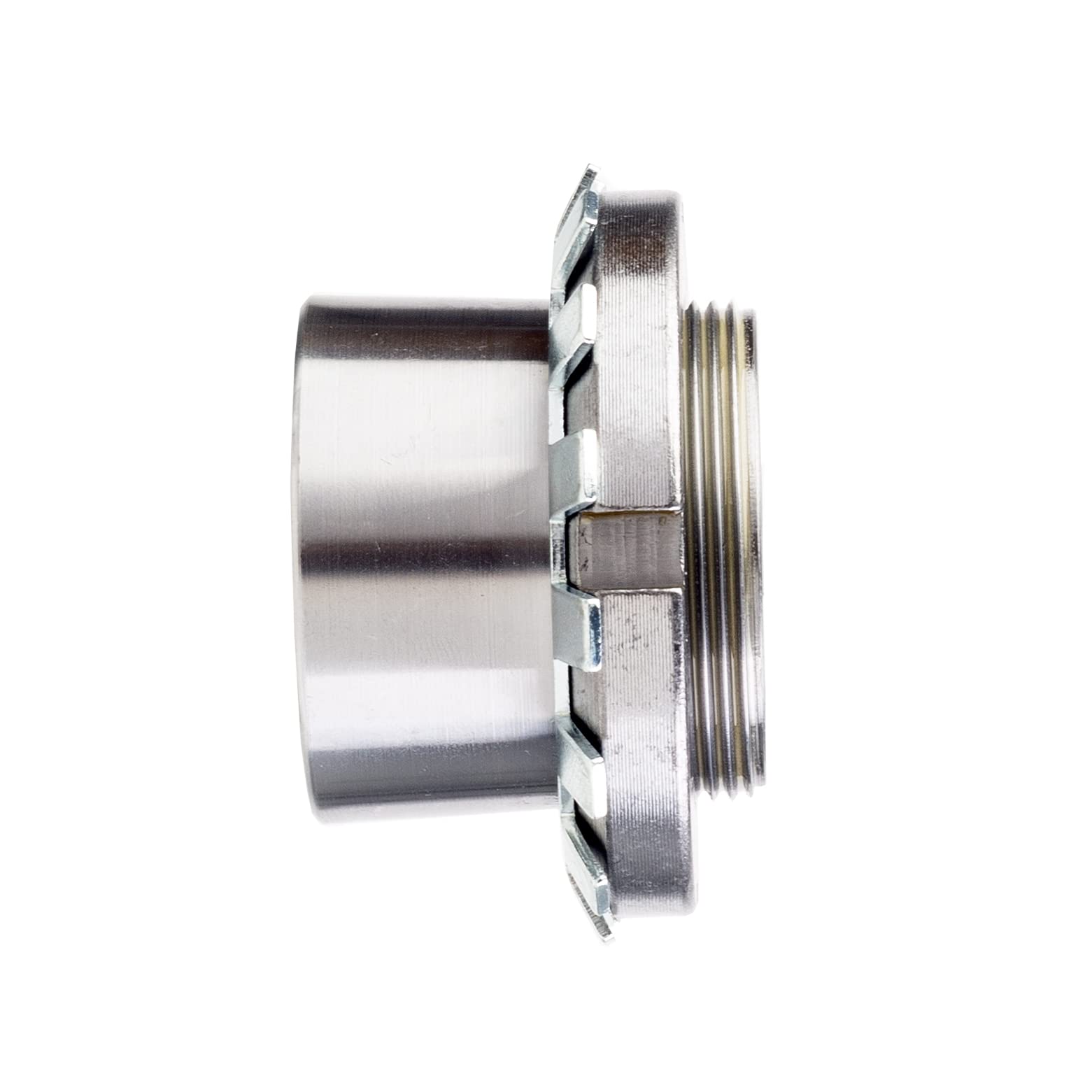

Adapter Sleeve are suitable where bearings with a tapered bore are to be located on cylindrical shafts. They do not need to be secured on the shaft by any additional means. The bearings can be positioned at any point on smooth shafts. If adapter Sleeve are used with a support ring on stepped shafts the bearings can be axially located to high accuracy. In addition this gives simpler dismounting of the bearings. Adapter Sleeve comprise slotted adapter Sleeve locknuts and tab washers. For larger sizes retaining brackets are used instead of tab washers. The tensile strength of the material is at least 430 N/mm2. The outside surface of the Sleeve has a taper of 1:12 in series H240 and H241 the taper is 1:30.
