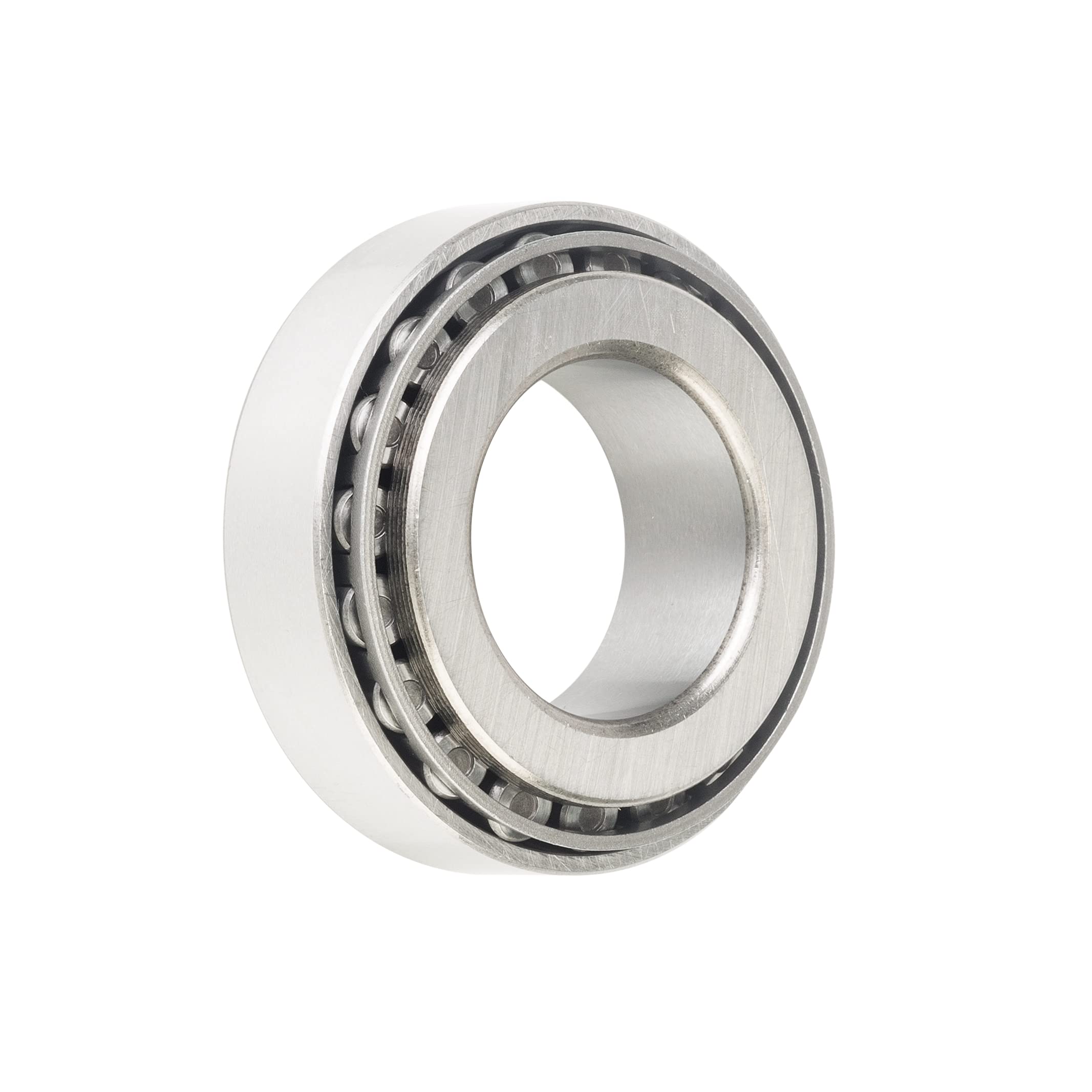

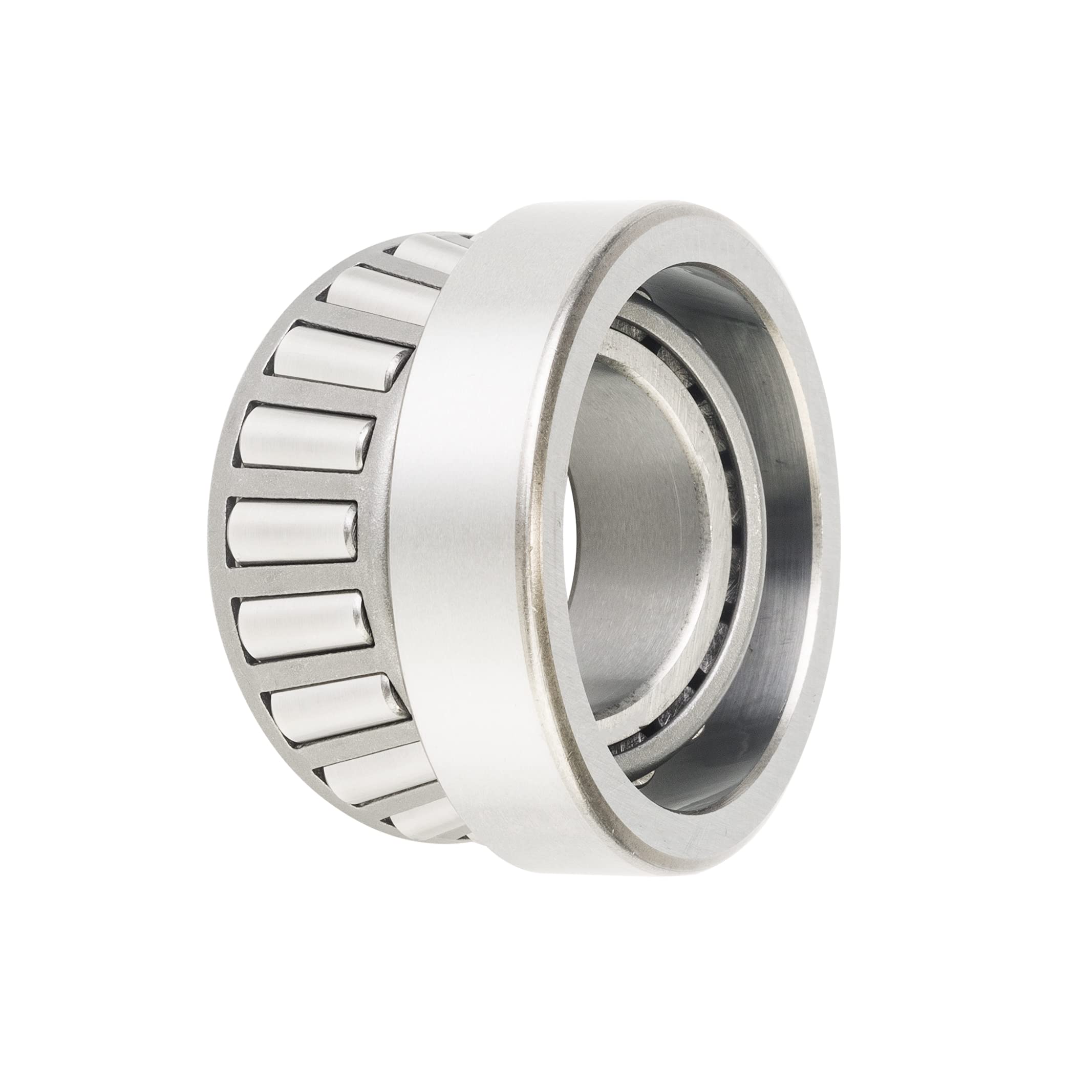

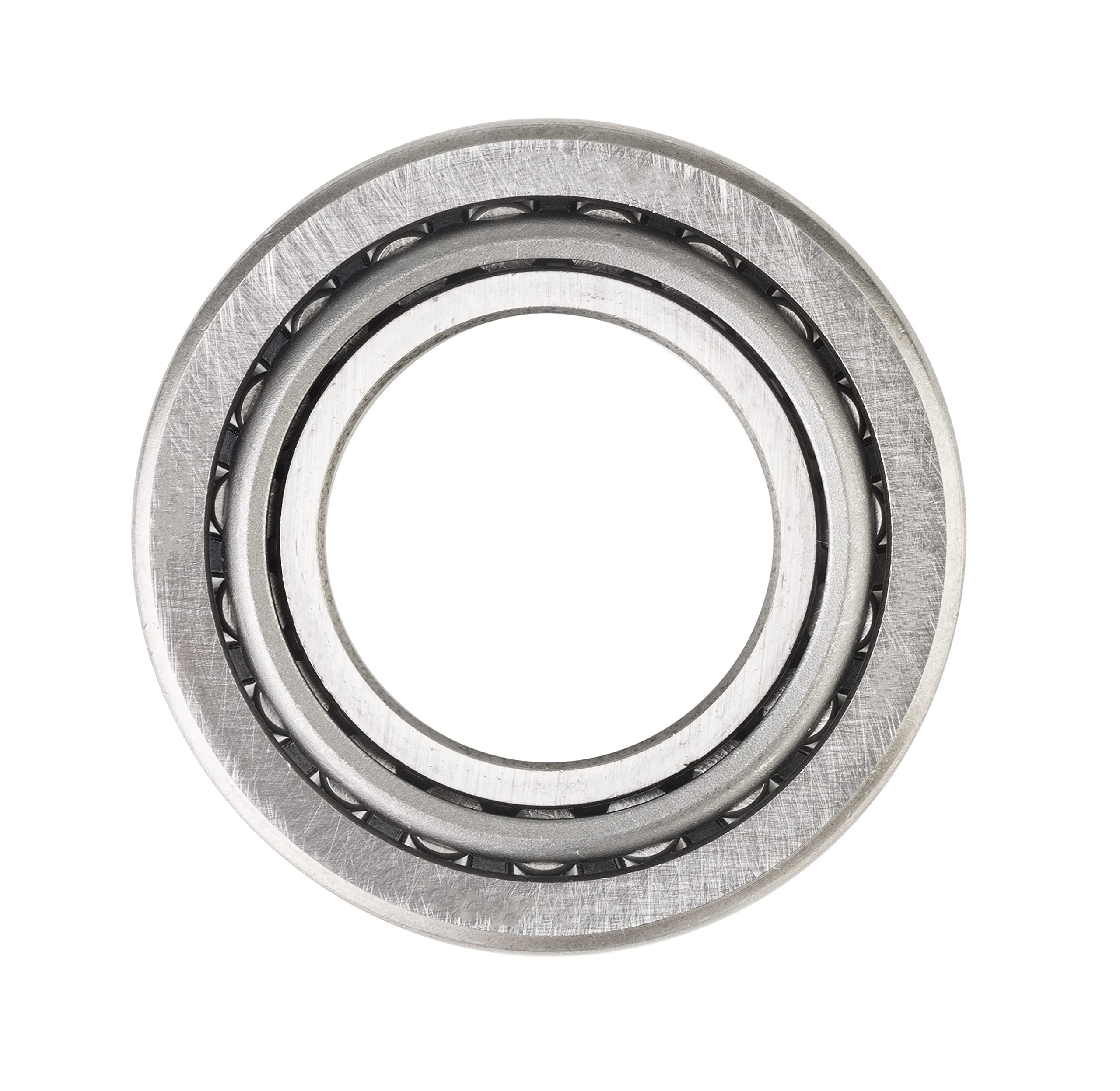

FAG 32311-B Taper Roller Bearing, Single Row

• Tapered roller bearings can support axial loads in one direction and high radial loads
• The modified line contact between the tapered rollers and the raceways ensures optimum stress distribution at the contact points
• Tapered roller bearings with the suffix N11CA are matched in pairs in an X arrangement and can therefore support high axial forces in both directions and moment loads
• Tapered roller bearings of series JK0S are ready-to-fit units sealed on one side and are predominantly fitted in pairs in an O arrangement
• Tapered roller bearings of standard design and matched in pairs are not sealed

FAG tapered roller bearings are characterized by high radial and axial load carrying capacity and by a large usable speed range. They are efficient at supporting forces and ensure a precise and rigid shaft guidance system due to the large effective distance between the bearings. They are adjustable can be dismantled and are therefore easy to fit. Sizes: - d= 55.000 mm D= 120.000 mm W= 45.500 mm.
