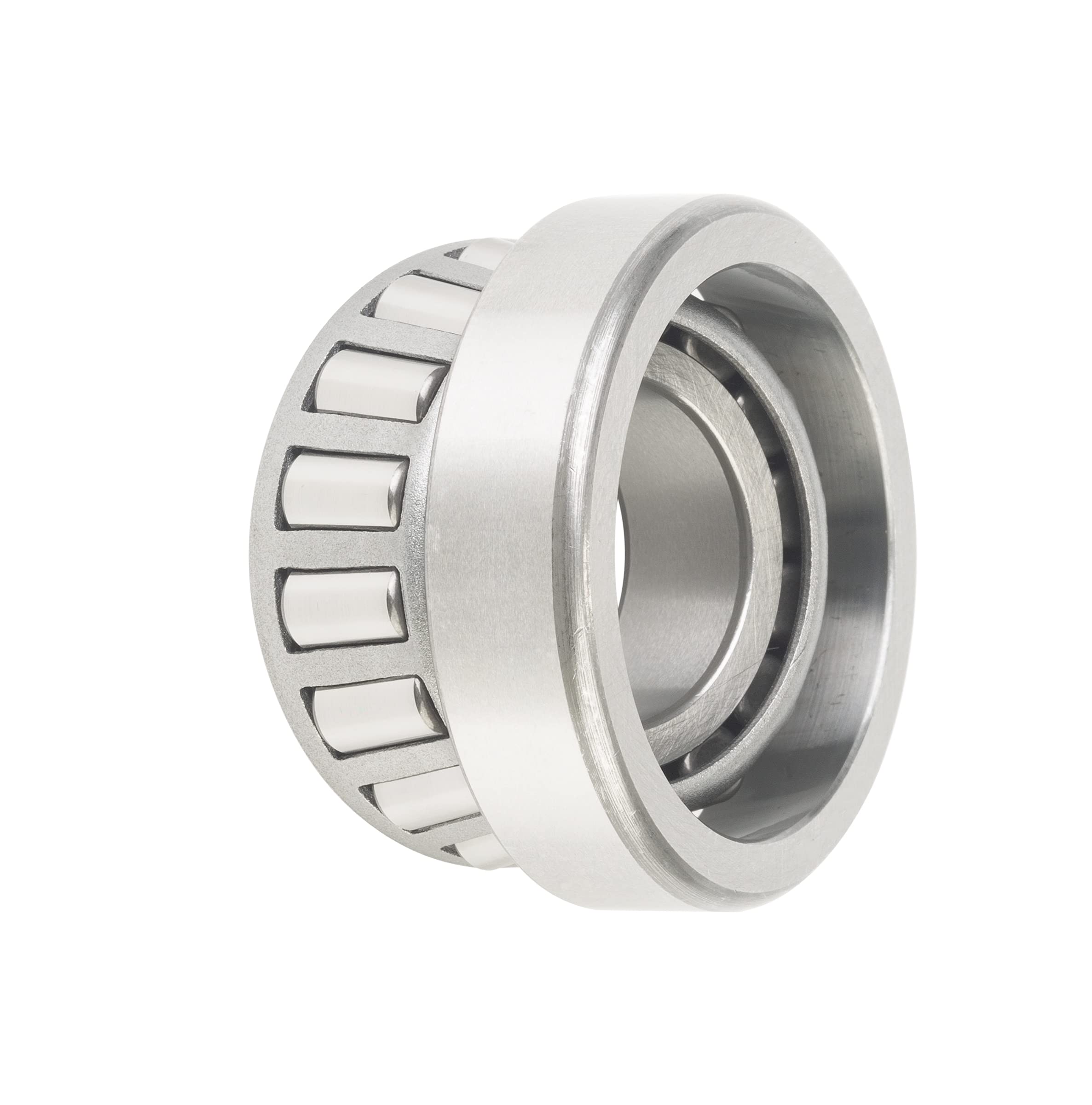

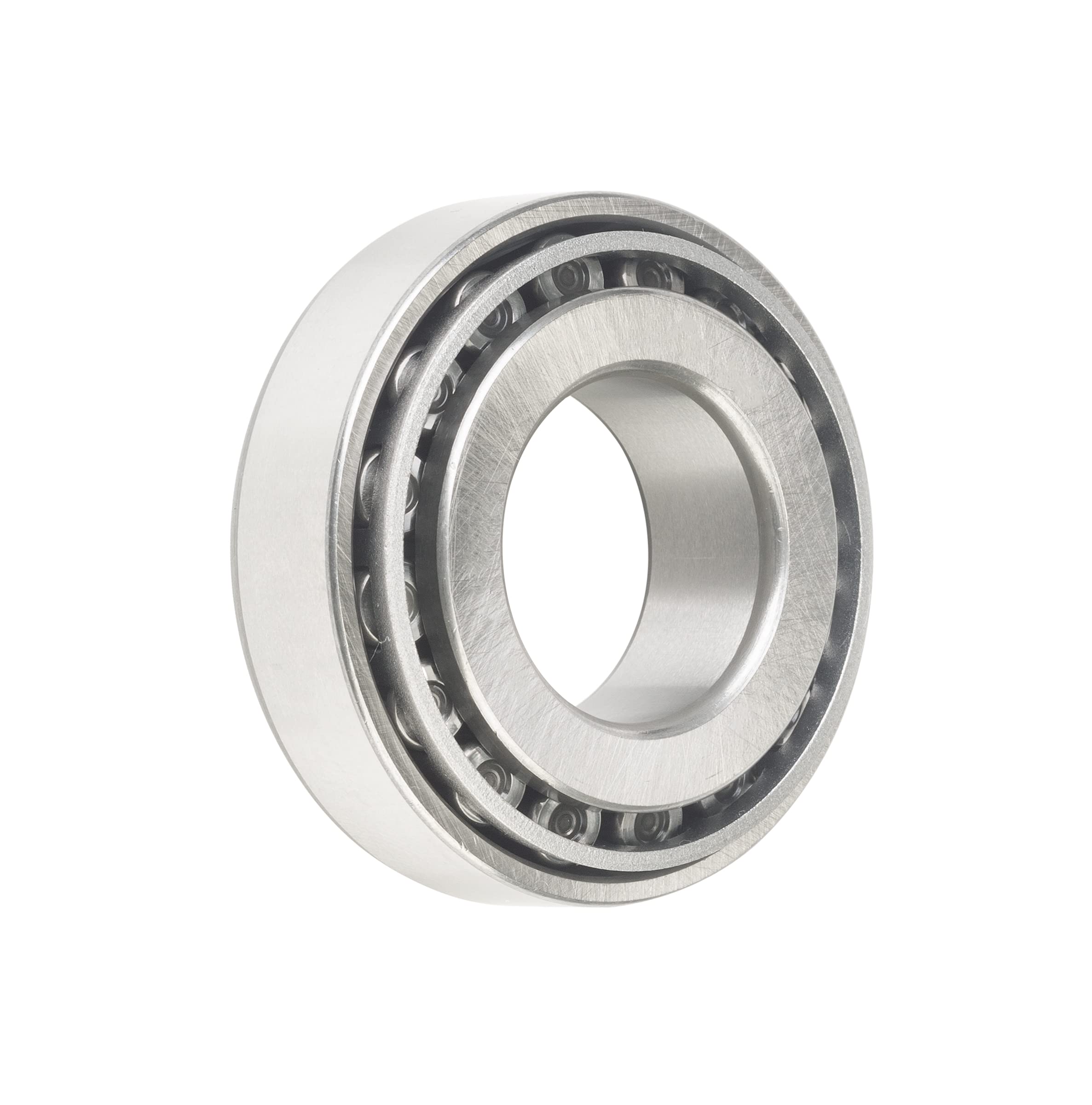

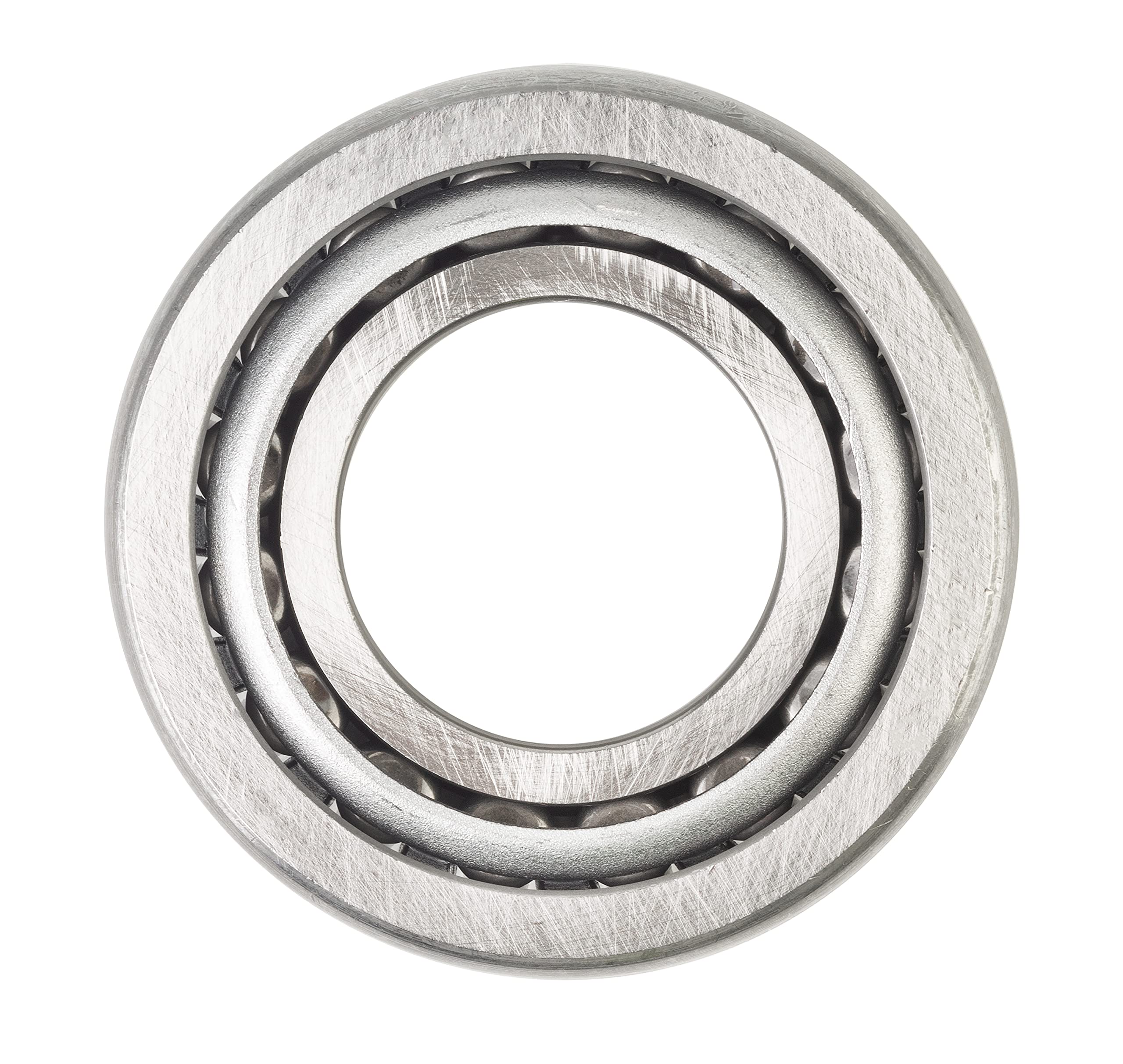

FAG 30226-A Metric Taper Roller Bearing, Single Row, Type Ts

• Tapered roller bearings can support axial loads in one direction and high radial loads
• The modified line contact between the tapered rollers and the raceways ensures optimum stress distribution at the contact points
• Tapered roller bearings with the suffix N11CA are matched in pairs in an X arrangement and can therefore support high axial forces in both directions and moment loads
• Tapered roller bearings of series JK0S are ready-to-fit units sealed on one side and are predominantly fitted in pairs in an O arrangement
• Tapered roller bearings of standard design and matched in pairs are not sealed

Tapered roller bearings comprise solid inner and outer rings with tapered raceways and tapered rollers in a window cage. The bearings are in the form of: standard designs; open variants matched in pairs; integral designs sealed on one side, JK0S. Open bearings are not self-retaining. As a result, the inner ring with the rollers and the cage can be fitted separately from the outer ring. Metric and inch size bearings are available. Designs with a K in the designation have inch dimensions. For new designs, however, bearings in metric sizes should always be used in preference.
