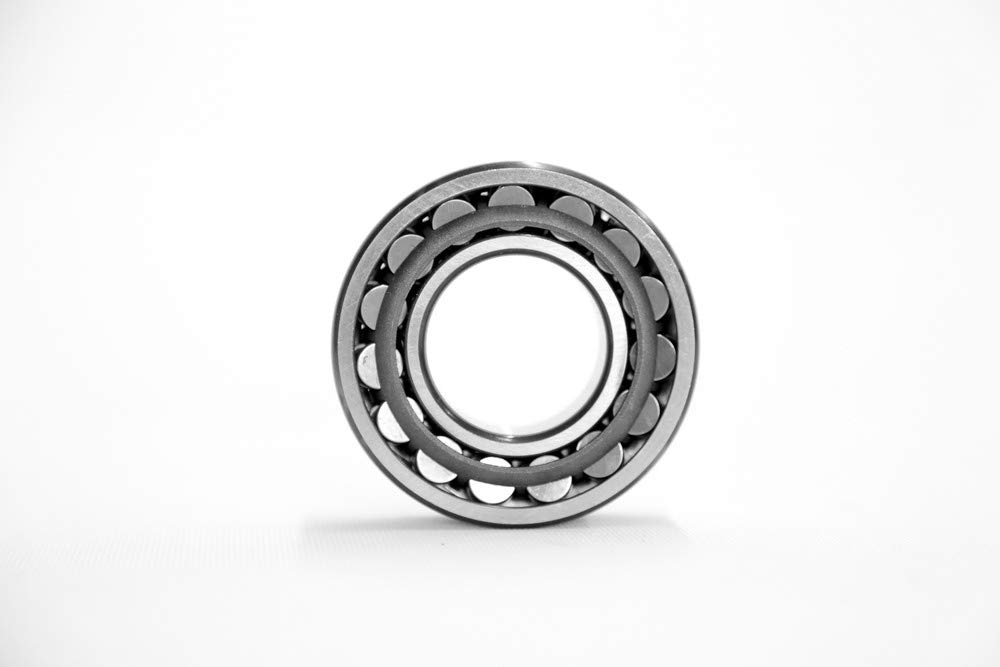

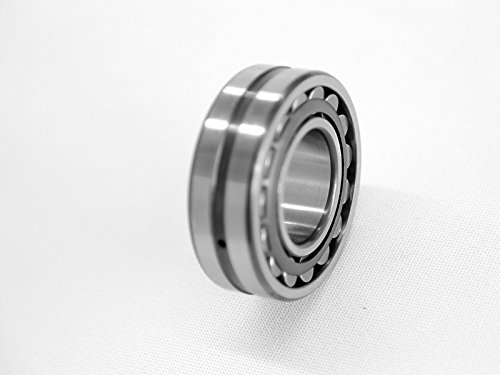

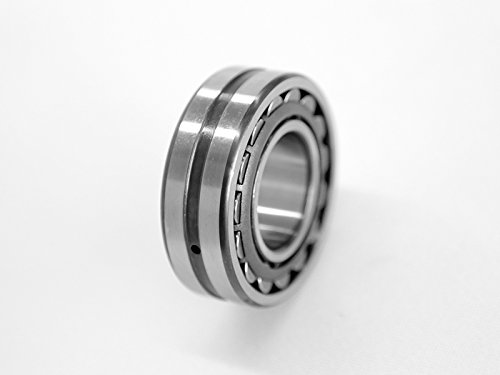

FAG 23936S-MB Spherical Roller Bearing, Brass Cage, Normal Clearance, Metric, 180mm ID, 250mm OD, 52mm Width, 2200rpm Maximum Rotational Speed

• Two row spherical roller bearing suitable for applications that support high radial and oscillating axial loads
• Solid brass cage spaces the rollers for even load distribution and prevents contact to reduce friction, vibration, and noise
• Guide on inner ring
• CN (normal) radial clearance for applications where thermal expansion is not a factor
• Straight bore fits conventional cylindrical shafts

This FAG spherical roller bearing has a brass cage, a CN radial clearance, and a straight bore suitable for applications that support radial and oscillating axial loads, such as in a wind turbine. The solid brass cage spaces the rollers for even load distribution and prevents contact to reduce friction, vibration, and noise, and the cage is guided on the inner ring. This roller bearing's CN (normal) radial clearance is for applications where thermal expansion does not reduce clearance. The bearing's straight bore fits conventional cylindrical shafts. This bearing has two rows of symmetrically arranged rollers oriented on a concave raceway, which allow self-realignment and compensate for static and dynamic alignment errors. The bearing has a maximum operating temperature of 392 degrees F. This roller bearing is intended for interchangeability and meets Deutsches Institut für Normung (DIN) standards for parts numbering, bearing dimensions, load ratings, tolerances, and clearances. It meets International Standards Organization (ISO) standards for hardening of bearing rollers and rings. This spherical roller bearing is suitable for use in material handling equipment, electric generators, and machine tools. Specifications Main bearing dimensions DIN 635-2 Basic dynamic load ratings DIN ISO 281 Dimensional and geometric tolerances DIN 620-2, (ISO 492) tolerance class PN Steel composition for inner and outer rings and rollers ISO 683-17 System for creating part numbers DIN 623-1 Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others. FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. The company, founded in 1883, is based in Schweinfurt, Germany.
