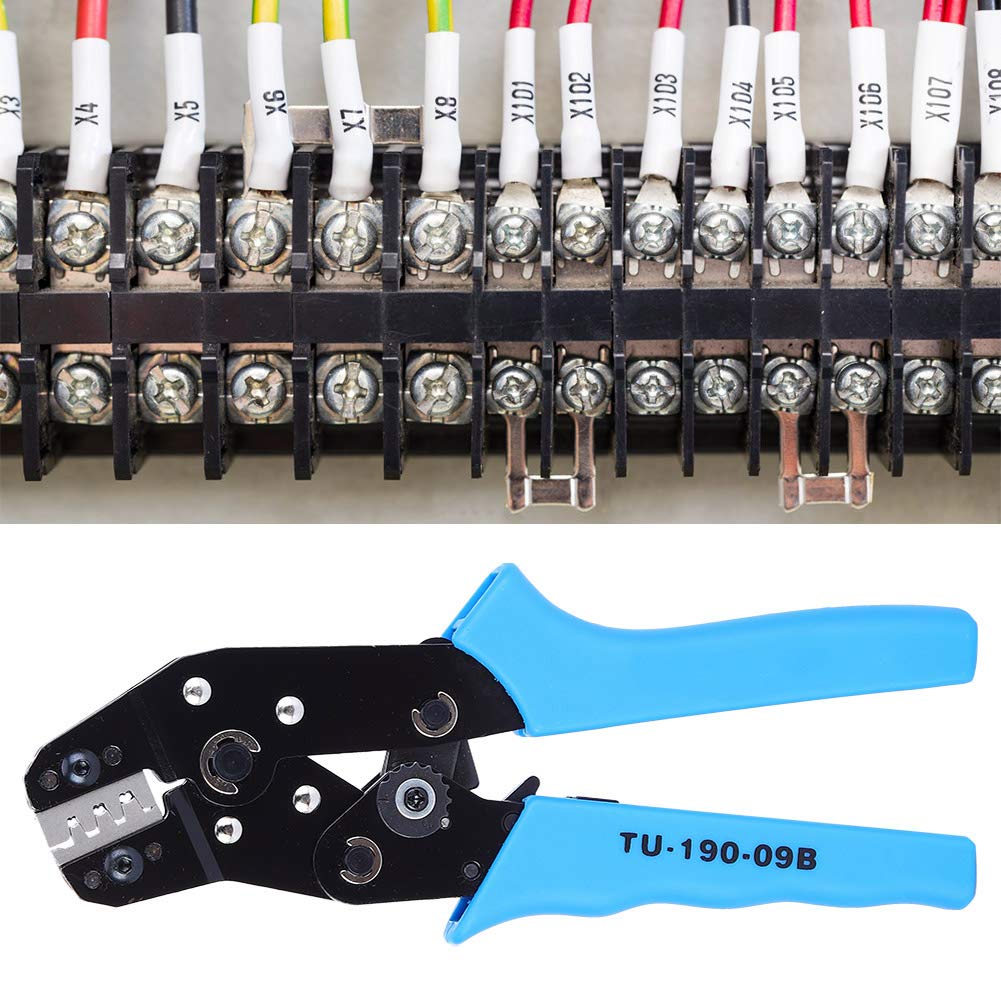

Fafeicy Crimping Tool, Ratchet Terminal Crimper Wire Crimp Tool PVC + Steel Manual Cutting/Tapping Tool(TU-190-09B)

• Sophisticated crimping module and integral locking designed guarantee high quality standards when crimping repeatedly.

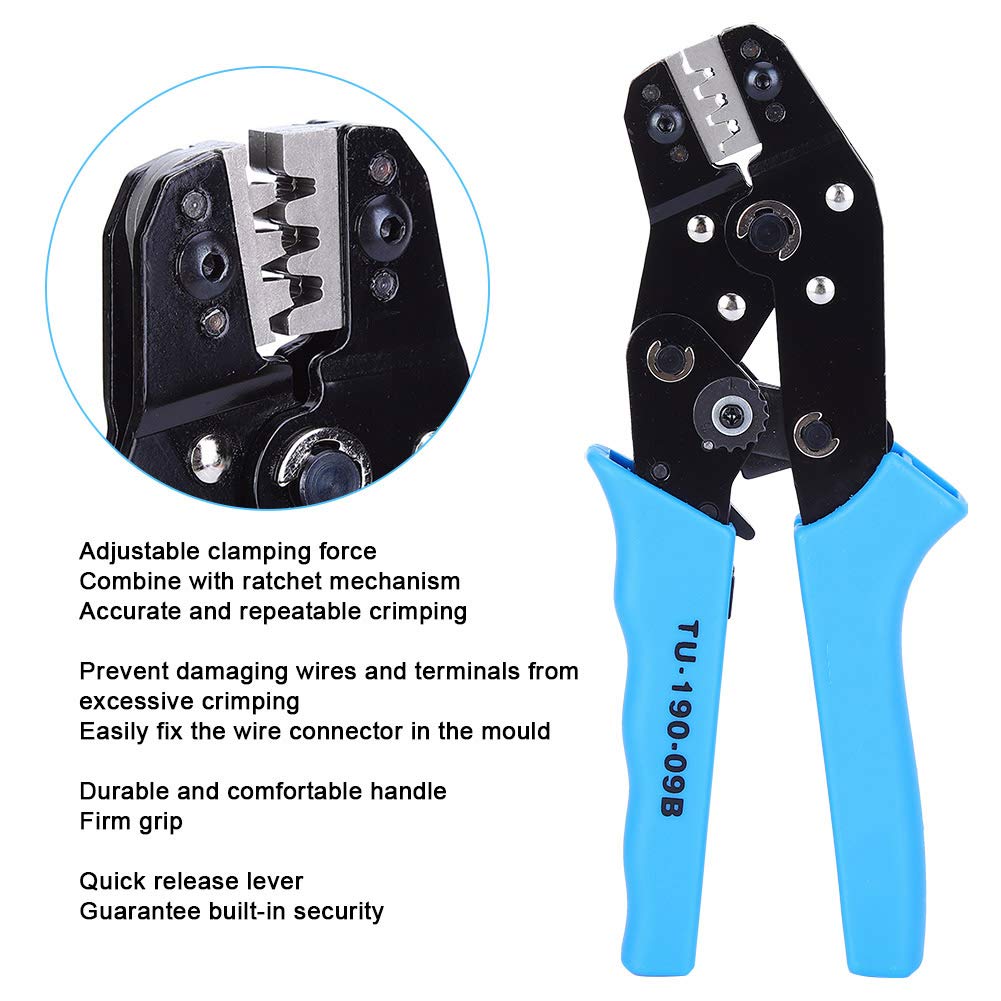

• Adjustable clamping force combined with ratchet mechanism for accurate and repeatable crimping. After the crimping is completed, the quick release lever will be activated and released.
• Ratchet crimping tool is made of high class steel and corrosion resistant PVC materials. Ergonomic designed structure works for saving 50% effort of crimping terminals.
• Ergonomic designed double material handle is and comfortable, which provides a firm grip. Raise the quick release lever if the tool is stuck then the tool will open, which guarantees built‑in security.
• The ratchet action can prevent damaging wires and terminals from excessive crimping, also allows you to easily fix the wire connector in the mould before inserting the bare wire into the bobbin.

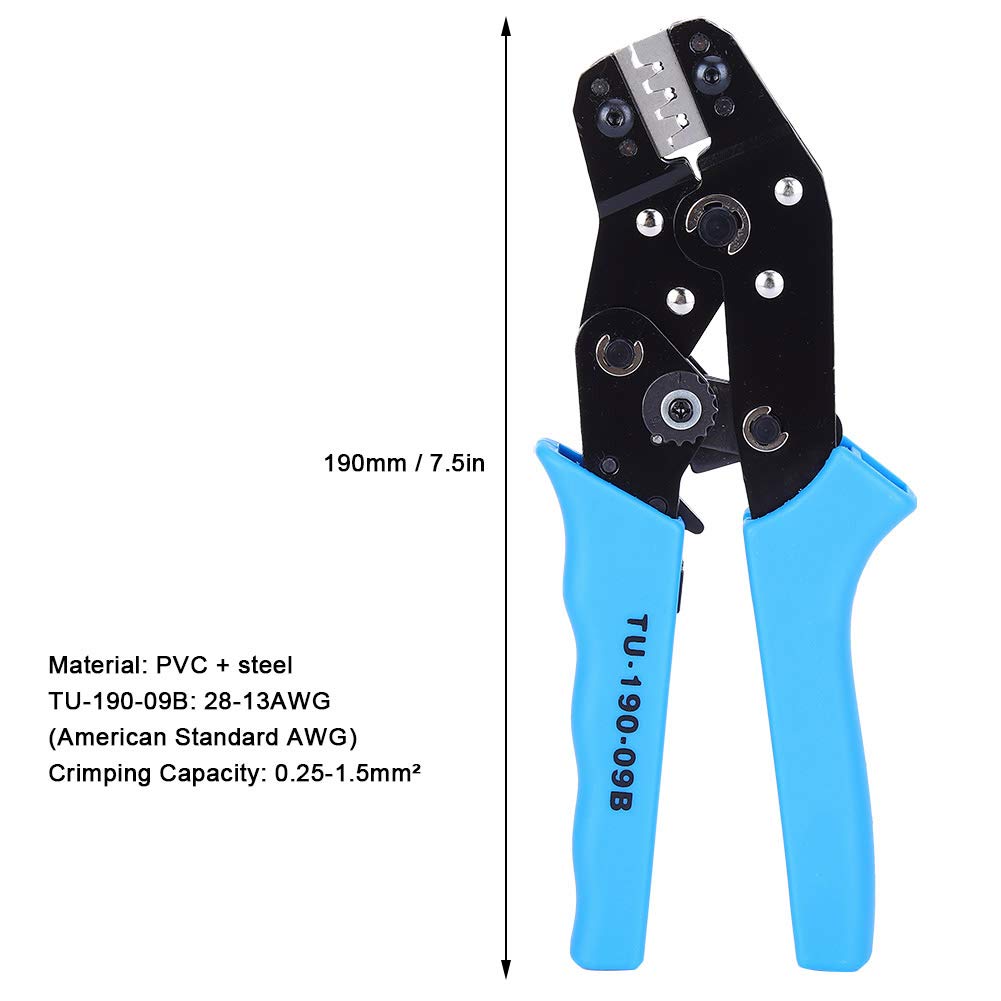

Specification: Item Type: Crimping tool Material: PVC + steel Model: TU-190-08B, TU-190-09B(optional) TU-190-08B: 28-20AWG (American Standard AWG) Crimping Capacity: 0.08-0.5mm² Length: Approx. 190mm / 7.5in Used for crimping D-SUB terminal(0.08-0.5mm²) TU-190-09B: 28-13AWG (American Standard AWG) Crimping Capacity: 0.25-1.5mm² Length: Approx. 190mm / 7.5in Used for crimping TAB2.8mm² terminal Package List: 1 x Crimping Tool Note: Method: 1. Squeeze the handle completely to open the tool. At the end of the closing stroke, the ratchet mechanism will release the handle and the tool will bounce off. 2. Place the terminal in a suitable crimping chamber (match the color mark with the terminal insulation). 3. Fix the terminal in place and gently squeeze the tool handles together until the ratchet is fully engaged to fix the terminal. Please do not deform the bobbin. 4. Insert the stripped wire into the terminal box, and while holding the wire in place, squeeze it to the left until the ratchet is released. Allow the tool handle to open and remove the crimp terminal.
