EZDIY-FAB PCI Express M.2 SSD NGFF PCIe Adapter (Support M.2 PCIe 22110, 2280, 2260, 2242)

• Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 80mm, 60mm, 42mm SSD
• Supports PCIe 1.0 ,PCIe 2.0 and PCIe 3.0 motherboard
• Note: this adapter is only for 'M' key M.2 PCIe SSD such as Samsung XP941 SSD. Not compatible with a 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.

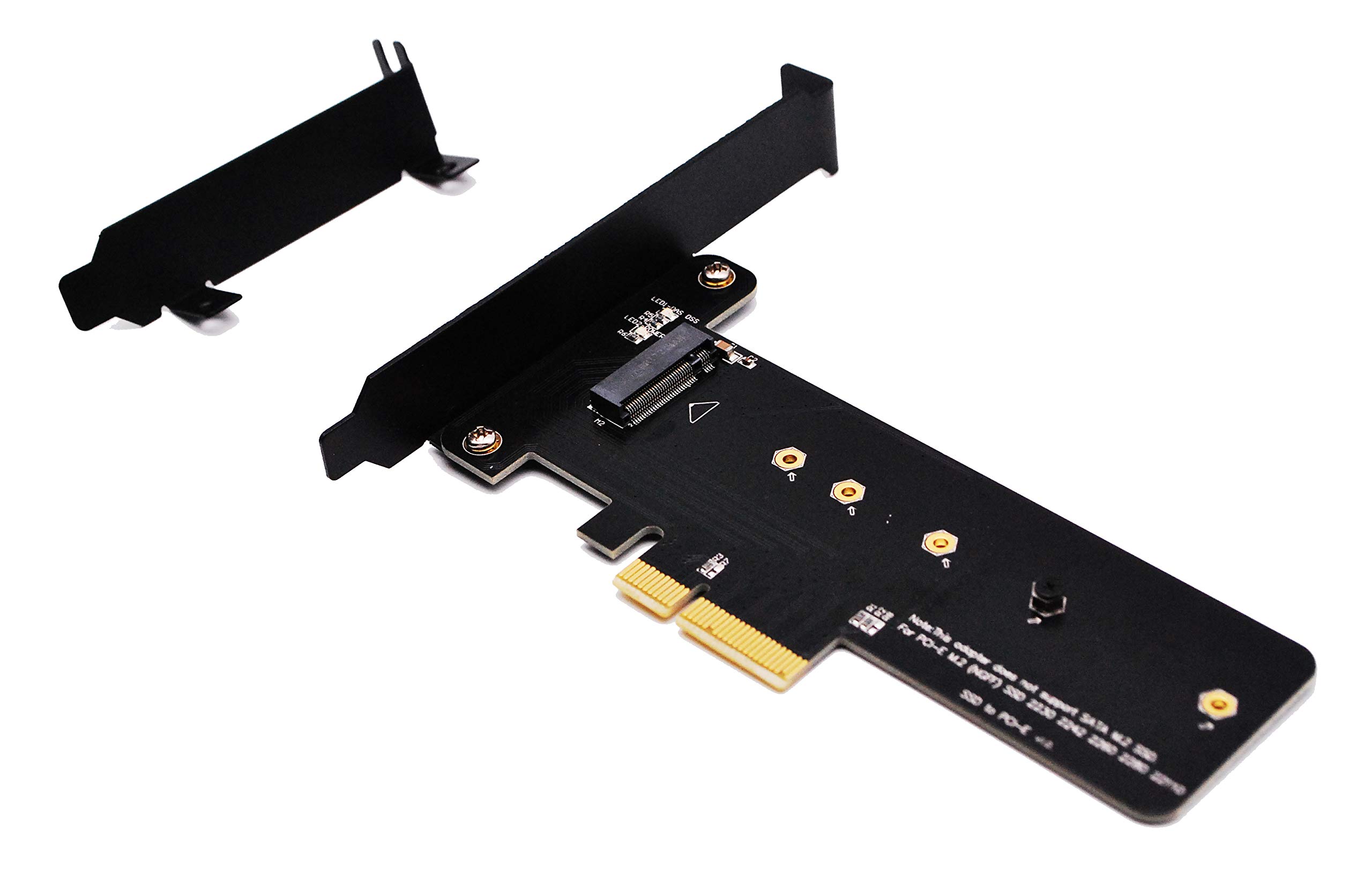

• Fast and hassle-free setup with native OS support / Includes full-profile bracket and low-profile bracket for installation in SFF computers
• Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI. Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only. （Note: Win7 and Windows Server 2008 R2 are not compatible with NVME SSD)

Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI. Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only. （Note: Win7 and Windows Server 2008 R2 are not compatible with NVME SSD） This PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD allows the M.2 (PCIe) to be installed onto the standard PCI Express slot in the main board. Features: *Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot * PCI Express 3.0 x4 Lane Host adapter * Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm,80mm, 60mm, 42mm SSD * Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD * Supports PCIe 1.0 ,PCIe 2.0 and PCIe 3.0 motherboard * Supports dual-sided SSD module 1.5mm component height on the top and bottom side * Compliant with 39Gbps PCI Express 3.0 * Led indicators for power and access * Low Profile PCIe Form Factor * Regular size PCIe bracket on board and Low Profile bracket included * Transparent to the operating system and no driver required * Supports any OS like Windows, Mac and Linux * Supports industrial operating temperature range: -40 - 85 ºC * M.2 PCIe SSD power from PCIe bus slot 3.3V *** This Adapter doesn't support SATA connection *** Note: this adapter is only for 'M' key M.2 PCIe SSD such as Samsung XP941 SSD. Not compatible with a 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.
