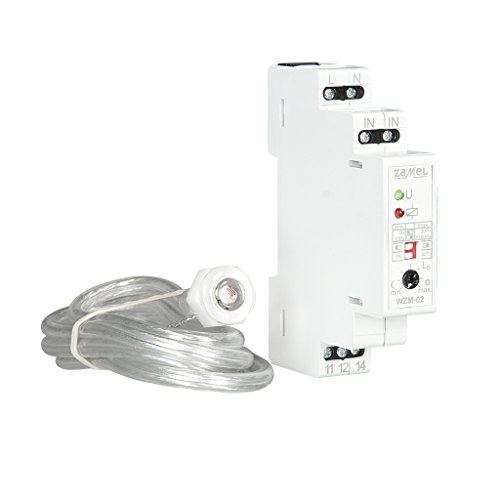

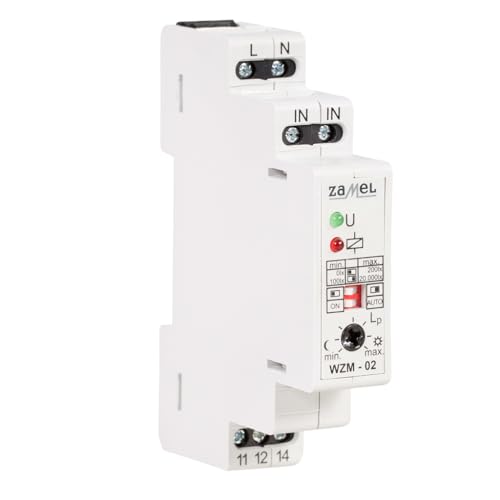

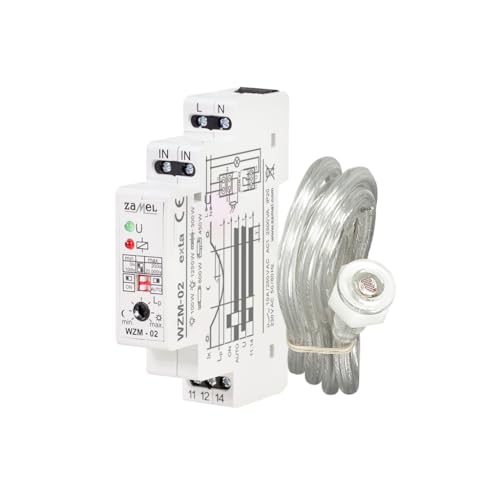

Exta Dimmer Switch, 2 Pieces, WZM/S1

• Gehäuse protection class IP20
• Nominal frequency 50/60 Hz
• 2 lighting current intensity (e.g. 0 – 200 LX; 100 – 20,000 LX)

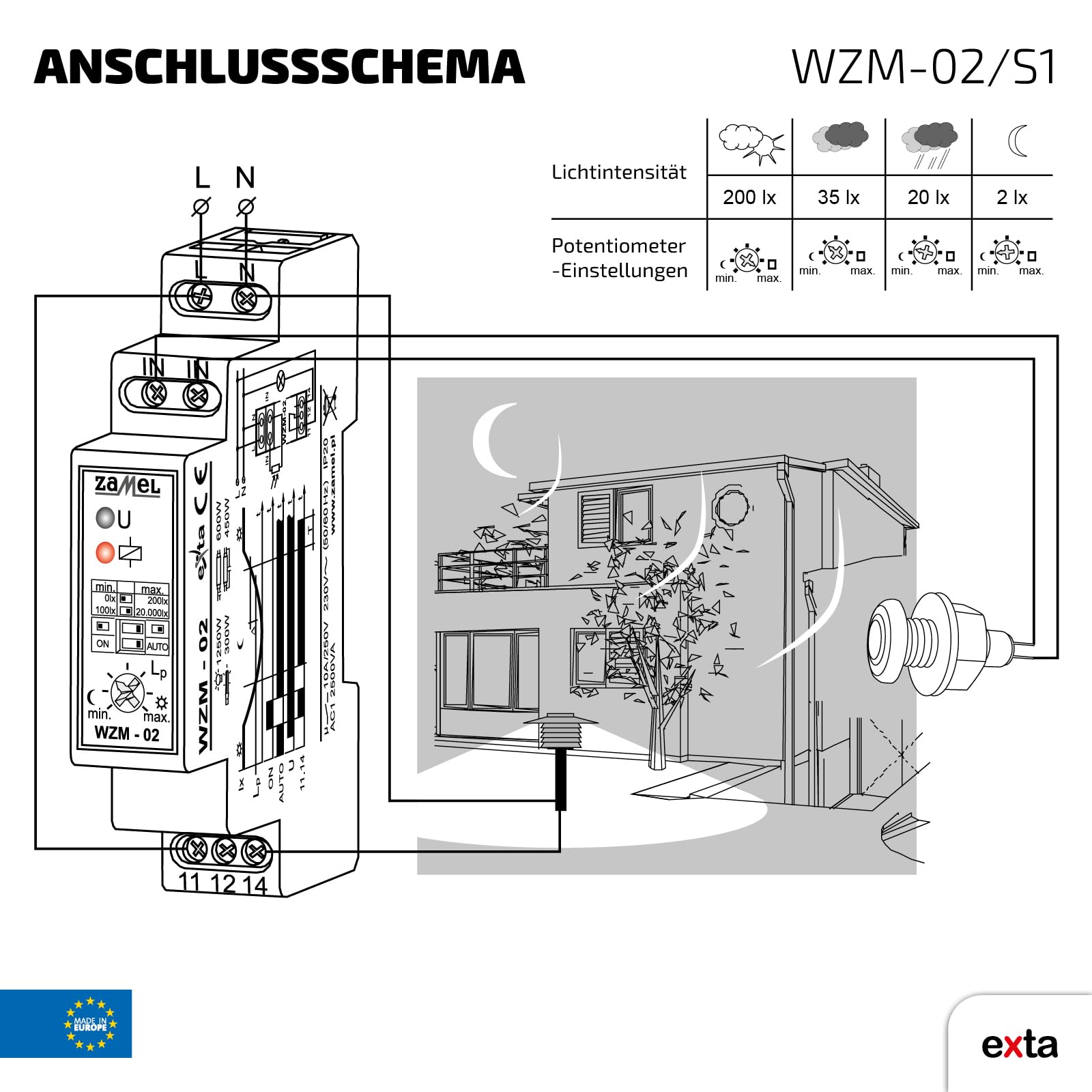

The twilight switches are used to control lighting devices depending on external light intensity. Their main function is to switch on the lighting at dusk and switch them off at dawn. The switching on threshold can be fluently adjusted by a potentiometer. TECHNICAL DATA (WZM-02) Input rated voltage 230 V AC Max output voltage 250 V Category of use AC1 Max power of relay 2500 VA Relay contacts arragement 1NO/NC Output relay curent 10 A Rated power consumption 35 mA Protection degree IP20 Mounting rail TH35 (EN 60715)
