Evoges Guardian EG7WSPD 7-Way Metal Consumer Unit | Integrated Type 2 40kA Surge Protection Device (SPD) & 100A DP Main Switch | 10-Way Enclosure with 9-Pin Busbar | 18th Edition Amendment 2 Compliant

• 18th Edition Compliant Protection: Fully meets BS EN 61439-3 and UK 18th Edition Wiring Regulations (Amendment 2). Built with a robust, fire-retardant metal enclosure ideal for domestic and light commercial installations.
• Future Proof for Amendments 3 & 4: Accepts the latest bi-directional RCBOs and alternative energy controls required by current wiring updates (including solar and battery storage systems).
• Integrated Type 2 40kA SPD: Comes pre-fitted with a high-capacity Type 2 Surge Protection Device to shield sensitive household electronics, smart appliances, boilers, and EV chargers from damaging voltage spikes and lightning surges

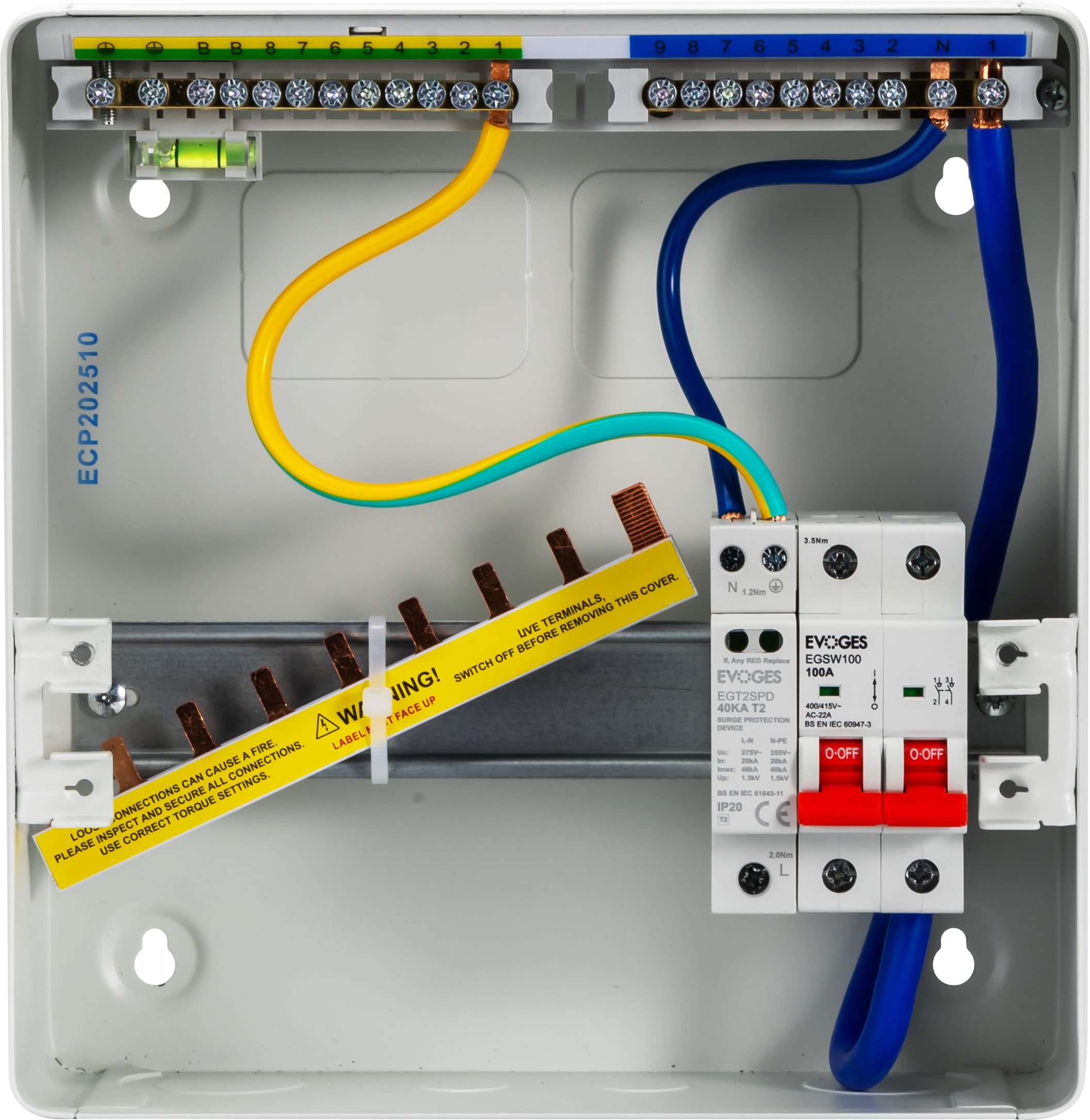

• 7 Usable Outgoing Ways: Packaged inside a spacious 10-module enclosure with a 9-pin busbar, providing 7 free usable ways after accounting for the 100A Double Pole (DP) Main Switch and the pre-wired SPD. Top-mounted Earth and Neutral terminal bars
• Device Compatibility: Engineered to seamlessly accommodate the Evoges Guardian range of circuit protection, including standard MCBs, compact SPN (1P+N) RCBOs, and advanced Arc Fault Detection Devices (AFDDs). Comes complete with a flexible grommet strip for clean cable entry protection, a full set of consumer unit identification labels, and an instruction manual.

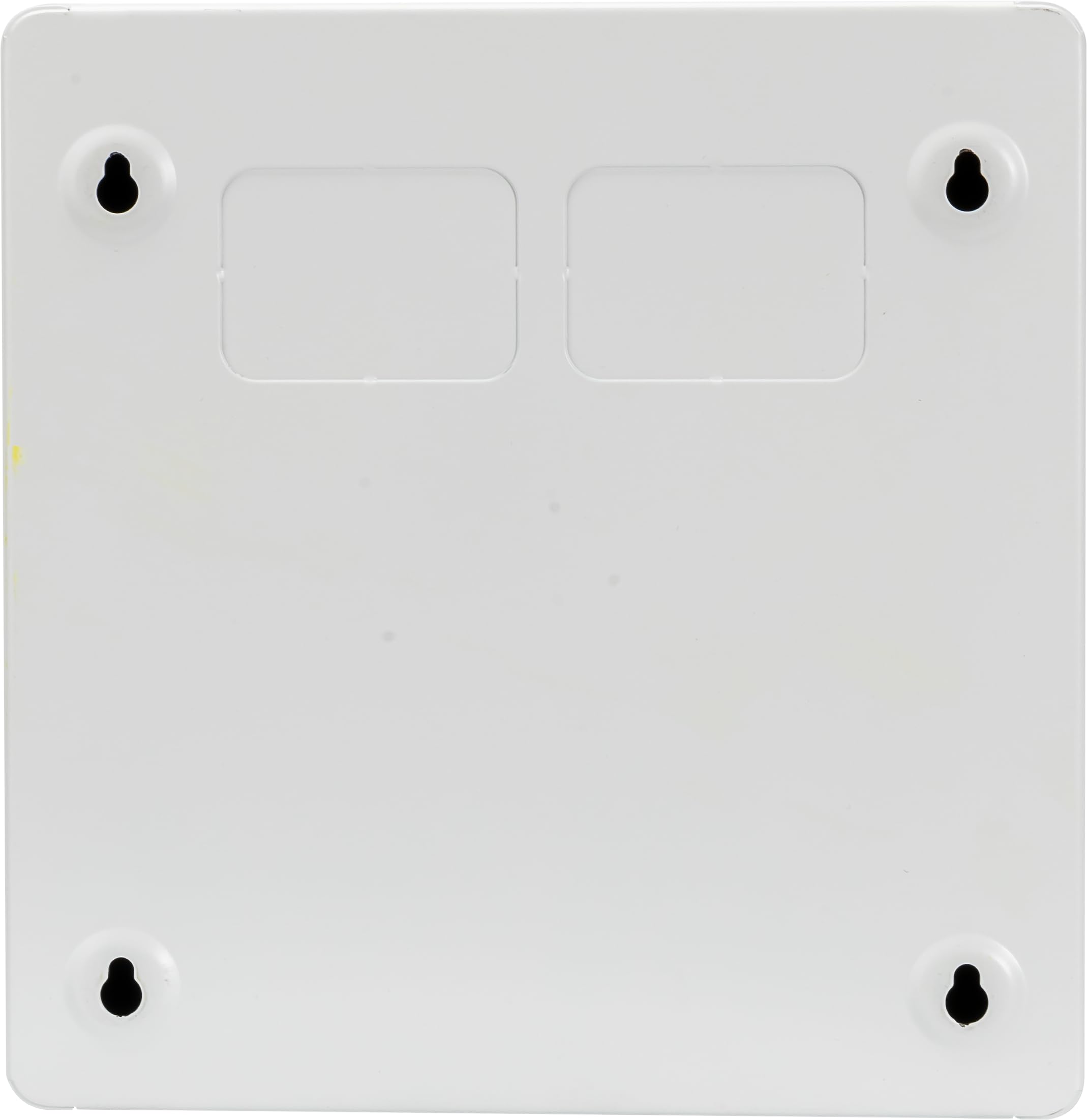

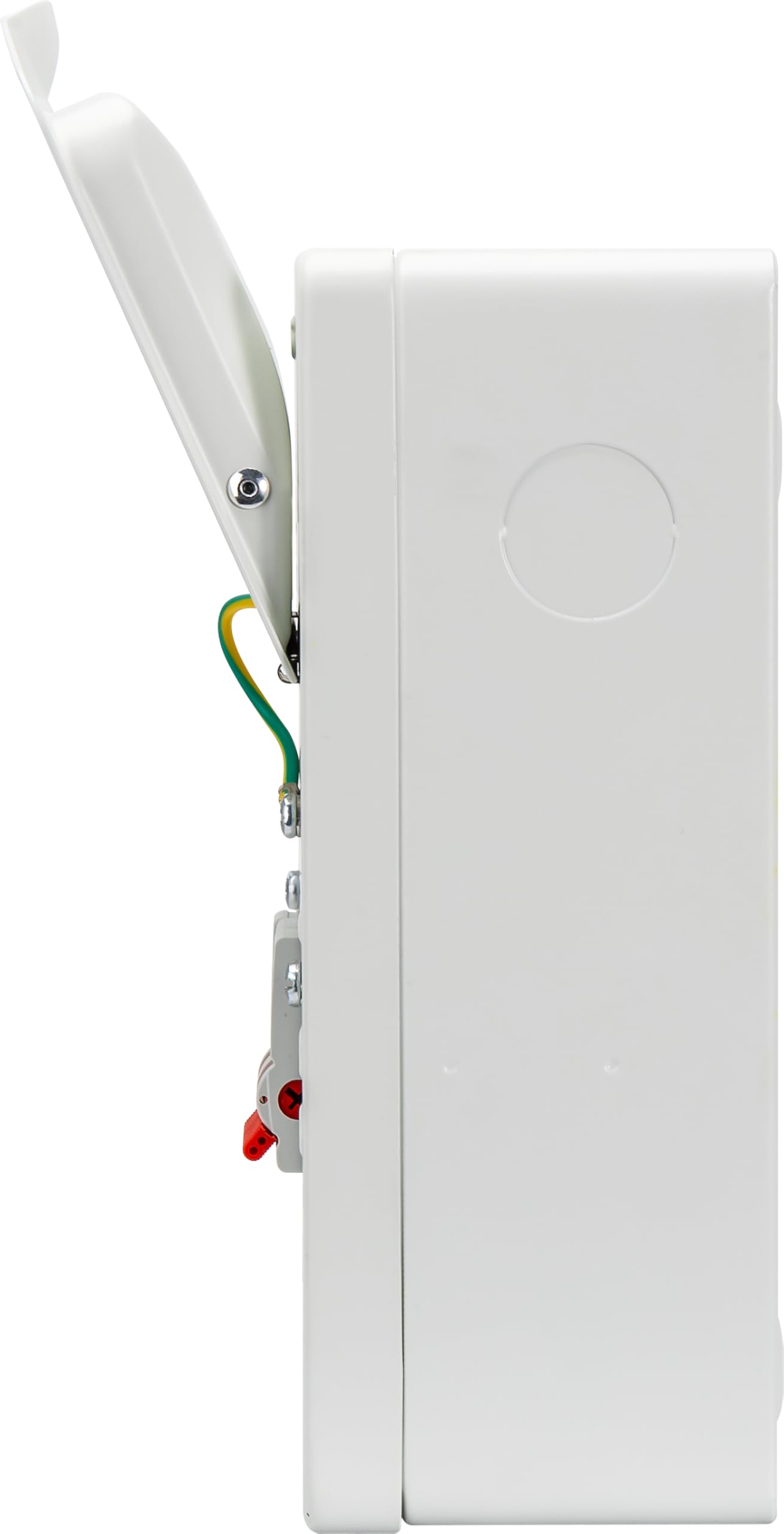

• Multiple Easy Access Knockouts: Designed for fast, flexible installation. Features dual 32.5mm and 20mm knockouts on both top and bottom faces, a convenient 32.5mm knockout on each side, and dual 46mm x 70mm rear access slots for neat, flush cable entry directly through the back of the unit. (Dimensions: 232.2mm W x 240.2mm H x 110mm D)

The Evoges Guardian EG7WSPD 7-way metal consumer unit offers a premium, fully integrated solution for modern UK residential and light commercial electrical installations. Engineered to meet the strict demands of the 18th edition wiring regulations, this robust distribution board comes pre-configured to save installers valuable time on-site. The enclosure features a non-combustible, fire-retardant metal construction that provides excellent thermal containment and impact resistance. Designed with a clean, professional aesthetic, it seamlessly blends into domestic environments while offering maximum structural integrity. At the heart of this unit is a dual layer of premium circuit protection. It comes pre-fitted with a high-capacity 100A double pole main switch alongside a type 2 40kA surge protection device (SPD). This integrated SPD acts as a vital shield for the modern home, instantly redirecting damaging voltage spikes caused by lightning or grid switching safely to earth before they can fry sensitive microprocessors in boilers, smart appliances, or EV chargers. Packed inside a spacious 10-way enclosure, the board utilises a pre-cut 9-pin busbar. The Earth and Neutral terminal bars are securely mounted at the top of the chassis, allowing for fast, neat cable termination directly below the top entry points. Once the dual-module main switch and the pre-wired SPD are accounted for, installers are left with 7 fully usable outgoing ways. This generous internal layout is optimized for the Evoges Guardian range of protection devices, including standard MCBs, compact single pole and neutral (SPN) RCBOs, and arc fault detection devices (AFDDs). To ensure a hassle-free setup right out of the box, each unit is supplied with a protective grommet strip for sharp metal knockout edges, a comprehensive instruction manual, and a full sheet of professional consumer unit identification labels for clear circuit marking. Installation flexibility is a core feature of the Guardian product line. The enclosure is designed with multiple easily removable knockouts, including dual 32.5mm and 20mm entry points on both the top and bottom faces, plus a dedicated 32.5mm knockout on either side for neat, effortless cable management. For completely flush wall installations, the backplate features twin pre-cut 46mm x 70mm rear access slots, allowing main tails and circuit wires to feed directly out of the wall into the chassis, hiding all cable entry points for a professional, clutter-free finish. Backed by an independent ASTA test report certifying compliance with international IEC 61439-3 standards, this unit provides installers with total peace of mind and the exact manufacturing compliance required to satisfy BS 7671 installation certification. Product specifications: Enclosure size: 10-module capacity (232.2mm width x 240.2mm height x 110mm depth) Outgoing ways: 7 usable ways Busbar: Pre-cut 9-pin copper busbar Main switch: 100A double pole (DP) Surge protection: Integrated type 2 40kA SPD Material: High-grade fire-rated 1.2mm steel enclosure Knockouts: 4x 32.5mm (top, bottom, and sides), 4x 20mm (top and bottom) Rear Cable Entry: 2x 46.0mm x 70.0mm rear knockout slots for flush mounting Certification: Compliant with BS EN 61439-3 and UK 18th edition wiring regulations Package includes: 1x EG7WSPD consumer unit (with 100A DP switch & Type 2 SPD), 1x 9-pin busbar, 1x Din rail, 1x protective grommet strip, 1x sheet of circuit identification labels, 1x user instruction manual
