Evemodel C0402OR 20pcs Pre-soldered micro 0.1mm Copper Wired ORANGE SMD Led 0402

• It is enamel insulated wire , you can burn it on fire or scrape the surface with a knife before connecting this lamp.
• Forward voltage:2.8V~3.4V, AC or DC Compatible. Forward current (typ/max): 15mA/20mA.

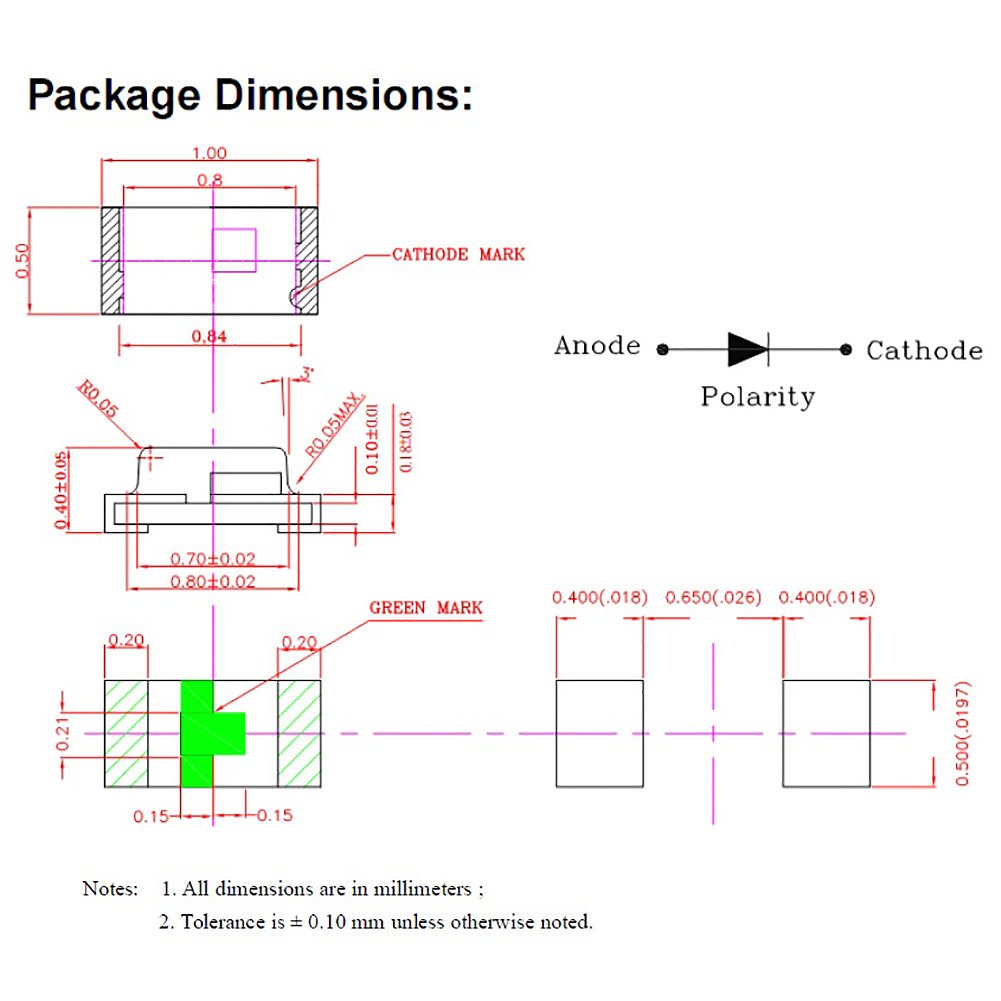

• Viewing angle:120°. Emitting color: orange.Size: It's SMD Led 0402(1.00x0.50mm), The wire is about 20cm(L)

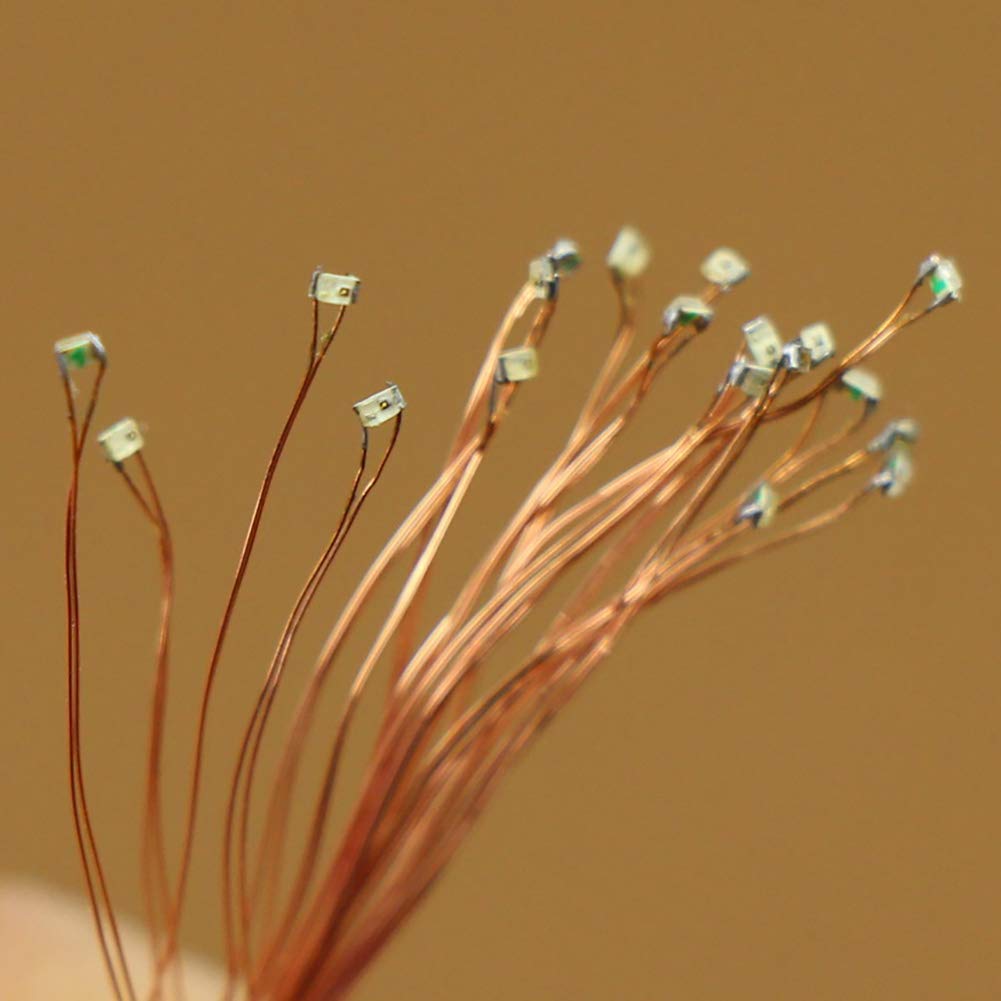

• Package included:<br>20 Pre-soldered with micro 0.1mm magnet (copper) wire SMD Led 0402. 20 resistors (not pre-soldered) for 9~18V operation.

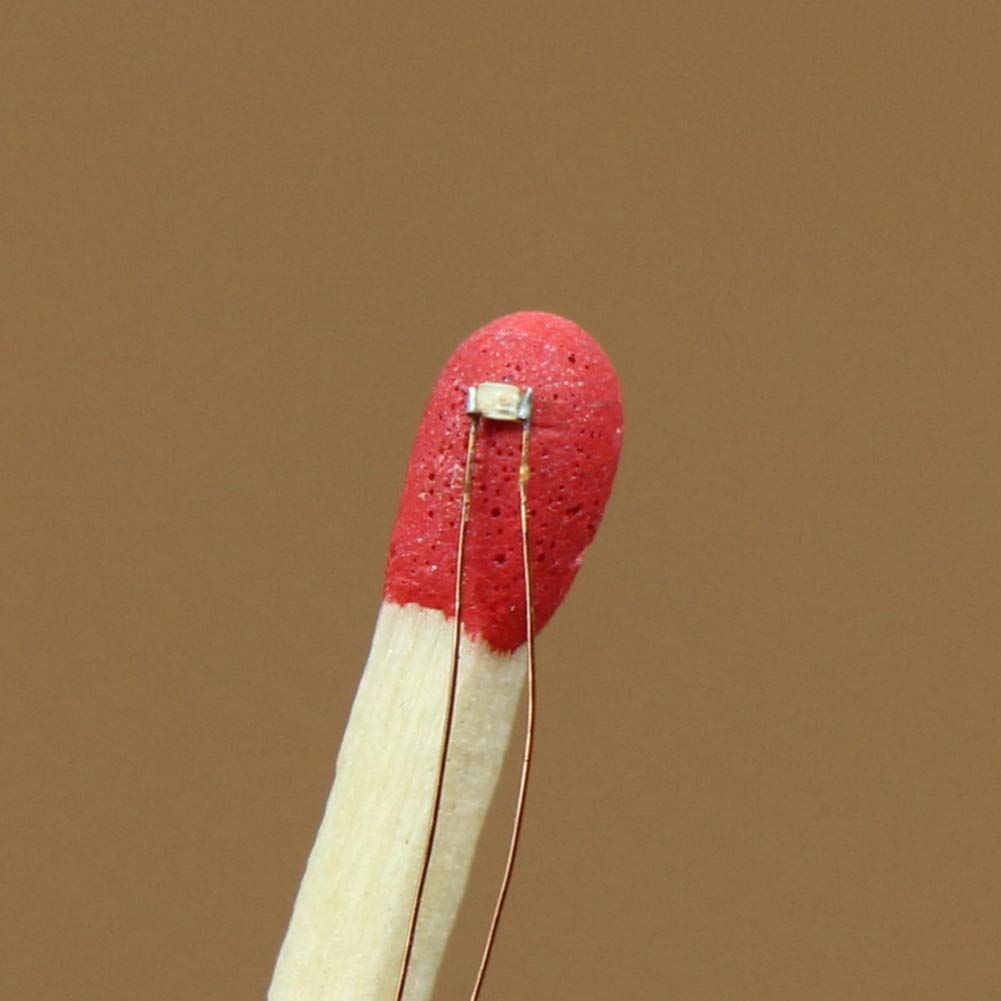

• Brand new. Perfect for small models and really tight places!<br>Soldering SMDs is very difficult, but these pre-wired units take all the work out of it for the modeler.

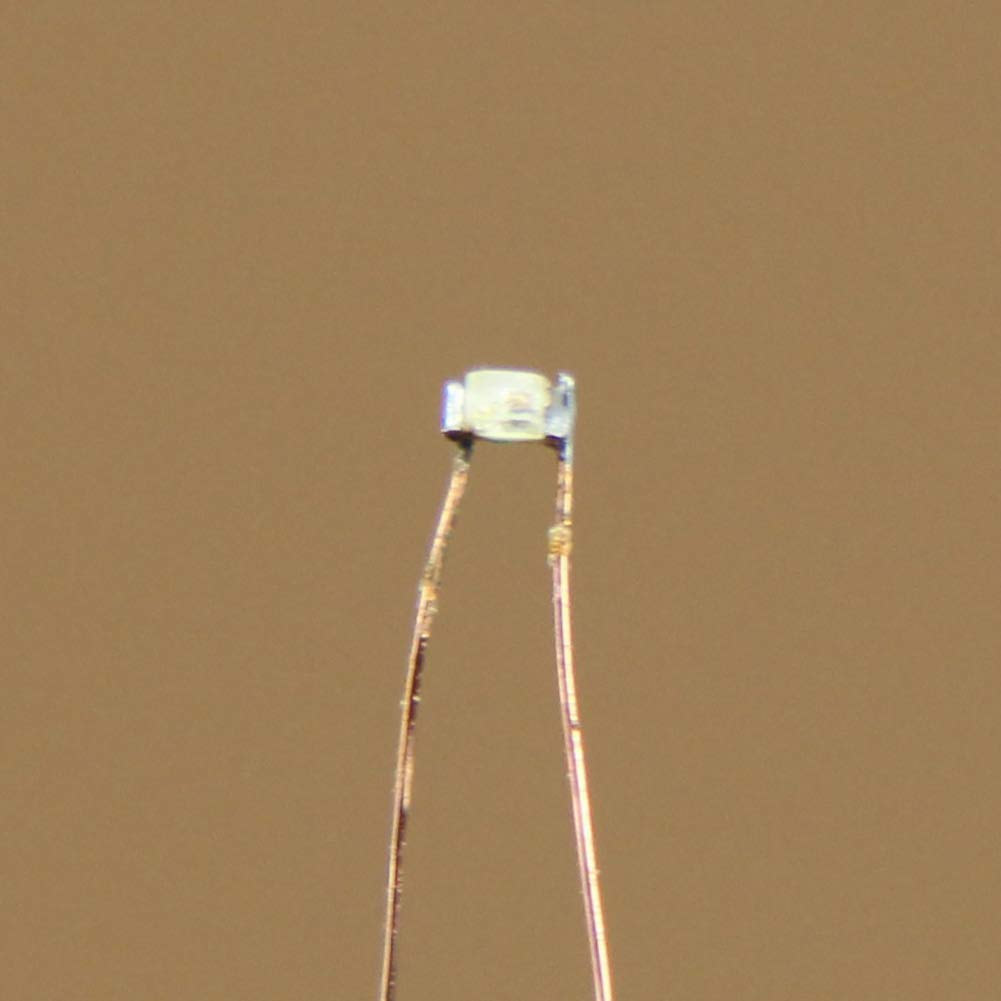

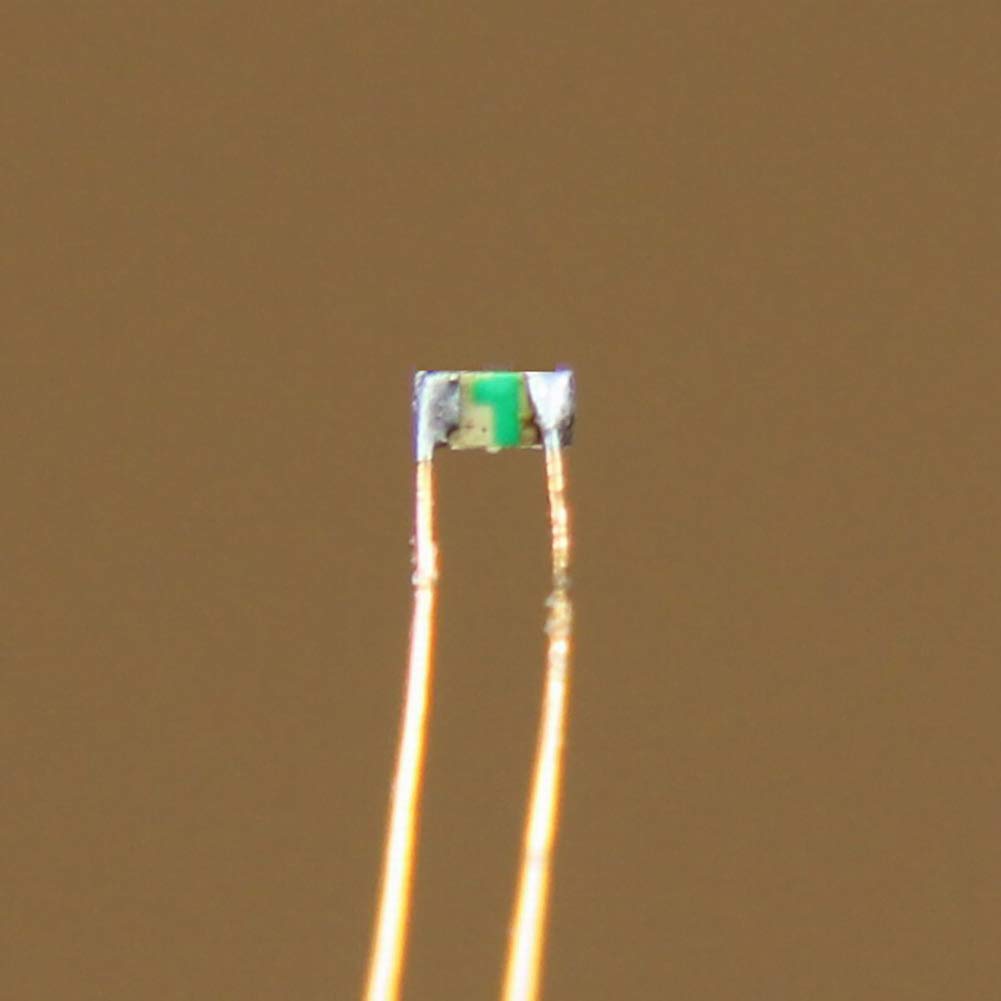

Features: Brand new. Perfect for small models and really tight places! Soldering SMDs is very difficult, but these pre-wired units take all the work out of it for the modeler. This kind of soldering is very extensive and difficult to perform, but is offering maximum flexibility when applying the LED and is ensuring place-saving usage. For utmost miniaturization, magnet (copper) wire with only 0.1 mm in diameter (cross sectional area 0.008 mm2) is used, wafer-thin and ultra-flexible, but still covered with an electrical-isolating clear lacquer coating. The wire length is about 200 mm. For easy recognizable connecting, the Cathode is about 10 mm shorter than the Anode. Specifications: Brand: Evemodel. Size: It's SMD Led 0402(1.00x0.50mm), The wire is about 20cm(L). Forward voltage:2.8V~3.4V, AC or DC Compatible. Forward current (typ/max): 15mA/20mA. Viewing angle:120°. Emitting color: Orange. Package included: 20 Pre-soldered with micro 0.1mm magnet (copper) wire Orange SMD Led 0402. 20 resistors (not pre-soldered) for 9~18V operation.
