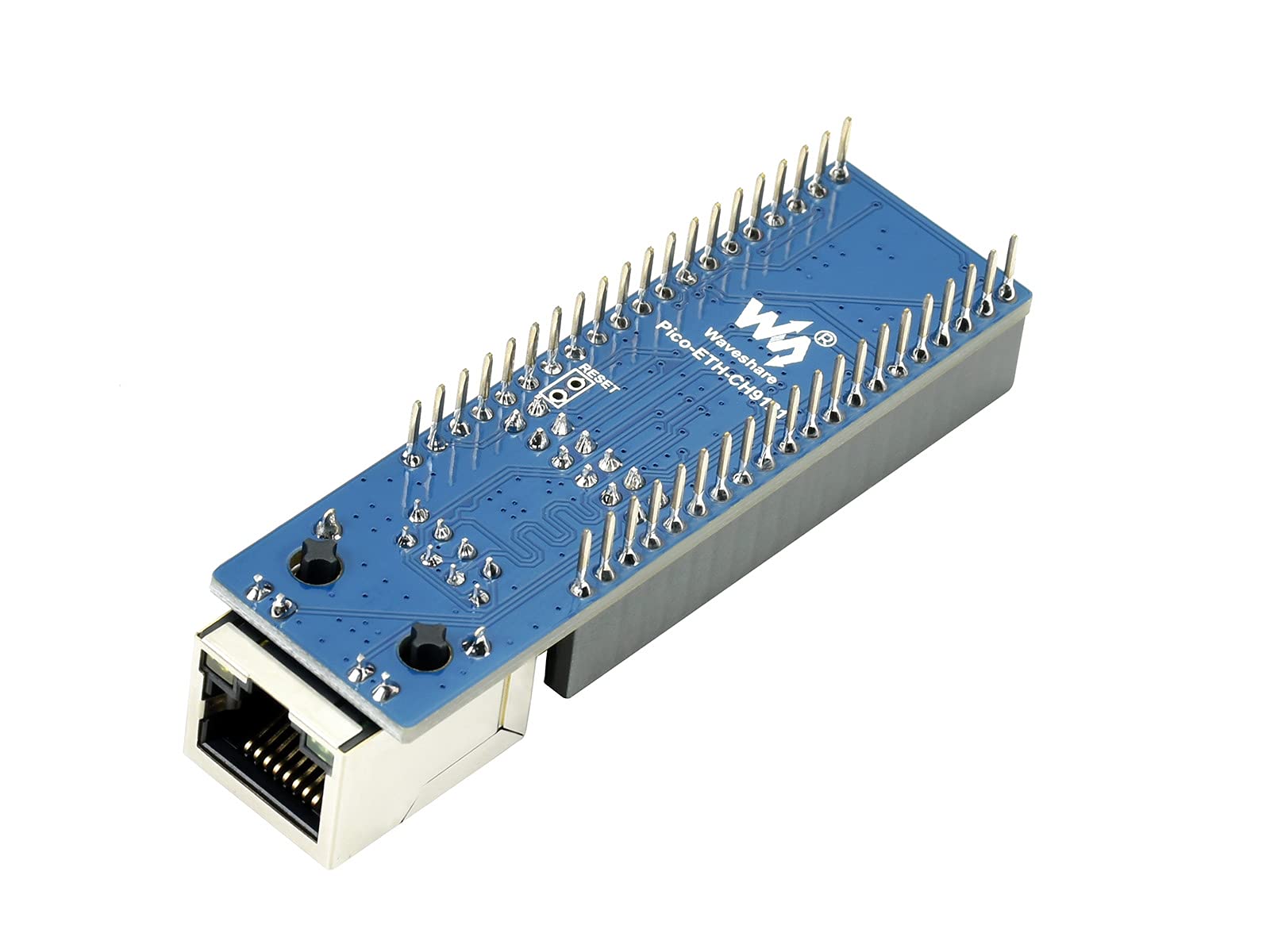

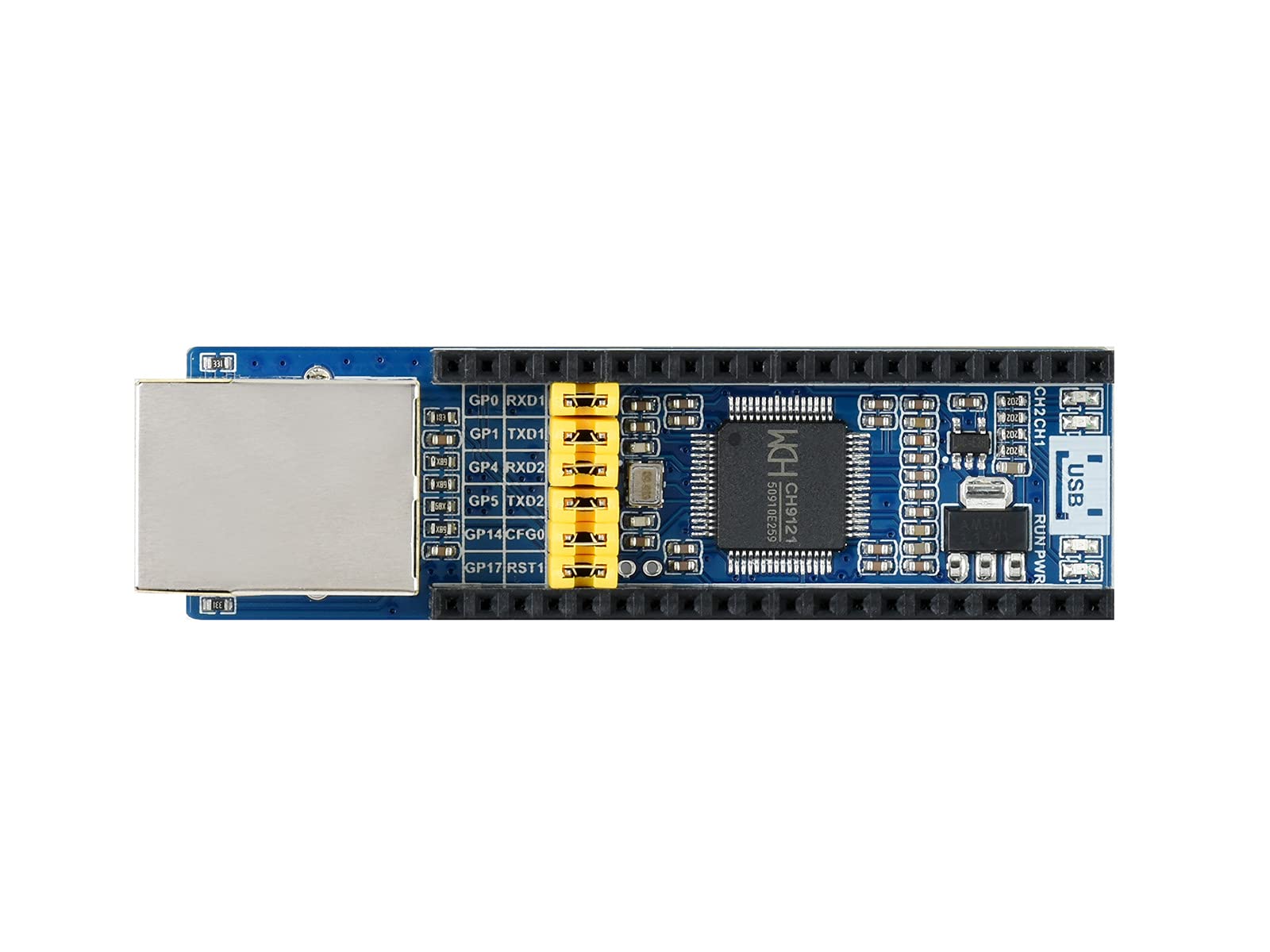

Ethernet to UART Converter for Raspberry Pi Pico, 10/100M Ethernet, UART TTL 3.3V / 5V Compatible, TCP/UDP Operating Modes, Supports 2-CH Ethernet to UART Data Transparent Transmission
★★★★★
$67.99
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

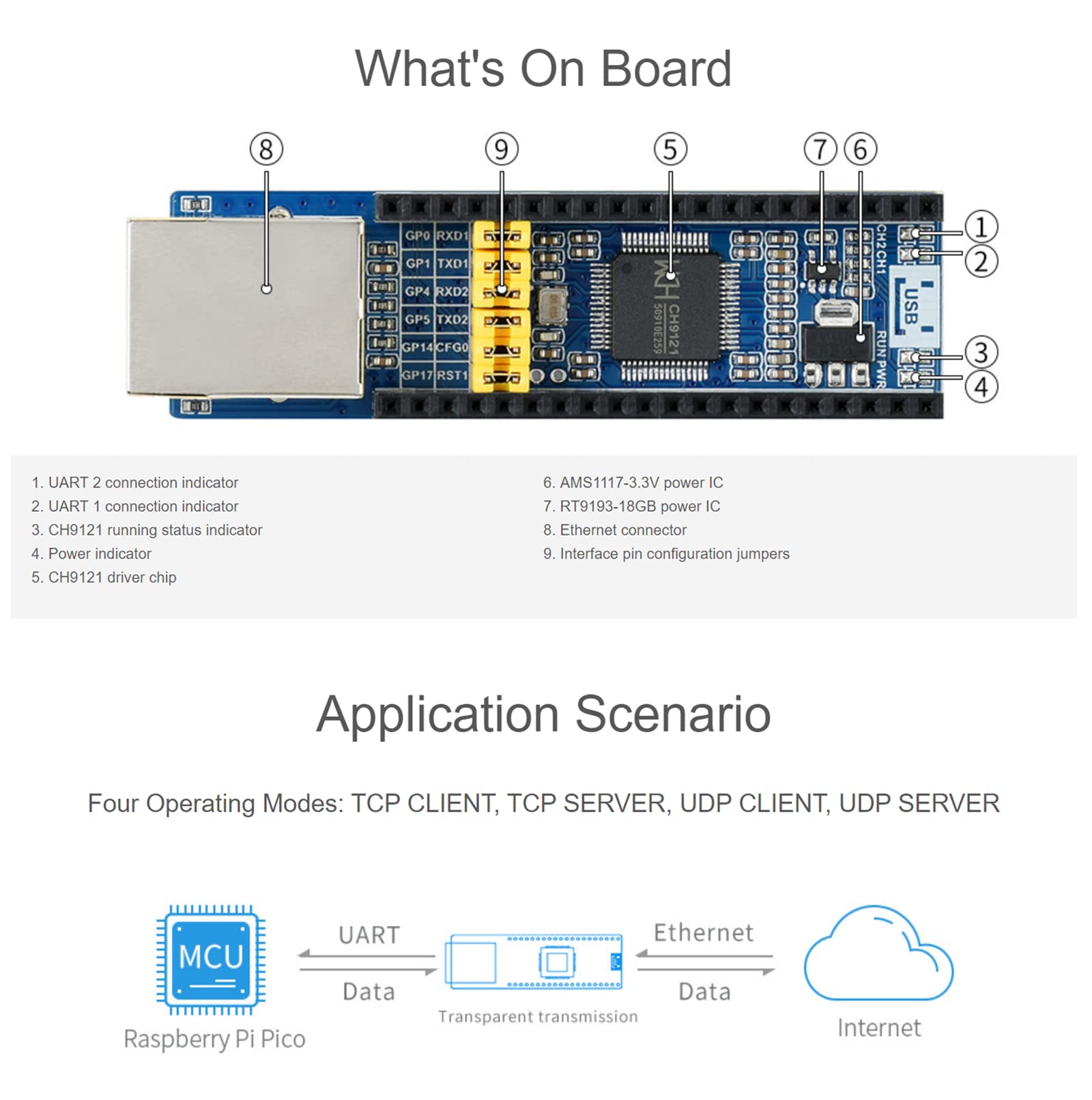

- Ethernet to UART converter for Raspberry Pi Pico, onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel
- 10/100M Ethernet, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant, embedded Ethernet MAC and PHY layers, bi-direction transparent data transmission between UART and Ethernet
- Auto-MDI/MDIX, detect and switch cable type automatically, supports DHCP auto-obtained IP and DNS domain access, network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
- Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
- Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (external RS485 controller required), Supports virtual serial port software (provided), KEEPALIVE mechanism support
Product description

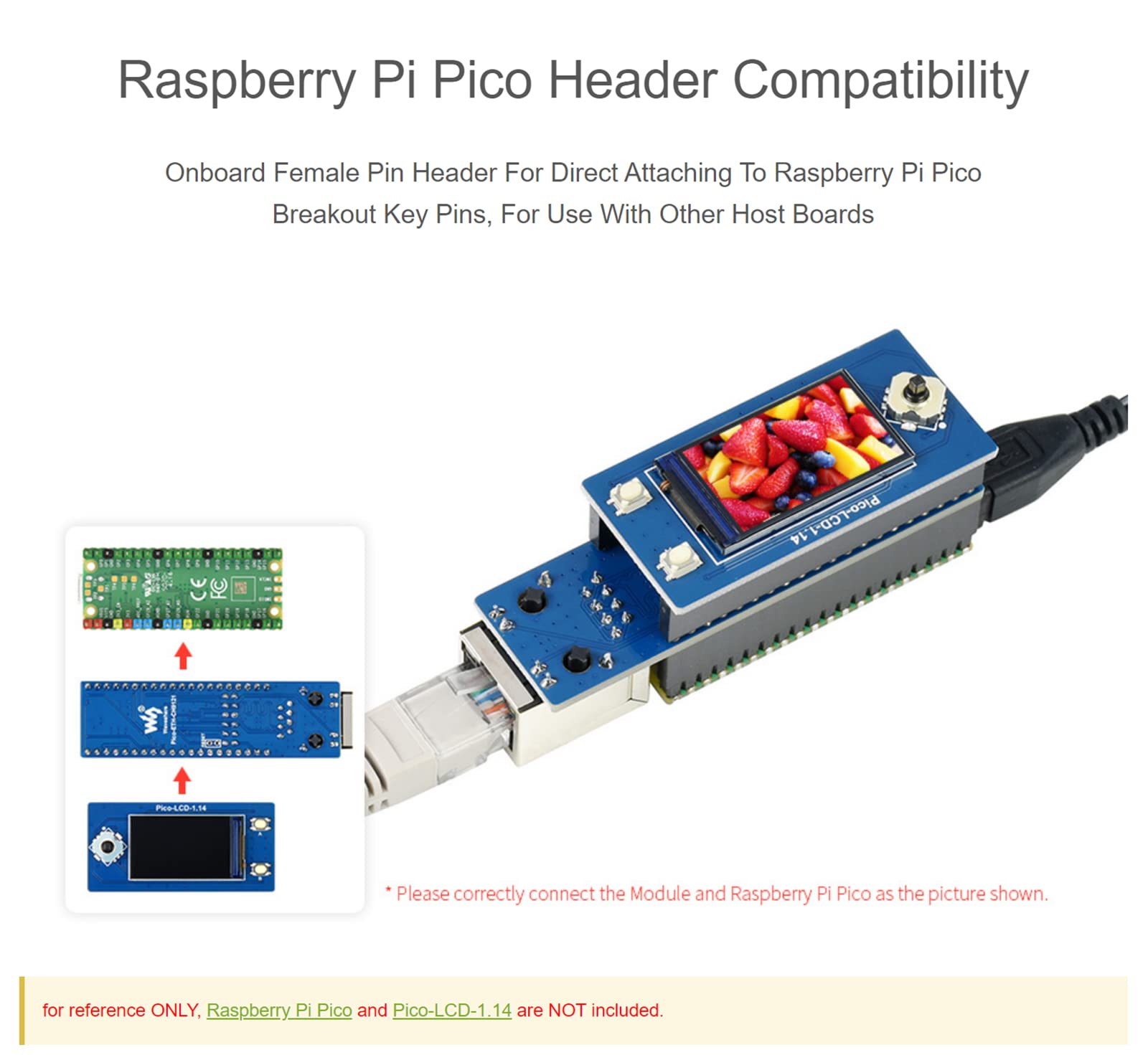

Development Resources https://www.waveshare.com/wiki/Pico-ETH-CH9121?Amazon Overview Ethernet To UART Converter For Raspberry Pi Pico, 10/100M Ethernet, Enabling Network Communication Through UART Features Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel Onboard jumpers for pin configurations Embedded Ethernet MAC and PHY layers Bi-direction transparent data transmission between UART and Ethernet 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant Auto-MDI/MDIX, detect and switch cable type automatically Supports DHCP auto-obtained IP and DNS domain access Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER Full-duplex or half-duplex UART communication supports RS485 RX/TX auto switch (external RS485 controller required) Supports virtual serial port software (provided) KEEPALIVE mechanism support Specifications Operating votlage:3.3V/5V Operating mode: TCP/UDP UART TTL: 3.3V / 5V compatible Operating temperature: ~40°C ~ 85°C Operating current: 140mA Baudrate: 300bps ~921.6Kbps Dimensions: 74.54 x 21.00 (mm) Storage Condition: -55°C ~ 125°C Package Content Pico-ETH-CH9121 x1
