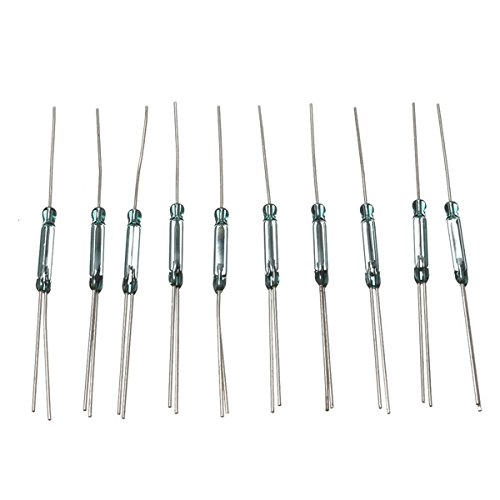

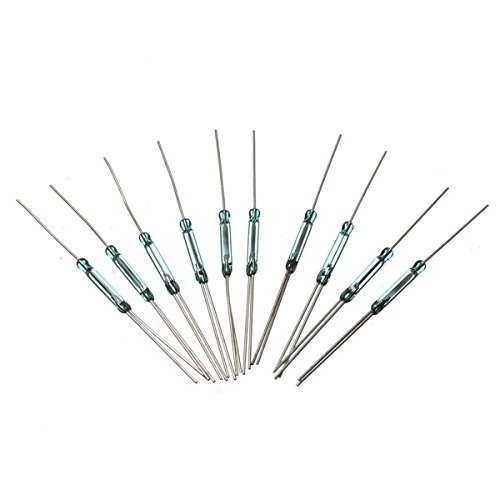

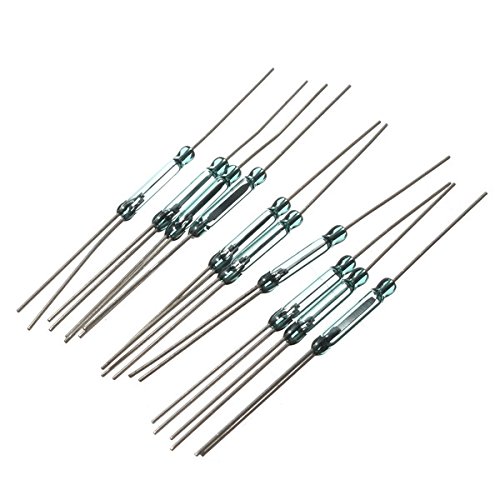

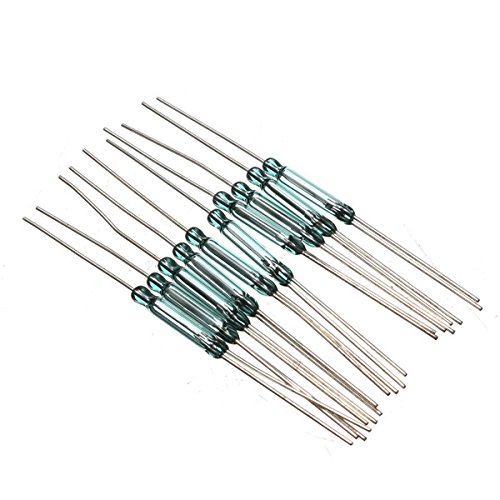

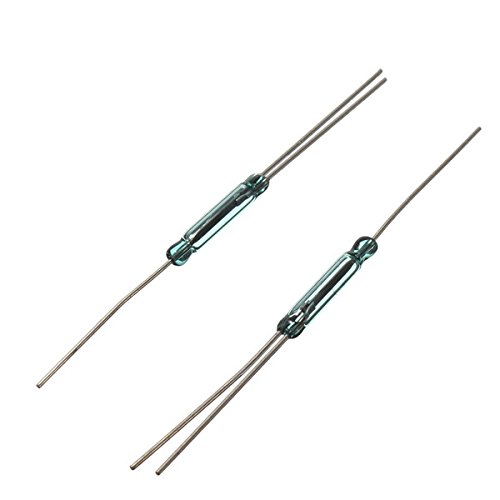

EsportsMJJ 10pcs N/O N/C SPDT Magnetic Switch Reed Switches 2.5x14mm Switch

• Description:
• 10pcs N/O N/C SPDT Magnetic Switch Reed Switches 2.5x14mm Switch
• Switching power(max):5W
• DC switching voltage(max):175V
• AC switching voltage(max):125V

Description: 10pcs N/O n/C SPDT Magnetic Switches Reed Switch 2.5x14mm Switch Specification: Switching power (max): 5W DC switching voltage (max): 175V AC Switching Voltage (max): 125 V. DC switching current (max): 400mA Switching alternating current (max): 280mA Carry DC current, AC, effective value (max): 0.5 a Failure voltage (minimum): 200V Contact resistance (initial maximum value): 140mW Contact resistance (initial typical value): 120mW Contact Capacity (Max): 0.8 PF Release time (max): 1ms (power on) Bounce time (max): 1.5 ms (power on) Working time (max): 1ms (power on) Working Range: 10-30AT Total length: 53 mm Glass size: 14x 2.5mm Package includes: 10 x Reed Switch
