Erisin 150° Fisheye AHD CVBS Car Rear View Camera Reversing Backup Front Camera 720P Waterproof Distance Scale Line

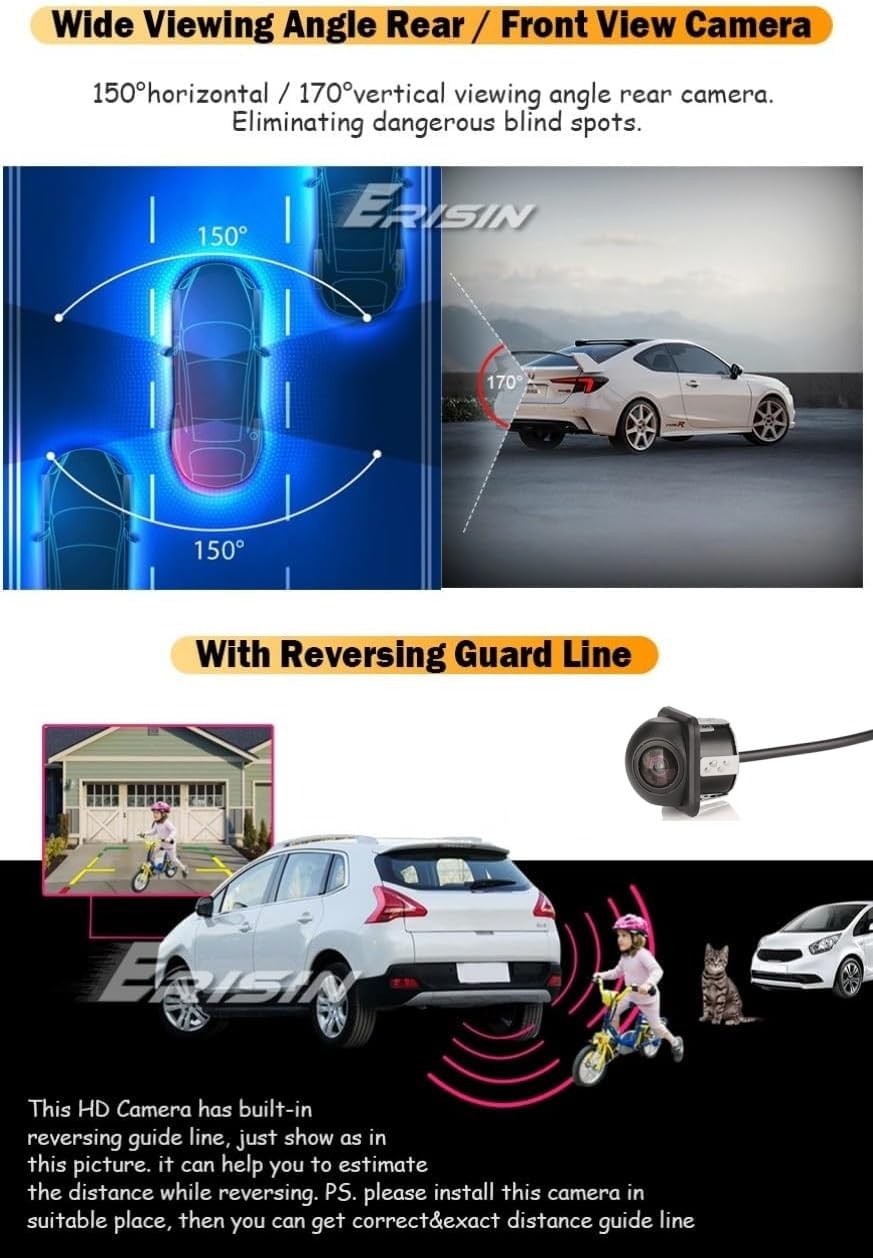

• 1. Safe for Parking: This Car Rear / Front View Camera has Fisheye lens, super with viewing angle: 150 degree horizontally and 180 degree vertically. Help you see a blind area where your eyes can't reach, effectively avoid accident while driving.

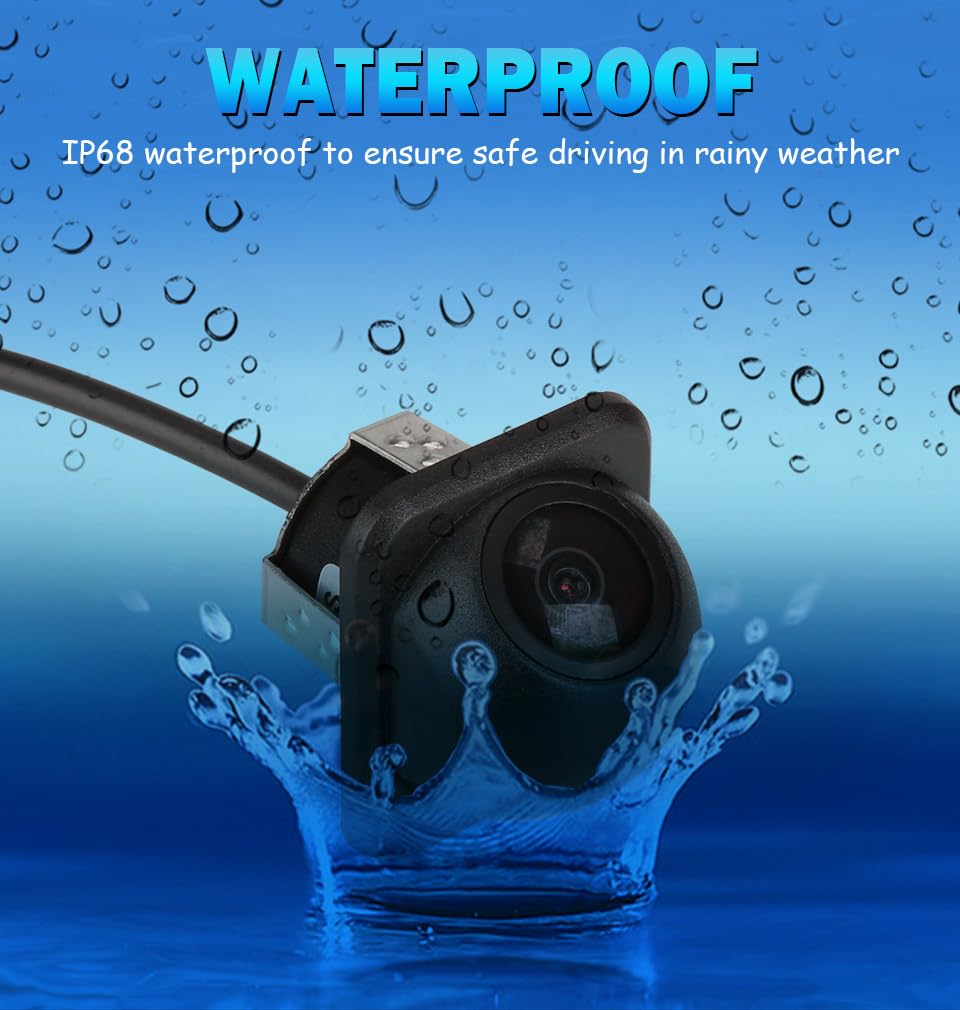

• 2.Waterproof : With IP68 waterproof rating, you don't have to worry about terrible weather.

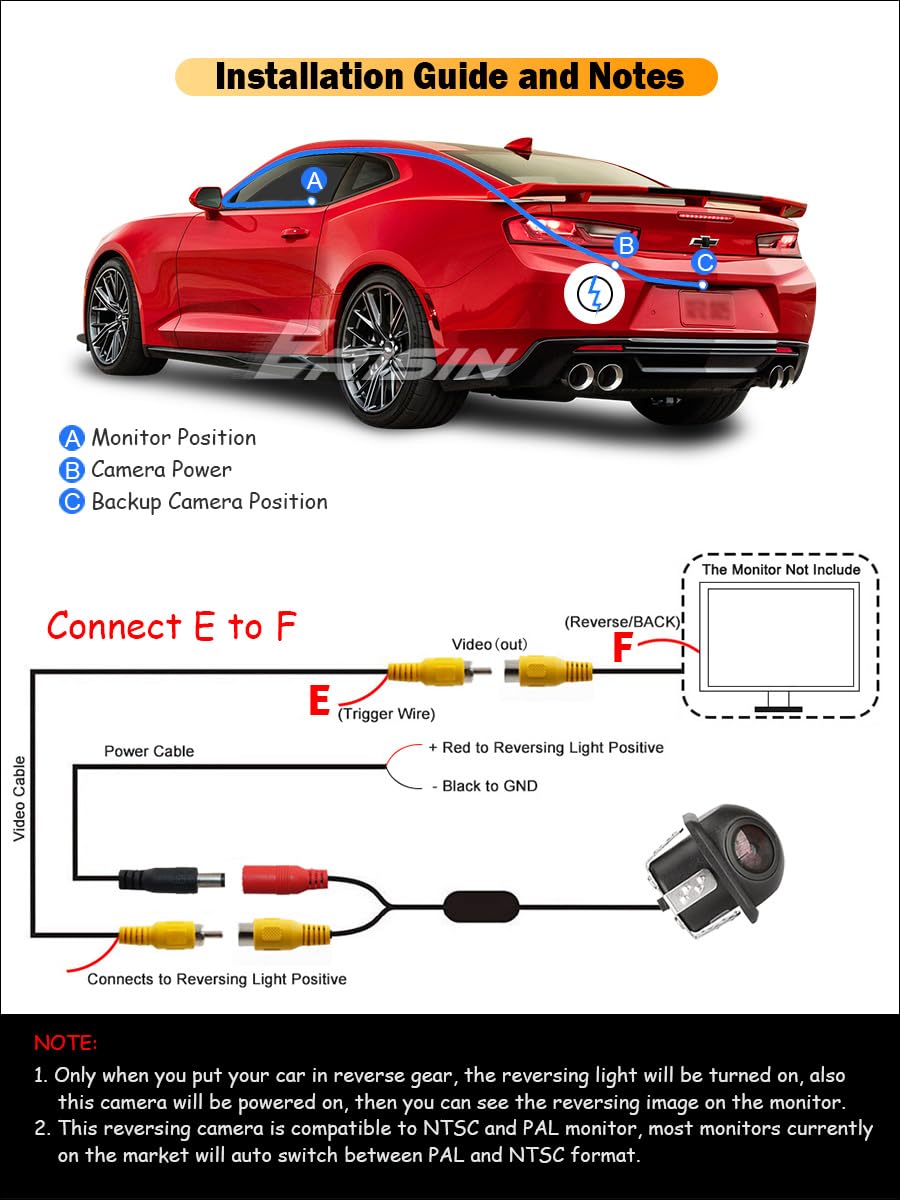

• 3. Universal Compatibility: - Work with your Car Stereos / Head Units or aftermarket LCD/TFT Displays with standard RCA input. - Suitable for a variety of vehicles: cars, mini-truck, mini-van, etc. with 12V working Voltage ONLY.

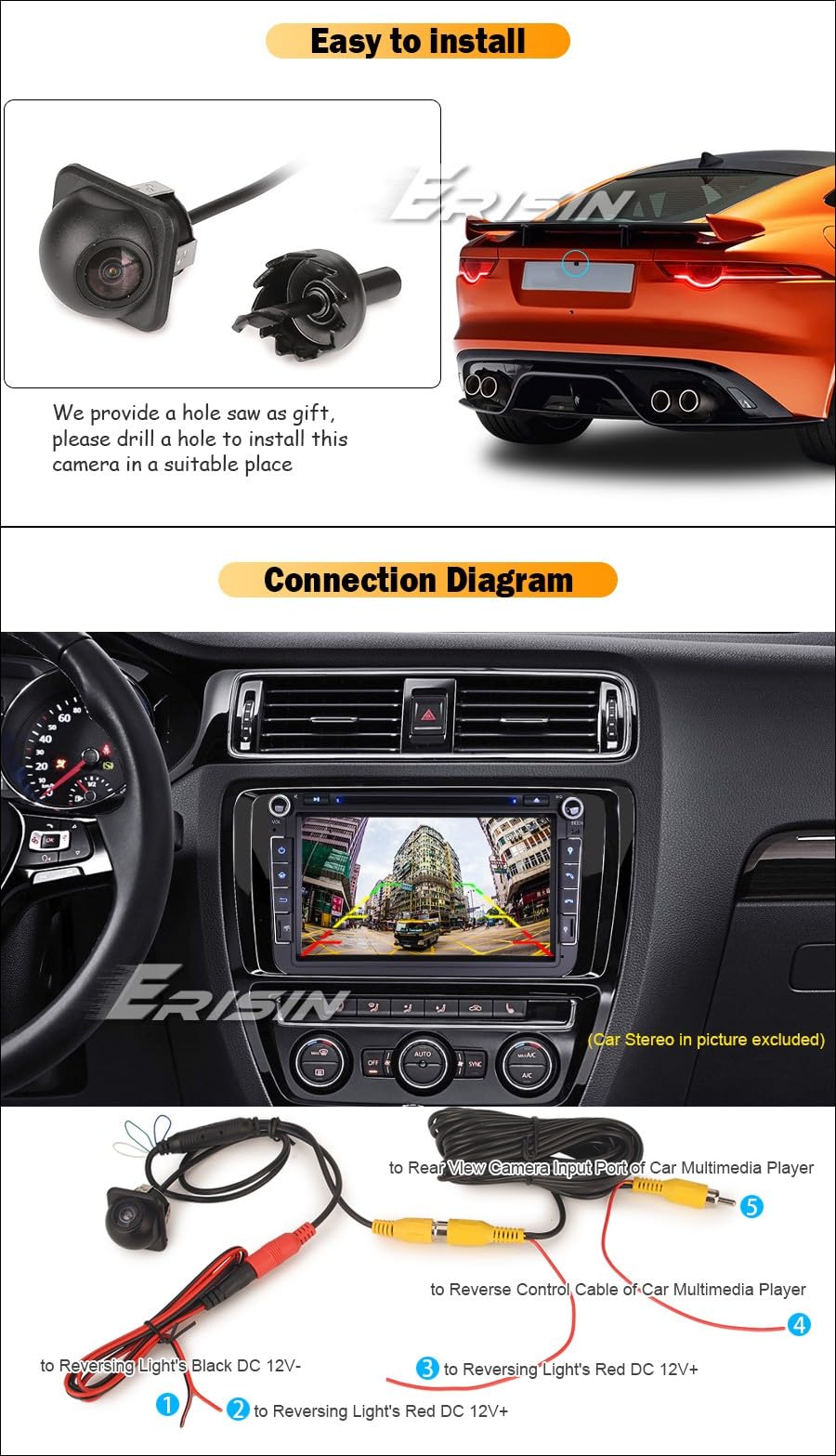

• 4. Easy to Install: - AHD / CVBS Switchable: Support AHD 720P-25FPS / CVBS Video Formats. - Optional Customized Distance Scale Lines Switchable. - Rear / Front Switchable: You Can Use it as Rear View Backup Camera or Front/Side Camera. Note: By default, this is an AHD 720P-25FPS Rear View Camera with a distance scale line.

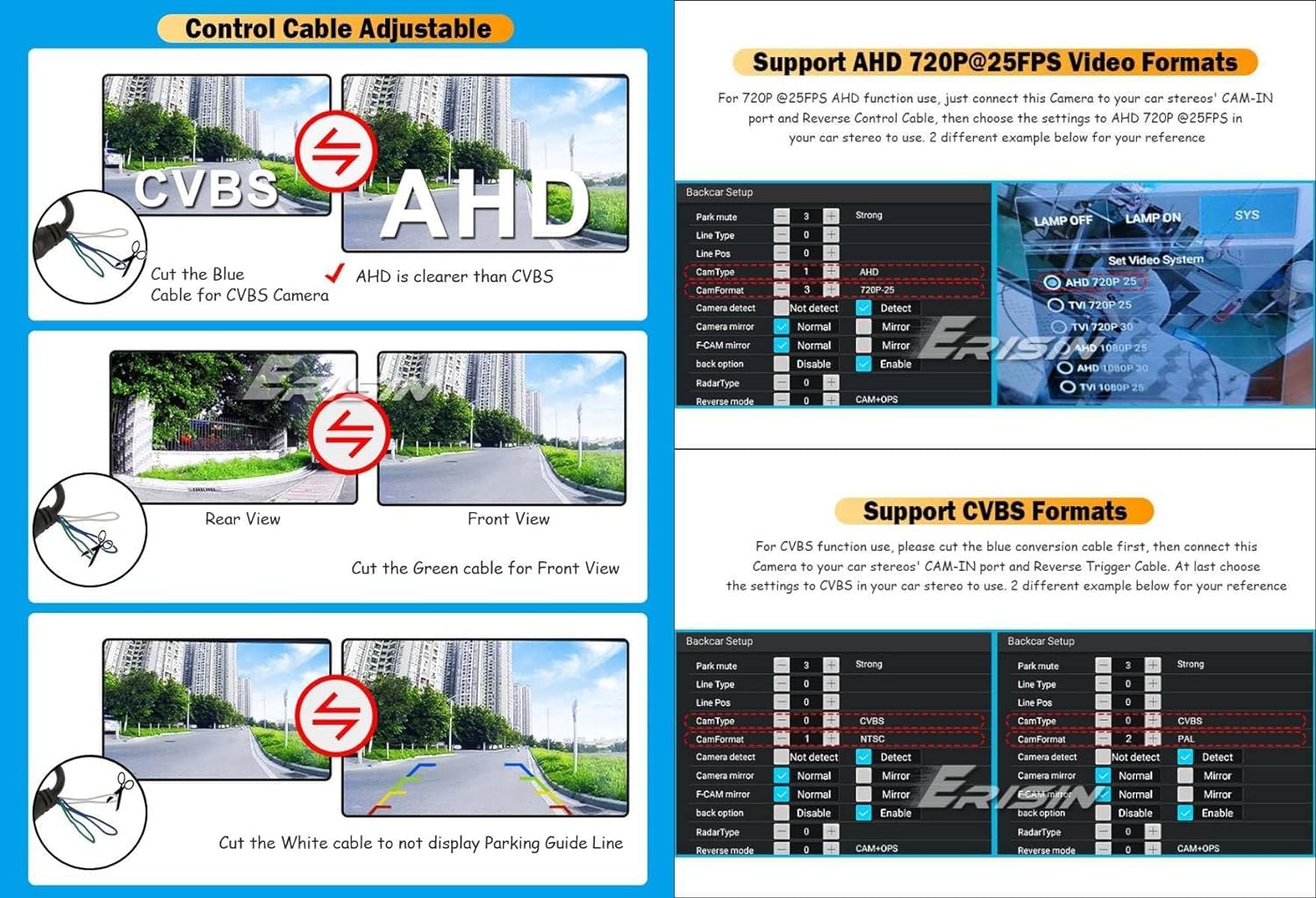

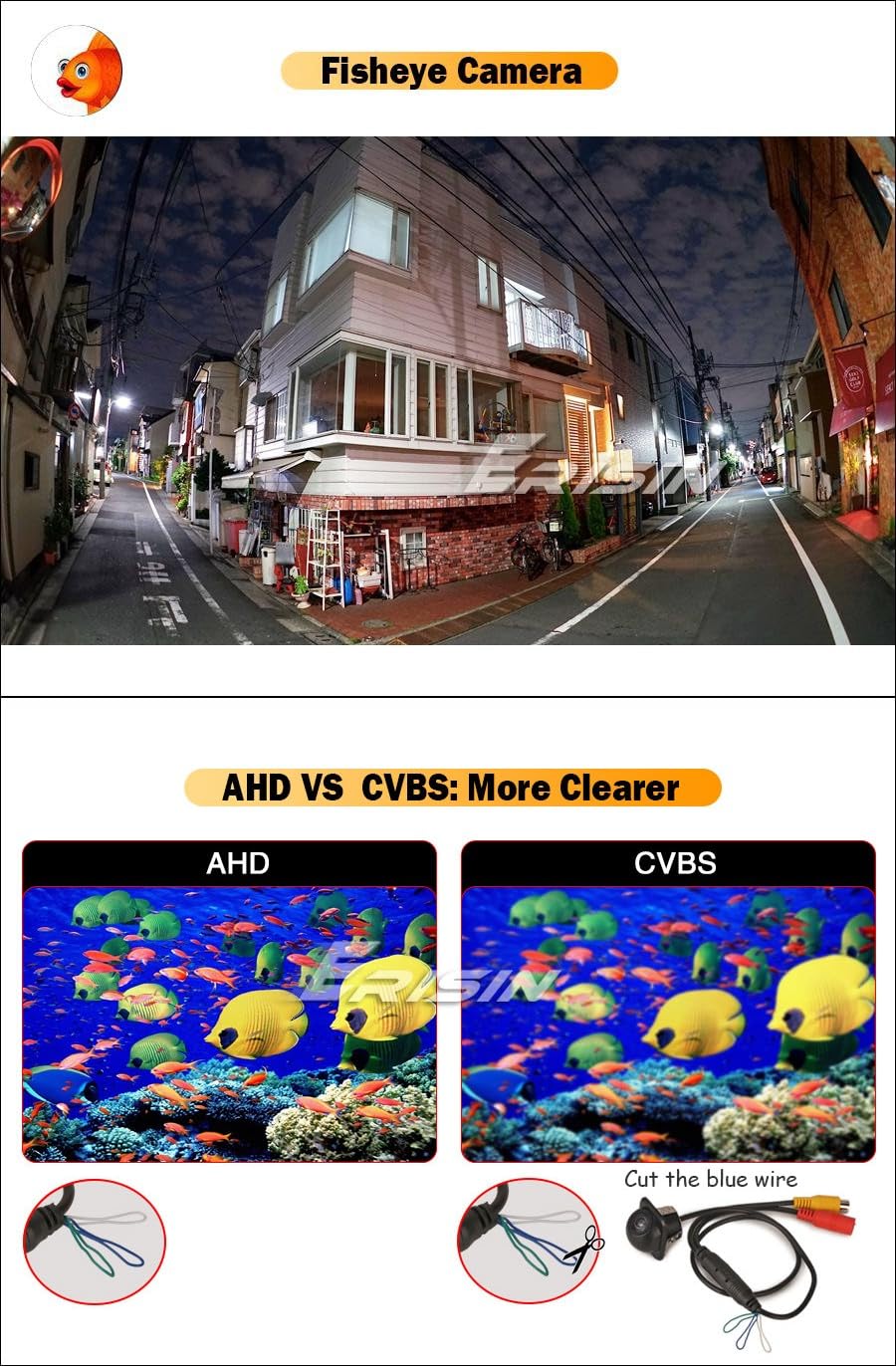

• 5. 2-in-1 Design: Switchable: - This camera is an AHD 720P-25FPS Camera as the default settings. You can cut the Blue looped wire to use it as a CVBS Camera; - This camera is a Rear View Camera with distance scale lines as the default settings for backing up. You can cut the cut the Green looped wire to use it as a Front View Camera; Cut the White looped wire, to disable the parking guidelines.

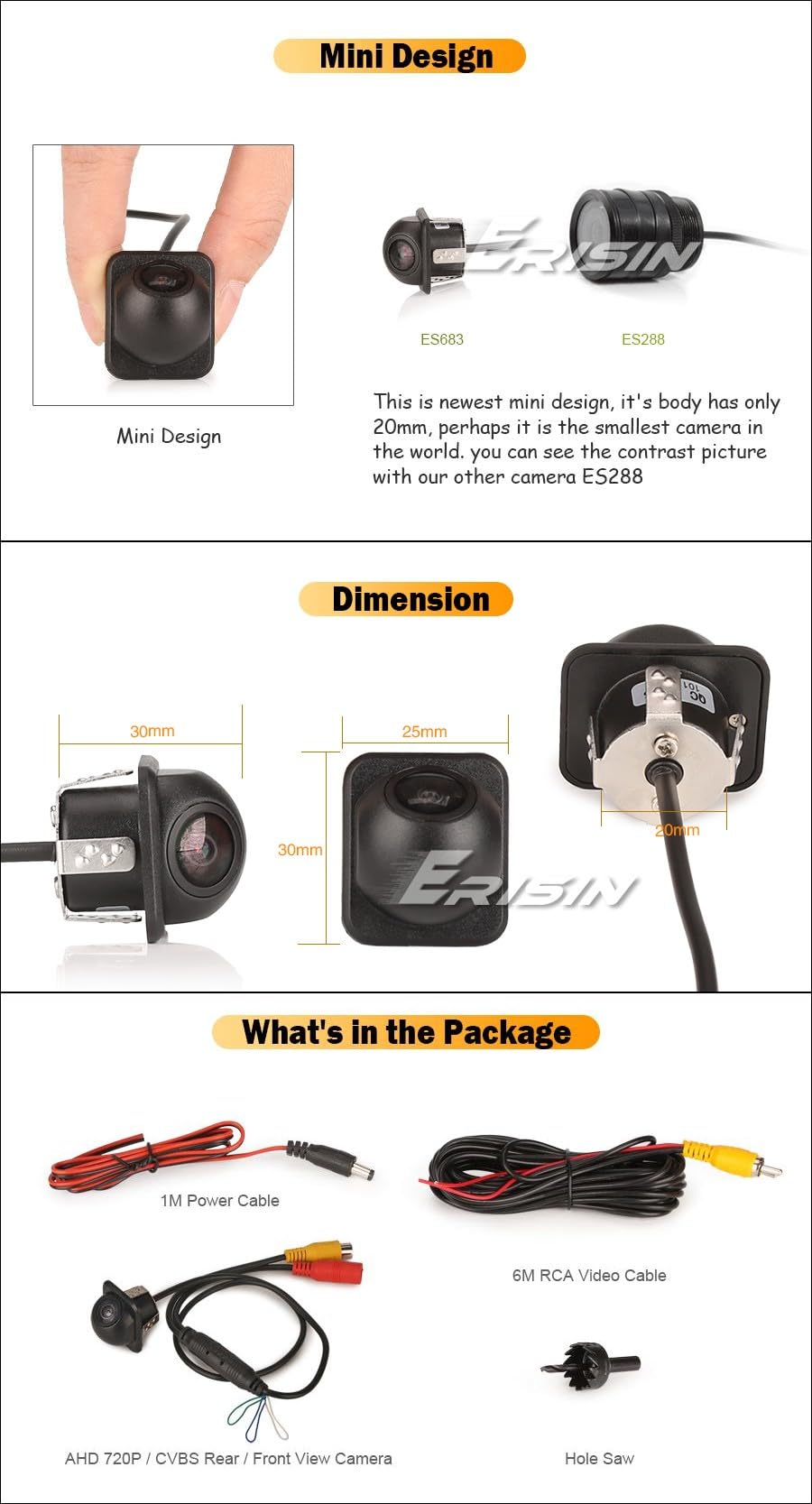

Specifications: - Type: Car Rear / Front View Camera - Sensor: PC1030 1/4-inch Color CMOS - Effective Pixels: NTSC 648 x 488 pixels - TV System: AHD/CVBS(NTSC / PAL) switch - Lens Angle: 150 degree Horizontal, 180 Degree 180 Vertical - Electronic Shutter: 1/60(NTSC), 1/50(PAL)-1/10000s - Resolution: 480 TV lines - Minimum Illumination: 0.2Lux - Power Supply: DC 12V±10% - Power Consumption: Max 0.5W - Operating Temperature: -20℃~+75℃ RH95% Max - Storage Temperature: -40℃~+85℃ RH95% Max - Waterproof: IP68 - RCA Video Cable: 6M - 16.5mm Hole Saw as gift included - Weight: 136g Parcel Content: - 1 * AHD 720P / CVBS Rear / Front View Camera - 1 * 1M Power Cable - 1 * 6M RCA Video Cable - 1 * Hole Saw Specifications: - Type: Car Rear / Front View Camera - Sensor: PC1030 1/4-inch Color CMOS - Effective Pixels: NTSC 648 x 488 pixels - TV System: AHD/CVBS(NTSC / PAL) switch - Lens Angle: 150 degree Horizontal, 180 Degree 180 Vertical - Electronic Shutter: 1/60(NTSC), 1/50(PAL)-1/10000s - Resolution: 480 TV lines - Minimum Illumination: 0.2Lux - Power Supply: DC 12V±10% - Power Consumption: Max 0.5W - Operating Temperature: -20℃~+75℃ RH95% Max - Storage Temperature: -40℃~+85℃ RH95% Max - Waterproof: IP68 - RCA Video Cable: 6M - 16.5mm Hole Saw as gift included - Weight: 136g Parcel Content: - 1 * AHD 720P / CVBS Rear / Front View Camera - 1 * 1M Power Cable - 1 * 6M RCA Video Cable - 1 * Hole Saw
