Era Challenger 3D Composite Door Rebate Butt Hinge White

• Artikelname the puffin classics story collection 10 books set the extraordinary cases of sherlock holmes, jungle book, peter pan, a little princess, alice's adventures wonderland, more .
• Maximum load of 90 kg if 3 hinges are used.
• Load capacity 90 kg if 3 hinges are used.

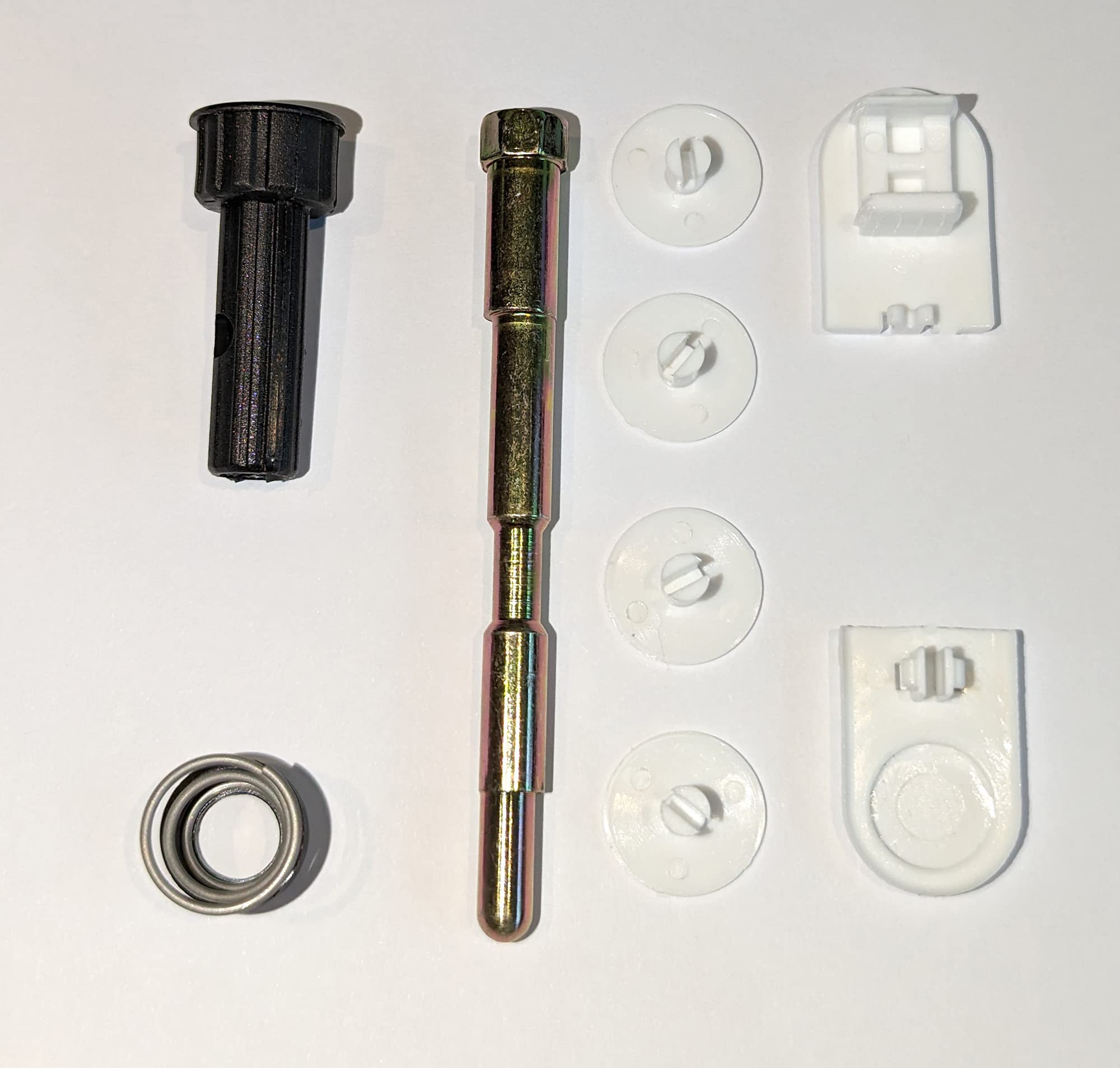

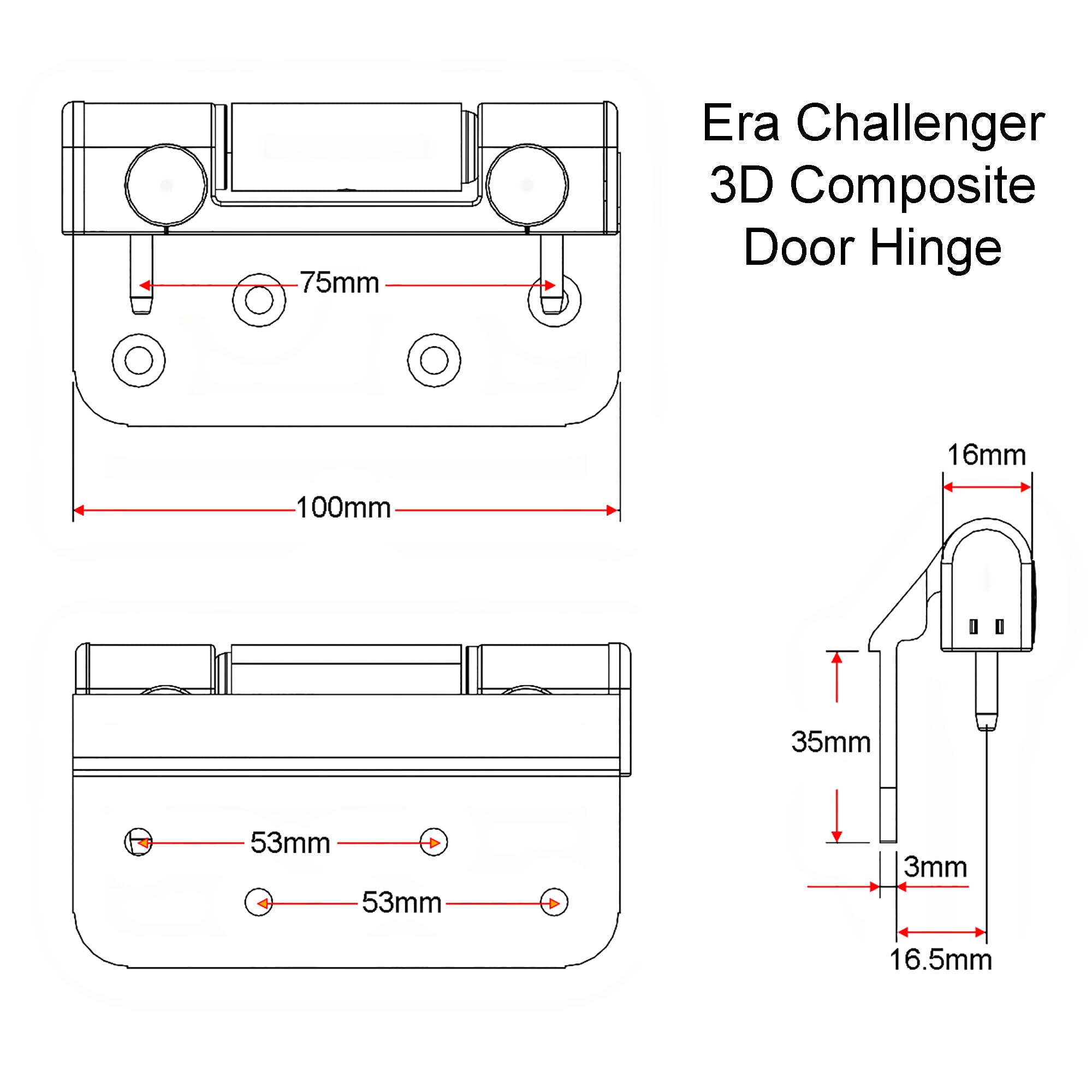

Era Challenger 3D Composite Door Rebate Butt Hinge White This Era Challenger Composite Door Hinge has been especially designed to meet the requirements of BS EN 1670:2007 and is Grade 4 Corrosion Resistant (240 hours). It is suitable for use on composite and timber doors and is fully 3D adjustable (Lateral, Height and Compression). It features a secured security pin for inward and outward opening doors, a classic durable body with superior performance and weight loading capacity of 90kg if 3 hinges are used. Features: Meets BS EN 1670:2007 requirements Grade 4 corrosion resistant (240 hours) Endurance d in excess of 50,000 cycles Suitable for use on composite and timber doors Suitable for use on inward and outward opening doors Fully 3D adjustable Secured Security Pin Durable classic body 90kg Weight loading capacity if 3 hinges are used What's in the pack? 1 x Era Challenger White Composite Door 3D Hinge Body 1 x Era Challenger White Composite Door 3D Hinge Flag 1 x Top Cap 1 x Bottom Cap 4 x Adjuster Cap 1 x Flag Bush 1 x Spring Bush 1 x Hinge Pin Measurements Lateral 3D adjustment: +2mm / -2mm Vertical 3D adjustment:: +3mm Compression 3D adjustment: +0.5mm / -0.5mm
