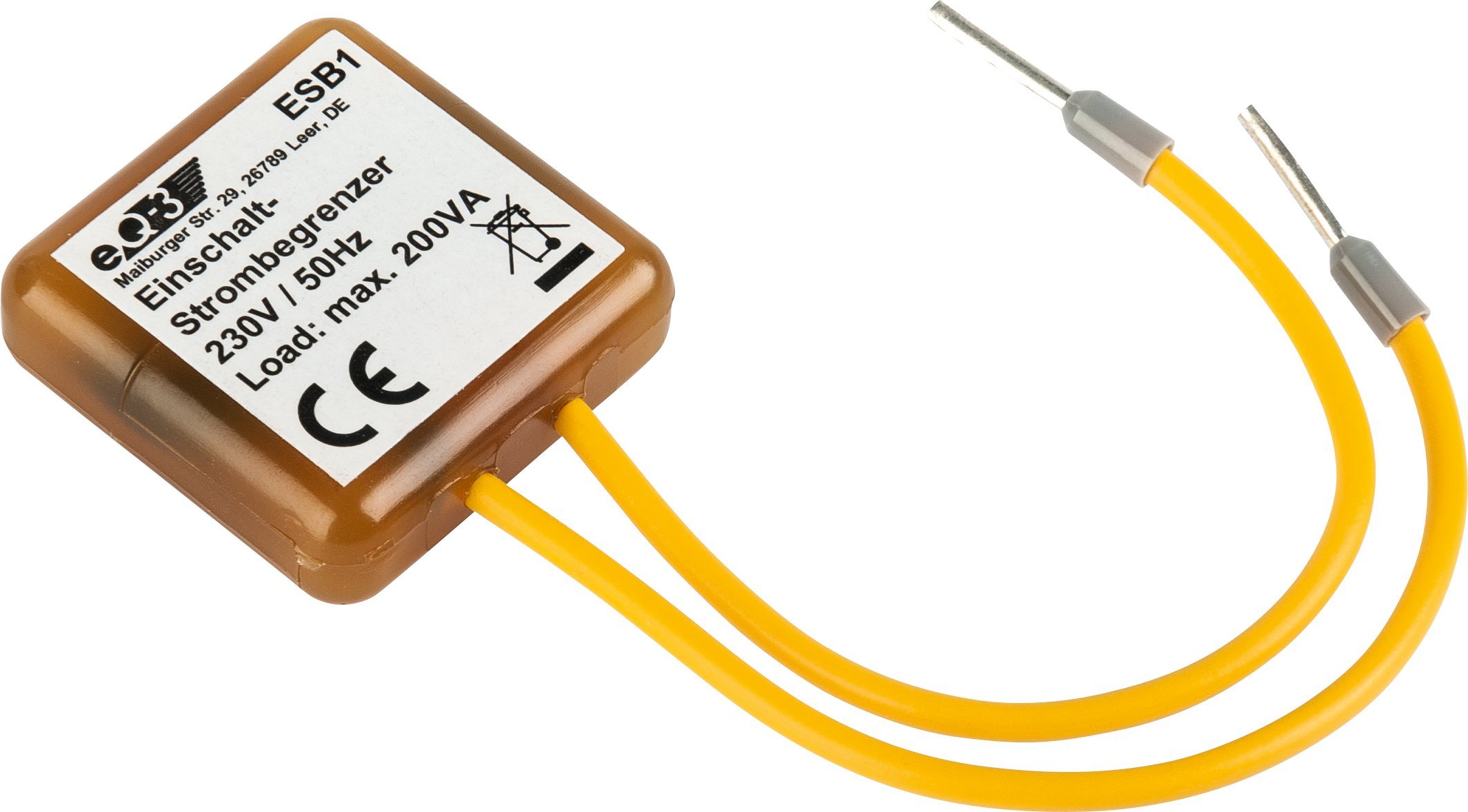

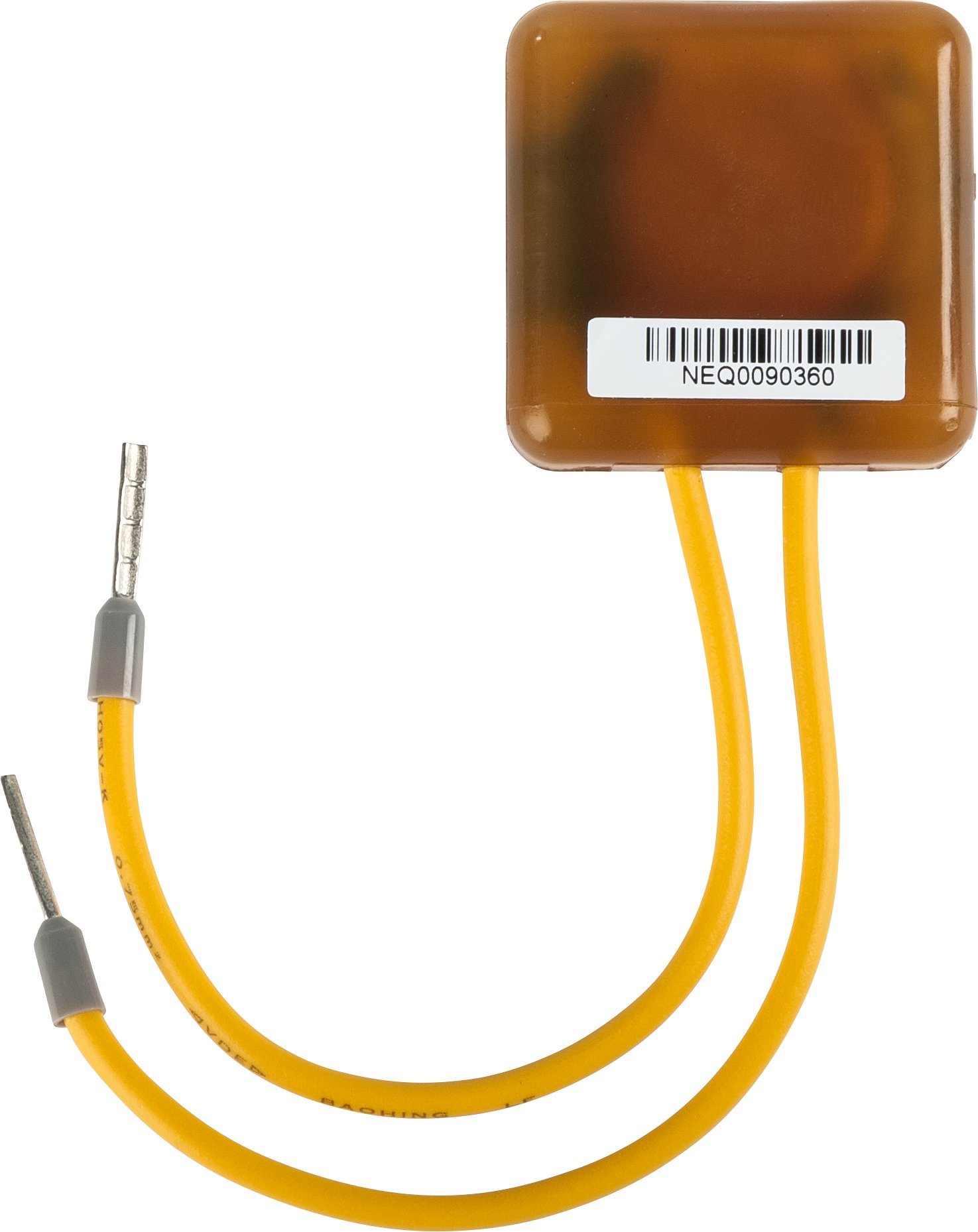

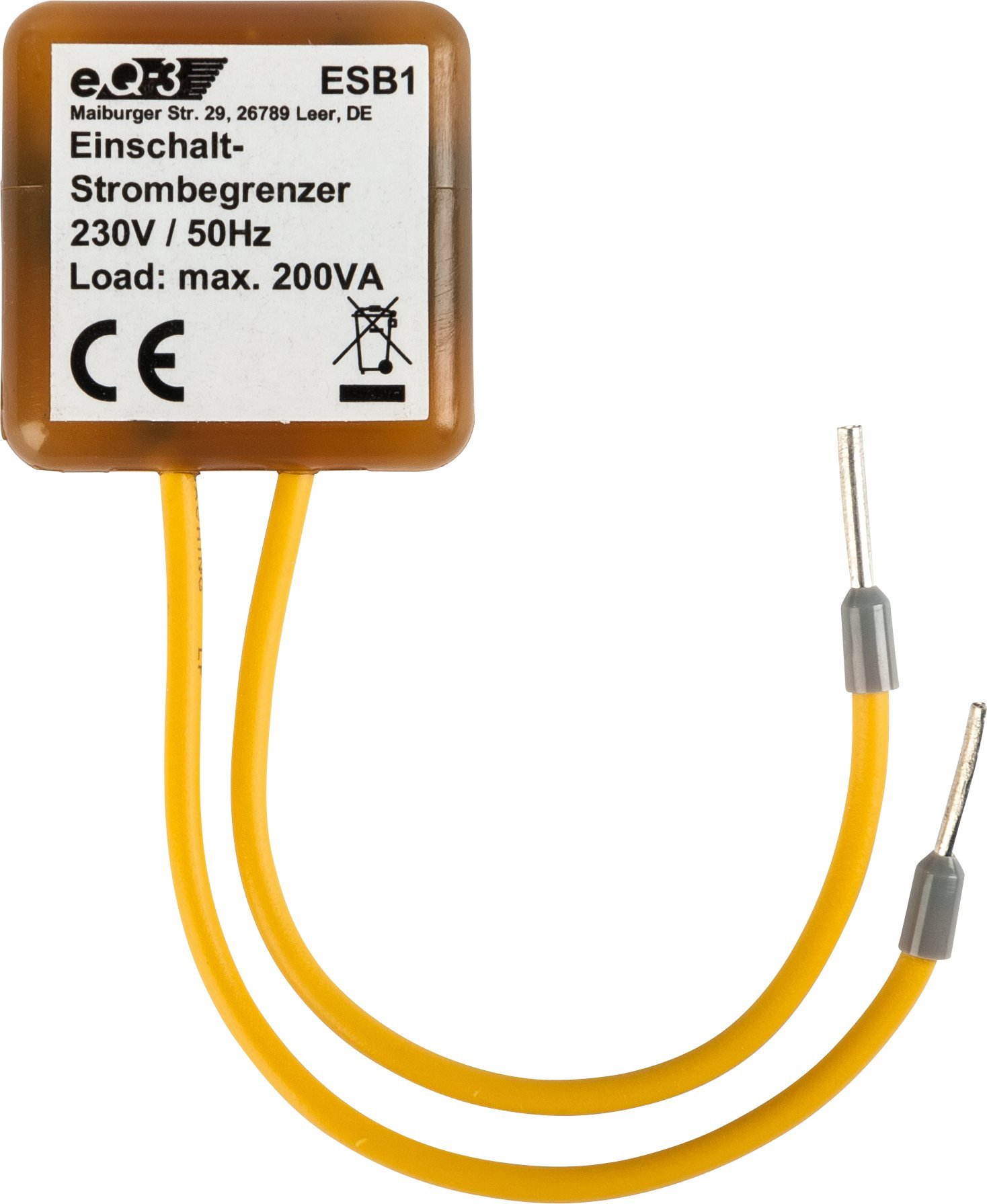

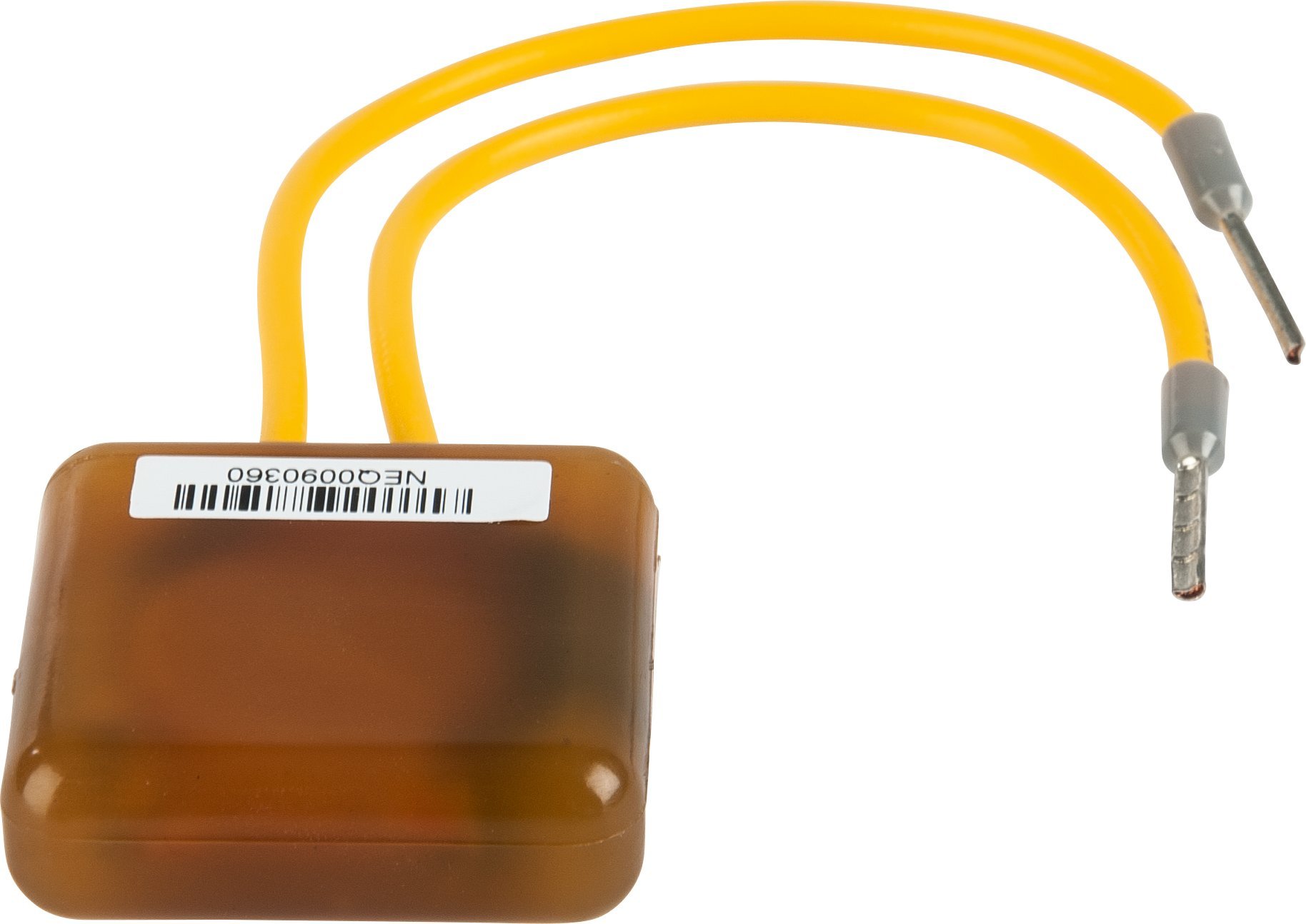

eQ-3 130366 On Current Limiter

• Reduces potentially occurring high inrush currents via an integrated NTC resistor, e.g. For example, when using modern LED bulbs
• Effective protection against premature wear of the relay contacts of switching actuators due to high inrush currents
• The life of a conventional incandescent bulb can be extended many times while protecting the switching relay of an actuator
• Flexible mounting in a flush-mounted box thanks to the compact design

Reduces potentially occurring high inrush currents via an integrated NTC resistor, e.g. For example, when using modern LED bulbs. Effective protection against premature wear of the relay contacts of switching actuators due to high inrush currents. The service life of a conventional incandescent lamp can be extended many times and at the same time the switching relay of an actuator is protected. Thanks to the compact design, flexible mounting in a flush-mounted box possible. Technical data: supply voltage 230 V/50 V. One of HHHHHz Switching current 90 A/1 ms load max. 200 VA installation only in switch boxes (device boxes) according to DIN 49073-1 or junction boxes (surface-mounted boxes) according to DIN 60670-1, protection class IP20, ambient temperature 5 to 35 °C, dimensions (W x H x D): 30 x 10 x 30 mm
