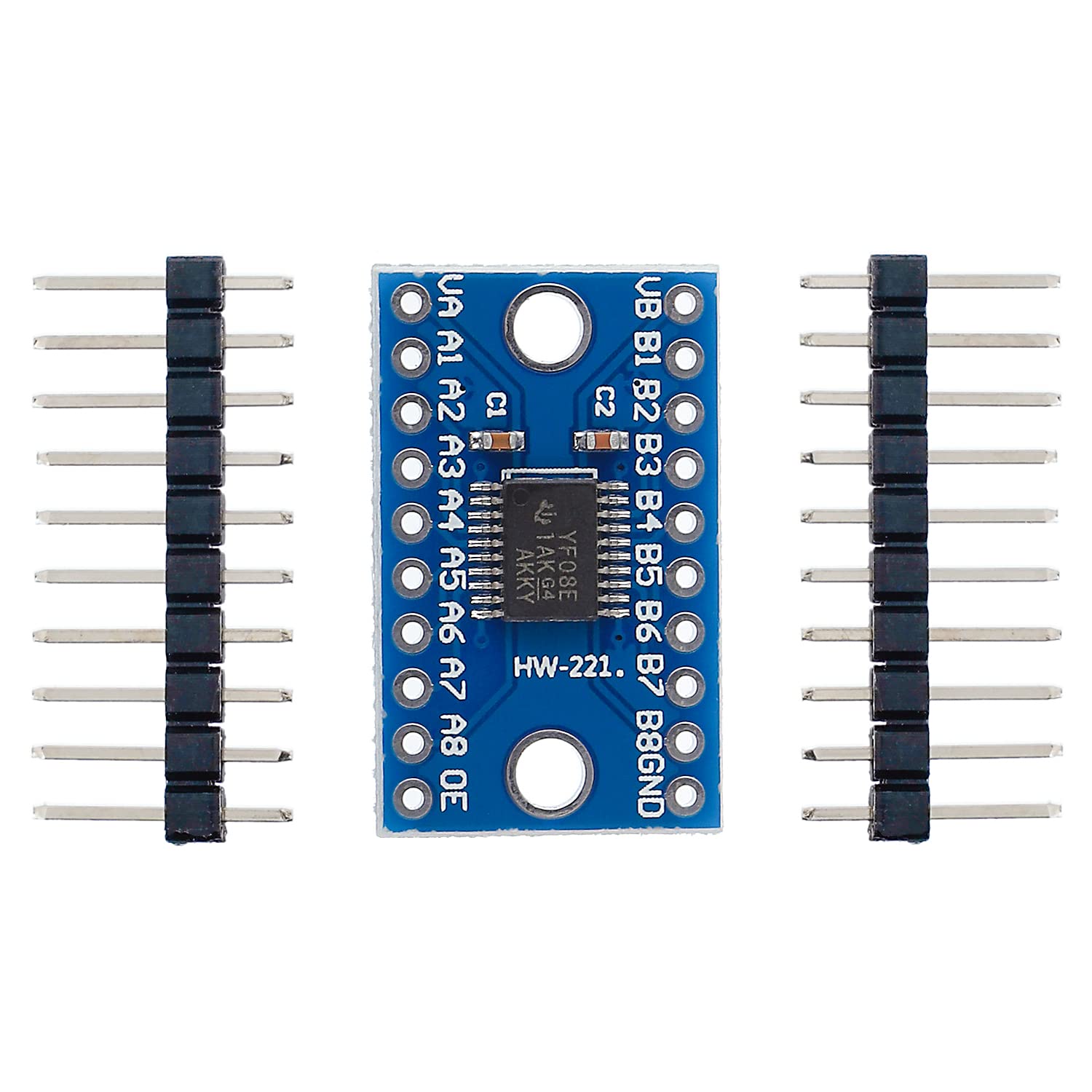

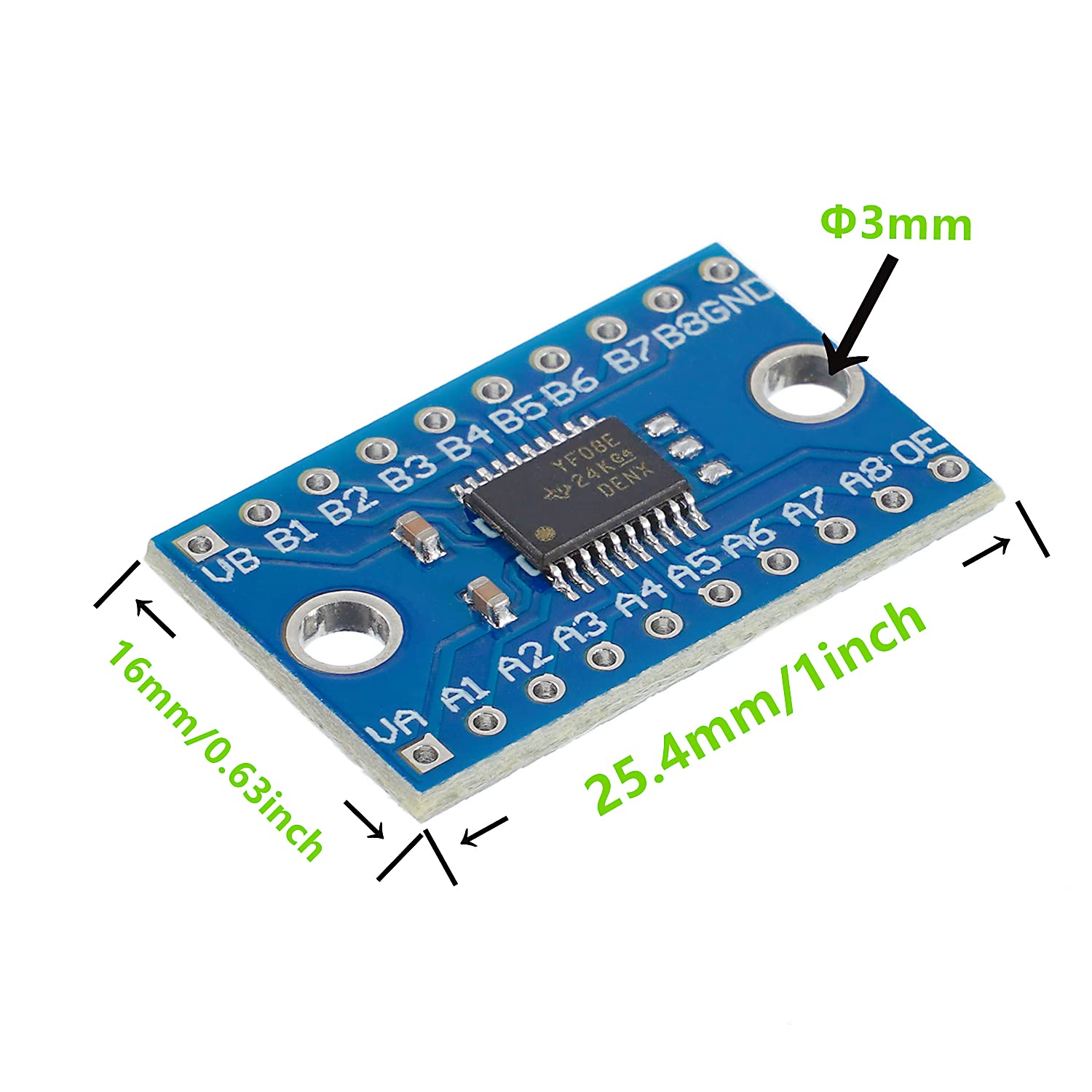

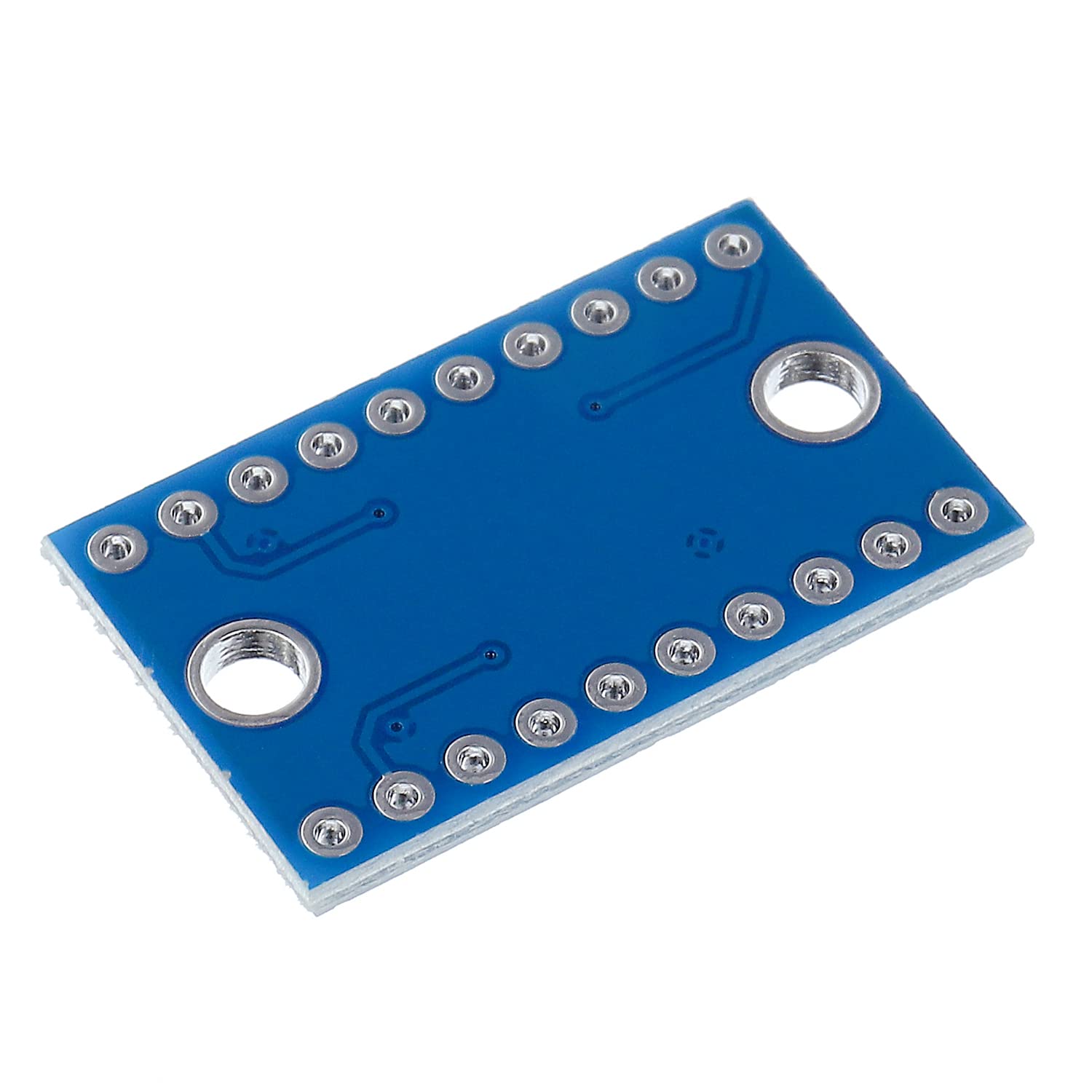

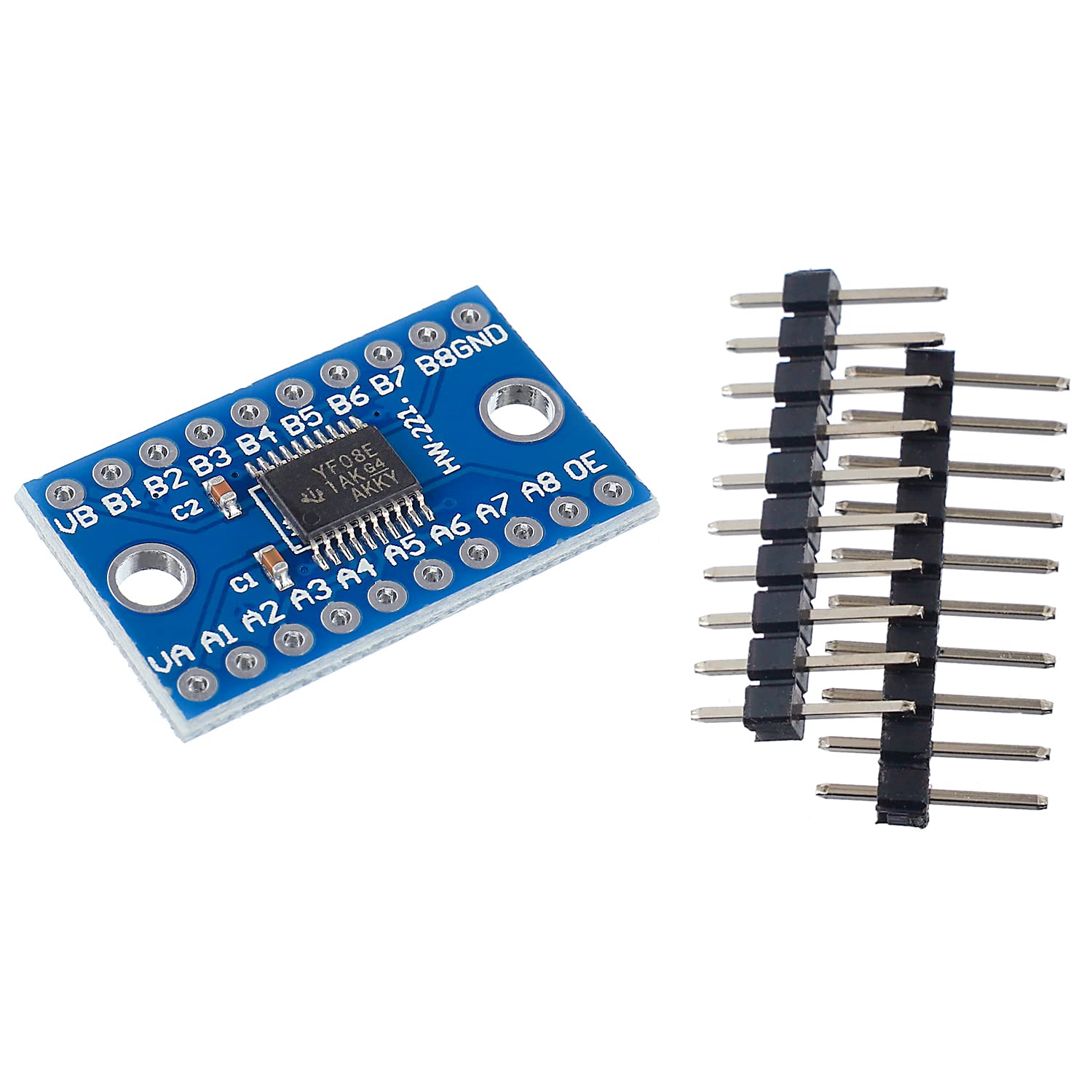

EPLZON TXS0108E High Speed Full Duplex Logic Level Converter 8 Channel SPI 8 Way 3.3V 5V I2C IIC 8-Bit Bi-Directional Converter Module Compatible with Raspberry Pi and Arduino (Pack of 5 Set)

• Provide two-way communication capabilities,OE active high enable IO recommended by a low voltage side of the IO port
• Supply voltage VA:1.2V to 3.6V - VB: 1.65V to 5.5V
• Allows the use of 5V modules on 3.3V microcontrollers, or 3.3V modules on 5V microcontrollers.
• Supports SCM, I²C, SPI
• Widely used in the MCU and SD card, MCU and serial devices,MCU and 5V/3V module communiction

EPLZON TXS0108E High Speed Full Duplex Logic Level Converter This module is a directionless voltage-level translator specifically designed for translating logic voltage levels. While this device is designed for open-drain applications, the device can also translate push-pull CMOS logic outputs. The TXS0108E device has two functional modes; enabled and disabled. This 8-bit non-inverting translator uses two separate configurable power-supply rails. When the output-enable (OE) input is low, all outputs are placed in the high-impedance (Hi-Z) state Feature: Provide two-way communication capability VCCA side support voltage: 1.2V-3.6V VCCB side support voltage: 1.65v-5.5v Can provide 3.3-5V, 1.8-3.3v and other common level conversion capability No Direction-Control Signal Needed No Power-Supply Sequencing Required – Either VCCA or VCCB Can Be Ramped First Main applications: 5V and 3.3V MCU module 3.3V and 5V MCU module Compatible and other communications support MCU and SD card communication level conversion SCM、I²C、SPI serial device level converter OE active high enable IO recommended by a low voltage side of the IO port Package included: 5set*TXS0108E High Speed Full Duplex 8 Channel Logic Level Bi-directional Converter Module
